NSN 4820-00-991-9622 8041E1/4HS2, 8041E14HS2, 8041F14HD2
Product Details | SELECTOR ROTARY VALVE
4820-00-991-9622 A manually or power operated valve designed to control the flow of a fluid by the rotation of a ported or curved rotor. A spring, ball, or cam detent may be included to locate or hold position. The item may be panel or subplate mounted, or be an inline design. Excludes VALVE, PLUG. See also VALVE, LINEAR, DIRECTIONAL CONTROL.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 8041E1/4HS2, 8041E14HS2, 8041F14HD2, 8041F-1-4HD2, 86414HD2, 8641-4HD2, 4820-00-991-9622, 00-991-9622, 4820009919622, 009919622
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1962 | 00-991-9622 | 45485 ( VALVE, ROTARY, SELECTOR ) |

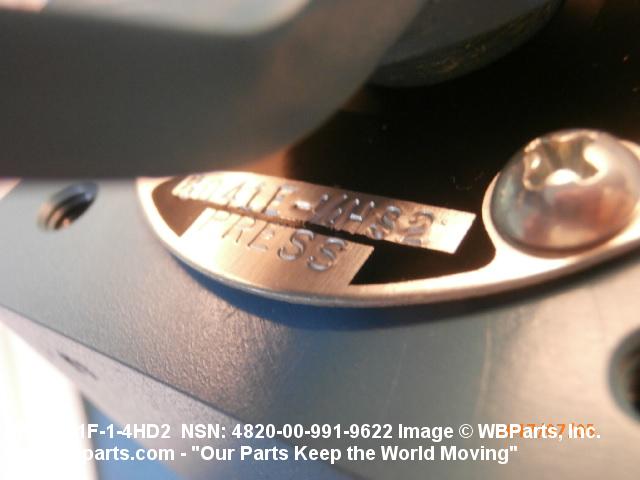

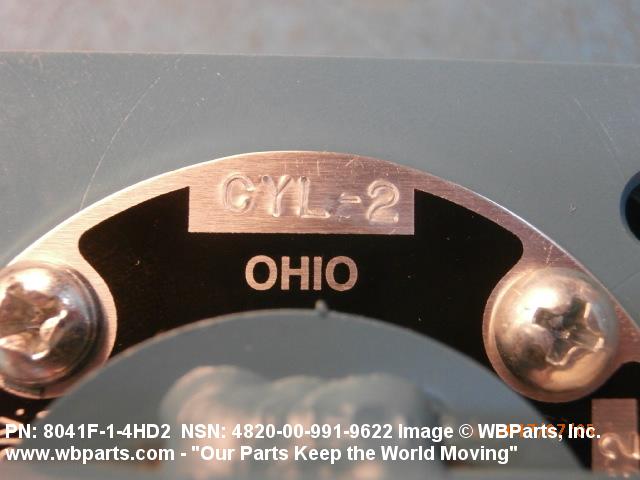

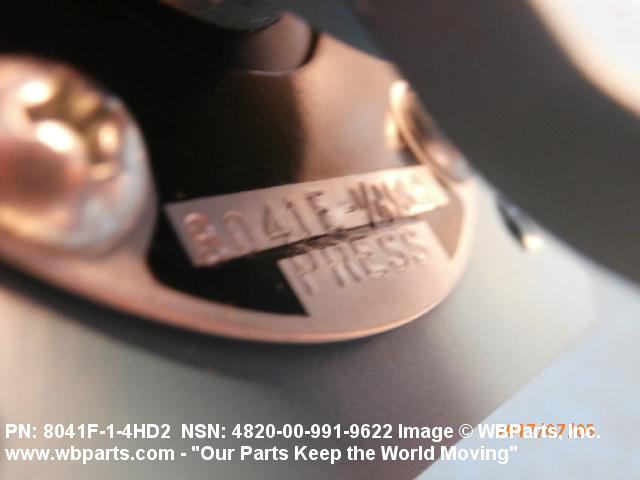

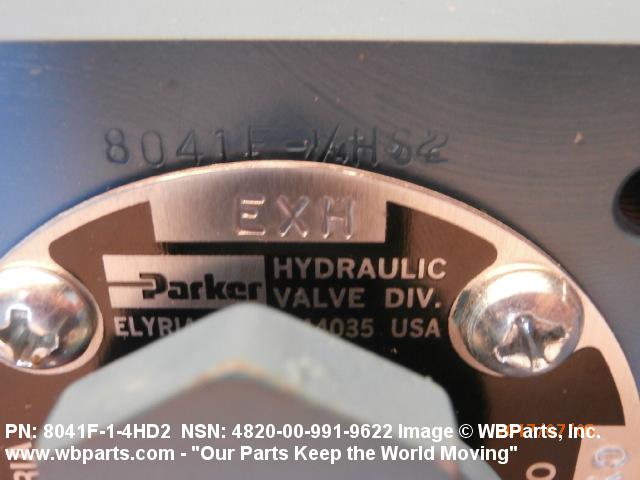

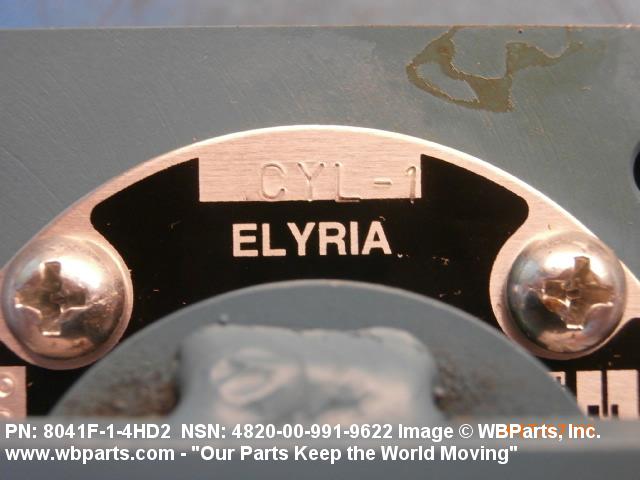

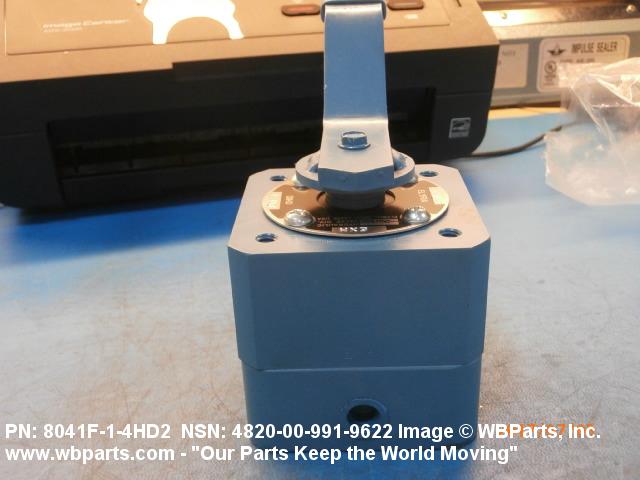

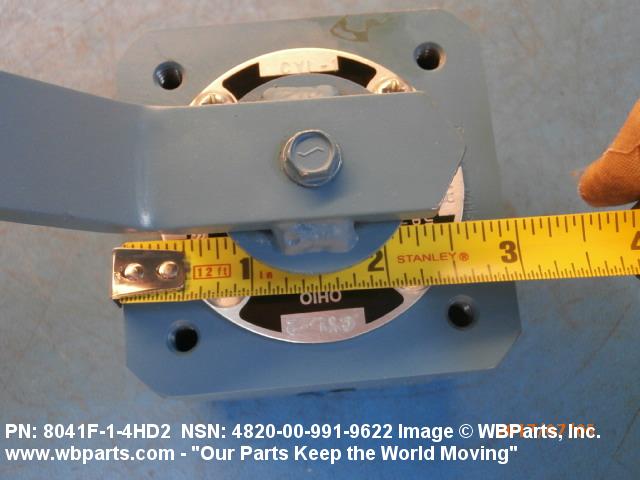

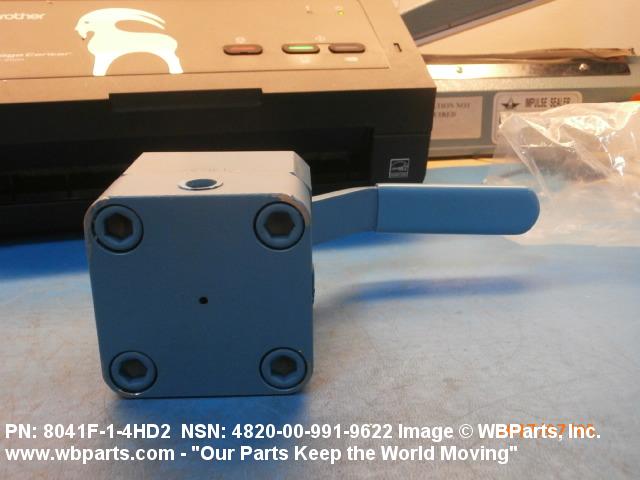

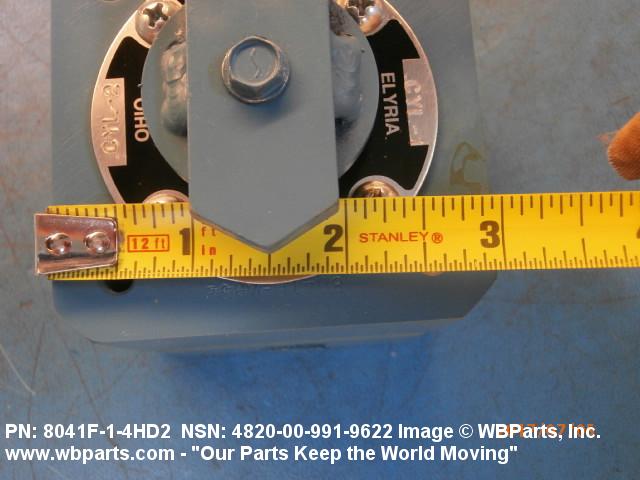

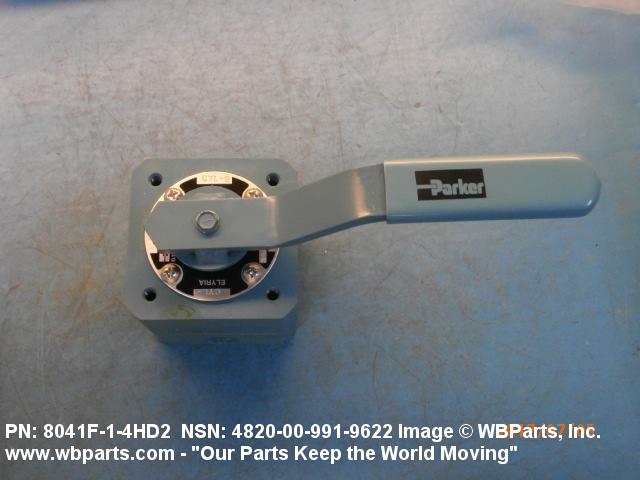

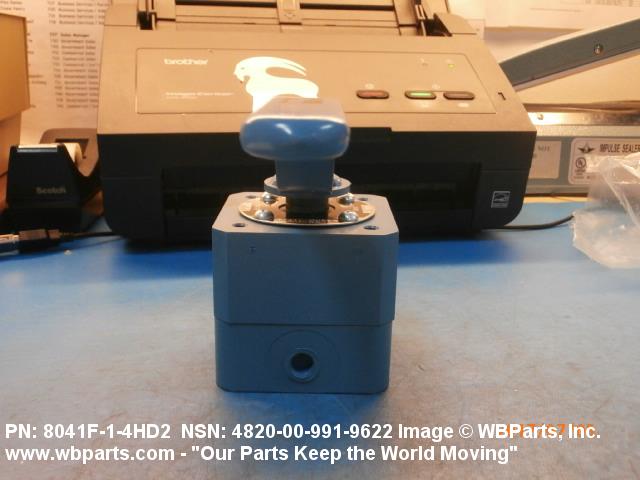

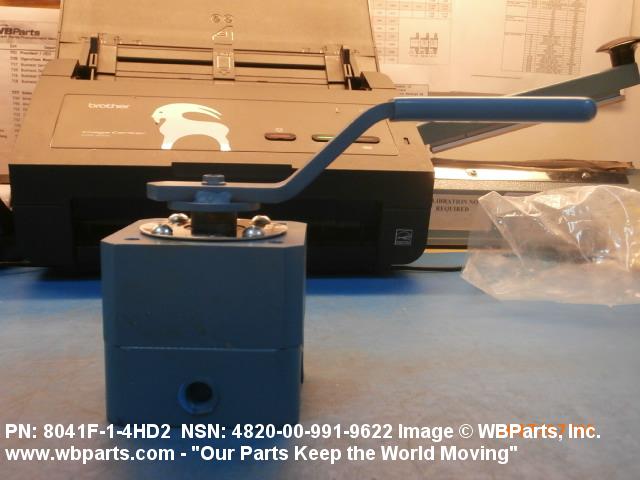

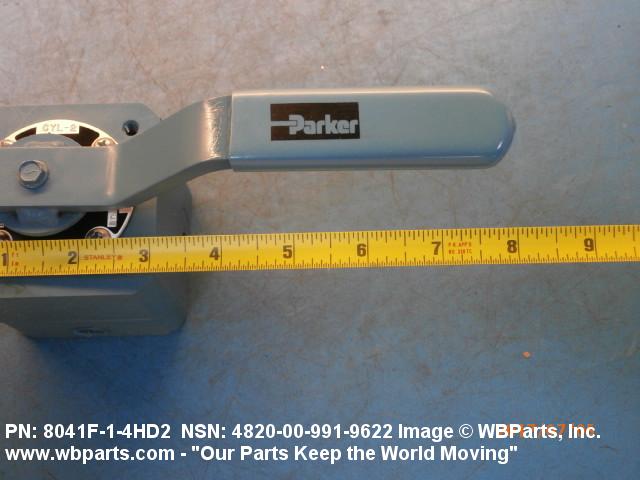

Drawings & Photos | NSN 4820-00-991-9622
Demand History | NSN 4820-00-991-9622
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-991-9622 | 2023-04-117 | 2 | US |
| 4820-00-991-9622 | 2021-02-40 | 10 | Malaysia |
| 4820-00-991-9622 | 2017-06-171 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-991-9622
Technical Data | NSN 4820-00-991-9622
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL CORROSION RESISTING |
| VALVE SIZE | 0.250 INCHES |
| FLOW TYPE | FOUR-WAY |
| FLOW CONTROL DEVICE | PORTED ROTOR |
| VALVE OPERATION METHOD | MANUAL |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 3000.0 POUNDS PER SQUARE INCH OIL, HYDRAULIC |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 160.0 DEG FAHRENHEIT OIL, HYDRAULIC |
| CONNECTION LOCATION | SIDE |
| CONNECTION QUANTITY | 4 |
| CONNECTION TYPE | THREADED INTERNAL PIPE |
| THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| MOUNTING FACILITY | INLINE |
Restrictions/Controls & Freight Information | NSN 4820-00-991-9622
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-991-9622
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
