NSN 4820-00-983-2860 VAL1404, 86017C, 8601-7C
Product Details | FLUID PRESSURE REGULATING VALVE
4820-00-983-2860 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: VAL1404, 86017C, 8601-7C, 4820-00-983-2860, 00-983-2860, 4820009832860, 009832860
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
48 | 01 JAN 1962 | 00-983-2860 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-983-2860
Related Products | NSN 4820-00-983-2860
Technical Data | NSN 4820-00-983-2860
Characteristic | Specifications |
---|---|
BODY MATERIAL | BRASS |
END CONNECTION QUANTITY | 4 |
FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |

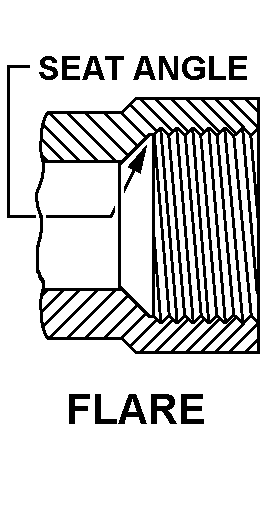

FIRST END STYLE DESIGNATOR | B7 FLARE |
FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1/2-20 UNF |
FIRST END THREAD CLASS | 3B |
FIRST END THREAD DIRECTION | RIGHT-HAND |
SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
THIRD END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH FIRST END |
FOURTH END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH FIRST END |
BODY STYLE | A3 CROSS |
Restrictions/Controls & Freight Information | NSN 4820-00-983-2860
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
Less than car load rating | ||
Less than truck load rating | P | 77.5 |
Water commodity Code | 594 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-983-2860
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
