4820-00-983-3075 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered

Part Alternates: 3260169, 4820-00-983-3075, 00-983-3075, 4820009833075, 009833075

Valves | Valves, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
48 01 JAN 1962 00-983-3075

Drawings & Photos | NSN 4820-00-983-3075


Cross Reference | NSN 4820-00-983-3075

Part Number Cage Code Manufacturer
3260169 78385 MEGGITT (TROY), INC. DIV MEGGITT PLC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4820-00-983-3075

Technical Data | NSN 4820-00-983-3075

Characteristic Specifications
BODY MATERIAL ALUMINUM ALLOY
SEAT MATERIAL ALUMINUM ALLOY
STEM MATERIAL ALUMINUM ALLOY
FLOW CONTROL DEVICE DISK, CIRCULAR
FLOW CONTROL DEVICE MATERIAL ALUMINUM ALLOY
OUTSIDE SURFACE TREATMENT ANODIZED
END CONNECTION QUANTITY 2
FIRST END CONNECTION TYPE THREADED EXTERNAL TUBE
FIRST END STYLE DESIGNATOR D3 FLARED
FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED 0.562 INCHES NOMINAL
FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR 0.562-18 UNF
FIRST END THREAD CLASS 2A
FIRST END THREAD DIRECTION RIGHT-HAND
FIRST END SEAT ANGLE IN DEG 37.0
SECOND END RELATIONSHIP WITH FIRST END NOT IDENTICAL
SECOND END CONNECTION TYPE THREADED EXTERNAL BOSS

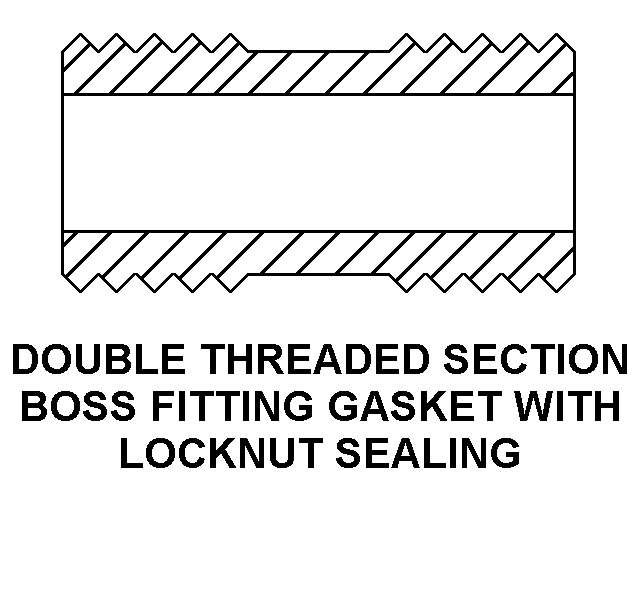

SECOND END STYLE DESIGNATOR D13 DOUBLE THREADED SECTION BOSS FITTING GASKET WITH LOCKNUT SEALING
SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR 0.562-18 UNF
SECOND END THREAD CLASS 2A
SECOND END THREAD DIRECTION RIGHT-HAND
BODY STYLE A7 ANGLE
MEDIA FOR WHICH DESIGNED AIR
RENEWABLE SEAT RING TYPE THREADED
REGULATION TYPE AUTOMATIC SINGLE STAGE
VALVE LOADING METHOD WEIGHT
MAXIMUM INLET PRESSURE RATING NOT RATED
OUTLET PRESSURE ACCURACY RATING NOT RATED
FILTER INCLUDED
