NSN 4820-00-551-1094 AA55540, A-A-55540, AA555401
Product Details | FLUID PRESSURE REGULATING VALVE
4820-00-551-1094 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: AA55540, A-A-55540, AA555401, AA55540-1, MILR13877, RVT8011, UL252, UL252TYPE1, UL252-TYPE-1, VTS410A968, VTS460A300, VTS460A-300, 07813983, 0781-3983, 07816013, 0781-6013, 1362470, 703015, 70-3015, 4820-00-551-1094, 00-551-1094, 4820005511094, 005511094
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-551-1094 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |

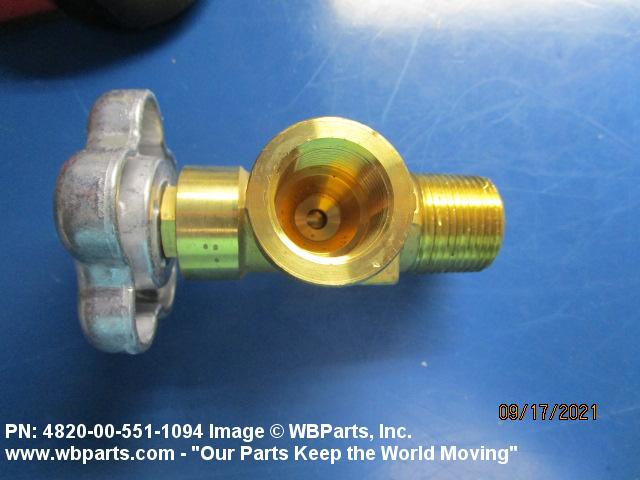

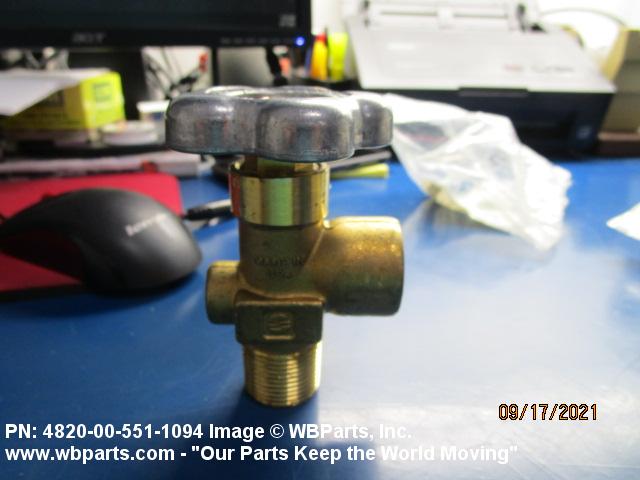

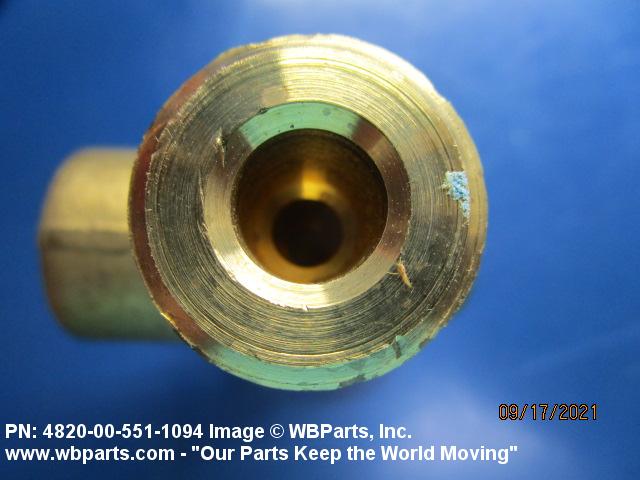

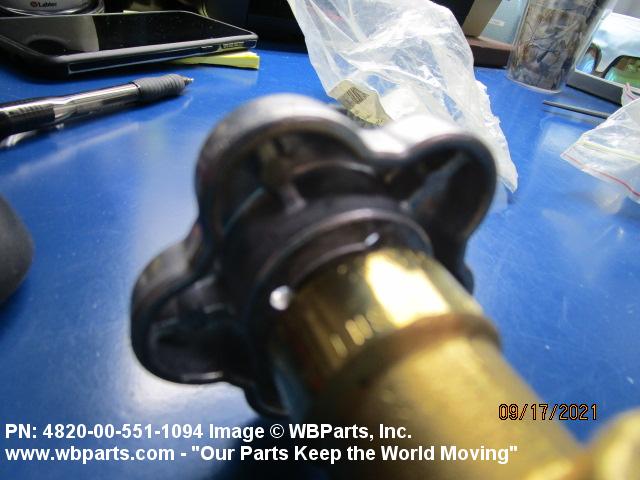

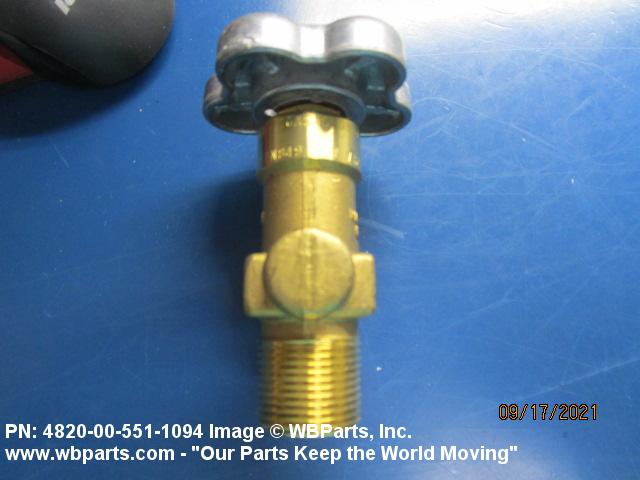

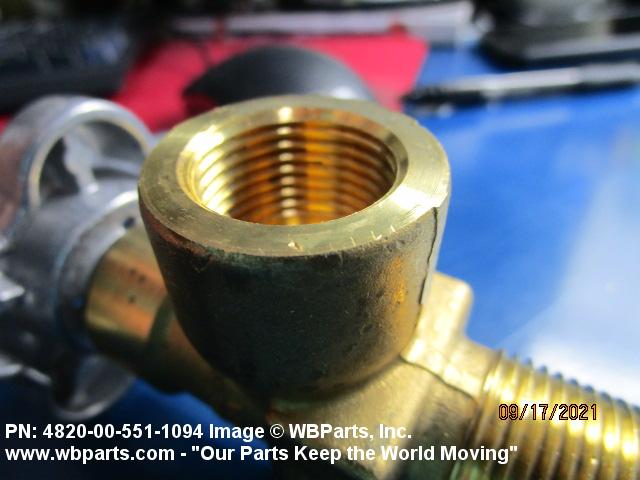

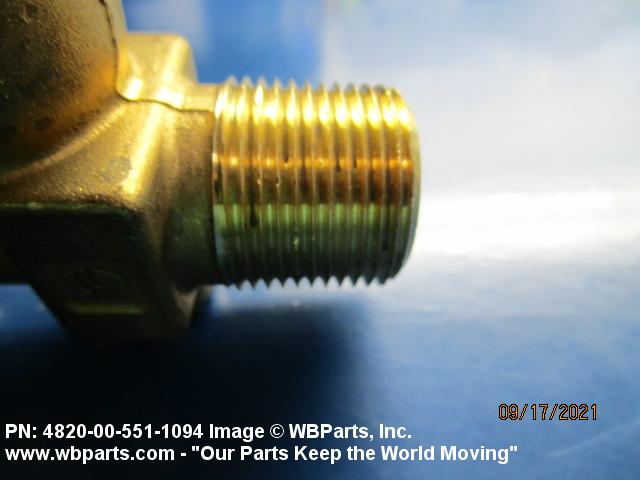

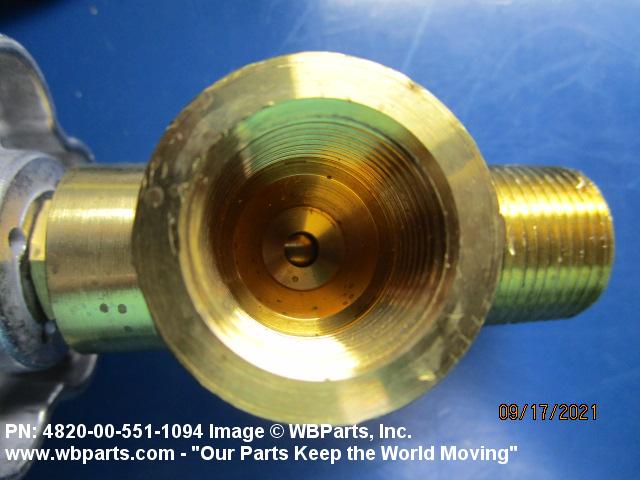

Drawings & Photos | NSN 4820-00-551-1094
Demand History | NSN 4820-00-551-1094
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-551-1094 | 2024-12-345 | 188 | DIBBS |
| 4820-00-551-1094 | 2024-08-225 | 268 | DIBBS |
| 4820-00-551-1094 | 2024-08-214 | 268 | DIBBS |
| 4820-00-551-1094 | 2023-11-334 | 270 | DIBBS |
| 4820-00-551-1094 | 2023-05-136 | 367 | DIBBS |
| 4820-00-551-1094 | 2023-04-103 | 216 | DIBBS |
| 4820-00-551-1094 | 2022-06-164 | 264 | DIBBS |
| 4820-00-551-1094 | 2022-06-153 | 264 | DIBBS |
| 4820-00-551-1094 | 2021-10-284 | 230 | DIBBS |
| 4820-00-551-1094 | 2021-09-246 | 8 | United States |
| 4820-00-551-1094 | 2021-08-230 | 21 | DIBBS |
| 4820-00-551-1094 | 2021-08-218 | 8 | United States |
| 4820-00-551-1094 | 2020-06-170 | 1 | DIBBS-RFPs |
| 4820-00-551-1094 | 2019-09-269 | 283 | DIBBS |
| 4820-00-551-1094 | 2019-08-242 | 1 | DIBBS-RFPs |
| 4820-00-551-1094 | 2018-11-319 | 281 | DIBBS |
| 4820-00-551-1094 | 2018-06-179 | 264 | DIBBS |
| 4820-00-551-1094 | 2018-03-77 | 233 | DIBBS |
| 4820-00-551-1094 | 2016-10-298 | 317 | DIBBS |
| 4820-00-551-1094 | 2016-10-285 | 317 | DIBBS |
| 4820-00-551-1094 | 2016-06-179 | 338 | DIBBS |
| 4820-00-551-1094 | 2016-06-167 | 338 | DIBBS |
| 4820-00-551-1094 | 2016-02-57 | 289 | DIBBS |
| 4820-00-551-1094 | 2016-02-46 | 289 | DIBBS |
| 4820-00-551-1094 | 2015-12-340 | 130 | DIBBS |
| 4820-00-551-1094 | 2015-11-312 | 147 | DIBBS |
| 4820-00-551-1094 | 2015-10-280 | 111 | DIBBS |
| 4820-00-551-1094 | 2015-09-267 | 78 | DIBBS |
| 4820-00-551-1094 | 2013-08-240 | 1 | DIBBS-RFPs |
| 4820-00-551-1094 | 2011-11-311 | 12 | DIBBS |
Cross Reference | NSN 4820-00-551-1094
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0781-3983 | 63026 | VICTOR EQUIPMENT CO |
| 0781-6013 | 63026 | VICTOR EQUIPMENT CO |
| 1362470 | 45152 | OSHKOSH CORPORATION |
| 1362470 | 75Q65 | OSHKOSH DEFENSE, LLC |
| 70-3015 | 34920 | HARRIS J W CO INC HARRIS WELCO DIV |
| A-A-55540 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA55540-1 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| MILR13877 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RVT8011 | 17941 | UNIWELD PRODUCTS, INC. |
| UL252 | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| UL252-TYPE-1 | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| VTS410A968 | 63026 | VICTOR EQUIPMENT CO |
| VTS460A-300 | 63026 | VICTOR EQUIPMENT CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-551-1094
Related Products | NSN 4820-00-551-1094
Technical Data | NSN 4820-00-551-1094
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ANY ACCEPTABLE |
| FLOW CONTROL DEVICE | DIAPHRAGM |
| FLOW CONTROL DEVICE MATERIAL | STEEL, CORROSION RESISTING |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | D4 COMPRESSION |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES NOMINAL |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 9/16-18 UNF |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | LEFT-HAND |
| FIRST END SEAT ANGLE IN DEG | ANY ACCEPTABLE |
| FIRST END SEAT RADIUS | 0.062 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | D3 FLARED |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.625 INCHES NOMINAL |
| SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.880-14 NGO |
| SECOND END THREAD CLASS | 2A |
| SECOND END THREAD DIRECTION | LEFT-HAND |
| SECOND END SEAT ANGLE IN DEG | 37.0 |
| BODY STYLE | A1 STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | ACETYLENE |
| REGULATION TYPE | MANUAL SINGLE STAGE |
| MANUAL CONTROL METHOD | KNOB |
| VALVE LOADING METHOD | SPRING |
| TEMP RATING | -40.0 DEG FAHRENHEIT MINIMUM AND 165.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM INLET PRESSURE RATING | 400.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE ACCURACY RATING | NOT RATED |
| FILTER | INCLUDED |
| FURNISHED ITEMS | BONNET AND DIAL AND INDICATOR |
| (NON-CORE DATA) DIAL OUTSIDE DIAMETER | 2.000 INCHES |
| (NON-CORE DATA) DIAL RANGE | 0.0 TO 30.0 AND 0.0 TO 400.0 |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
Restrictions/Controls & Freight Information | NSN 4820-00-551-1094
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 188340 | VALVES THEMOSTATIC NOI/THEMOSTATS |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-551-1094
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Operational Test Code | 3 | All items requiring calibration. Items may be technical or non-technical in nature, (i.e., electronic test equipment, meters, gauges, torque wrenches, etc.) All OTC 3 items require established calibration procedures.BLANK |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
