NSN 4820-00-552-2205 D559T4D115, D559T-4D-115, 14D559T4D115
Product Details | SAFETY RELIEF VALVE
4820-00-552-2205 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: D559T4D115, D559T-4D-115, 14D559T4D115, 1-4D559T4D115, 51350055, 513-50055, 51350116, 513-50116, 4820-00-552-2205, 00-552-2205, 4820005522205, 005522205
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 22 OCT 1969 | 00-552-2205 | 05488 ( VALVE, SAFETY RELIEF ) |

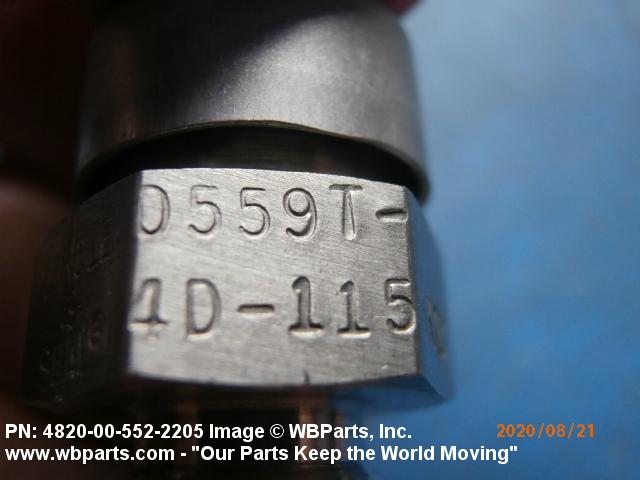

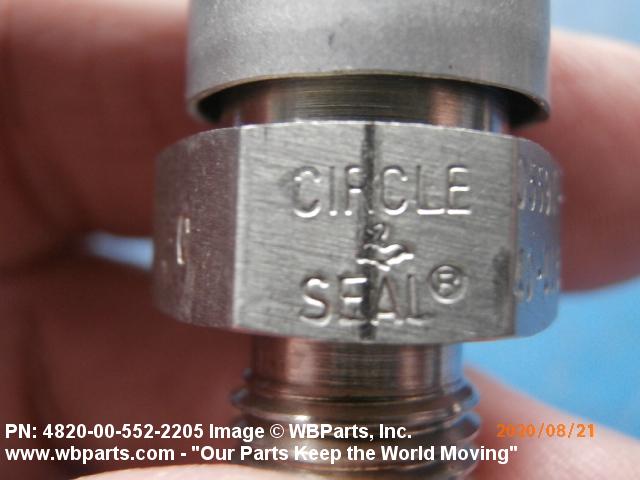

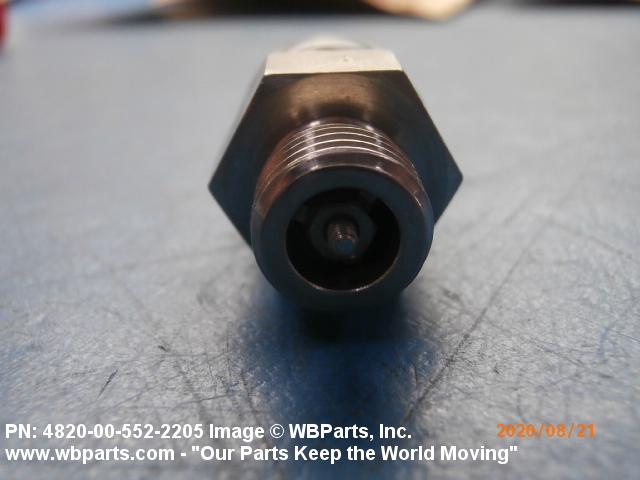

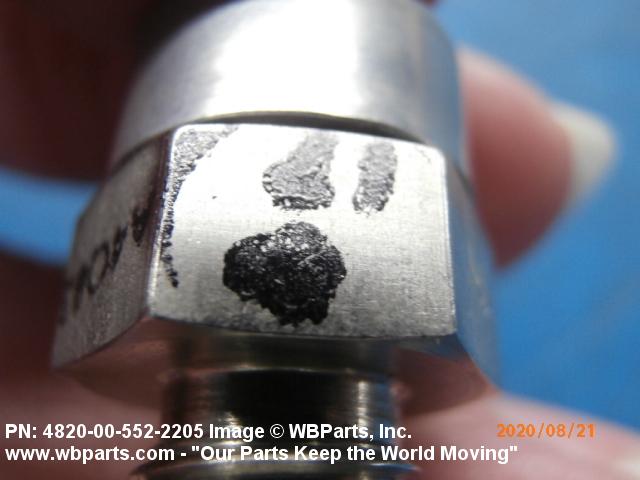

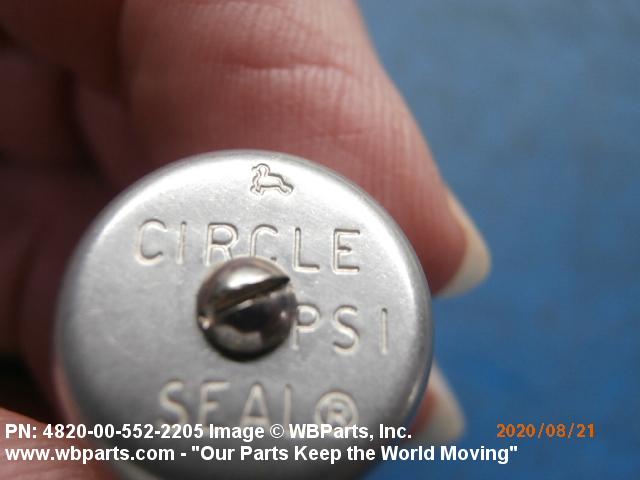

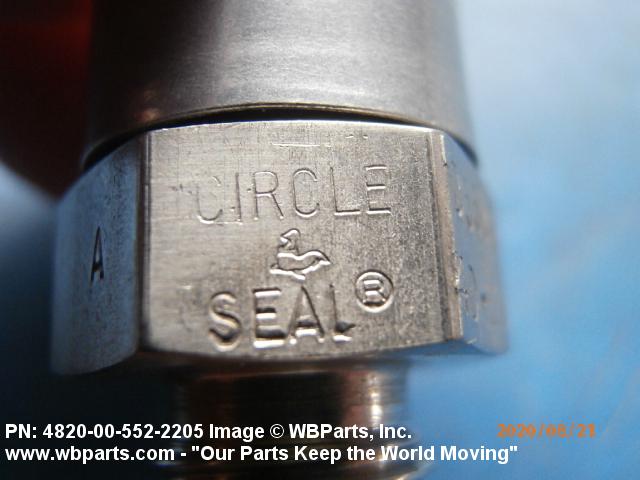

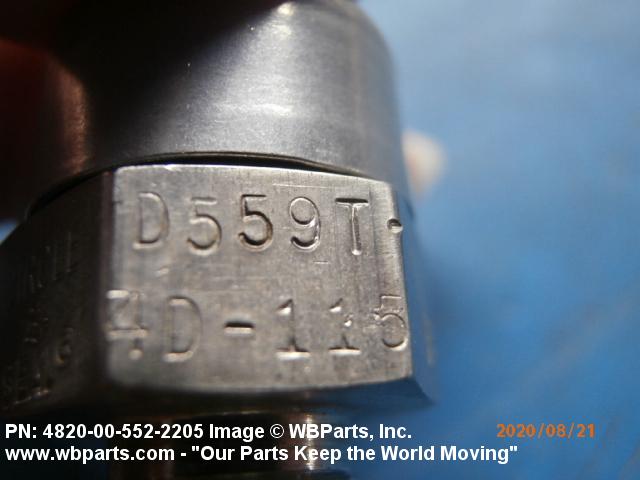

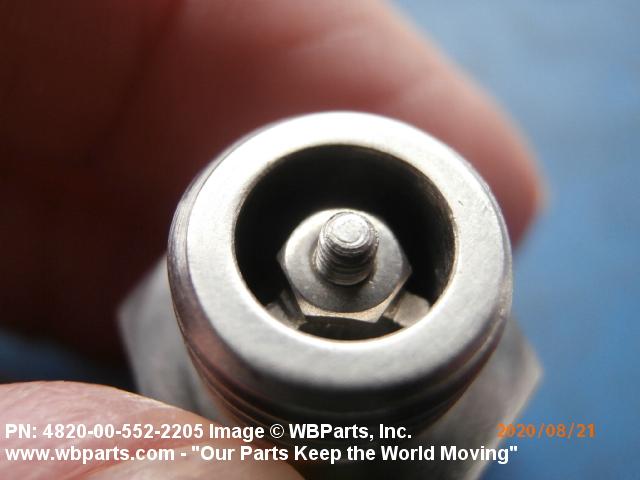

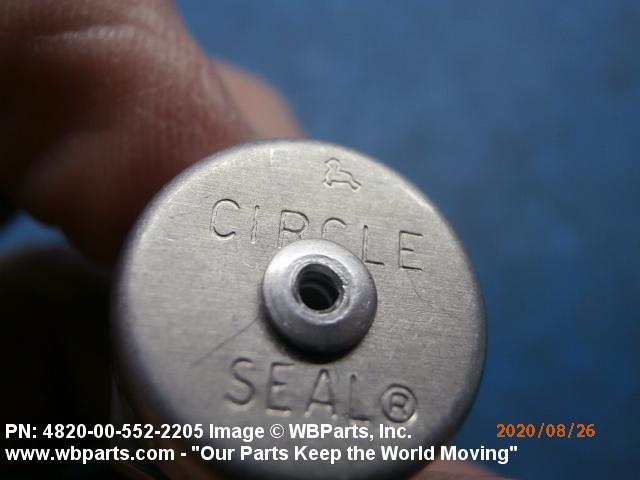

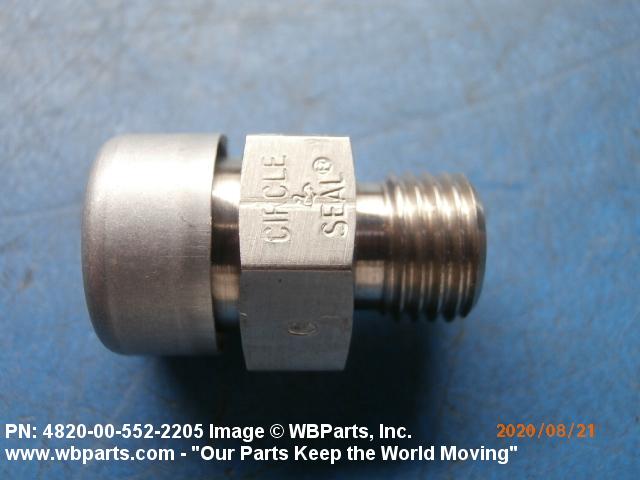

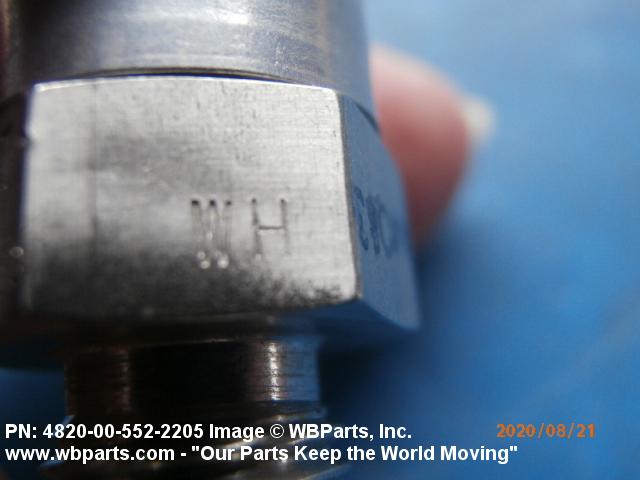

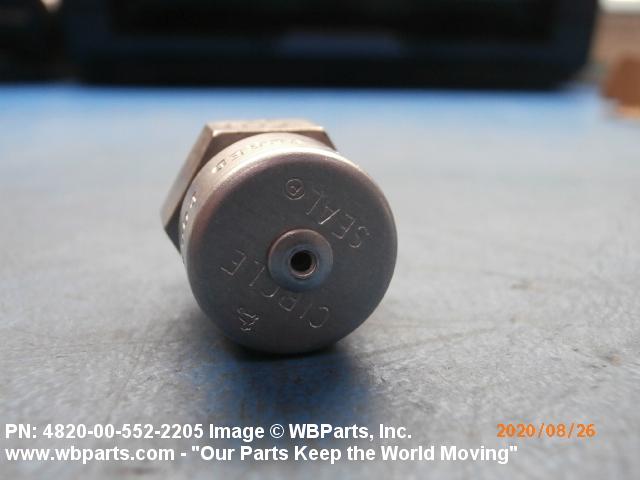

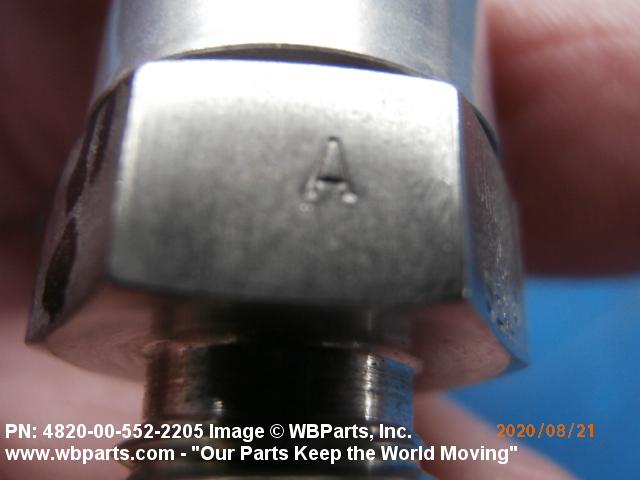

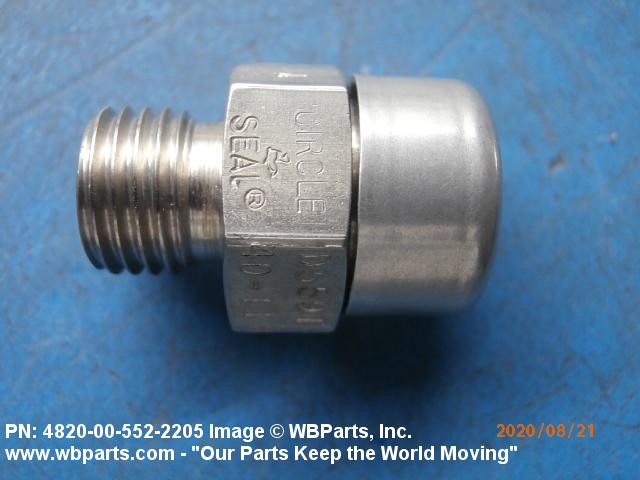

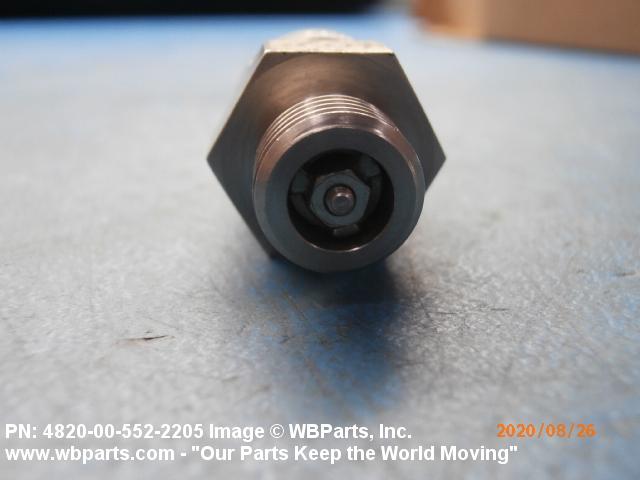

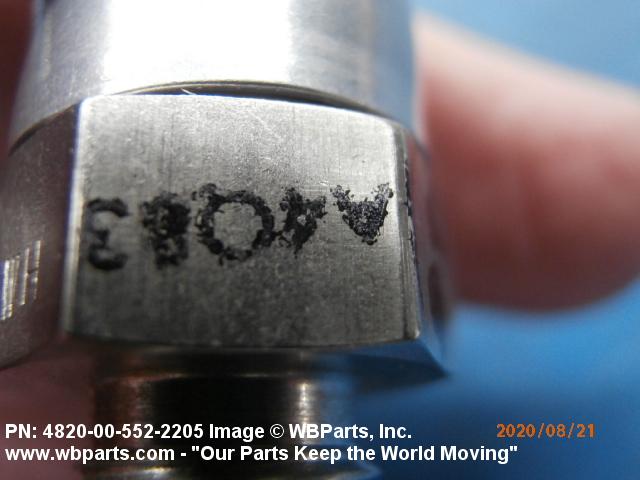

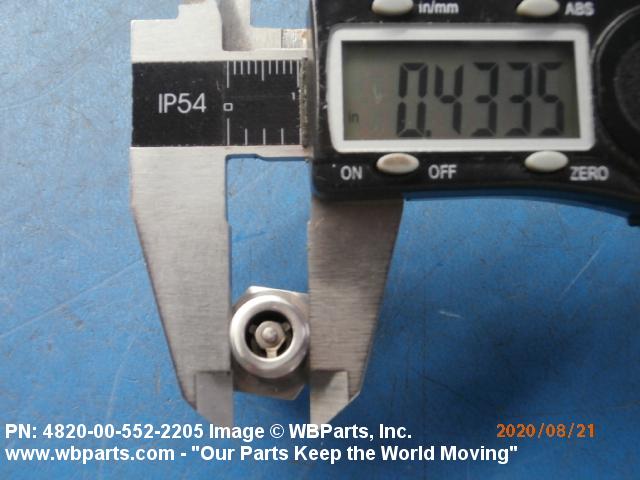

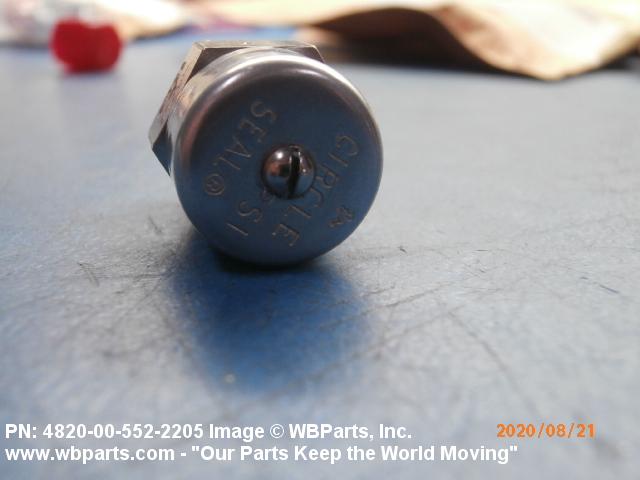

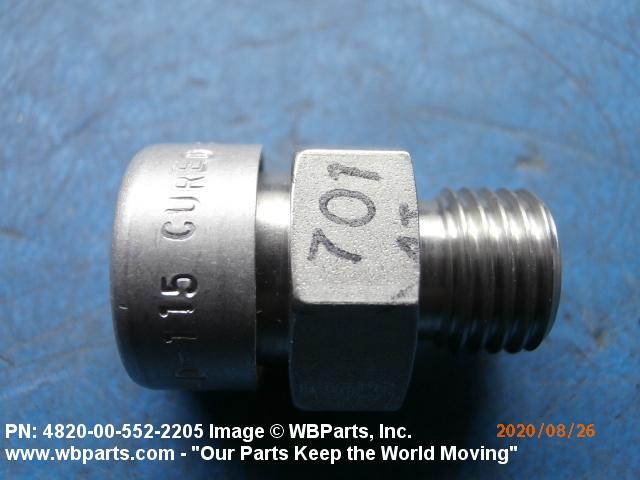

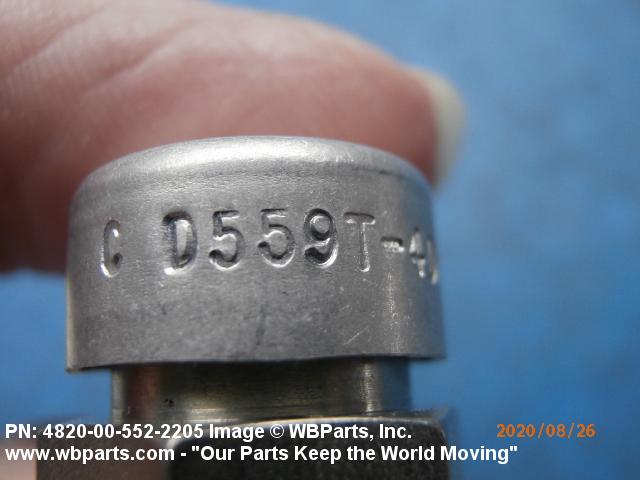

Drawings & Photos | NSN 4820-00-552-2205
Demand History | NSN 4820-00-552-2205
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-552-2205 | 2020-08-225 | 20 | United States |
Cross Reference | NSN 4820-00-552-2205
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-4D559T4D115 | 91816 | CIRCOR AEROSPACE, INC. DBA CIRCLE SEAL CONTROLS |
| 513-50055 | 9F512 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION |
| 513-50055 | AJ609 | HEPBURN ITALIANA SRL |
| 513-50055 | R0521 | ABC HANSEN A/S FORMERLY REFIMEX A/S |
| 513-50116 | 9F512 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION |
| D559T-4D-115 | 91816 | CIRCOR AEROSPACE, INC. DBA CIRCLE SEAL CONTROLS |
