NSN 4820-00-551-0757 MILR19180, PSR210, 07816015
Product Details | FLUID PRESSURE REGULATING VALVE
4820-00-551-0757 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: MILR19180, PSR210, 07816015, 0781-6015, 41C3, 4820-00-551-0757, 00-551-0757, 4820005510757, 005510757
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-551-0757 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
Drawings & Photos | NSN 4820-00-551-0757
Demand History | NSN 4820-00-551-0757
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 0781-6015 | 2021-01-12 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-551-0757
Technical Data | NSN 4820-00-551-0757
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ANY ACCEPTABLE |
| SEAT MATERIAL | ANY ACCEPTABLE |
| STEM MATERIAL | ANY ACCEPTABLE |
| FLOW CONTROL DEVICE | DISK, FLAT, TOP AND BOTTOM GUIDED |
| FLOW CONTROL DEVICE MATERIAL | ANY ACCEPTABLE |
| OUTSIDE SURFACE TREATMENT | ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | D3 FLARED |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES NOMINAL |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 9/16-18 UNF |
| FIRST END THREAD CLASS | 3A |
| FIRST END THREAD DIRECTION | LEFT-HAND |
| FIRST END SEAT ANGLE IN DEG | 30.0 |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED INTERNAL GAS CYLINDER |

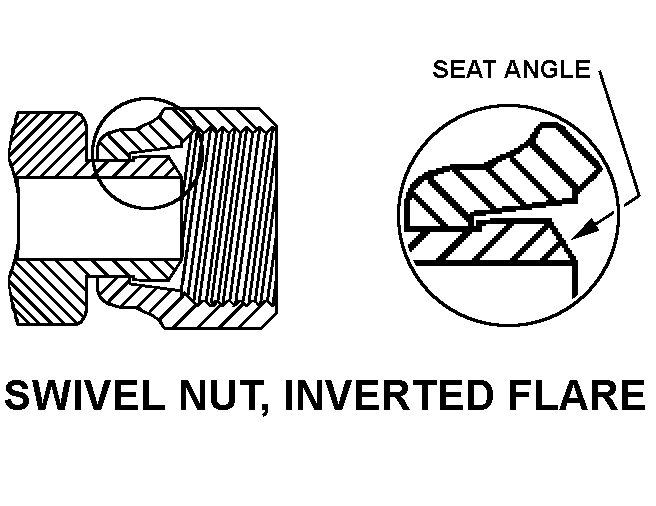

| SECOND END STYLE DESIGNATOR | B2 SWIVEL NUT, INVERTED FLARE |
| SECOND END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.620-20 NGO |
| SECOND END THREAD PITCH DIAMETERS | ANY ACCEPTABLE |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| BODY STYLE | A12 ANGLE |
| MEDIA FOR WHICH DESIGNED | ACETYLENE |
| RENEWABLE SEAT RING TYPE | THREADED |
| REGULATION TYPE | MANUAL SINGLE STAGE |
| MANUAL CONTROL METHOD | TEE HANDLE |
| VALVE STEM DESIGN | SINGLE SEAT |
| VALVE LOADING METHOD | SPRING |
| REMOTE ACTUATION METHOD | DIAPHRAGM |
| TEMP RATING | -40.0 DEG FAHRENHEIT MINIMUM AND 165.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM INLET PRESSURE RATING | 350.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE RANGE | 6.5 TO 7.5 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE ACCURACY RATING | 3.500 POUNDS PER SQUARE INCH |
| FILTER | INCLUDED |
| FURNISHED ITEMS | AUTOMATIC RELIEF VALVE |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND AP1 CLASS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILR19180 |
Restrictions/Controls & Freight Information | NSN 4820-00-551-0757
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-551-0757
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
