Product Details | ANGLE VALVE

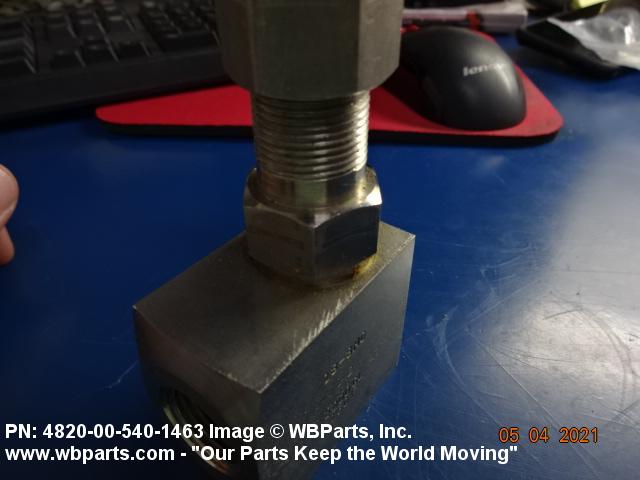

4820-00-540-1463 A valve with one inlet and one outlet connection with outlet flow at an angle to inlet flow. The flow is controlled by the action of a stem which lifts disks perpendicularly off the center axis of its seat. It may be inline or cartridge (manifold) design. Excludes VALVE (1), Y; VALVE, STOP-CHECK; and COCK, SHUTOFF, SCREW STEM.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: B70107105, B70-1071-05, S5281, 1071A1/2IN, 1071A12IN, 1731, 1975, 4820-00-540-1463, 00-540-1463, 4820005401463, 005401463
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-540-1463 | 05483 ( VALVE, ANGLE ) |

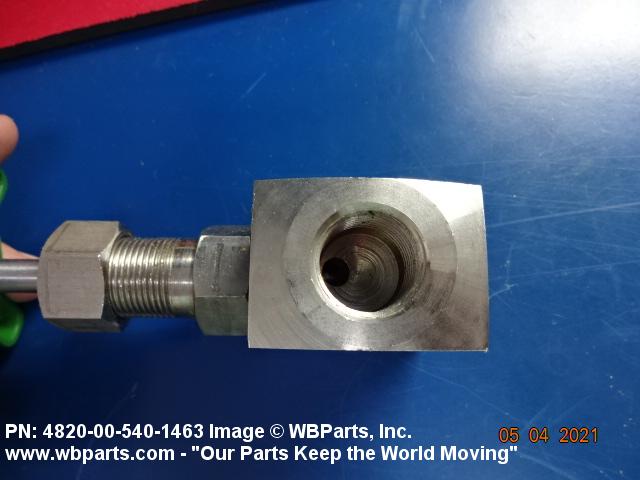

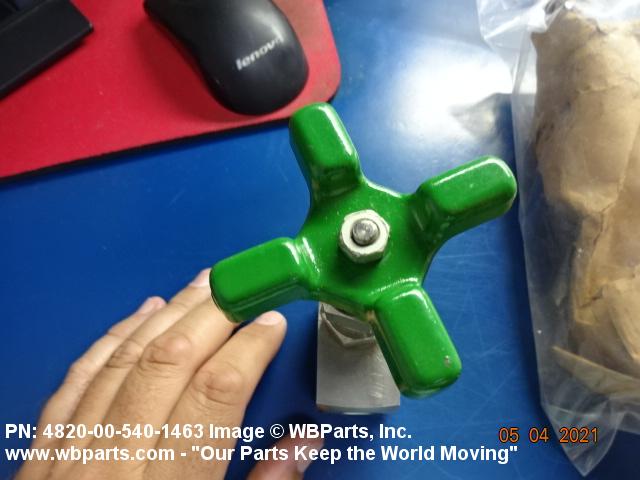

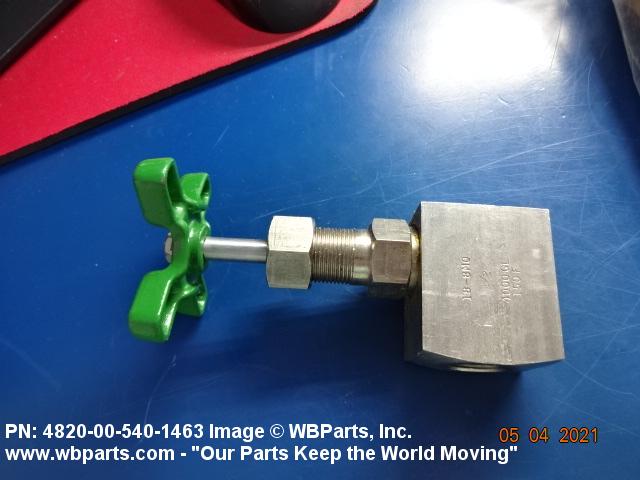

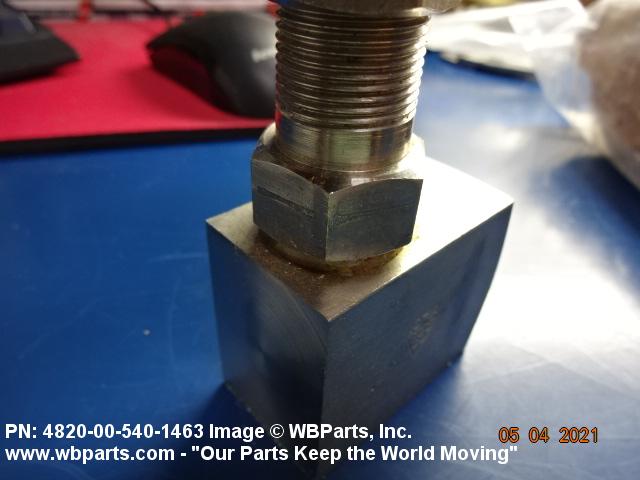

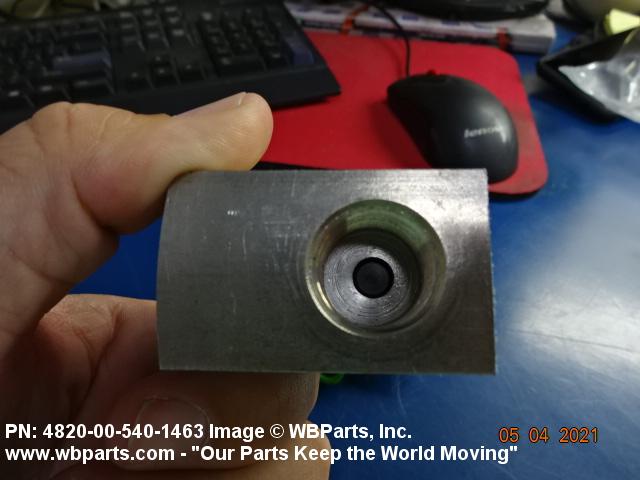

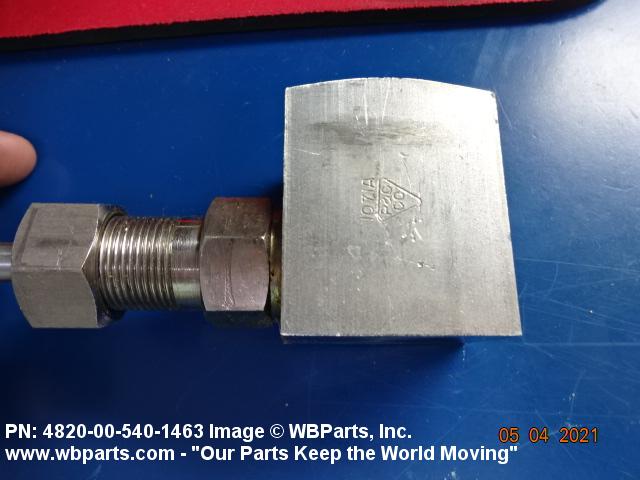

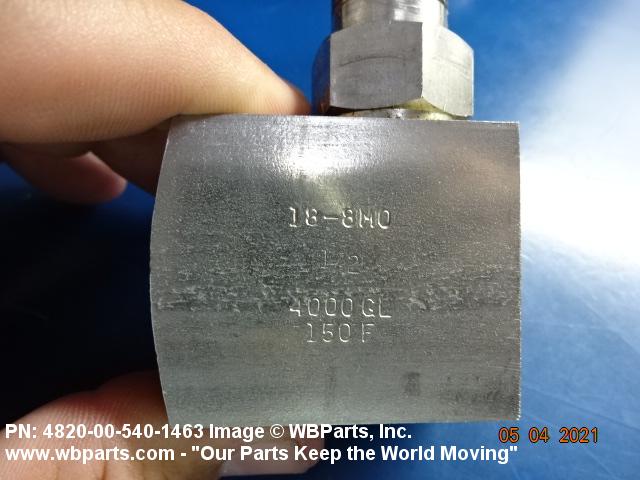

Drawings & Photos | NSN 4820-00-540-1463
Demand History | NSN 4820-00-540-1463
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-540-1463 | 2021-04-119 | 6 | Canada |
| 4820-00-540-1463 | 2021-04-118 | 6 | CA |
Cross Reference | NSN 4820-00-540-1463
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-540-1463
Technical Data | NSN 4820-00-540-1463
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 BODYSTEEL COMP 316 FLOW CONTROL DEVICEPLASTIC POLYTETRAFLUOROETHYLENE PACKINGSTEEL COMP 316 STEM |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
| VALVE OPERATION METHOD | MANUAL |
| FURNISHED ITEMS AND QUANTITY | 1 HANDWHEEL |
| STYLE DESIGNATOR | ERR-090 |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| NOMINAL THREAD SIZE | 0.500 INCHES ALL ENDS |
| FEATURES PROVIDED | BONNET PACKING |
| MEDIA FOR WHICH DESIGNED | WATER-OIL-GAS SINGLE RESPONSE |
| CONNECTION STYLE | G9 PLAIN,OPTIONAL END(PIPE) ALL ENDS |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY THE VALVE SIZE |
| BONNET ATTACHMENT METHOD | THREADED |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A276 ASSN STD SINGLE MATERIAL RESPONSE BODYASTM A276 ASSN STD SINGLE MATERIAL RESPONSE FLOW CONTROL DEVICEASTM A276 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| CONNECTION TYPE | THREADED INTERNAL PIPE ALL ENDS |
| FLOW CONTROL DEVICE | NEEDLE |
| MAXIMUM OPERATING PRESSURE | 7000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 150.0 DEG FAHRENHEIT SINGLE RESPONSE |
| BONNET TYPE | INSIDE SCREW |
