NSN 4820-00-513-5379 EA50004, 00-513-5379, 005135379
Product Details | PRESSURE AND TEMPERATURE RELIEF VALVE
4820-00-513-5379 A valve designed to release under excessive pressure and/or excessive temperature by opening at a predetermined pressure and/or temperature. Thermostatically operated valves close when the pressure is relieved or the temperature is reduced. Fusible plug valves require replacement of the plug. See also VALVE, SAFETY RELIEF and VALVE, REGULATING. TEMPERATURE.
Part Alternates: EA50004, 4820-00-513-5379, 00-513-5379, 4820005135379, 005135379
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-513-5379 | 16996 ( VALVE, RELIEF, PRESSURE AND TEMPERATURE ) |
Drawings & Photos | NSN 4820-00-513-5379
Cross Reference | NSN 4820-00-513-5379
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EA50004 | 62983 | EATON AEROSPACE LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-513-5379
Technical Data | NSN 4820-00-513-5379
| Characteristic | Specifications |
|---|---|

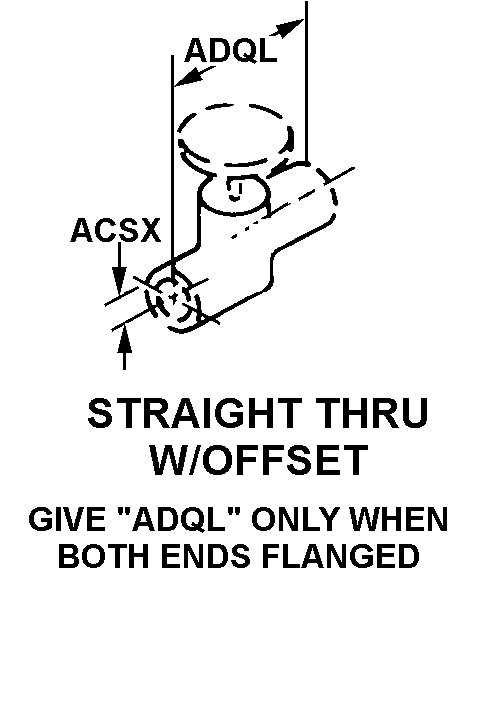

| BODY STYLE | A6 STRAIGHT THRU W/OFFSET |
| FACE TO FACE DISTANCE | 4.000 INCHES NOMINAL |
| OFFSET DISTANCE | 1.720 INCHES NOMINAL |
| BODY MATERIAL | ALUMINUM ALLOY |
| OUTSIDE SURFACE TREATMENT | ANODIZED, MIL-A-8625, TYPE 2 |
| SEAT MATERIAL | STEEL, FED STD 66, AISI/SAE 4140 |
| FLOW CONTROL DEVICE | PISTON, SPRING LOADED |
| STEM MATERIAL | STEEL, SAE 4140 |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL BOSS |
| FIRST END STYLE DESIGNATOR | G6 GASKET SEAL |
| FIRST END THREAD CLASS | 3B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP ADJUSTABILITY | NOT ADJUSTABLE |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID, PETROLEUM BASE |
| TEMP RATING | 280.0 DEG FAHRENHEIT 300.0 DEG FAHRENHEIT |
| VALVE DISCHARGE FLOW RATE | NOT RATED |
| OPENING PRESSURE SETTING | 280.0 POUNDS PER SQUARE INCH |
| MANUFACTURERS CODE | 62983 |
| DESIGN CONTROL REFERENCE | EA50004 |
Restrictions/Controls & Freight Information | NSN 4820-00-513-5379
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
