NSN 4820-00-513-6405 MS870051, MS87005-1, B9450
Product Details | VACUUM BREAKING VALVE
4820-00-513-6405 An item designed to automatically relieve vacuum, by the intake of air, when the internal pressure falls below atmospheric pressure. See also VALVE, VACUUM REGULATING.
Part Alternates: MS870051, MS87005-1, B9450, RA2110A, 629160, 3E1951, 3E195-1, 4820-00-513-6405, 00-513-6405, 4820005136405, 005136405
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-513-6405 | 08101 ( VALVE, VACUUM BREAKING ) |
Drawings & Photos | NSN 4820-00-513-6405
Demand History | NSN 4820-00-513-6405
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 629160 | 2024-09-253 | 3 | DIBBS |
| B9450 | 2024-09-253 | 3 | DIBBS |
| RA2110A | 2024-09-253 | 3 | DIBBS |
| 4820-00-513-6405 | 2018-03-86 | 1 | DIBBS |
| 4820-00-513-6405 | 2011-11-332 | 4 | US |
Cross Reference | NSN 4820-00-513-6405
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3E195-1 | 45934 | ONTIC ENGINEERING AND MANUFACTURING, INC. |
| 3E195-1 | 56705 | DONALLCO INC |
| 629160 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| B9450 | 03990 | INGERSOLL-RAND CO |
| MS87005-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| RA2110A | 51663 | CRANE CO. DBA LEAR ROMEC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-513-6405
Related Products | NSN 4820-00-513-6405
Technical Data | NSN 4820-00-513-6405
| Characteristic | Specifications |
|---|---|

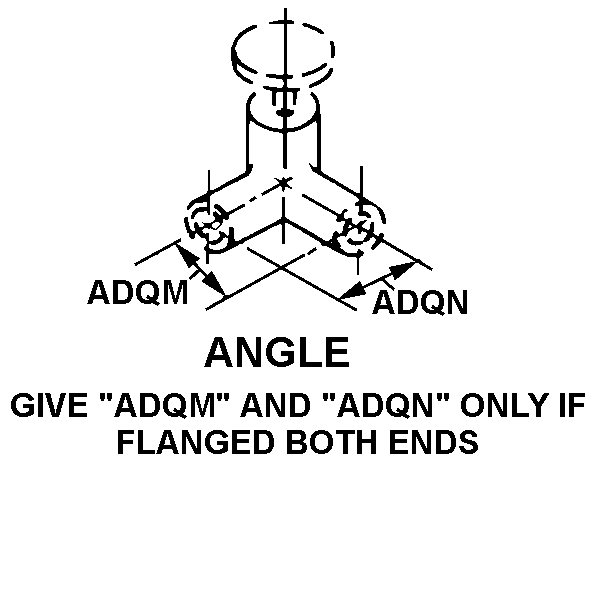

| BODY STYLE | A12 ANGLE |
| BODY MATERIAL | ALUMINUM ALLOY |
| OUTSIDE SURFACE TREATMENT | ANODIZED, MIL-A-8625, TYPE 1 |
| FLOW CONTROL DEVICE | ANY ACCEPTABLE |
| FLOW CONTROL DEVICE MATERIAL | ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | G11 PLAIN |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.375 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP ADJUSTABILITY | NOT ADJUSTABLE |
| MEDIA FOR WHICH DESIGNED | AIR |
| TEMP RATING | -65.0 DEG FAHRENHEIT 160.0 DEG FAHRENHEIT |
| ABSOLUTE PRESSURE RANGE | 4.5 TO 7.0 |
| III FSC APPLICATION DATA | PNEUMATIC SYSTEM COMPONENT,AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 4820-00-513-6405
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-00-513-6405
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
