NSN 4820-00-269-7220 6012HF4, 60-12HF4, 00-269-7220
Product Details | ANGLE VALVE
4820-00-269-7220 A valve with one inlet and one outlet connection with outlet flow at an angle to inlet flow. The flow is controlled by the action of a stem which lifts disks perpendicularly off the center axis of its seat. It may be inline or cartridge (manifold) design. Excludes VALVE (1), Y; VALVE, STOP-CHECK; and COCK, SHUTOFF, SCREW STEM.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 6012HF4, 60-12HF4, 4820-00-269-7220, 00-269-7220, 4820002697220, 002697220
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 28 JUL 1973 | 00-269-7220 | 05483 ( VALVE, ANGLE ) |
Drawings & Photos | NSN 4820-00-269-7220
Demand History | NSN 4820-00-269-7220
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 60-12HF4 | 2024-08-214 | 12 | DIBBS |
| 60-12HF4 | 2024-05-144 | 1 | DIBBS |
| 60-12HF4 | 2024-04-105 | 1 | DIBBS |
| 60-12HF4 | 2022-08-235 | 1 | DIBBS |
| 60-12HF4 | 2022-08-226 | 1 | DIBBS |
| 4820-00-269-7220 | 2015-07-211 | 9 | DIBBS |
| 4820-00-269-7220 | 2012-07-185 | 3 | DIBBS |
| 4820-00-269-7220 | 2012-06-165 | 4 | DIBBS |
| 4820-00-269-7220 | 2012-05-126 | 4 | DIBBS |
| 4820-00-269-7220 | 2012-03-72 | 2 | DIBBS |
| 4820-00-269-7220 | 2011-11-317 | 1 | DIBBS |
| 4820-00-269-7220 | 2011-08-240 | 1 | DIBBS |
| 4820-00-269-7220 | 2009-12-351 | 3 | DIBBS |
| 4820-00-269-7220 | 2009-09-267 | 2 | DIBBS |
Cross Reference | NSN 4820-00-269-7220
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 60-12HF4 | 07097 | HIGH PRESSURE EQUIPMENT COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-269-7220
Related Products | NSN 4820-00-269-7220
Technical Data | NSN 4820-00-269-7220
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66,AISI 316/SAE 30316 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A7 ANGLE |
| FLOW CONTROL DEVICE | STEM OR DISK |
| MAXIMUM OPERATING PRESSURE | 60000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED INTERNAL TUBE ALL ENDS |

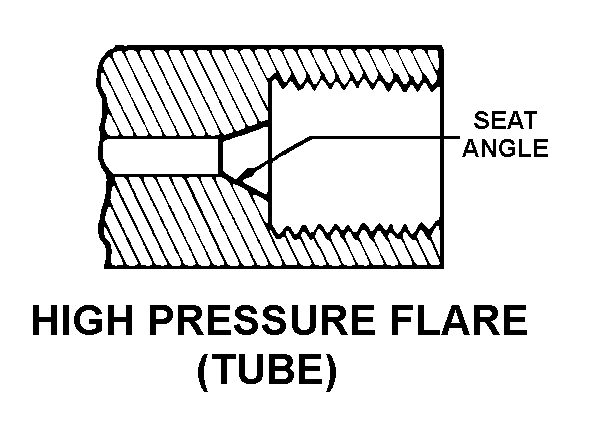

| CONNECTION STYLE | G12 HIGH PRESSURE FLARE ALL ENDS |
| SEAT ANGLE | 12.5 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.562 INCHES ALL ENDS |
| THREAD CLASS | 2A ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
| BONNET TYPE | INSIDE SCREW |
| BONNET ATTACHMENT METHOD | INTEGRAL |
| SPECIAL FEATURES | VALVE SIZE 1/4 IN. |
Restrictions/Controls & Freight Information | NSN 4820-00-269-7220
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
