Product Details | GASEOUS PRODUCTS PRESSURE EQUALIZING VALVE
4820-00-226-5551 A valve consisting of a single deadweight loaded disk, or two deadweight loaded disks each with a seperate seat. It is specifically designed for the relief of small pressure and vacuum conditions within a tank or other container to or from the atmosphere. The center of a single deadweight loaded disk may contain a spring loaded disk forming an additional seat or aperture. It may be spring loaded and/or equipped with a manual unloader on either the pressure or vacuum side. Exclude VALVE, VACUUM BREAKING.
Part Alternates: 629L20S170, 4820-00-226-5551, 00-226-5551, 4820002265551, 002265551
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1961 | 00-226-5551 | 10958 ( VALVE, PRESSURE EQUALIZING, GASEOUS PRODUCTS ) |
Drawings & Photos | NSN 4820-00-226-5551
Cross Reference | NSN 4820-00-226-5551
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 629L20S170 | 15939 | STRATOTECH CORP DBA STRATOTECH COPRORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-226-5551
Technical Data | NSN 4820-00-226-5551
| Characteristic | Specifications |
|---|---|
| BODY STYLE | B1 SINGLE CONNECTION, STRAIGHT FLOW |
| BODY MATERIAL | ALUMINUM ALLOY |
| OUTSIDE SURFACE TREATMENT | ANODIZED |
| SEAT MATERIAL | PLASTIC |
| FLOW CONTROL DEVICE | DISK, FLAT |
| FLOW CONTROL DEVICE MATERIAL | PLASTIC |
| END CONNECTION QUANTITY | 1 |

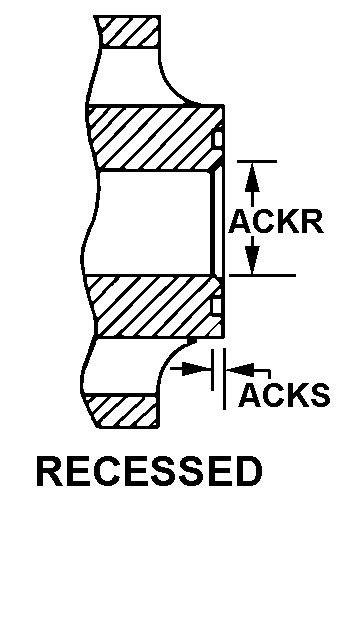

| FIRST END CONNECTION TYPE | RECESSED FLANGE |
| FIRST END STYLE DESIGNATOR | M7 RECESSED |
| FIRST END RECESS DIAMETER | 0.665 INCHES NOMINAL |
| FIRST END RECESS DEPTH | 0.045 INCHES NOMINAL |

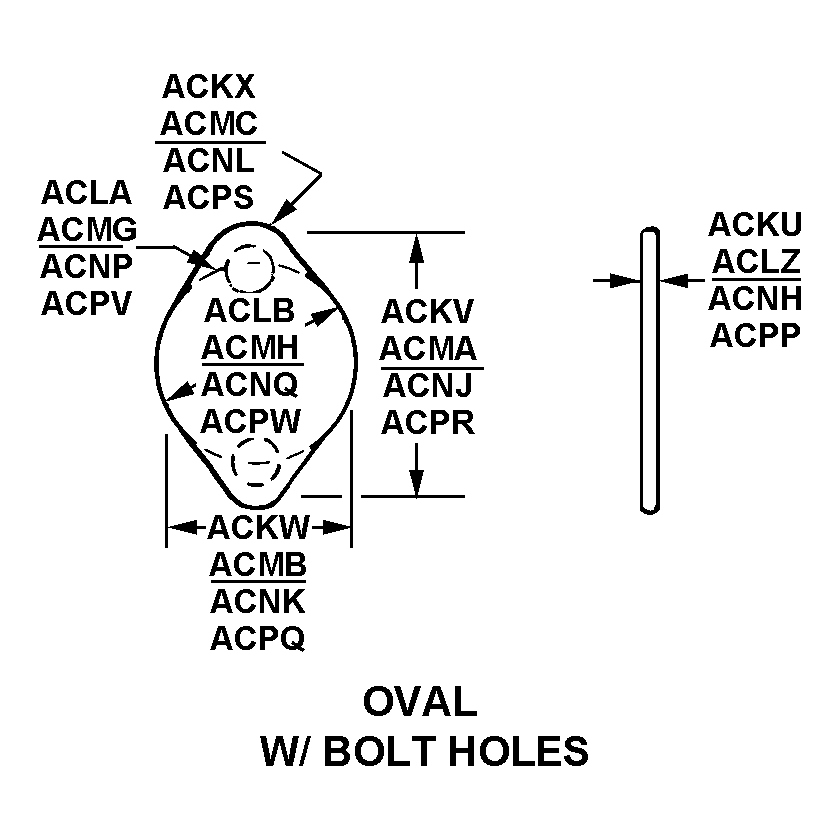

| FIRST END FLANGE SHAPE STYLE | 6 OVAL |
| FIRST END BOLT HOLE QUANTITY | 2 |
| FIRST END FLANGE THICKNESS | 0.156 INCHES NOMINAL |
| FIRST END FLANGE LENGTH | 1.302 INCHES NOMINAL |
| FIRST END FLANGE WIDTH | 1.000 INCHES NOMINAL |
| FIRST END FLANGE END RADIUS | 0.500 INCHES NOMINAL |
| FIRST END BOLT HOLE DIAMETER | 0.095 INCHES NOMINAL |
| FIRST END BOLT CIRCLE DIAMETER | 0.800 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE | NOT RATED |
| MEDIA FOR WHICH DESIGNED | AIR |
| TEMP RATING | NOT RATED |
| OPENING PRESSURE SETTING | NOT RATED |
| VALVE VENTING DESIGN TYPE | ATMOSPHERIC |
| VALVE RELIEF DESIGN TYPE | PRESSURE AND VACUUM |
| DISK LOADING METHOD | SPRING |
| ABSOLUTE PRESSURE SETTING | NOT RATED |
| FURNISHED ITEMS | GASKET |
