NSN 4820-01-420-3992 TA7702020R, TA770-20-20-R, 01-420-3992
Product Details | GASEOUS PRODUCTS PRESSURE EQUALIZING VALVE
4820-01-420-3992 A valve consisting of a single deadweight loaded disk, or two deadweight loaded disks each with a seperate seat. It is specifically designed for the relief of small pressure and vacuum conditions within a tank or other container to or from the atmosphere. The center of a single deadweight loaded disk may contain a spring loaded disk forming an additional seat or aperture. It may be spring loaded and/or equipped with a manual unloader on either the pressure or vacuum side. Exclude VALVE, VACUUM BREAKING.
Part Alternates: TA7702020R, TA770-20-20-R, 4820-01-420-3992, 01-420-3992, 4820014203992, 014203992
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 16 OCT 1995 | 01-420-3992 | 10958 ( VALVE, PRESSURE EQUALIZING, GASEOUS PRODUCTS ) |

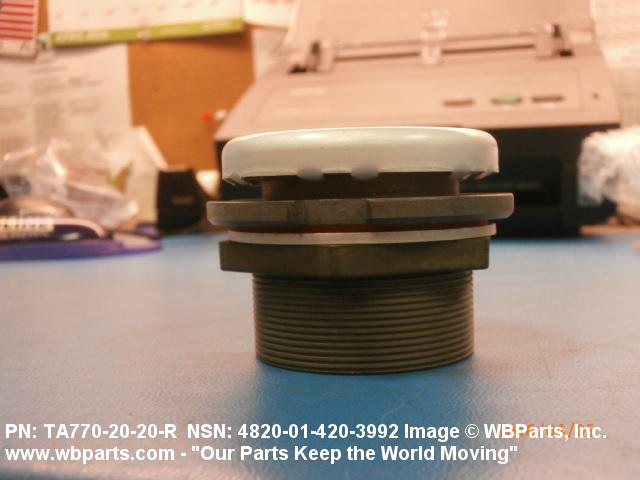

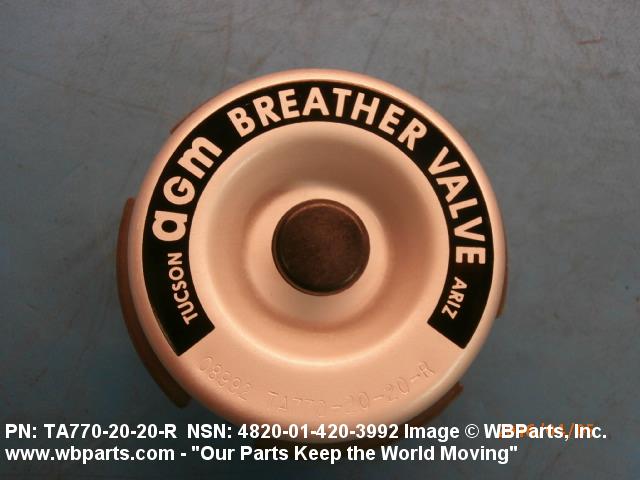

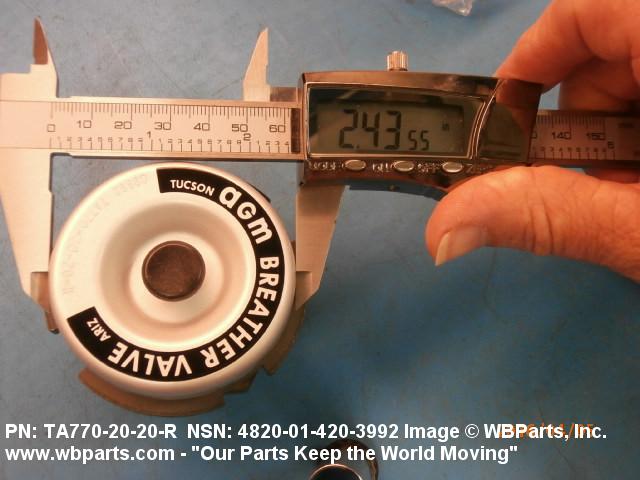

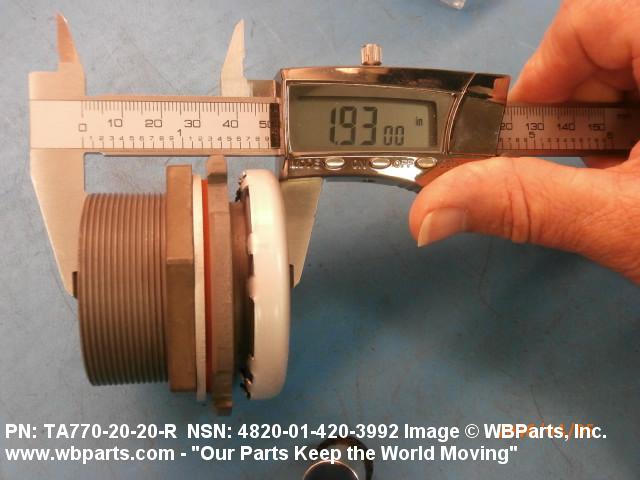

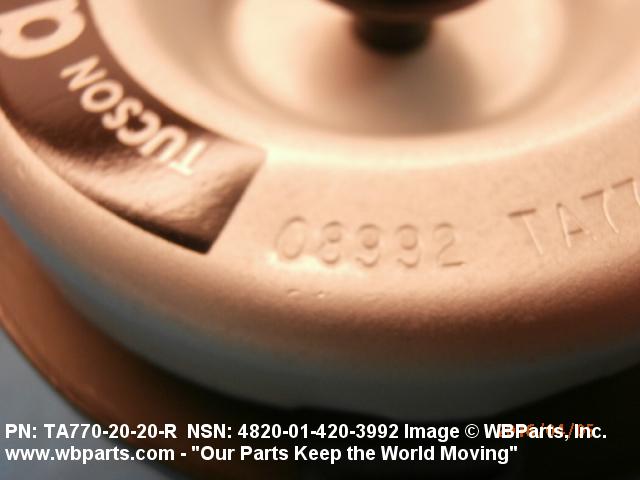

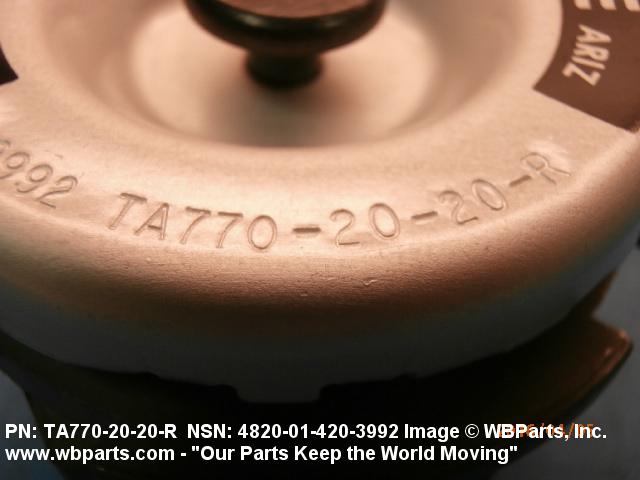

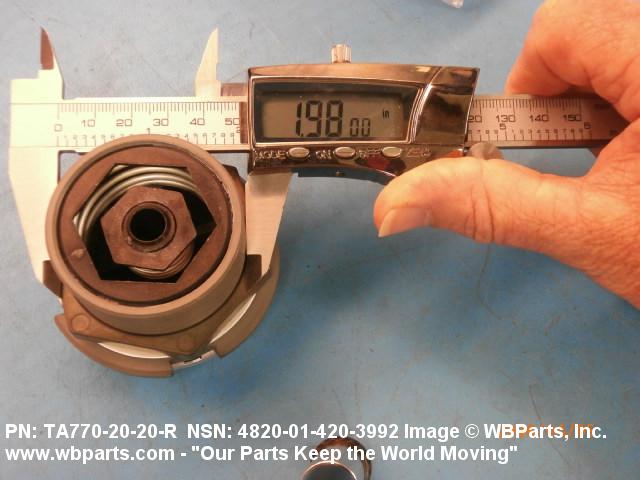

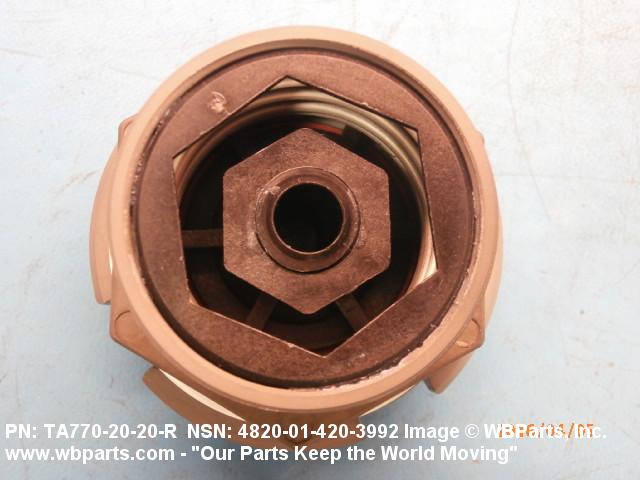

Drawings & Photos | NSN 4820-01-420-3992
Demand History | NSN 4820-01-420-3992
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| TA7702020R | 2016-02-55 | 4 | United States |
| TA7702020R | 2016-02-47 | 50 | United States |
| 4820-01-420-3992 | 2014-10-279 | 2 | DIBBS |
| 4820-01-420-3992 | 2014-09-272 | 4 | DIBBS |
| 4820-01-420-3992 | 2014-02-40 | 25 | IL |
Cross Reference | NSN 4820-01-420-3992
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TA770-20-20-R | 08992 | AGM CONTAINER CONTROLS INC. DBA A G M |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-420-3992
Related Products | NSN 4820-01-420-3992
Technical Data | NSN 4820-01-420-3992
| Characteristic | Specifications |
|---|---|
| BODY STYLE | A46 SINGLE CONNECTION STRAIGHT THRU |
| BODY MATERIAL | ALUMINUM |
| FLOW CONTROL DEVICE | DISK, FLAT |
| END CONNECTION QUANTITY | 1 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | J10 EXTERNAL SEAT FOR GASKET SEAL |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 2.000 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD SERIES DESIGNATOR | UNS |
| FIRST END NOMINAL THREAD SIZE | 2.000 INCHES |
| MAXIMUM OPERATING PRESSURE | 3.5 POUNDS PER SQUARE INCH |
| VALVE VENTING DESIGN TYPE | ATMOSPHERIC |
| VALVE RELIEF DESIGN TYPE | PRESSURE AND VACUUM |
Restrictions/Controls & Freight Information | NSN 4820-01-420-3992
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | EA | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-420-3992
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 3 | Critical for Health and Safety of Personnel. Those parts and components that are required for the health and safety of personnel, and which do not fit the definition of Code 5 or 6 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
