NSN 4820-00-226-1784 488-6D1-1/4, 4886D114, 488-6D1-1-4
Product Details | CHECK VALVE
4820-00-226-1784 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: 488-6D1-1/4, 4886D114, 488-6D1-1-4, 488-6DI-1/4, 4886DI14, 869A6TT2, 869A-6TT-2 , 4820-00-226-1784, 00-226-1784, 4820002261784, 002261784
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1961 | 00-226-1784 | 05487 ( VALVE, CHECK ) |

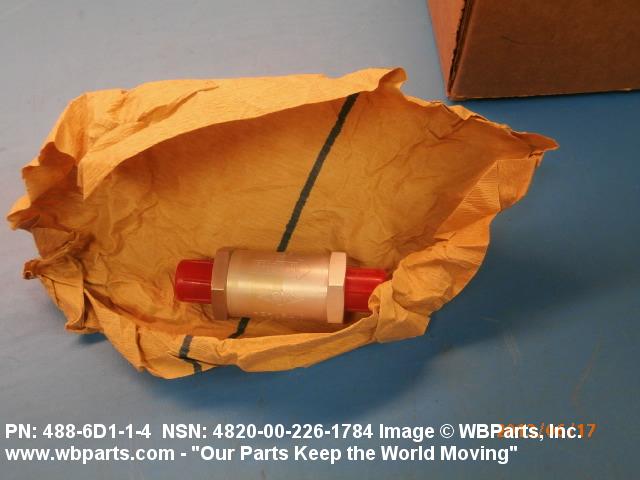

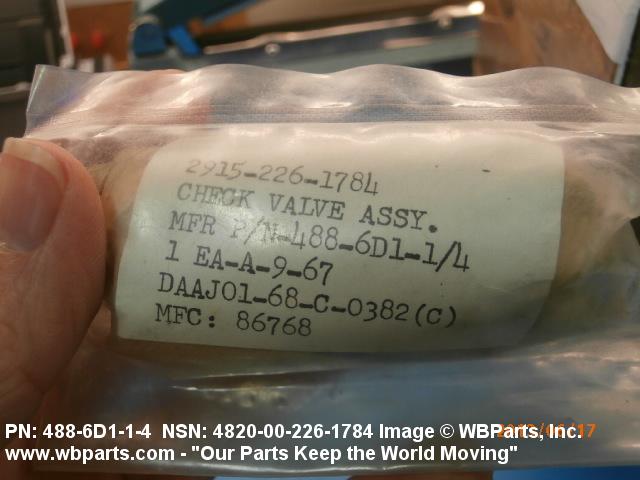

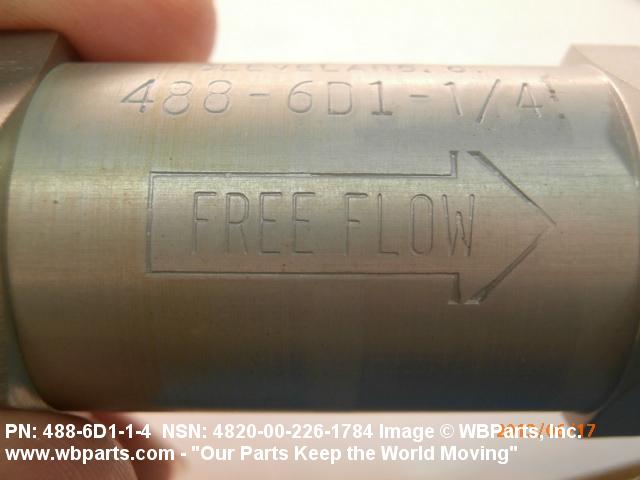

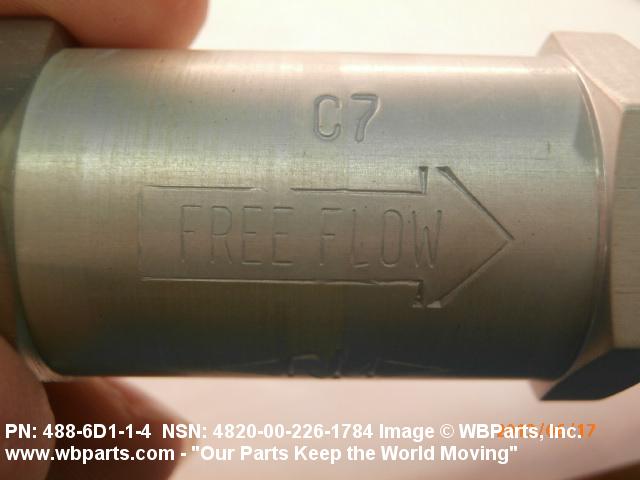

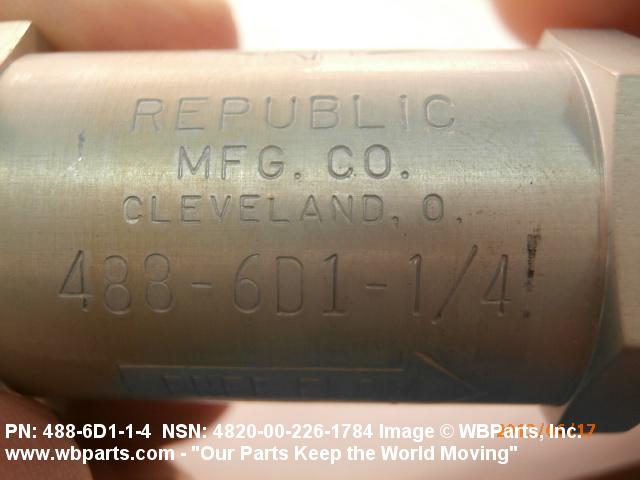

Drawings & Photos | NSN 4820-00-226-1784
Demand History | NSN 4820-00-226-1784
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-226-1784 | 2018-12-351 | 53 | DIBBS |
| 4820-00-226-1784 | 2018-12-339 | 53 | DIBBS |
| 4820-00-226-1784 | 2013-12-339 | 61 | DIBBS |
| 4886D114 | 2013-06-158 | 2 | Canada |
| 4886D114 | 2013-05-150 | 2 | Indonesia |
| 4820-00-226-1784 | 2011-10-285 | 2 | Malaysia |
| 4820-00-226-1784 | 2011-06-180 | 12 | DIBBS |
| 4820-00-226-1784 | 2011-04-91 | 3 | DIBBS |
| 869A6TT2 | 2010-05-123 | 2 | United States |
| 869A6TT2 | 2008-02-50 | 2 | Sri Lanka |
Cross Reference | NSN 4820-00-226-1784
| Part Number | Cage Code | Manufacturer |
|---|---|---|

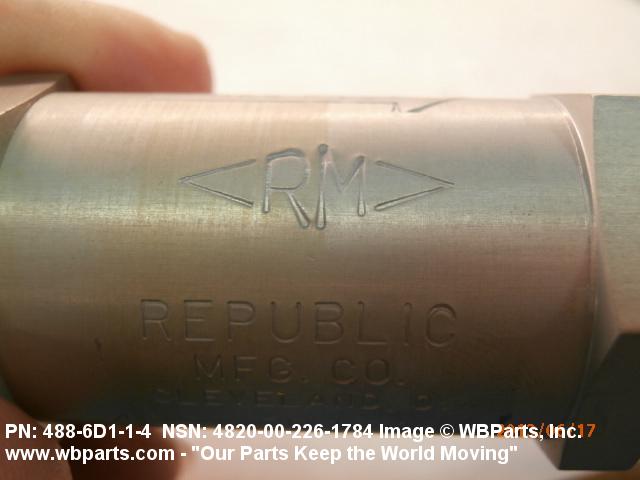

| 488-6D1-1-4 | 86768 | TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC |
| 488-6D1-1/4 | 09990 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC VALVE DIV |
| 488-6DI-1/4 | 86768 | TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC |
| 869A-6TT-2 | 91816 | CIRCOR AEROSPACE, INC. DBA CIRCLE SEAL CONTROLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-00-226-1784
Related Products | NSN 4820-00-226-1784
Technical Data | NSN 4820-00-226-1784
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE BODY |
| STYLE DESIGNATOR | A3 STRAIGHT THRU |
| FLOW CONTROL DEVICE | POPPET |
| MEDIA FOR WHICH DESIGNED | AIR 1ST RESPONSE FUEL/OIL, HYDROCARBON 2ND RESPONSE CARBON DIOXIDE 3RD RESPONSE ETHYLENE GLYCOL 4TH RESPONSE ALCOHOL, ETHYL 5TH RESPONSE |
| MAXIMUM OPERATING PRESSURE | 600.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | -65.0 DEG FAHRENHEIT 1ST RESPONSE 180.0 DEG FAHRENHEIT 2ND RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |

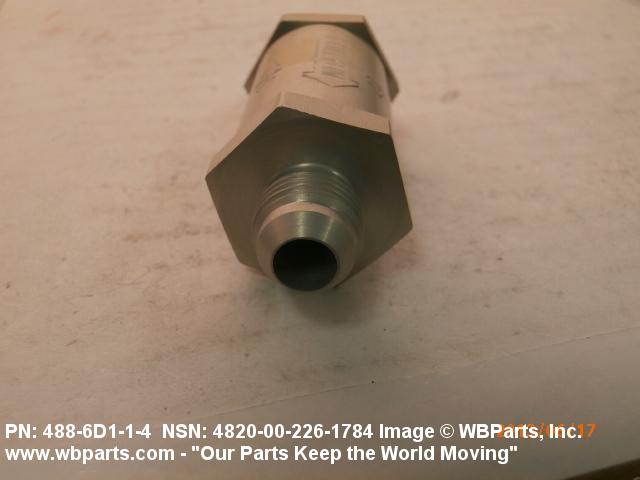

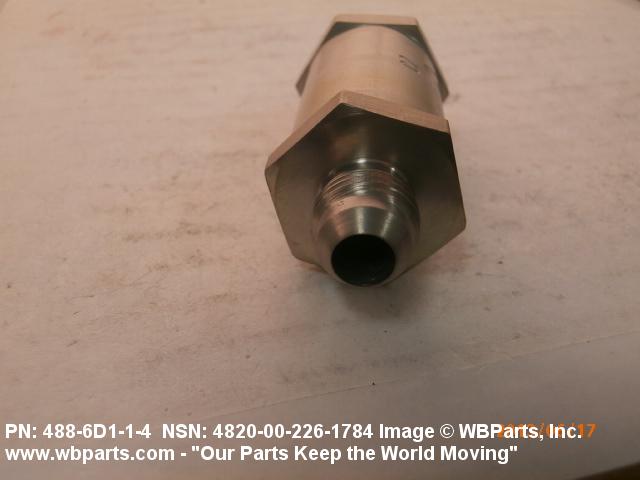

| CONNECTION STYLE | B42 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |

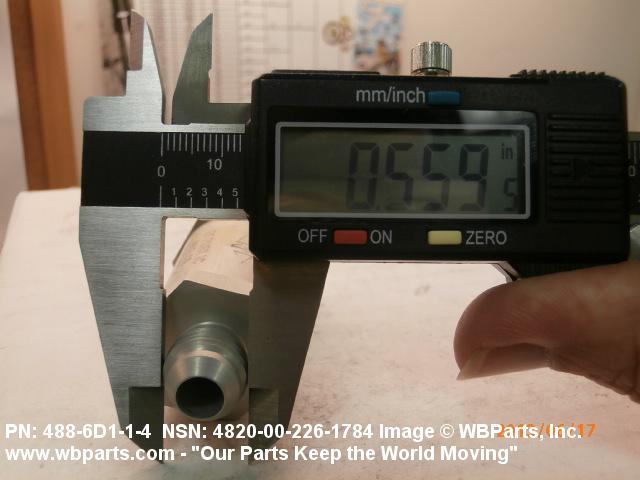

| NOMINAL THREAD SIZE | 0.562 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| MOUNTING POSITION | HORIZONTAL |
| DISK LOADING METHOD | SPRING |
| OPENING PRESSURE SETTING | 2.0 POUNDS PER SQUARE INCH |
Restrictions/Controls & Freight Information | NSN 4820-00-226-1784
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
