NSN 4820-00-226-1982 P23H001912, P-23H0019-12, 23H001912
Product Details | VALVE SEAT
4820-00-226-1982 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: P23H001912, P-23H0019-12, 23H001912, 23H0019-12, 23H00193, 23H0019-3, 4820-00-226-1982, 00-226-1982, 4820002261982, 002261982
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01-JAN-61 | 00-226-1982 | 22113 ( SEAT, VALVE ) |
Drawings & Photos | NSN 4820-00-226-1982
Demand History | NSN 4820-00-226-1982
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-00-226-1982 | 2014-07-208 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-00-226-1982
Technical Data | NSN 4820-00-226-1982
| Characteristic | Specifications |
|---|---|

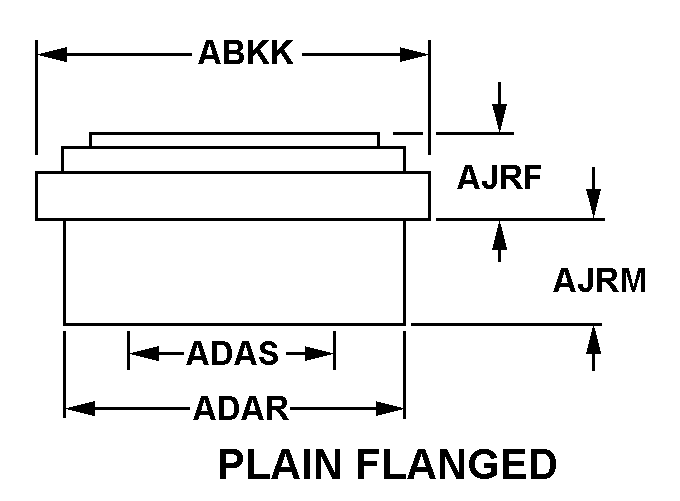

| STYLE DESIGNATOR | B8 PLAIN FLANGED |
| FLANGE DIAMETER | 1.562 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.344 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 0.750 INCHES NOMINAL |
| FLANGE SEAT TO DISK END HEIGHT | 0.412 INCHES NOMINAL |
| UNDER FLANGE HEIGHT | 0.375 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | NOT RATED |
| SEATING SURFACE SHAPE | ANGULAR |
| SEAT ANGLE IN DEG | 47.000 NOMINAL |
Restrictions/Controls & Freight Information | NSN 4820-00-226-1982
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
