NSN 4810-01-285-7160 16VP0402, 16VP040-2, 2830158101
Product Details | SOLENOID VALVE
4810-01-285-7160 A valve having two or more ports with valve stem or pilot needle in a normally open or closed position. It is specifically designed to stop or start or change the flow of fluid by means of the magnetic action of an electric coil on a moveable core or plunger. The valve may be equipped with a manual opening or closing device. For items with three or more ports that utilize a reciprocating slide with recess areas which mate with ports in an integral or replaceable ported sleeve, see VALVE (1), LINEAR, DIRECTIONAL CONTROL. It may be inline or cartridge (manifold) design. Excludes VALVE (1), BUTTERFLY.
Part Alternates: 16VP0402, 16VP040-2, 2830158101, 2830158-101, 2830158103, 2830158-103, 609731, 60973-1, 4810-01-285-7160, 01-285-7160, 4810012857160, 012857160
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 19 SEP 1988 | 01-285-7160 | 10998 ( VALVE, SOLENOID ) |

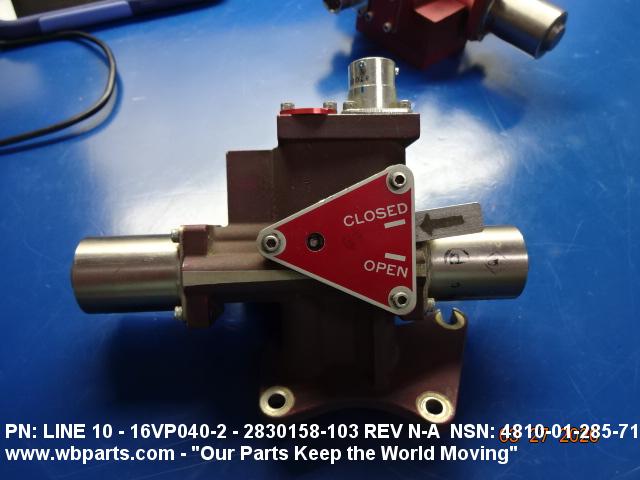

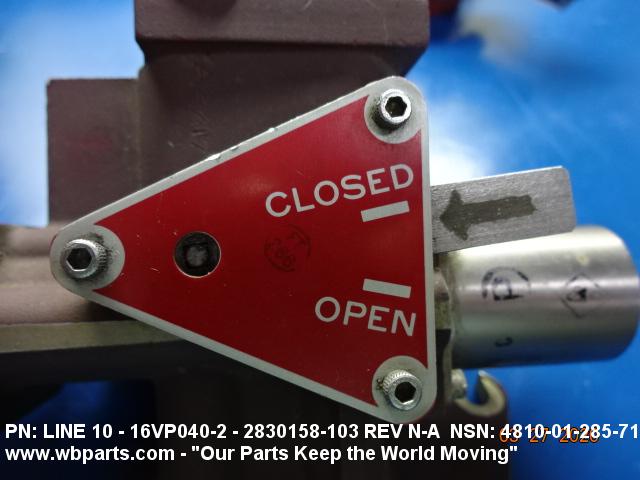

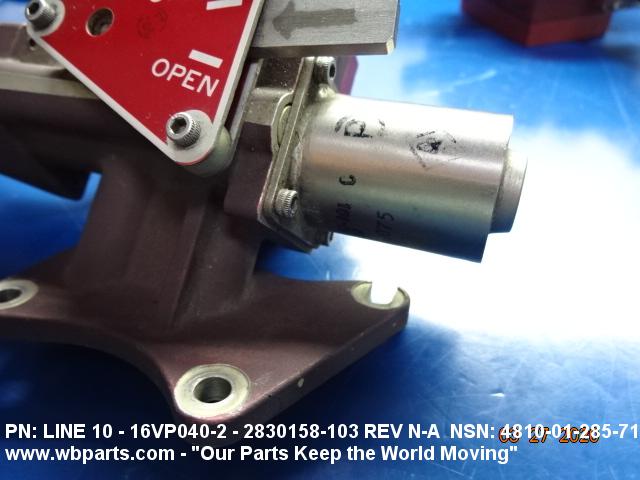

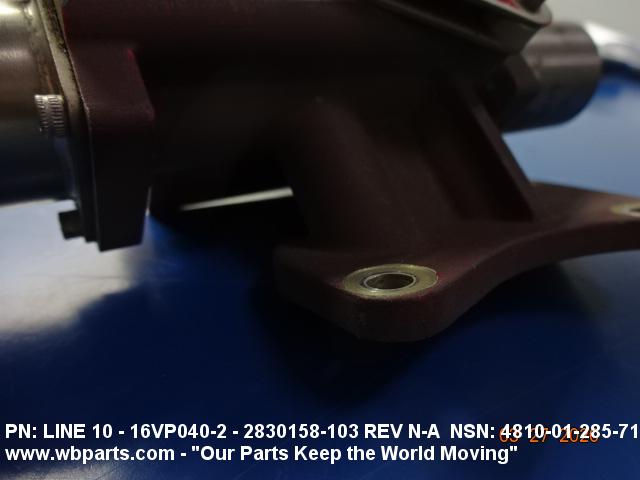

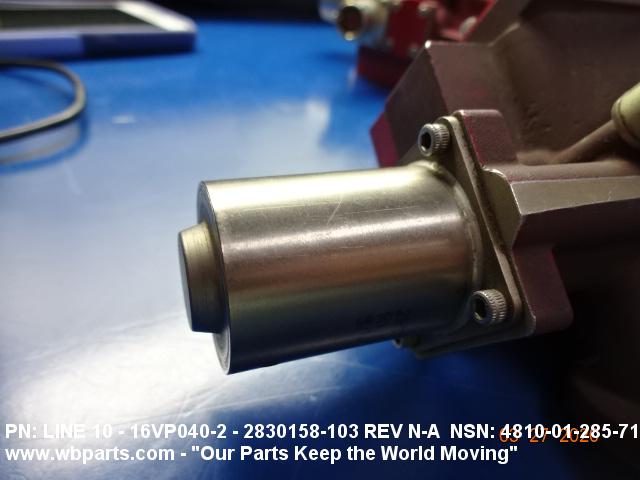

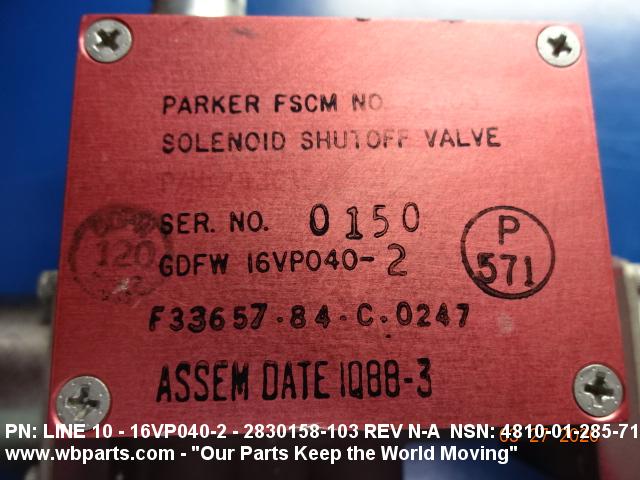

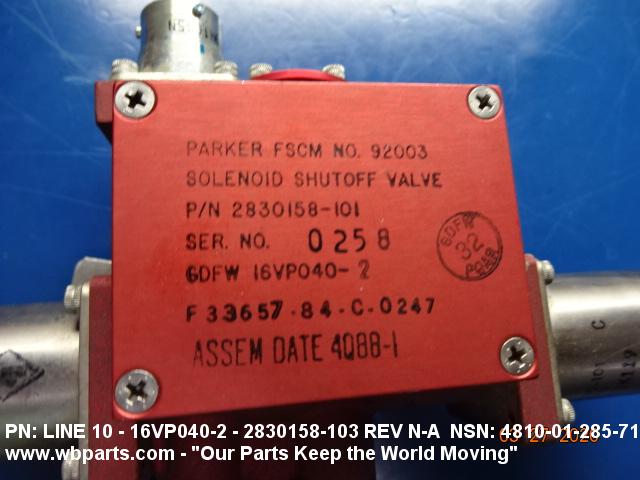

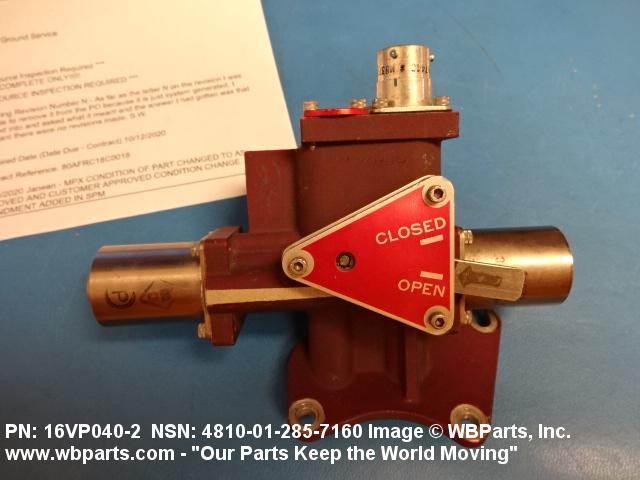

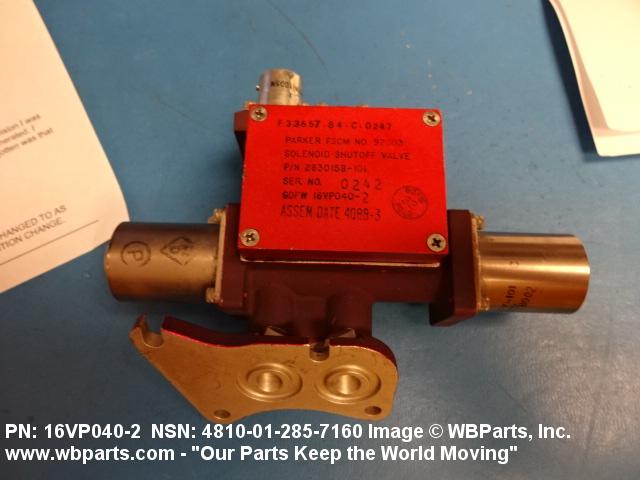

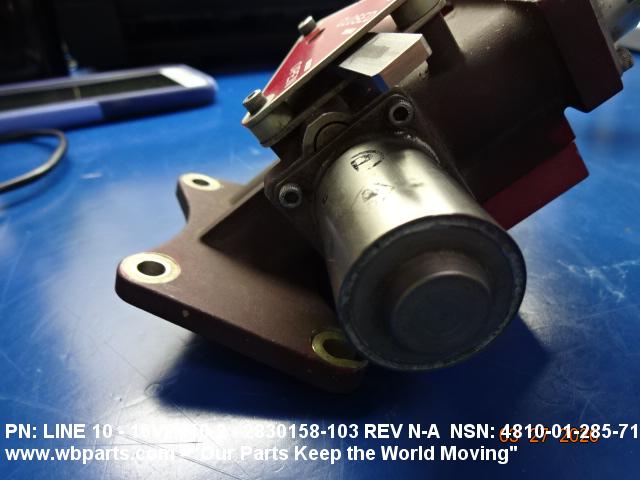

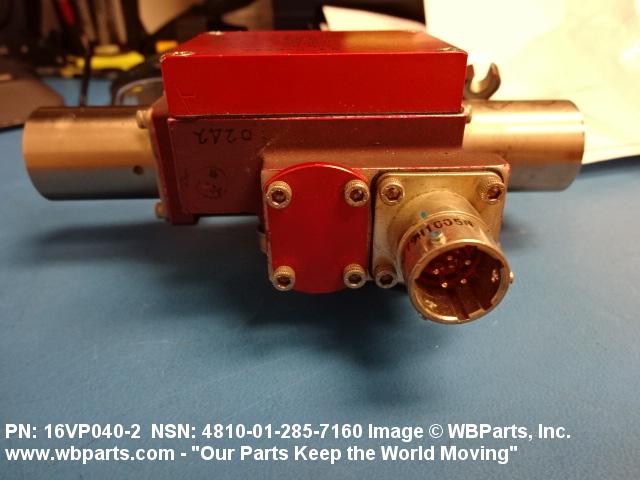

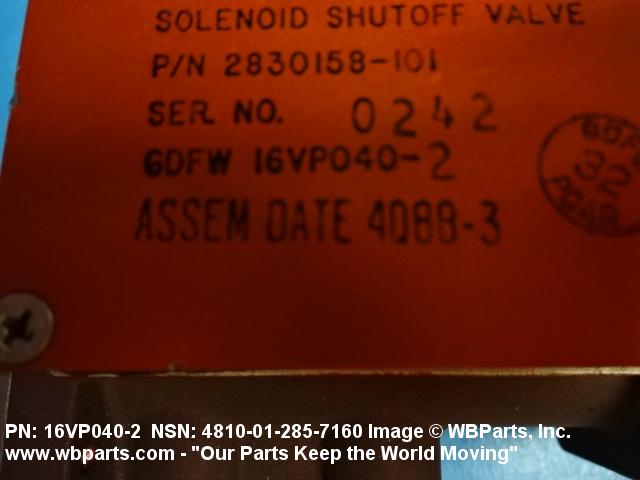

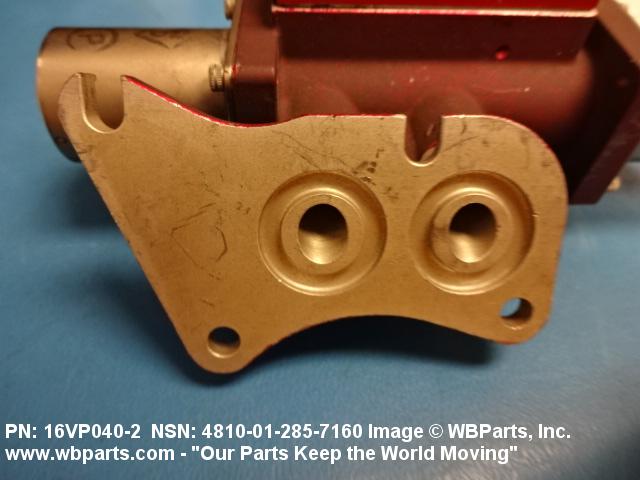

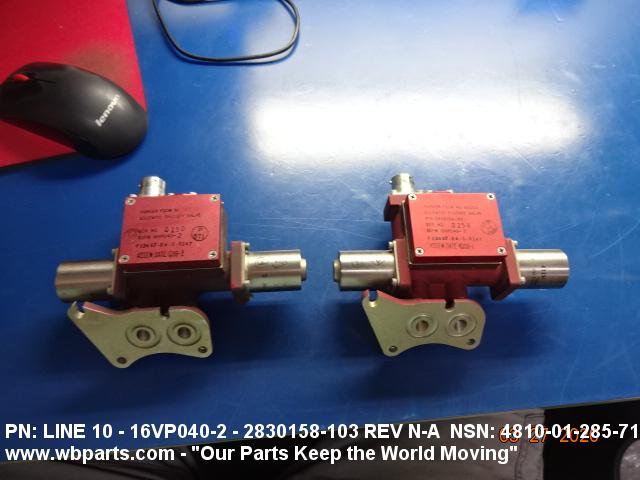

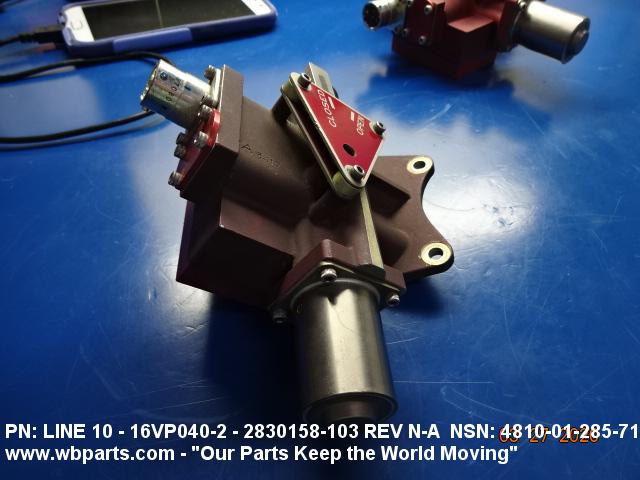

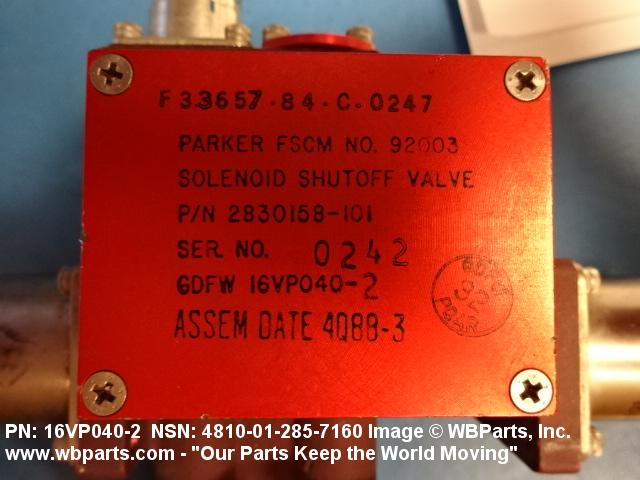

Drawings & Photos | NSN 4810-01-285-7160
Demand History | NSN 4810-01-285-7160
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2830158-103 | 2024-11-312 | 10 | DIBBS |
| 60973-1 | 2024-11-312 | 10 | DIBBS |
| 4810-01-285-7160 | 2023-11-306 | 5 | US |
| 2830158-103 | 2023-10-290 | 5 | DIBBS |
| 60973-1 | 2023-10-290 | 5 | DIBBS |
| 2830158-103 | 2022-11-312 | 16 | DIBBS |
| 60973-1 | 2022-11-312 | 16 | DIBBS |
| 2830158-103 | 2022-10-297 | 16 | DIBBS |
| 60973-1 | 2022-10-297 | 16 | DIBBS |
| 2830158-103 | 2021-05-138 | 11 | DIBBS |
| 60973-1 | 2021-05-138 | 11 | DIBBS |
| 4810-01-285-7160 | 2020-09-261 | 1 | United States |
| 16VP0402 | 2020-09-253 | 1 | United States |
| 2830158-103 | 2020-05-152 | 32 | DIBBS |
| 60973-1 | 2020-05-152 | 32 | DIBBS |
| 2830158-103 | 2020-05-135 | 32 | DIBBS |
| 60973-1 | 2020-05-135 | 32 | DIBBS |
| 2830158-103 | 2020-03-83 | 35 | DIBBS |
| 60973-1 | 2020-03-83 | 35 | DIBBS |
| 2830158103 | 2020-03-79 | 5 | United States |
| 2830158-103 | 2020-03-78 | 14 | DIBBS |
| 60973-1 | 2020-03-78 | 14 | DIBBS |
| 4810-01-285-7160 | 2020-02-37 | 2 | United States |
| 2830158-103 | 2020-01-09 | 5 | DIBBS |
| 60973-1 | 2020-01-09 | 5 | DIBBS |
| 2830158-103 | 2019-12-335 | 12 | DIBBS |
| 60973-1 | 2019-12-335 | 12 | DIBBS |
| 2830158-103 | 2019-08-234 | 4 | DIBBS |
| 60973-1 | 2019-08-234 | 4 | DIBBS |
| 2830158-103 | 2019-07-185 | 8 | DIBBS |
| 60973-1 | 2019-07-185 | 8 | DIBBS |
| 4810-01-285-7160 | 2018-05-141 | 15 | DIBBS |
| 4810-01-285-7160 | 2018-05-130 | 15 | DIBBS |
| 4810-01-285-7160 | 2018-03-67 | 8 | DIBBS |
| 4810-01-285-7160 | 2018-02-46 | 9 | DIBBS |
| 4810-01-285-7160 | 2017-08-215 | 9 | DIBBS |
| 4810-01-285-7160 | 2017-05-124 | 6 | DIBBS |
| 4810-01-285-7160 | 2016-09-257 | 7 | DIBBS |
| 4810-01-285-7160 | 2015-07-211 | 8 | DIBBS |
| 4810-01-285-7160 | 2015-04-92 | 10 | DIBBS |
| 4810-01-285-7160 | 2014-11-308 | 9 | DIBBS |
| 4810-01-285-7160 | 2014-03-70 | 10 | DIBBS |
| 4810-01-285-7160 | 2013-06-162 | 15 | US |
| 4810-01-285-7160 | 2013-06-162 | 15 | US |
| 4810-01-285-7160 | 2013-05-149 | 15 | United States |
| 4810-01-285-7160 | 2013-05-148 | 15 | DIBBS |
| 4810-01-285-7160 | 2013-01-31 | 15 | DIBBS |
Cross Reference | NSN 4810-01-285-7160
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16VP040-2 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| 2830158-101 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| 2830158-103 | 0TR84 | UNITED VALVE COMPANY, DIV OF FEDERAL INDUSTRIES, INC |
| 2830158-103 | 3H889 | PARKER-HANNIFIN CORPORATION DBA FLUID SYSTEMS DIVISION |
| 2830158-103 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| 60973-1 | 86090 | EATON INDUSTRIAL CORPORATION DBA AIRFRAME |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4810-01-285-7160
Related Products | NSN 4810-01-285-7160
Technical Data | NSN 4810-01-285-7160
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING FLOW CONTROL DEVICE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5643 ASSN STD SINGLE MATERIAL RESPONSE FLOW CONTROL DEVICE |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | A4 STRAIGHT THRU |
| CENTER TO CENTER DISTANCE | 0.970 INCHES |
| FLOW CONTROL DEVICE | POPPET |
| MEDIA FOR WHICH DESIGNED | AIR 1ST RESPONSE FUEL/OIL, HYDROCARBON 2ND RESPONSE |
| MAXIMUM OPERATING PRESSURE | 75.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 200.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | SOLENOID |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 18.0 DC AND 30.0 DC |
| CURRENT RATING IN AMPS | 7.000 |
| FLOW CONTROL DEVICE NORMAL OPERATION POSITION | UNIVERSAL |
| CONNECTION TYPE | UNTHREADED INTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | G26 PLAIN ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.300 INCHES ALL ENDS |
| MOUNTING POSITION | HORIZONTAL |
| FURNISHED ITEMS AND QUANTITY | 1 SWITCH |
| SPECIAL FEATURES | OVERALL LENGTH 7.000 IN.;OVERALL WIDTH 2.500 IN.; OVERALL HEIGHT 4.95 IN.; VALVE IS A DUAL-SOLENOID OPERATED UNIDIRECTIONAL FUEL FLOW SHUTOFF VALVETHAT FAILS MECHANICALLY IN LAST ELEC TRICALLY SELECTED POSITION; MANUAL OVERRIDE PROVIDED; MAX WT 1.55 LBS; RATEDFLOW 390 LBS/HR OR 1 GAL/MIN; AMBIENT TEMP MINUS 65.0 DEG F TO 160 DEG F; DUTY CYCLE CONTINOUS PER MIL-S-4040,TYPE 1,CLASS A; COIL TEMP RISES TO 400 DEG F WITH 250.0 DEG F AMBIENT (CONTINUOUS) |
| III SUPPLEMENTARY FEATURES | APPLICABLE ON F-16C/D BLOCK 40/60COMMON |
Restrictions/Controls & Freight Information | NSN 4810-01-285-7160
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4810-01-285-7160
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
