NSN 4810-01-285-8209 MSVLCF.033-001, MSVLCF033001, BRC022
Product Details | ROTARY HYDRAULIC-PNEUMATIC ACTUATOR
4810-01-285-8209 A self-contained power transmitting device designed to convert hydraulic or pneumatic force into controlled mechanical force in the form of torque (rotational mechanical movement limited to less than 360 degrees). The linear motion of the hydraulically or pneumatically operated power piston and shaft is converted to rotary motion in the output shaft through such linkage as rack and pinion, pin and yoke, a connecting link, and the like. Excludes hydraulic and pneumatic cylinders and screwjacks.20230100036Torque Converters and Speed Changers48100015Valves, Powered
Part Alternates: MSVLCF.033-001, MSVLCF033001, BRC022, BRC-022, 400078, 400-078, 4810-01-285-8209, 01-285-8209, 4810012858209, 012858209
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 21 SEP 1988 | 01-285-8209 | 37318 ( ACTUATOR, HYDRAULIC-PNEUMATIC, ROTARY ) |
Drawings & Photos | NSN 4810-01-285-8209
Demand History | NSN 4810-01-285-8209
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BRC-022 | 2014-09-260 | 4 | |
| 4810-01-285-8209 | 2014-09-259 | 4 | NECO |
| BRC-022 | 2014-02-53 | 4 | |
| 4810-01-285-8209 | 2014-02-52 | 4 | NECO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4810-01-285-8209
Technical Data | NSN 4810-01-285-8209
| Characteristic | Specifications |
|---|---|
| INTEGRAL VALVE OPERATION METHOD | HYDRAULIC |
| OVERALL HEIGHT | 9.800 INCHES NOMINAL |
| OVERALL DIAMETER | 8.380 INCHES NOMINAL |
| BODY MATERIAL | IRON |
| ROTATION IN DEG | 90.0 |
| MOUNTING TYPE AND LOCATION | FLANGE CYLINDER BASE |
| MOUNTING PROVISION | THREADED MOUNTING STUDS |

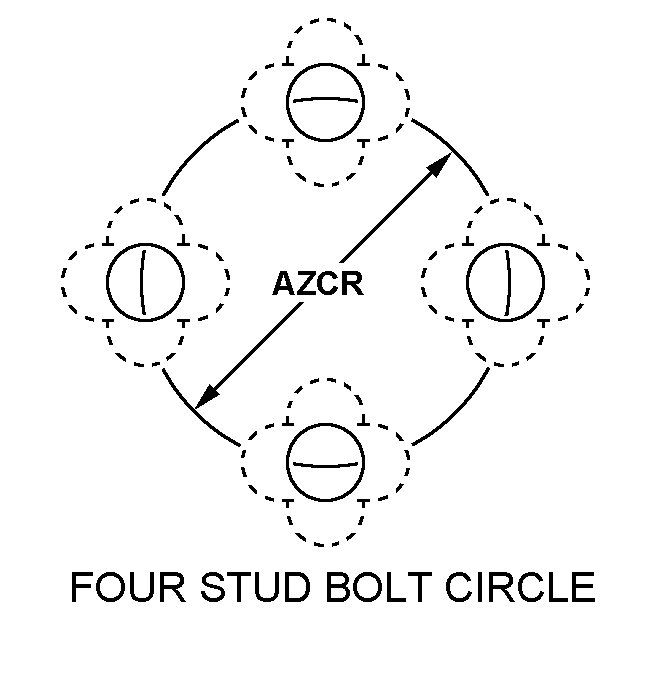

| MOUNTING PROVISION ARRANGEMENT STYLE | 29 FOUR STUD BOLT CIRCLE |
| PORT LOCATION AND QUANTITY | 2 CENTER SECTION |
| TEMP RATING | -4.0 DEG FAHRENHEIT 176.0 DEG FAHRENHEIT |
| PRESSURE RATING | 3045.0 POUNDS PER SQUARE INCH NOMINAL |
| MANUFACTURERS CODE | 1JW34 |
| DESIGN CONTROL REFERENCE | 400-078 |
