NSN 4810-01-247-4564 227592, 01-247-4564, 012474564
Product Details | VALVE DISK
4810-01-247-4564 An item of various shapes (usually circular, conical, cylindrical, or rectangular) used to prevent or regulate the flow of liquids or gases through the valve. May include a retainer, screw, holder, and the like.20616500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment29150064Engine Fuel System Components, Aircraft and Missile Prime Movers48100015Valves, Powered48200018Valves, Nonpowered65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: 227592, 4810-01-247-4564, 01-247-4564, 4810012474564, 012474564
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 06 JAN 1987 | 01-247-4564 | 35224 ( DISK, VALVE ) |

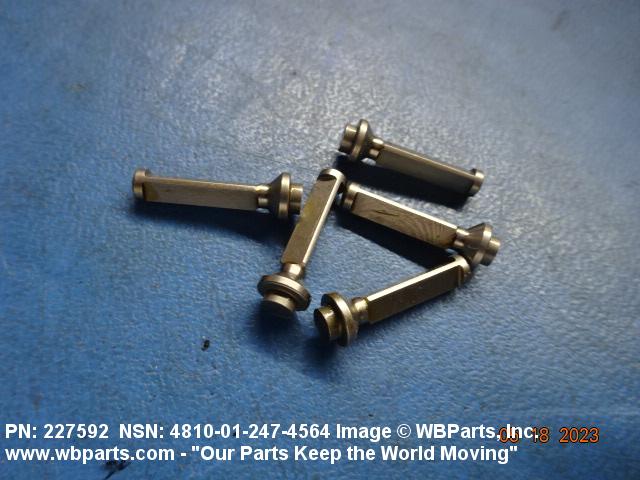

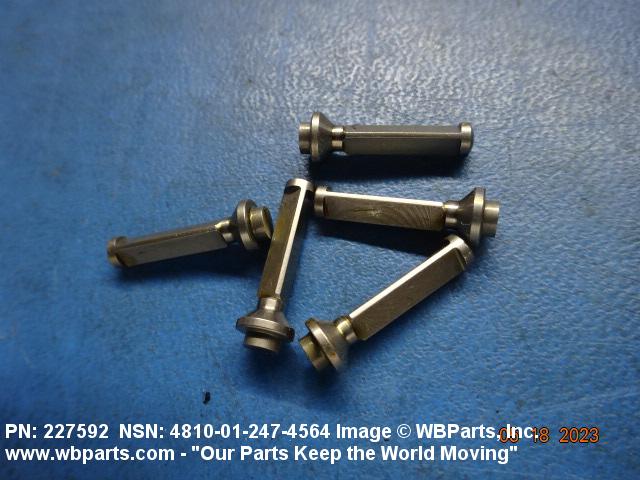

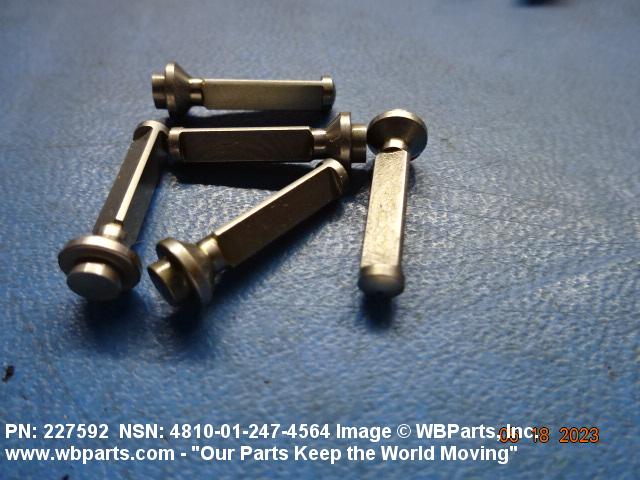

Drawings & Photos | NSN 4810-01-247-4564
Demand History | NSN 4810-01-247-4564
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 227592 | 2024-07-201 | 8 | DIBBS |
| 227592 | 2024-06-168 | 8 | DIBBS |
| 227592 | 2024-04-117 | 40 | DIBBS |
| 4810-01-247-4564 | 2024-02-50 | 40 | DIBBS |
| 227592 | 2023-10-291 | 40 | DIBBS |
| 227592 | 2023-09-247 | 5 | DIBBS |
| 227592 | 2023-08-215 | 40 | DIBBS |
| 227592 | 2023-06-180 | 10 | DIBBS |
| 227592 | 2023-06-180 | 21 | DIBBS |
| 227592 | 2023-06-159 | 21 | DIBBS |
| 227592 | 2023-05-142 | 10 | DIBBS |
| 227592 | 2023-05-127 | 5 | DIBBS |
| 227592 | 2023-05-123 | 5 | United States |
| 4810-01-247-4564 | 2023-03-86 | 10 | United States |
Cross Reference | NSN 4810-01-247-4564
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 227592 | 79318 | MEGGITT (NORTH HOLLYWOOD), INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4810-01-247-4564
Technical Data | NSN 4810-01-247-4564
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-763, CLASS 440C, COND A |
| STYLE DESIGNATOR | G40 POPPET |

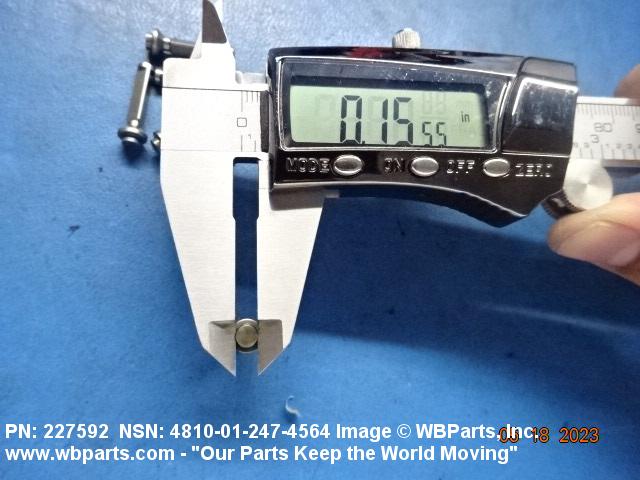

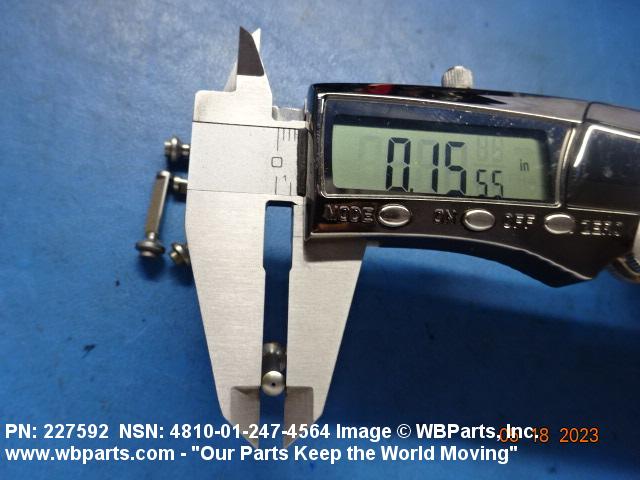

| SHANK DIAMETER | 0.155 INCHES NOMINAL |

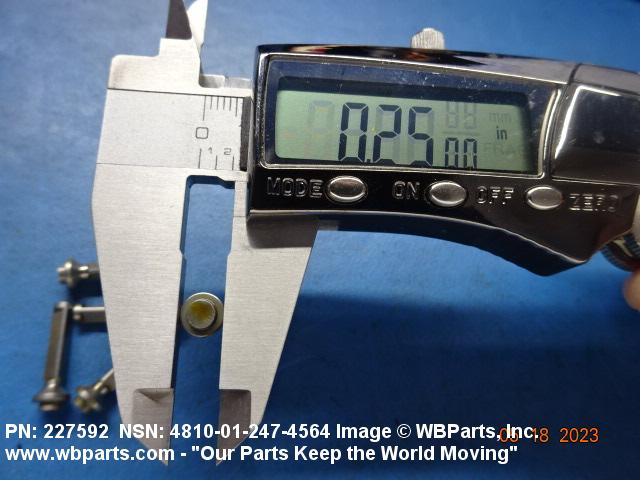

| FLANGE DIAMETER | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |

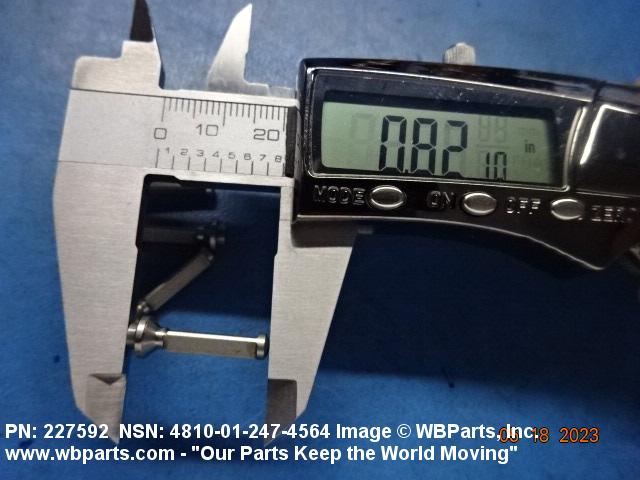

| OVERALL HEIGHT | 0.751 INCHES MINIMUM AND 0.761 INCHES MAXIMUM |
| SEAT ANGLE | 89.0 DEGREES MINIMUM AND 90.0 DEGREES MAXIMUM |
| MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
| PRESSURE RATING | NOT RATED |
| TEMP RATING | NOT RATED |
| SPECIAL FEATURES | USED ON NSN 4810012257171 VALVE,F-16 AIRCRAFT |
| MANUFACTURERS CODE | 79318 |
| DESIGN CONTROL REFERENCE | 227592 |
Restrictions/Controls & Freight Information | NSN 4810-01-247-4564
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
