NSN 4730-01-529-1905 AS4841, AS5406, AS5406W04
Product Details | TUBE NIPPLE
4730-01-529-1905 A straight, one-piece fitting used to join a tube or tube fitting to another tube or tube fitting. It may have any type externally threaded tube connections of the same size on both ends and is usually shaped externally at the center to accommodate a wrench. It may include nuts, sleeves, and/or grommets.
Part Alternates: AS4841, AS5406, AS5406W04, 4730-01-529-1905, 01-529-1905, 4730015291905, 015291905
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 07 APR 2005 | 01-529-1905 | 03783 ( NIPPLE, TUBE ) |

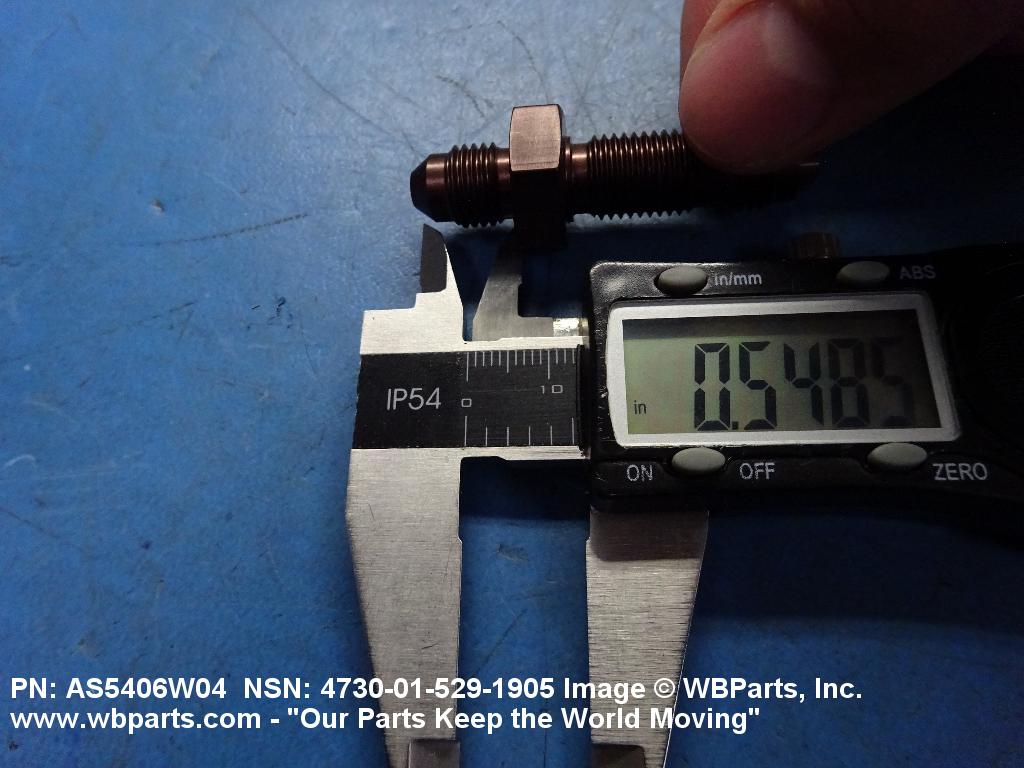

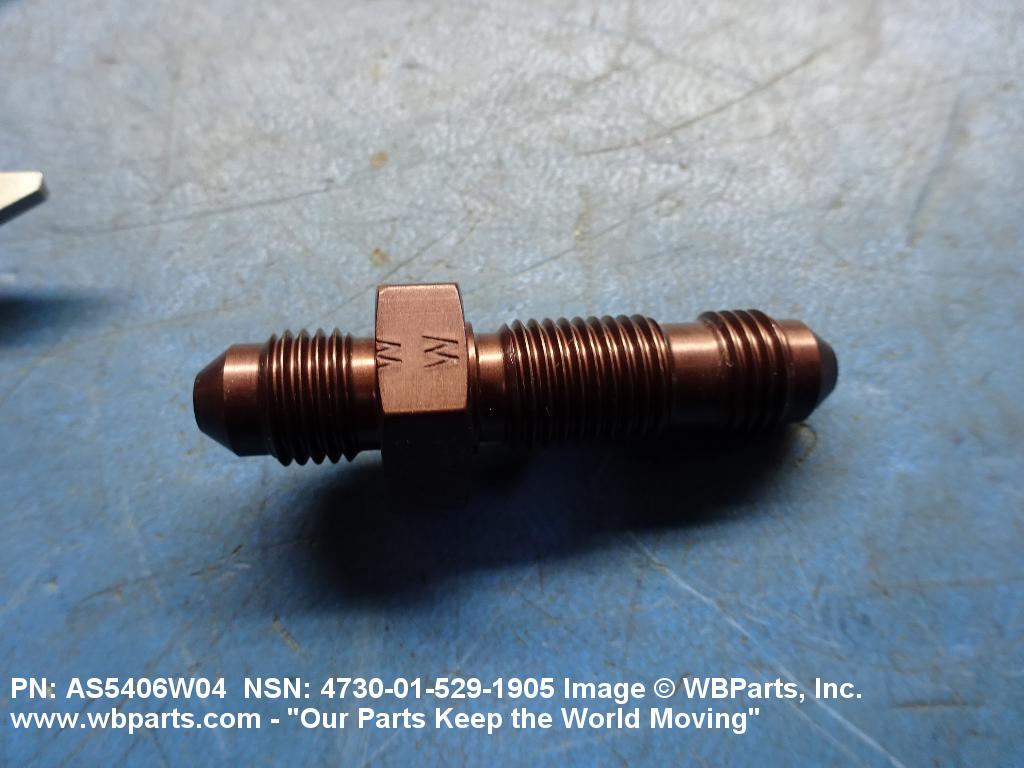

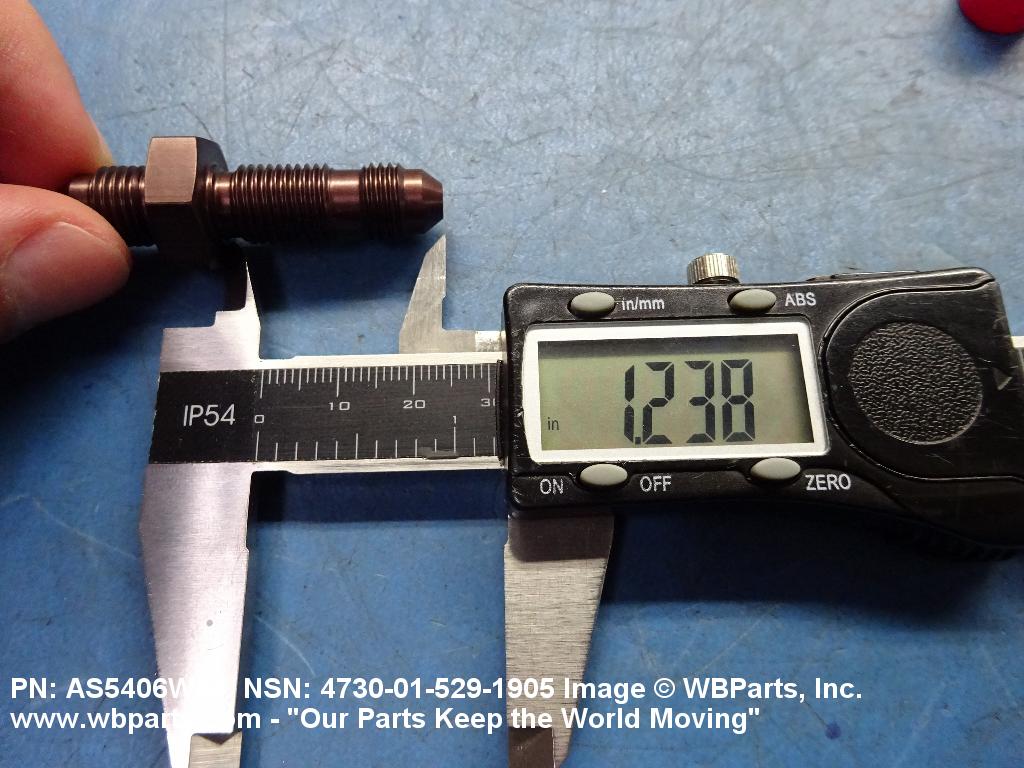

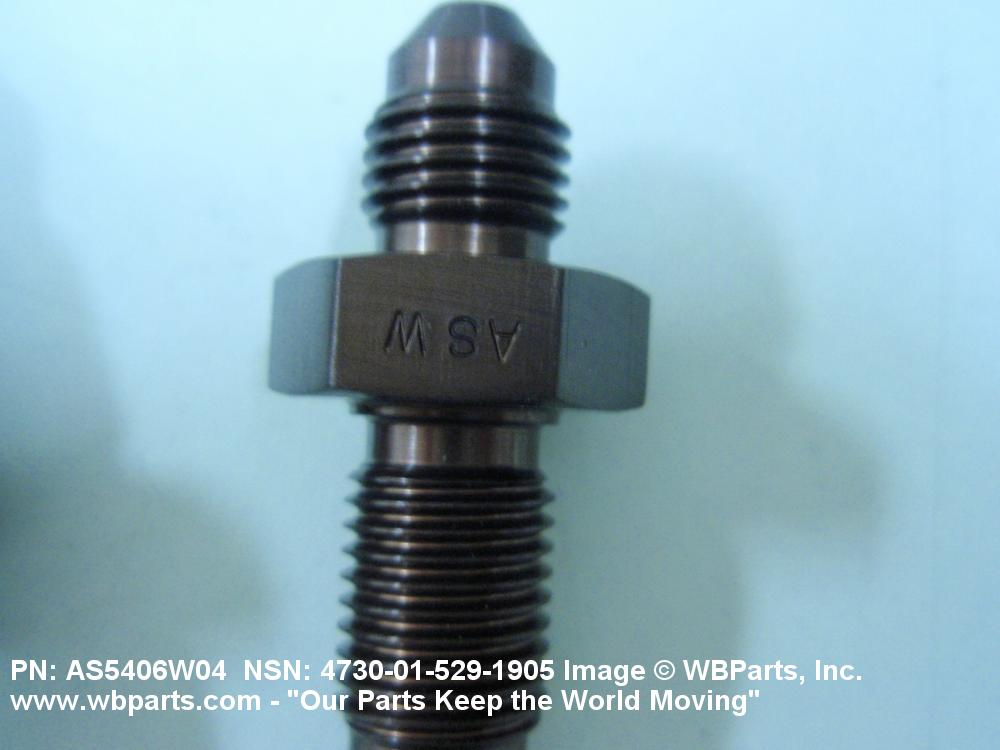

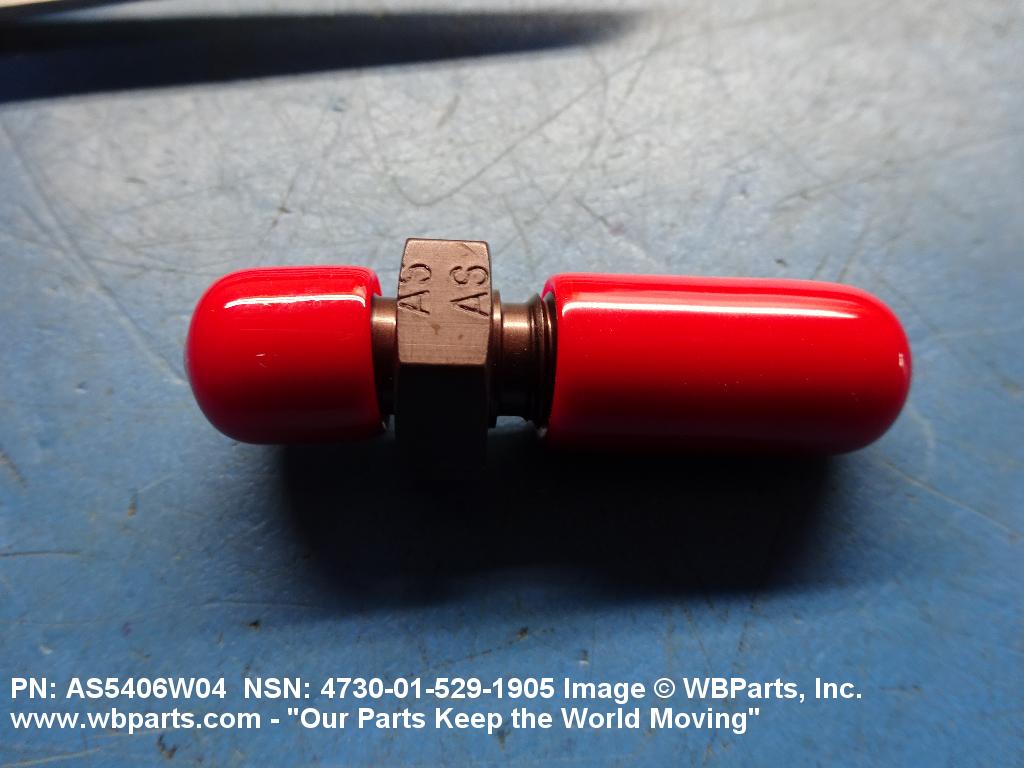

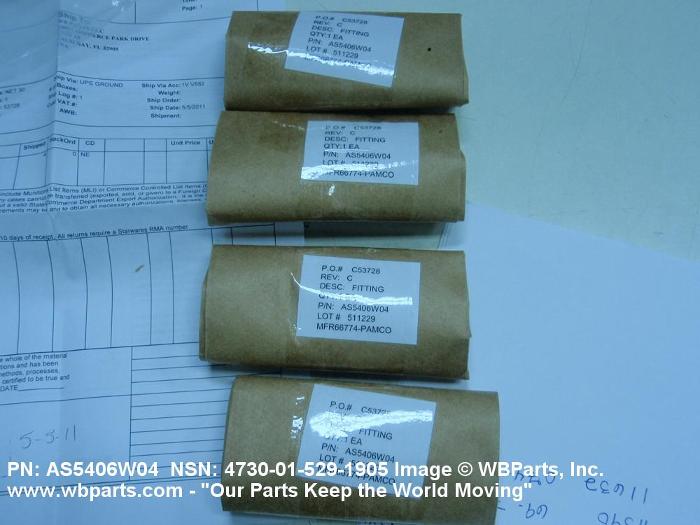

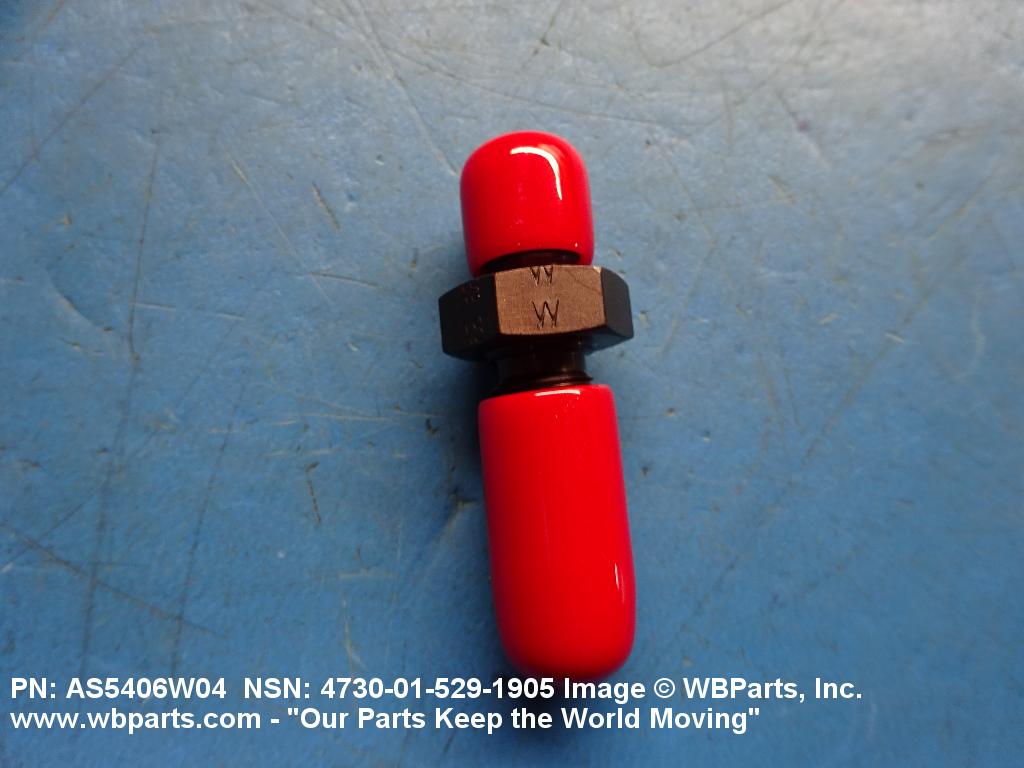

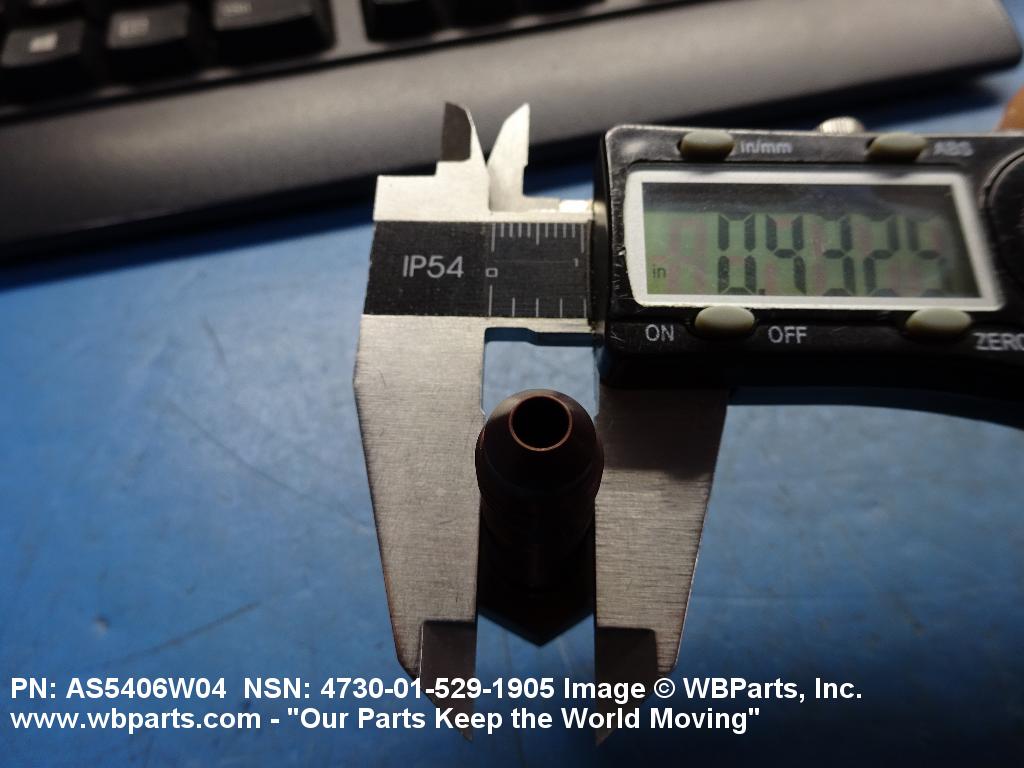

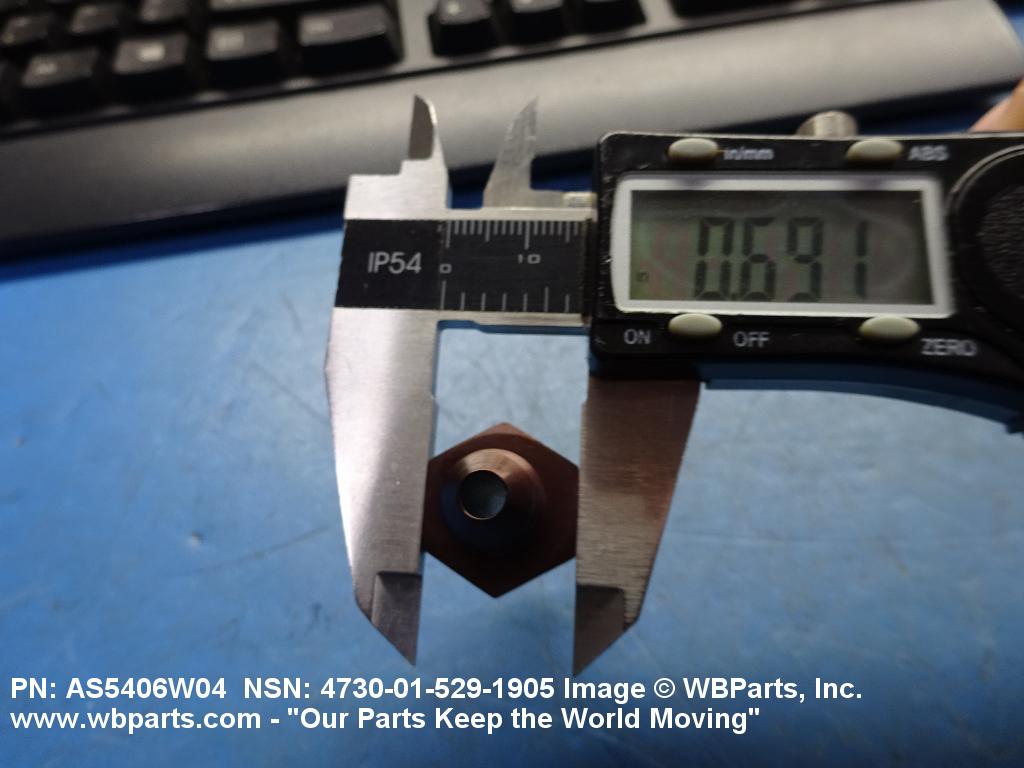

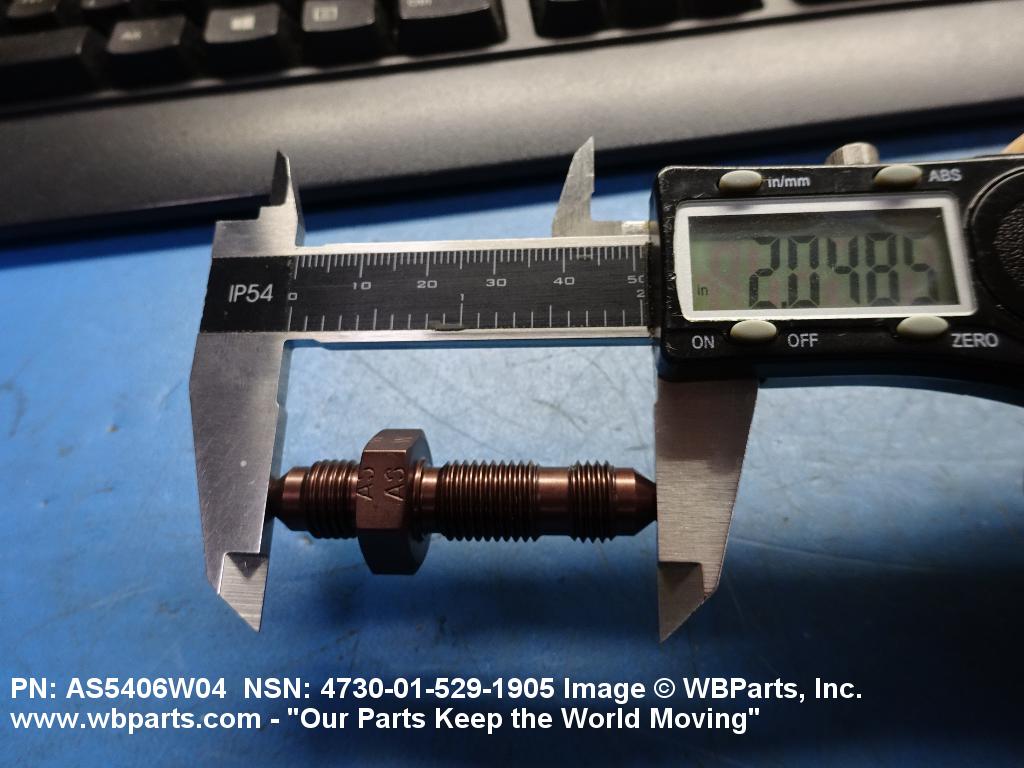

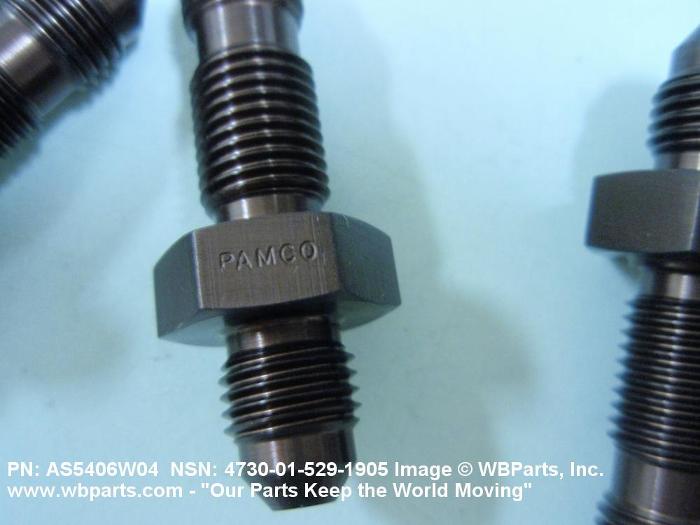

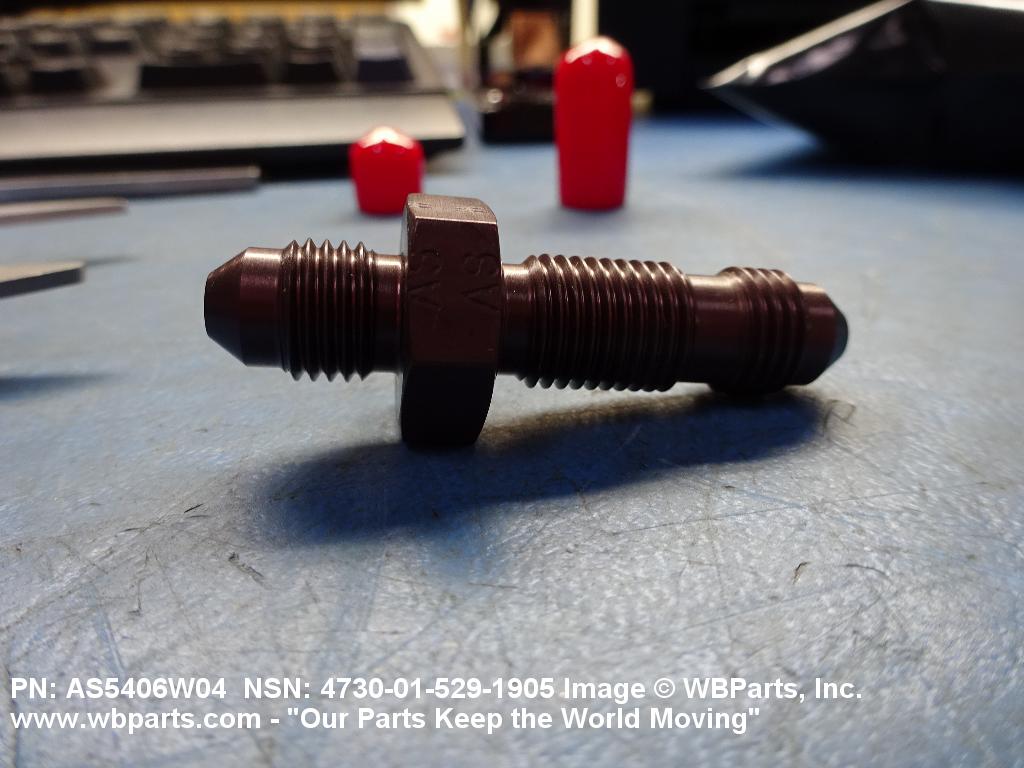

Drawings & Photos | NSN 4730-01-529-1905
Demand History | NSN 4730-01-529-1905
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-529-1905 | 2023-01-18 | 10 | US |
| AS5406W04 | 2022-07-182 | 5 | United States |
| 4730-01-529-1905 | 2022-05-151 | 1 | United States |
| 4730-01-529-1905 | 2022-05-151 | 1 | United States |
| 4730-01-529-1905 | 2019-03-73 | 24 | US |
| 4730-01-529-1905 | 2017-04-92 | 202 | DIBBS |
| 4730-01-529-1905 | 2016-10-299 | 87 | DIBBS |
| 4730-01-529-1905 | 2016-07-201 | 38 | DIBBS |
| AS5406W04 | 2016-04-111 | 1 | US |
| AS5406W04 | 2016-04-109 | 1 | United States |
| 4730-01-529-1905 | 2014-10-295 | 32 | DIBBS |
| 4730-01-529-1905 | 2013-08-216 | 5 | DIBBS |
| 4730-01-529-1905 | 2012-04-97 | 2 | DIBBS |
| 4730-01-529-1905 | 2012-03-85 | 1 | DIBBS |
| 4730-01-529-1905 | 2012-01-09 | 1 | DIBBS |
| AS5406W04 | 2011-05-151 | 1 | US |
| 4730-01-529-1905 | 2011-04-111 | 4 | United States |
| AS4841 | 2011-03-69 | 8 | |
| 4730-01-529-1905 | 2011-02-38 | 1 | DIBBS |
| 4730-01-529-1905 | 2010-10-287 | 1 | DIBBS |
| 4730-01-529-1905 | 2010-04-120 | 2 | DIBBS |
| 4730-01-529-1905 | 2010-04-102 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-529-1905
Related Products | NSN 4730-01-529-1905
Technical Data | NSN 4730-01-529-1905
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MAXIMUM OPERATING PRESSURE | 3000.000 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| STYLE DESIGNATOR | A64 FLARED W/BULKHEAD THREAD |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B64 FLARED ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS UNJF CENTER BULKHEAD |
| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS 0.438 INCHES CENTER BULKHEAD |
| THREAD CLASS | 3A ALL ENDS 3A CENTER BULKHEAD |
| NOMINAL OVERALL LENGTH | 2.047 INCHES |
| SPECIAL FEATURES | ALLOY 7075 T73; CENTER WRENCHING FACILITY |
| SPECIFICATION/STANDARD DATA | 96906-MS24393 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | DCN ONLY |
Restrictions/Controls & Freight Information | NSN 4730-01-529-1905
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-529-1905
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
