NSN 4730-01-522-9630 SS65204S2, SS65-204S-2, 01-522-9630
Product Details | SELF-SEALING COUPLING HALF
4730-01-522-9630 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an external or internal thread for connecting a mating part to form a self-sealing coupling assembly. The fitting has either a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half, or, if it has no self-sealing feature, is specifically designed to mate with a fitting with a self-sealing feature. For self-sealing fittings with a quick disconnect end, see COUPLING HALF, QUICK DISCONNECT. For fluid line fittings without a self-sealing feature, see COUPLING (as modified).
Part Alternates: SS65204S2, SS65-204S-2, 4730-01-522-9630, 01-522-9630, 4730015229630, 015229630
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 16 AUG 2004 | 01-522-9630 | 18281 ( COUPLING HALF, SELF-SEALING ) |

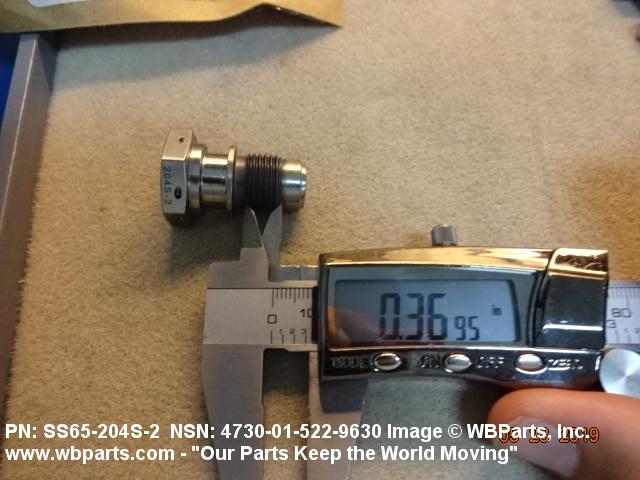

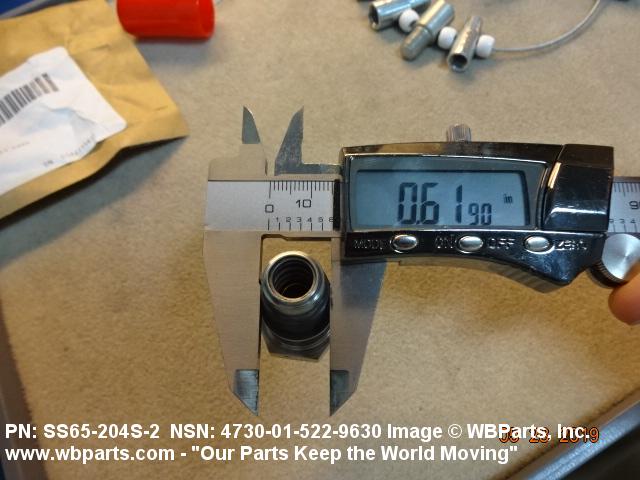

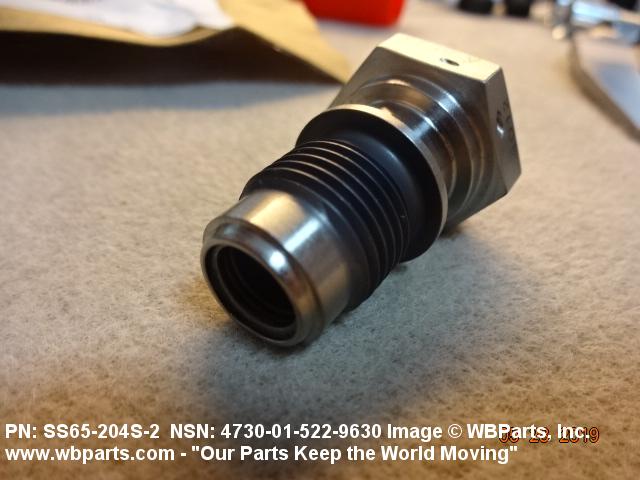

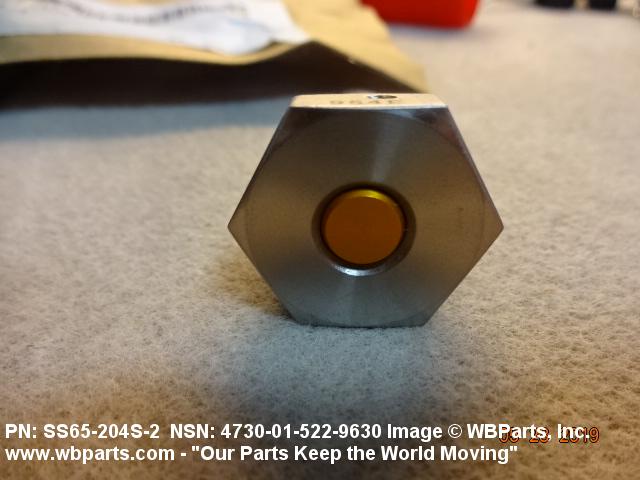

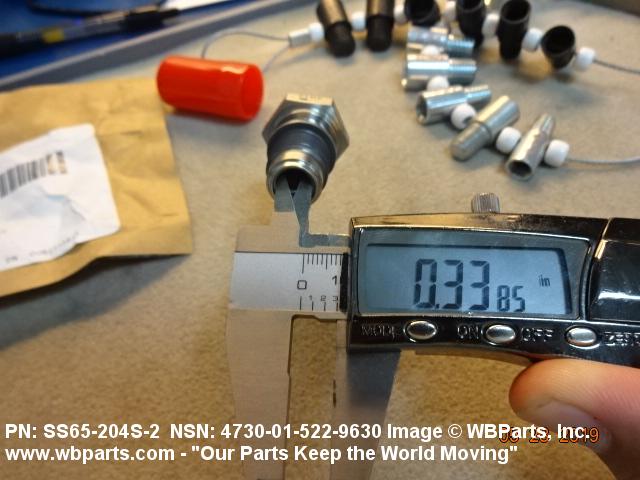

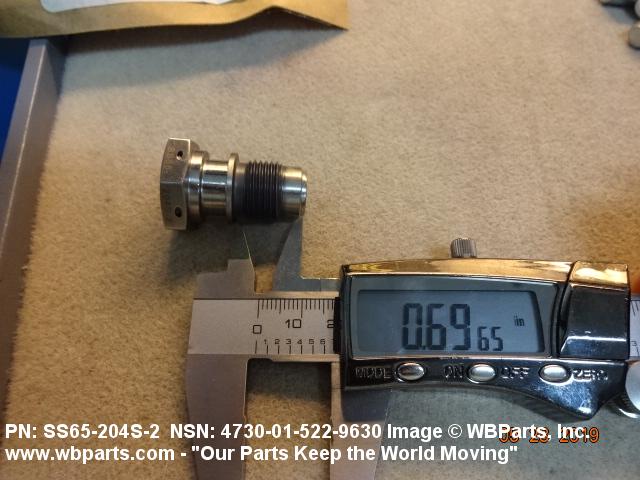

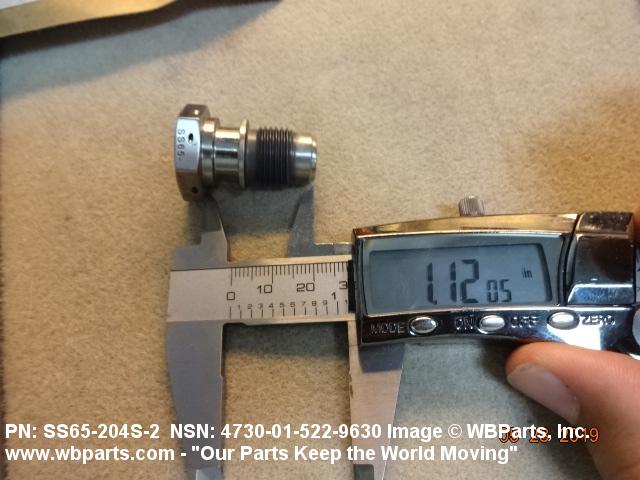

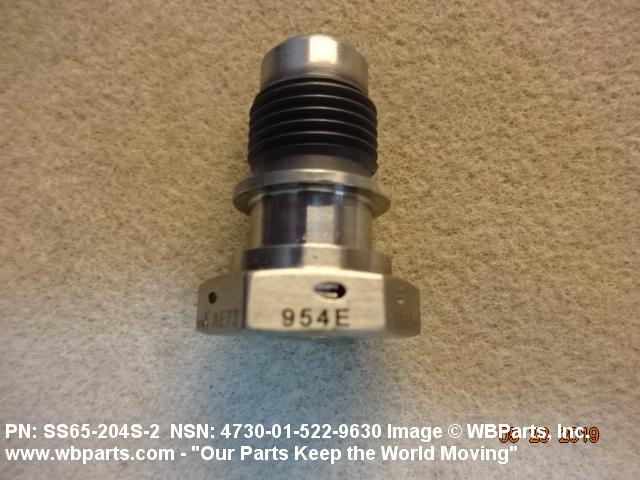

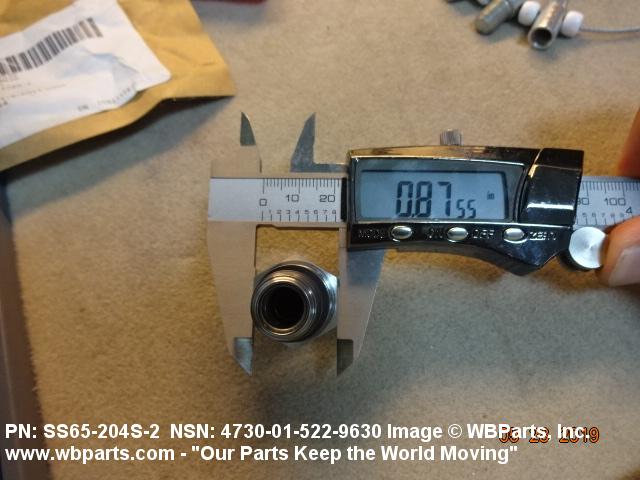

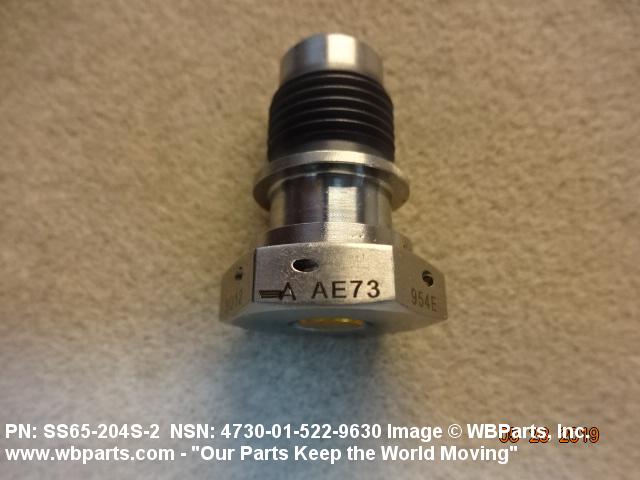

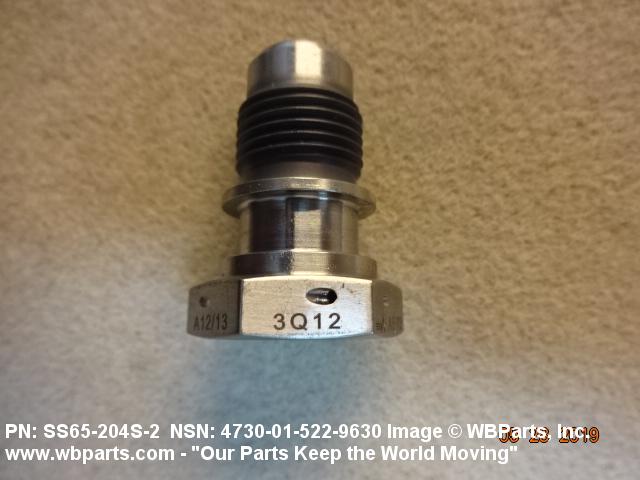

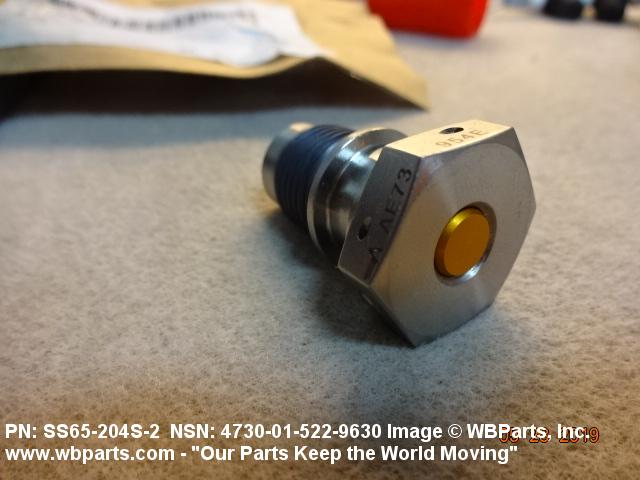

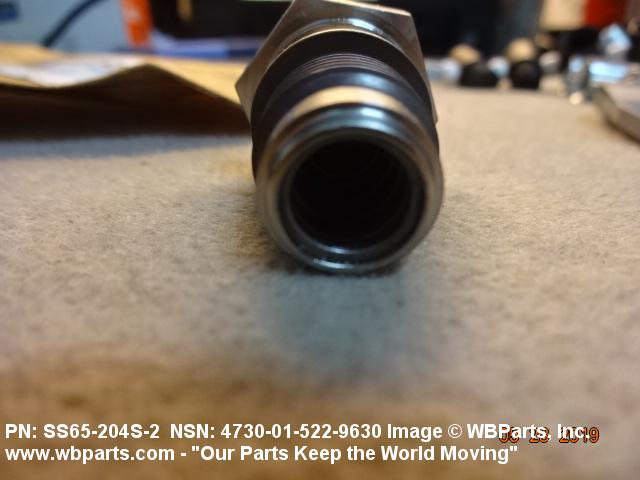

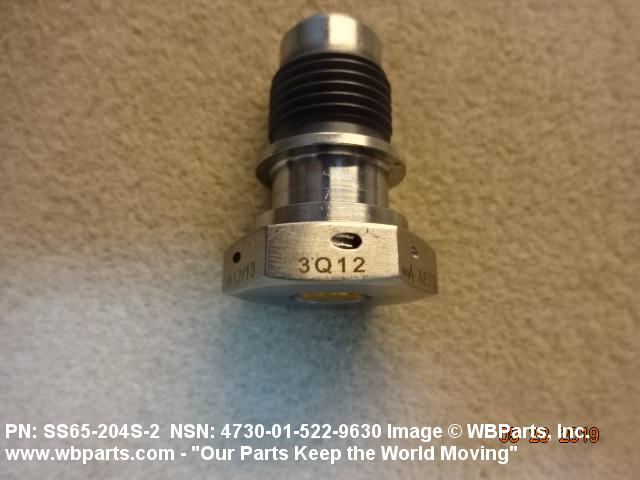

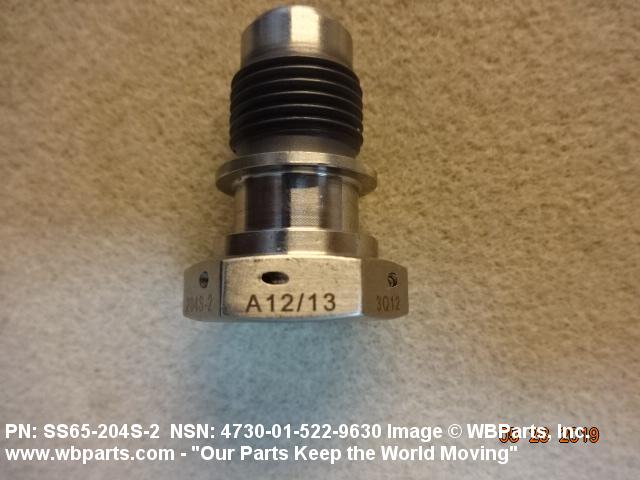

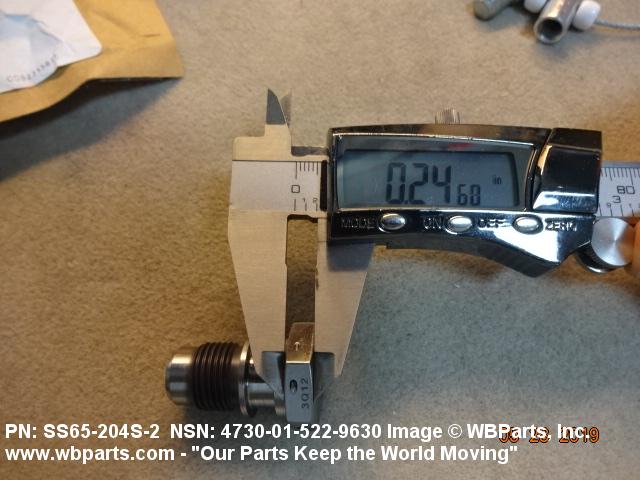

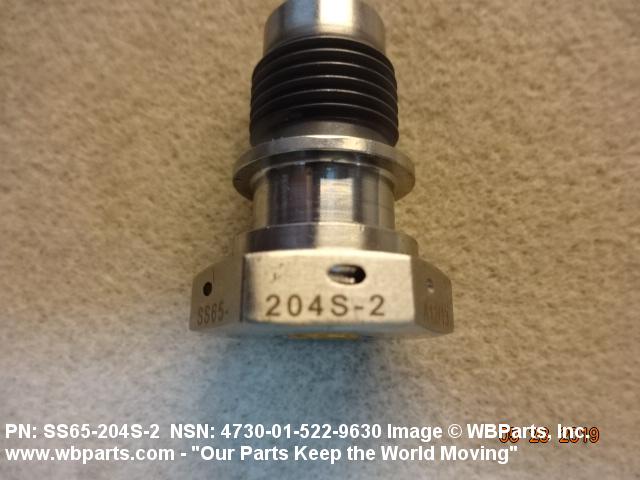

Drawings & Photos | NSN 4730-01-522-9630
Demand History | NSN 4730-01-522-9630
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-522-9630 | 2024-07-205 | 1 | United States |
| 4730-01-522-9630 | 2023-12-342 | 6 | TR |
| SS65204S2 | 2023-10-293 | 8 | TR |
| SS65204S2 | 2019-05-141 | 1 | United States |
| SS65204S2 | 2019-05-141 | 2 | United States |
| 4730-01-522-9630 | 2015-04-114 | 166 | DIBBS |
| 4730-01-522-9630 | 2015-04-102 | 166 | DIBBS |
| 4730-01-522-9630 | 2014-08-233 | 167 | DIBBS |
| 4730-01-522-9630 | 2014-08-222 | 159 | DIBBS |
| 4730-01-522-9630 | 2013-12-349 | 113 | DIBBS |
| 4730-01-522-9630 | 2013-06-176 | 183 | DIBBS |
| 4730-01-522-9630 | 2013-06-167 | 89 | DIBBS |
| 4730-01-522-9630 | 2013-01-11 | 112 | DIBBS |
| 4730-01-522-9630 | 2013-01-04 | 130 | DIBBS |
| 4730-01-522-9630 | 2012-11-326 | 40 | DIBBS |
| 4730-01-522-9630 | 2012-10-284 | 16 | DIBBS |
| 4730-01-522-9630 | 2012-08-236 | 13 | DIBBS |
| 4730-01-522-9630 | 2012-07-185 | 10 | DIBBS |
| 4730-01-522-9630 | 2012-01-22 | 4 | DIBBS |
| 4730-01-522-9630 | 2012-01-03 | 15 | DIBBS |
| 4730-01-522-9630 | 2011-08-235 | 11 | DIBBS |
| 4730-01-522-9630 | 2010-02-36 | 2 | DIBBS |
| 4730-01-522-9630 | 2010-01-14 | 6 | DIBBS |
Cross Reference | NSN 4730-01-522-9630
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SS65-204S-2 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-522-9630
Related Products | NSN 4730-01-522-9630
Technical Data | NSN 4730-01-522-9630
| Characteristic | Specifications |
|---|---|
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID, SYNTHETIC HYDROCARBON BASE SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 275.0 DEG FAHRENHEIT SINGLE RESPONSE |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | COUPLING SELF-SEALING HYDRAULIC |
| END ITEM IDENTIFICATION | NSN 1520-01-082-0686 HELICOPTER, ELECTRON |
| (NON-CORE DATA) FIRST LEG LENGTH | 1.135 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4730-01-522-9630
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-522-9630
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
