NSN 4730-00-589-1390 AN622124, AN6221-24, 140S124
Product Details | SELF-SEALING COUPLING HALF
4730-00-589-1390 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an external or internal thread for connecting a mating part to form a self-sealing coupling assembly. The fitting has either a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half, or, if it has no self-sealing feature, is specifically designed to mate with a fitting with a self-sealing feature. For self-sealing fittings with a quick disconnect end, see COUPLING HALF, QUICK DISCONNECT. For fluid line fittings without a self-sealing feature, see COUPLING (as modified).
Part Alternates: AN622124, AN6221-24, 140S124, 140S1-24, 145S524D, 145-S5-24D, 7D0241F24S, 4730-00-589-1390, 00-589-1390, 4730005891390, 005891390
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-589-1390 | 18281 ( COUPLING HALF, SELF-SEALING ) |

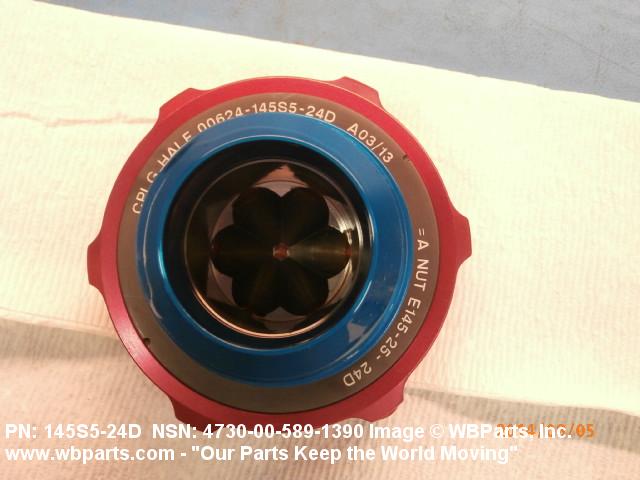

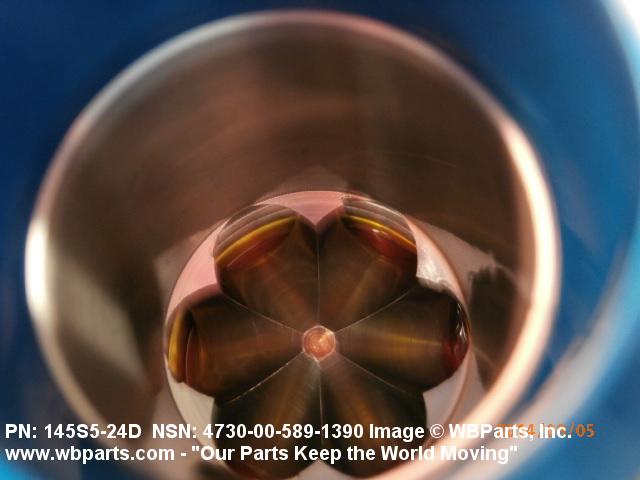

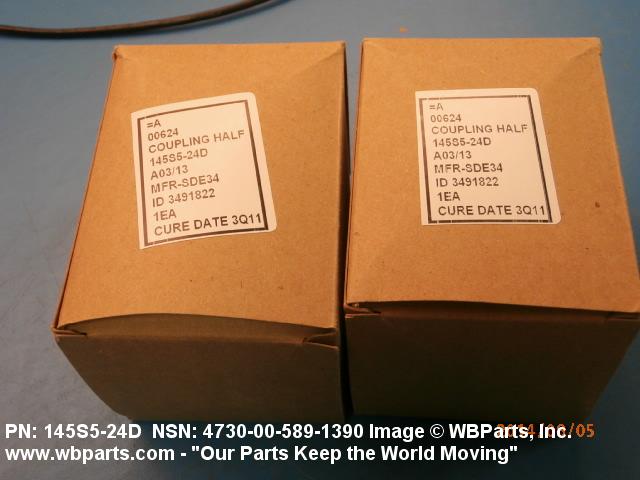

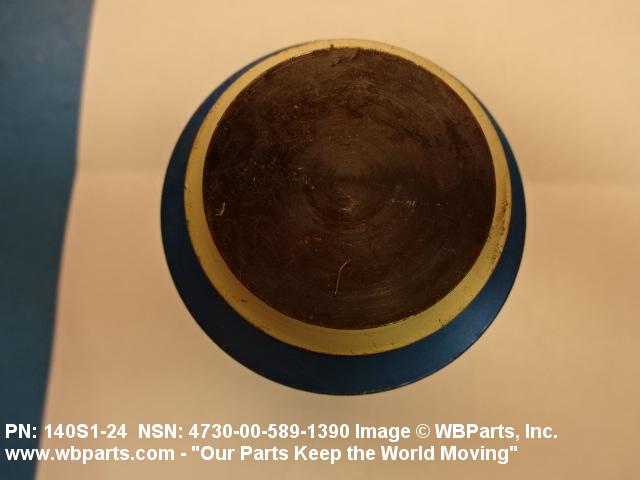

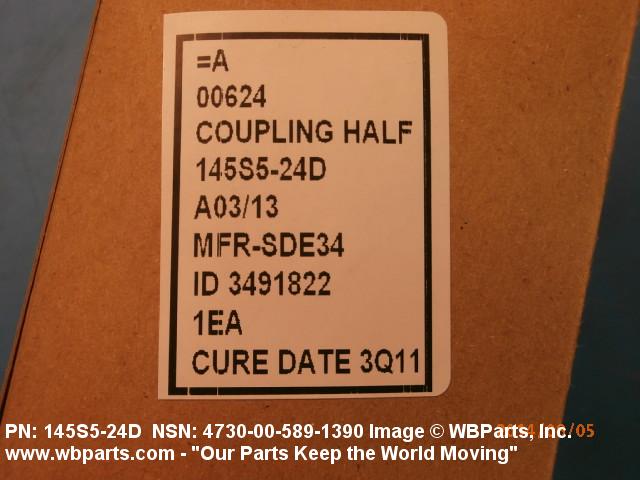

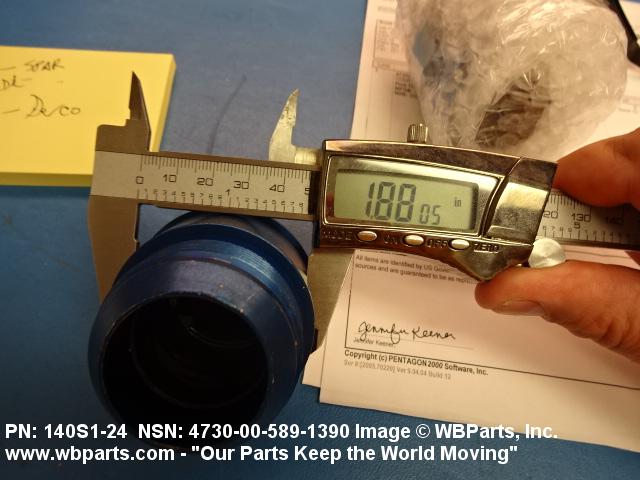

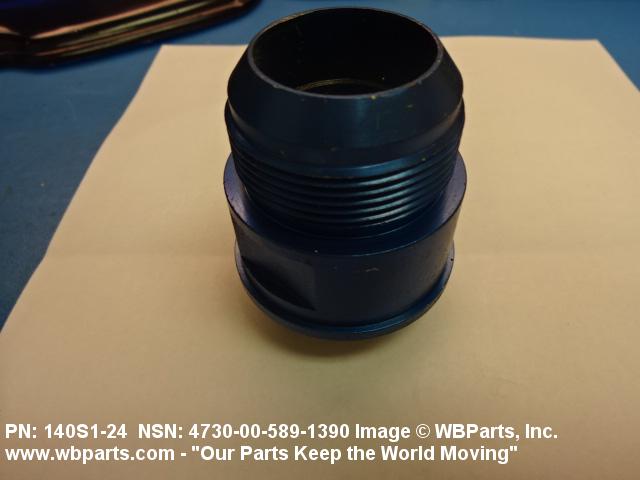

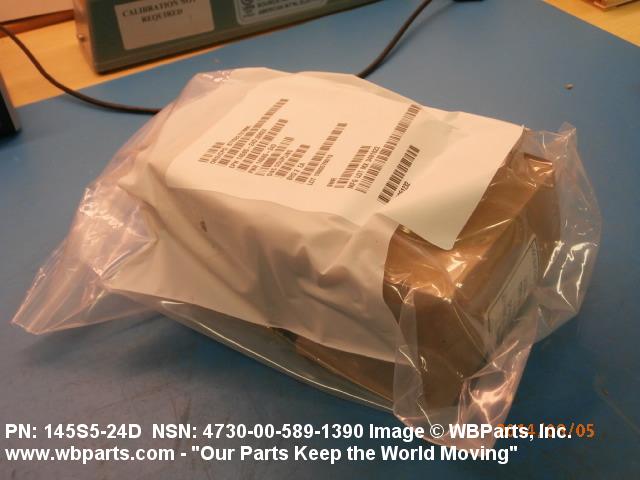

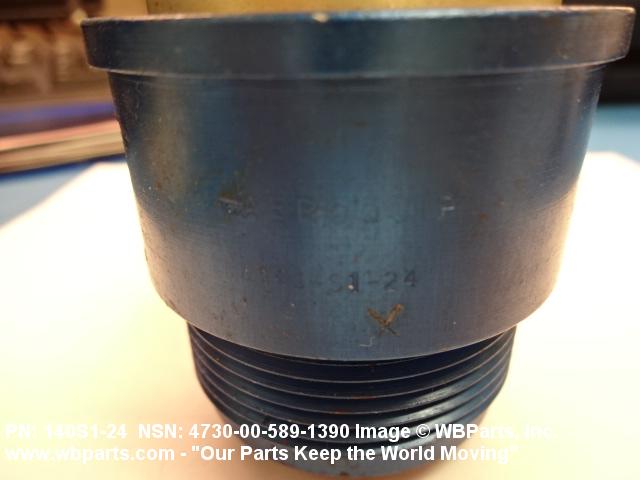

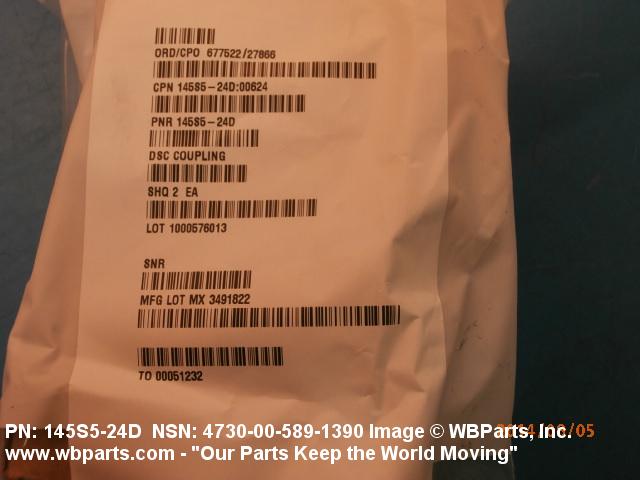

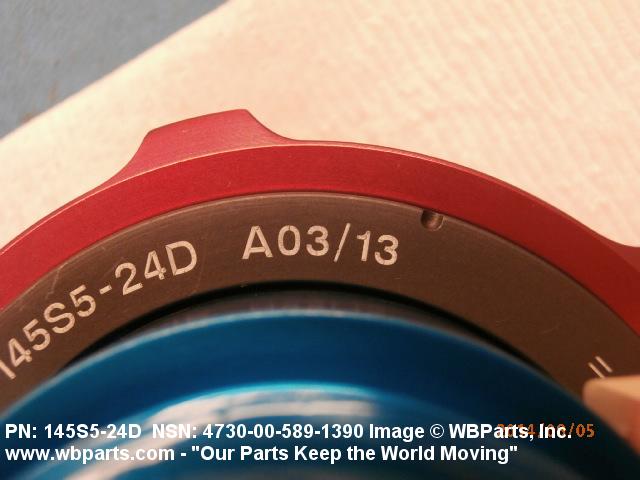

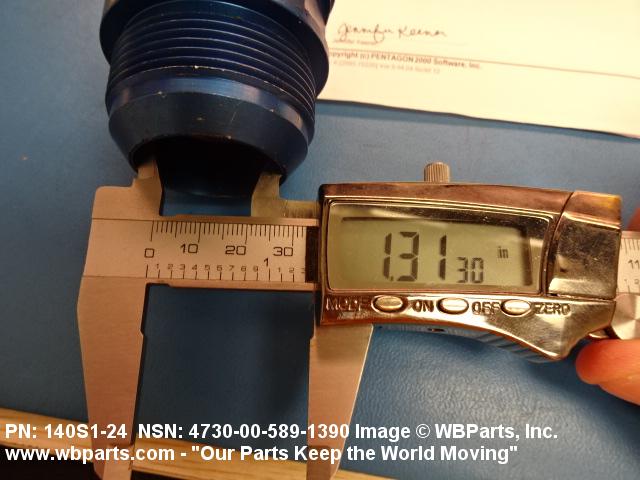

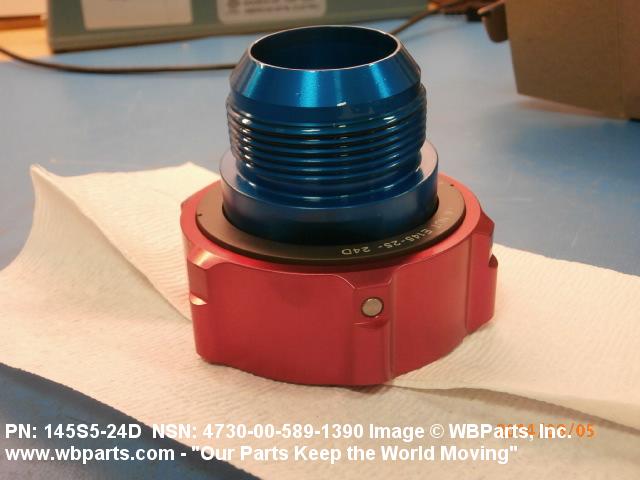

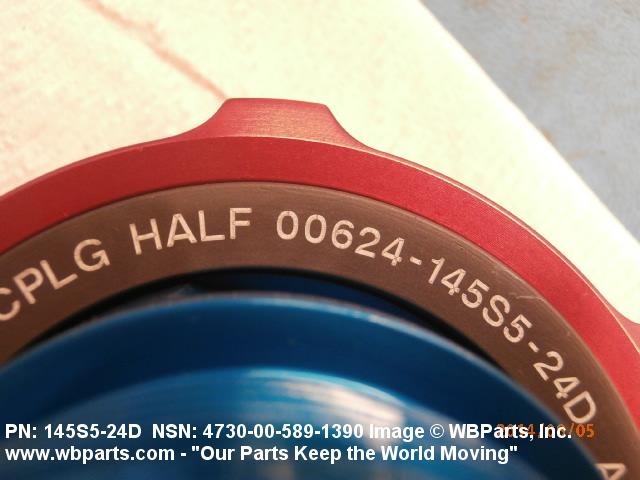

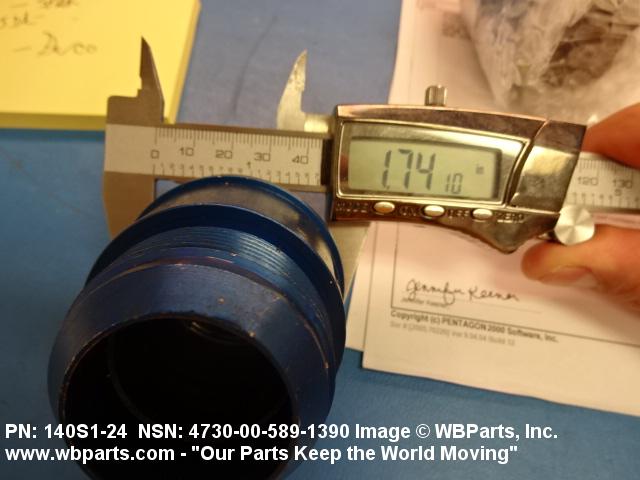

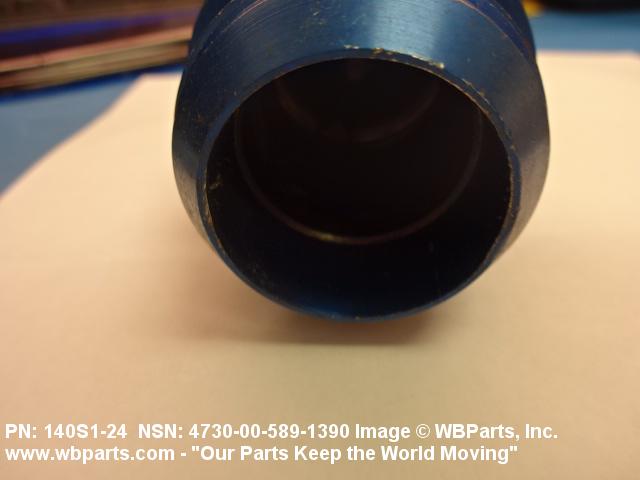

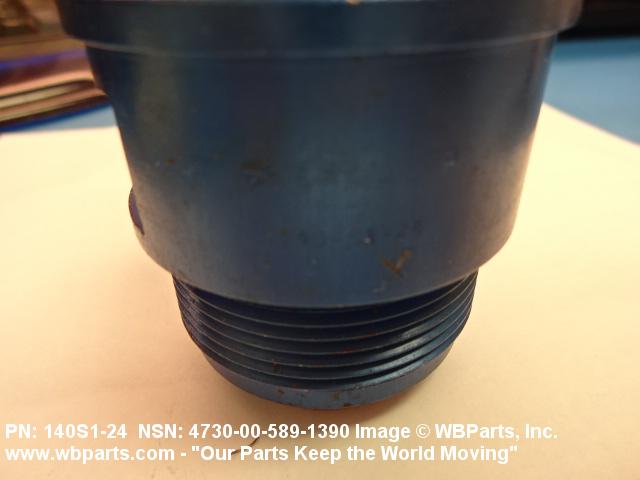

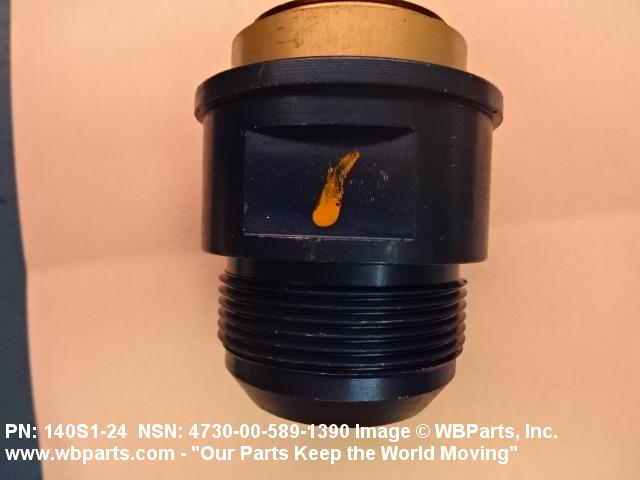

Drawings & Photos | NSN 4730-00-589-1390
Demand History | NSN 4730-00-589-1390
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-589-1390 | 2022-03-61 | 8 | US |
| 4730-00-589-1390 | 2021-10-291 | 16 | United States |
| 4730-00-589-1390 | 2021-05-141 | 9 | US |
| 4730-00-589-1390 | 2021-03-63 | 4 | United States |
| 145S524D | 2021-02-56 | 4 | United States |
| 4730-00-589-1390 | 2020-08-238 | 10 | United States |
| 145-S5-24D | 2020-04-107 | 8 | DIBBS |
| 7D0241F24S | 2020-04-107 | 8 | DIBBS |
| 4730-00-589-1390 | 2020-04-103 | 31 | US |
| 145-S5-24D | 2020-03-79 | 31 | DIBBS |
| 7D0241F24S | 2020-03-79 | 31 | DIBBS |
| 4730-00-589-1390 | 2019-03-85 | 3 | us |
| 145S524D | 2014-07-211 | 2 | United States |
| 4730-00-589-1390 | 2013-09-260 | 58 | DIBBS |
| 4730-00-589-1390 | 2013-08-241 | 1 | DIBBS-RFPs |
| 4730-00-589-1390 | 2013-05-121 | 72 | DIBBS |
| 4730-00-589-1390 | 2013-01-24 | 117 | DIBBS |
| 4730-00-589-1390 | 2012-10-284 | 51 | DIBBS |
| 4730-00-589-1390 | 2012-09-249 | 44 | DIBBS |
| 4730-00-589-1390 | 2012-09-249 | 45 | DIBBS |
| 4730-00-589-1390 | 2012-09-249 | 46 | DIBBS |
| 4730-00-589-1390 | 2012-08-229 | 44 | DIBBS |
| 4730-00-589-1390 | 2012-08-220 | 45 | DIBBS |
| 4730-00-589-1390 | 2012-08-220 | 46 | DIBBS |
| 4730-00-589-1390 | 2012-07-195 | 45 | DIBBS |
| 4730-00-589-1390 | 2012-05-132 | 46 | DIBBS |
| 4730-00-589-1390 | 2012-03-62 | 68 | DIBBS |
| 4730-00-589-1390 | 2011-08-220 | 21 | DIBBS |
| 4730-00-589-1390 | 2011-06-172 | 84 | DIBBS |
| 4730-00-589-1390 | 2011-01-24 | 45 | DIBBS |
| 4730-00-589-1390 | 2010-11-314 | 26 | DIBBS |
| 145S524D | 2010-09-250 | 6 | United States |
| 4730-00-589-1390 | 2010-05-121 | 1 | DIBBS |
| 4730-00-589-1390 | 2008-09-262 | 56 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-589-1390
Related Products | NSN 4730-00-589-1390
Technical Data | NSN 4730-00-589-1390
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY |
| BODY SURFACE TREATMENT | ANODIZE |
| BODY STYLE | 1 COUPLING HALF |
| FIRST LEG LENGTH | 1.080 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 1000.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID, PETROLEUM BASE 1000.0 POUNDS PER SQUARE INCH OIL |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 160.0 DEG FAHRENHEIT HYDRAULIC FLUID, PETROLEUM BASE 160.0 DEG FAHRENHEIT OIL |
| OVERALL LENGTH | 2.700 INCHES NOMINAL |
| FIRST FLUID END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | D6 FLARED |
| FIRST END SEAT ANGLE | 37.0 DEGREES NOMINAL |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.500 INCHES NOMINAL |
| FIRST END THREAD SERIES DESIGNATOR | UN |
| FIRST END NOMINAL THREAD SIZE | 1.875 INCHES |
| FIRST END THREAD QUANTITY PER INCH | 12 |
| FIRST END THREAD CLASS | 3A |
| SPECIAL FEATURES | GRUMMAN CORP,A-10 AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 4730-00-589-1390
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-589-1390
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
