NSN 4730-01-138-7151 B3005S212D, B3005S2-12D, 3005S2

Product Details | SELF-SEALING COUPLING HALF

4730-01-138-7151 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an external or internal thread for connecting a mating part to form a self-sealing coupling assembly. The fitting has either a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half, or, if it has no self-sealing feature, is specifically designed to mate with a fitting with a self-sealing feature. For self-sealing fittings with a quick disconnect end, see COUPLING HALF, QUICK DISCONNECT. For fluid line fittings without a self-sealing feature, see COUPLING (as modified).

Part Alternates: B3005S212D, B3005S2-12D, 3005S2, 4421212FN1, 44212-12F-N1, 4421214FN1, 44212-14F-N1, 4730-01-138-7151, 01-138-7151, 4730011387151, 011387151

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	12 FEB 1992	01-138-7151	18281 ( COUPLING HALF, SELF-SEALING )

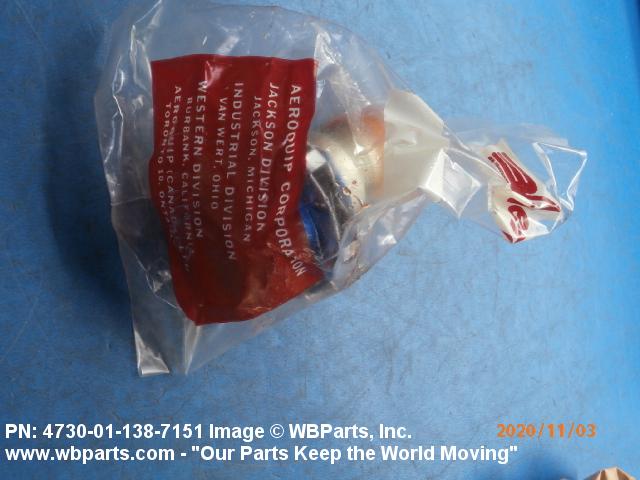

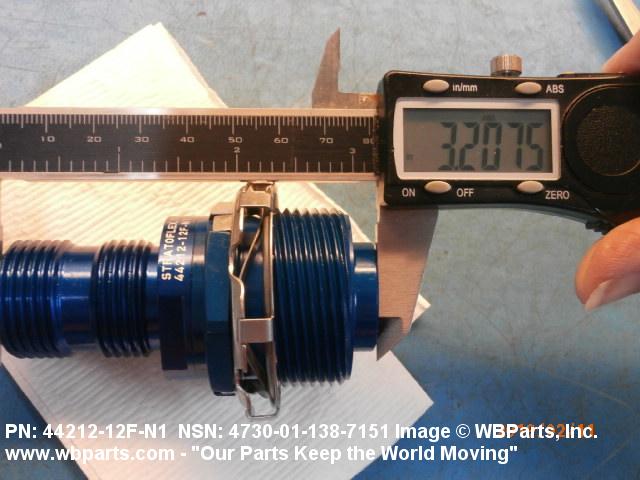

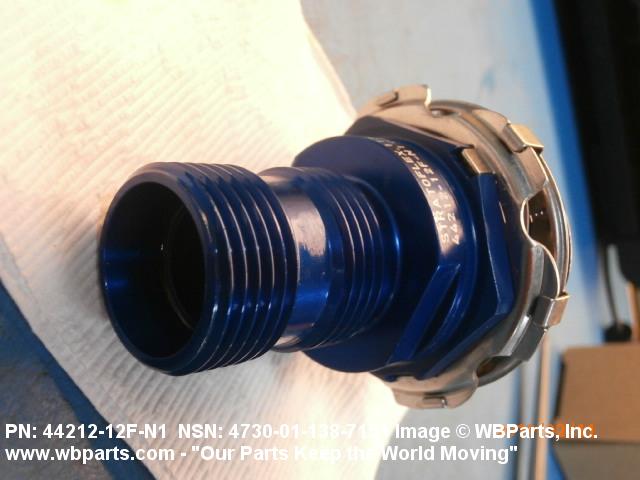

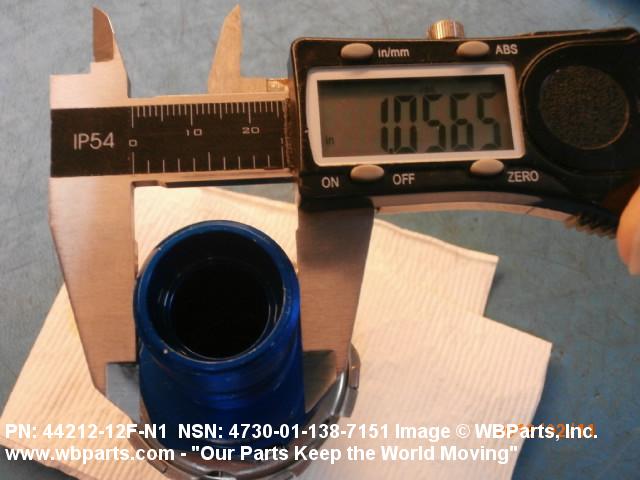

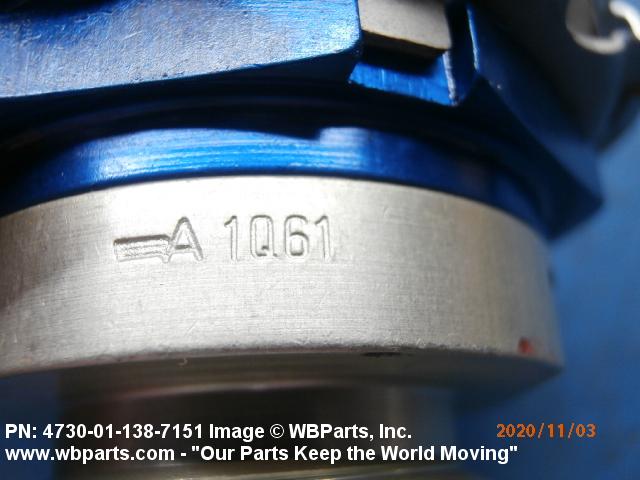

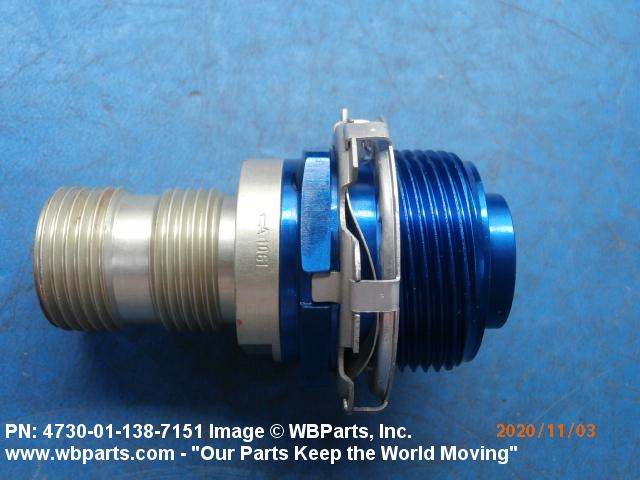

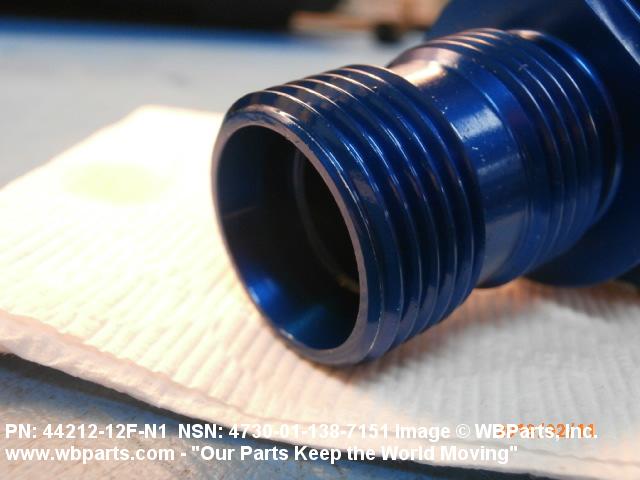

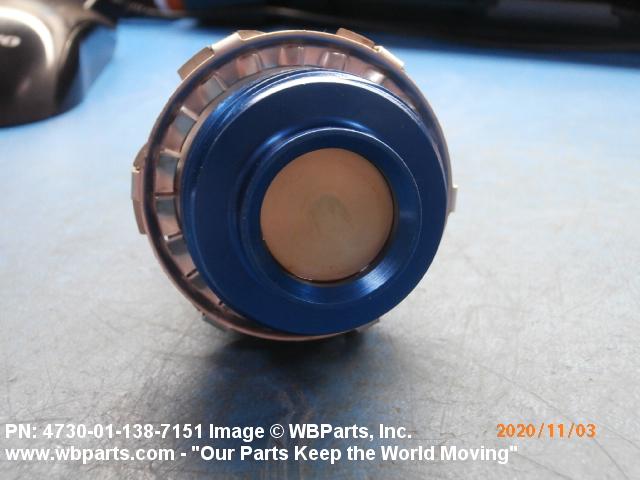

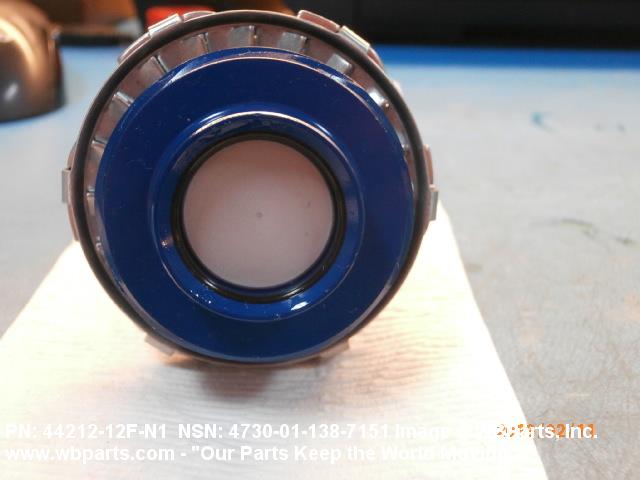

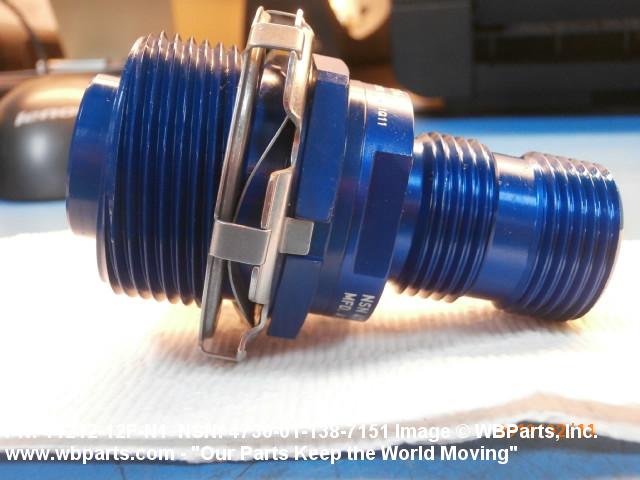

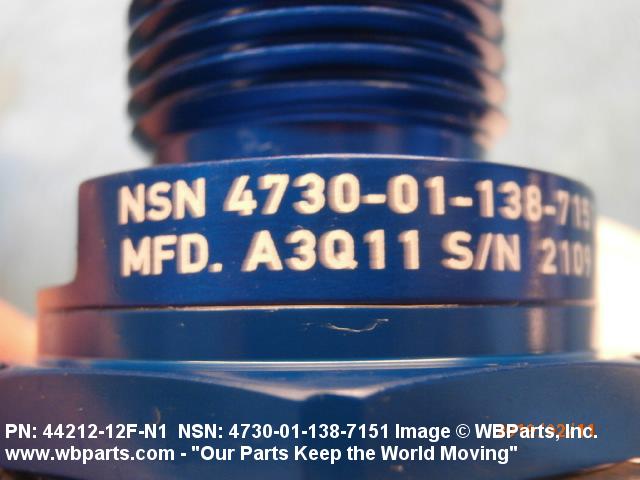

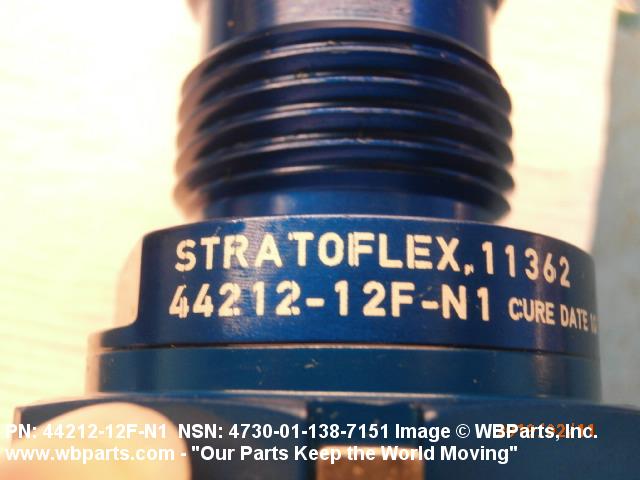

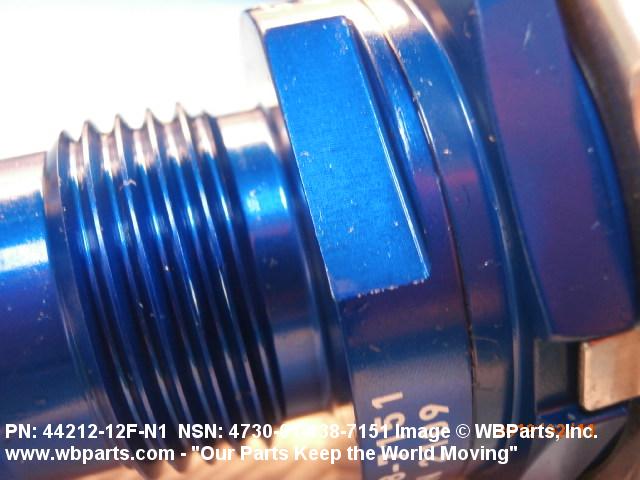

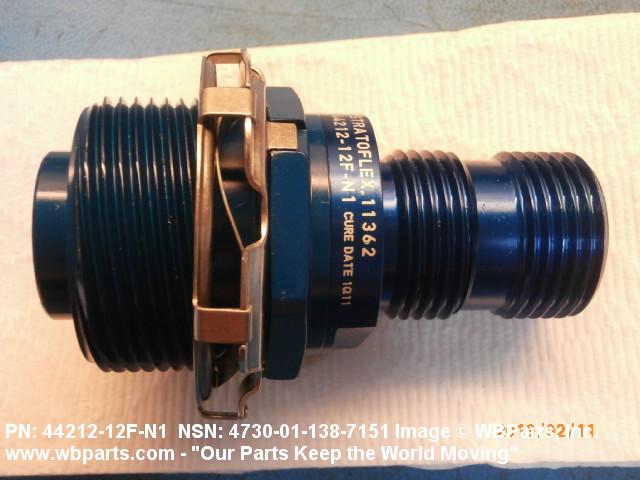

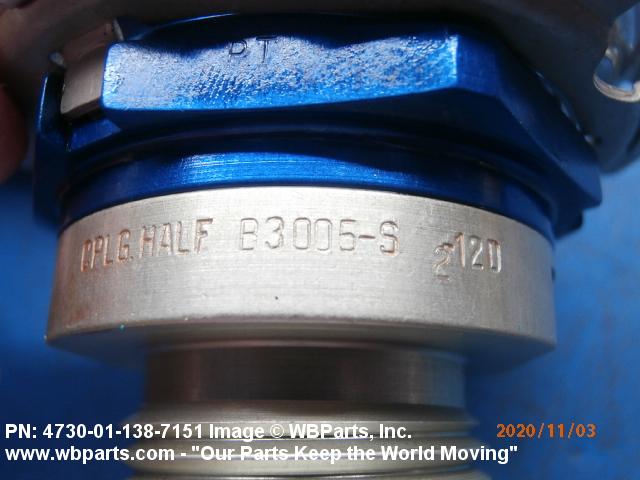

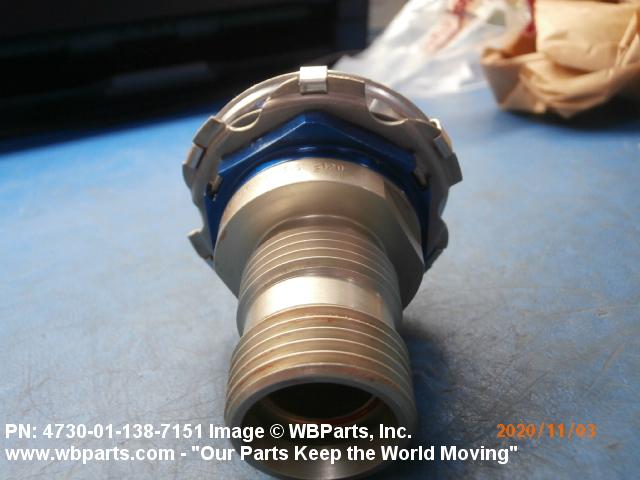

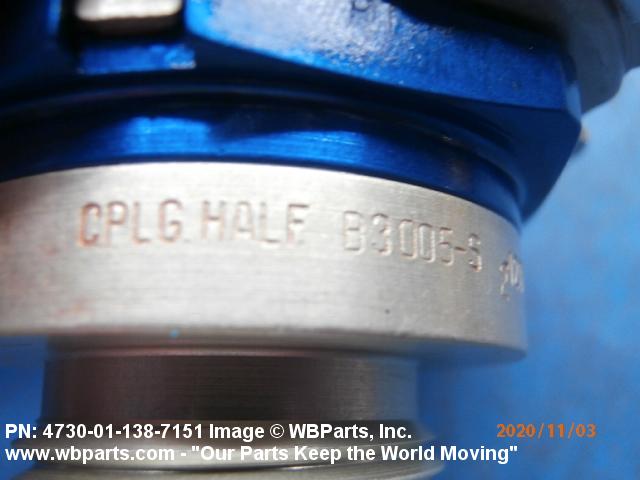

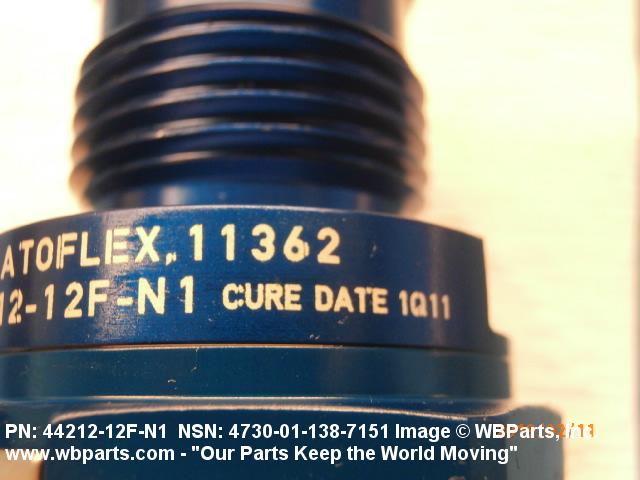

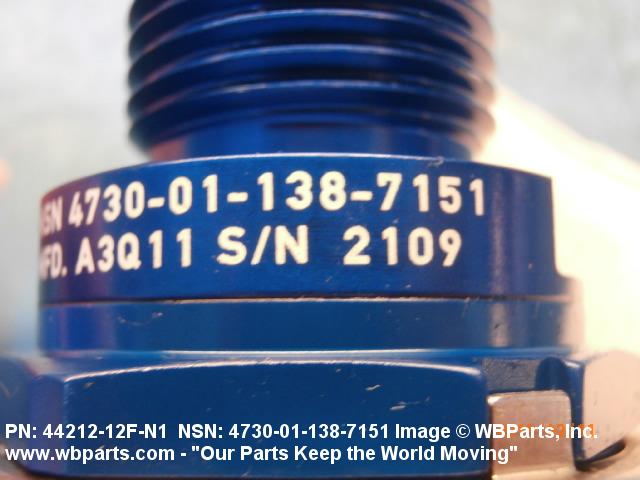

Drawings & Photos | NSN 4730-01-138-7151

Part Number	Request Date	QTY	Origin
44212-12F-N1	2024-08-235	58	DIBBS
B3005S2-12D	2024-08-235	58	DIBBS
44212-12F-N1	2023-08-243	13	DIBBS
B3005S2-12D	2023-08-243	13	DIBBS
44212-12F-N1	2023-08-229	41	DIBBS
B3005S2-12D	2023-08-229	41	DIBBS
44212-12F-N1	2023-08-221	23	DIBBS
B3005S2-12D	2023-08-221	23	DIBBS
44212-12F-N1	2023-05-138	18	DIBBS
B3005S2-12D	2023-05-138	18	DIBBS
44212-12F-N1	2023-04-110	61	DIBBS
B3005S2-12D	2023-04-110	61	DIBBS
44212-12F-N1	2023-04-96	63	DIBBS
B3005S2-12D	2023-04-96	63	DIBBS
44212-12F-N1	2022-11-331	64	DIBBS
B3005S2-12D	2022-11-331	64	DIBBS
44212-12F-N1	2022-03-76	165	DIBBS
B3005S2-12D	2022-03-76	165	DIBBS
44212-12F-N1	2022-02-55	38	DIBBS
B3005S2-12D	2022-02-55	38	DIBBS
4730-01-138-7151	2021-07-202	1	US
44212-12F-N1	2021-06-154	162	DIBBS
B3005S2-12D	2021-06-154	162	DIBBS
44212-12F-N1	2021-02-55	122	DIBBS
B3005S2-12D	2021-02-55	122	DIBBS
44212-12F-N1	2021-02-49	102	DIBBS
B3005S2-12D	2021-02-49	102	DIBBS
4730-01-138-7151	2020-10-302	3	United States
4421212FN1	2020-10-282	3	United States
B3005S212D	2020-09-253	2	Germany
44212-12F-N1	2019-07-192	153	DIBBS
B3005S2-12D	2019-07-192	153	DIBBS
44212-12F-N1	2019-05-122	120	DIBBS
B3005S2-12D	2019-05-122	120	DIBBS
44212-12F-N1	2019-04-98	124	DIBBS
B3005S2-12D	2019-04-98	124	DIBBS
44212-12F-N1	2019-03-87	124	DIBBS
B3005S2-12D	2019-03-87	124	DIBBS
4730-01-138-7151	2019-02-35	1	United States
B3005S212D	2019-02-35	1	United States
B3005S212D	2018-11-319	1	US
4730-01-138-7151	2018-07-193	114	DIBBS
B3005S212D	2017-12-352	1	us
B3005S2-12D	2017-11-317	2	Canada
4730-01-138-7151	2017-07-186	362	DIBBS
4730-01-138-7151	2017-06-178	228	DIBBS
4730-01-138-7151	2017-06-155	228	DIBBS
4730-01-138-7151	2017-02-38	134	DIBBS
4730-01-138-7151	2016-10-284	114	DIBBS
4730-01-138-7151	2016-07-187	172	DIBBS
4730-01-138-7151	2016-06-175	172	DIBBS
4730-01-138-7151	2016-03-73	57	DIBBS
4730-01-138-7151	2011-01-24	63	DIBBS
4730-01-138-7151	2010-12-341	83	DIBBS
4730-01-138-7151	2010-12-335	11	DIBBS
4730-01-138-7151	2010-11-316	27	DIBBS
4730-01-138-7151	2010-10-299	33	DIBBS
4730-01-138-7151	2010-08-243	14	DIBBS
4730-01-138-7151	2010-08-229	14	DIBBS
4730-01-138-7151	2010-08-228	55	DIBBS
4730-01-138-7151	2010-07-210	81	DIBBS
4730-01-138-7151	2010-06-175	7	DIBBS
4730-01-138-7151	2010-06-166	16	DIBBS
4730-01-138-7151	2010-06-165	6	DIBBS
4730-01-138-7151	2010-04-111	80	DIBBS
4730-01-138-7151	2008-12-340	22	DIBBS

Cross Reference | NSN 4730-01-138-7151

Part Number	Cage Code	Manufacturer
3005S2	00624	EATON CORPORATION DBA AEROSPACE DIV
44212-12F-N1	11362	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION
44212-14F-N1	11362	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION
B3005S2-12D	00624	EATON CORPORATION DBA AEROSPACE DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-138-7151

Compare

Related Products | NSN 4730-01-138-7151

4730-01-138-7152, 4730-01-138-7164, 4730-01-138-7184, 4730-01-138-7325, 4730-01-138-7326

Technical Data | NSN 4730-01-138-7151

Characteristic	Specifications
BODY MATERIAL	ALUMINUM
BODY SURFACE TREATMENT	ANODIZE
BODY STYLE	1 COUPLING HALF
FIRST LEG LENGTH	1.375 INCHES NOMINAL
MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED	3.000 POUNDS PER SQUARE INCH ANY ACCEPTABLE
MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED	160.0 DEG FAHRENHEIT ANY ACCEPTABLE
OVERALL LENGTH	3.216 INCHES NOMINAL
FIRST FLUID END CONNECTION TYPE	THREADED EXTERNAL TUBE
FIRST END STYLE DESIGNATOR	D8 FLARELESS
FIRST END SEAT ANGLE	12.0 DEGREES NOMINAL
FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED	0.750 INCHES NOMINAL
FIRST END THREAD SERIES DESIGNATOR	UNF
FIRST END NOMINAL THREAD SIZE	1.062 INCHES
FIRST END THREAD CLASS	3A
EXTERIOR COLOR	BLUE
SPECIAL FEATURES	BULKHEAD THD ON FLUID END

Restrictions/Controls & Freight Information | NSN 4730-01-138-7151

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051400	PIPE FITTINGS ALUMINUM
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	576	unknown
Originating Activity Code
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-138-7151

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
