NSN 4730-01-522-6365 MS518253SS, MS51825-3SS, 01-522-6365
Product Details | TUBE FITTING CLINCH SLEEVE
4730-01-522-6365 A flanged cylindrical item having a sharp cutting surface on the inside diameter at the end opposite the flange. The cutting edge, in use, is designed to imbed in the tubing due to pressure exerted when the outside diameter of the sleeve is forced into and against an angular seat. This firmly attaches the sleeve to the tubing and the flanged end then serves as a bearing surface for the coupling nut to bring the tubing into the mating fitting.
Part Alternates: MS518253SS, MS51825-3SS, 4730-01-522-6365, 01-522-6365, 4730015226365, 015226365
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 05 AUG 2004 | 01-522-6365 | 18025 ( SLEEVE, CLINCH, TUBE FITTING ) |

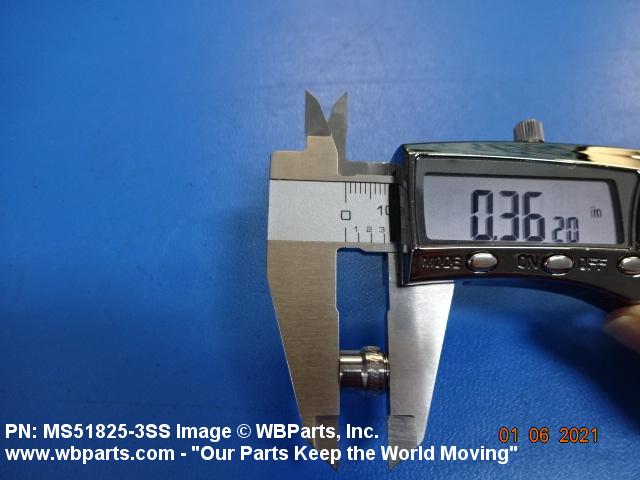

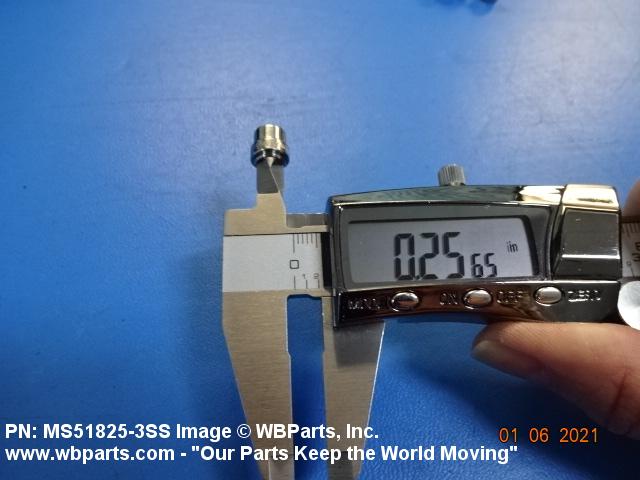

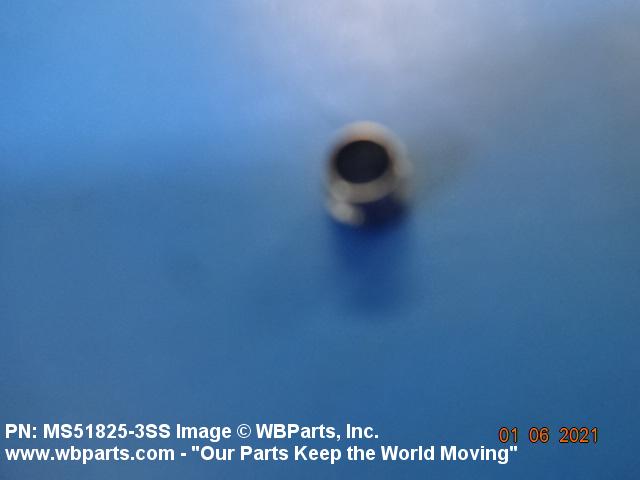

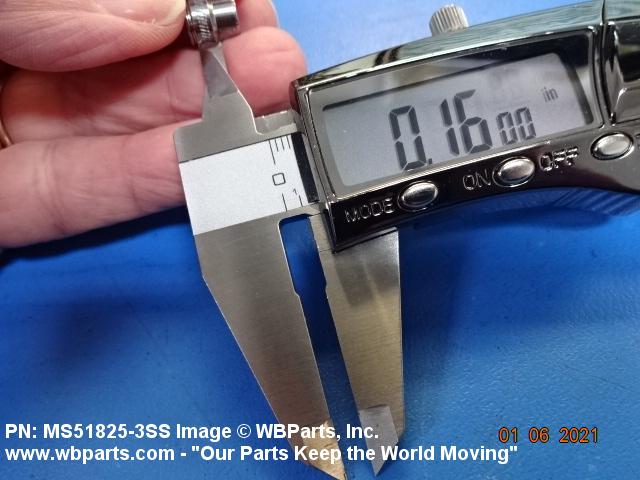

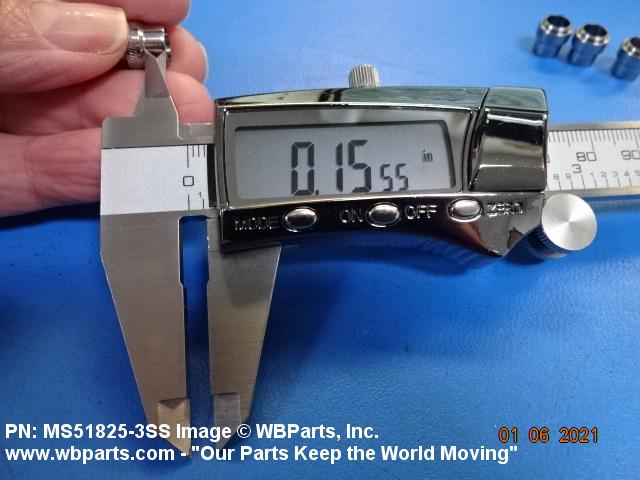

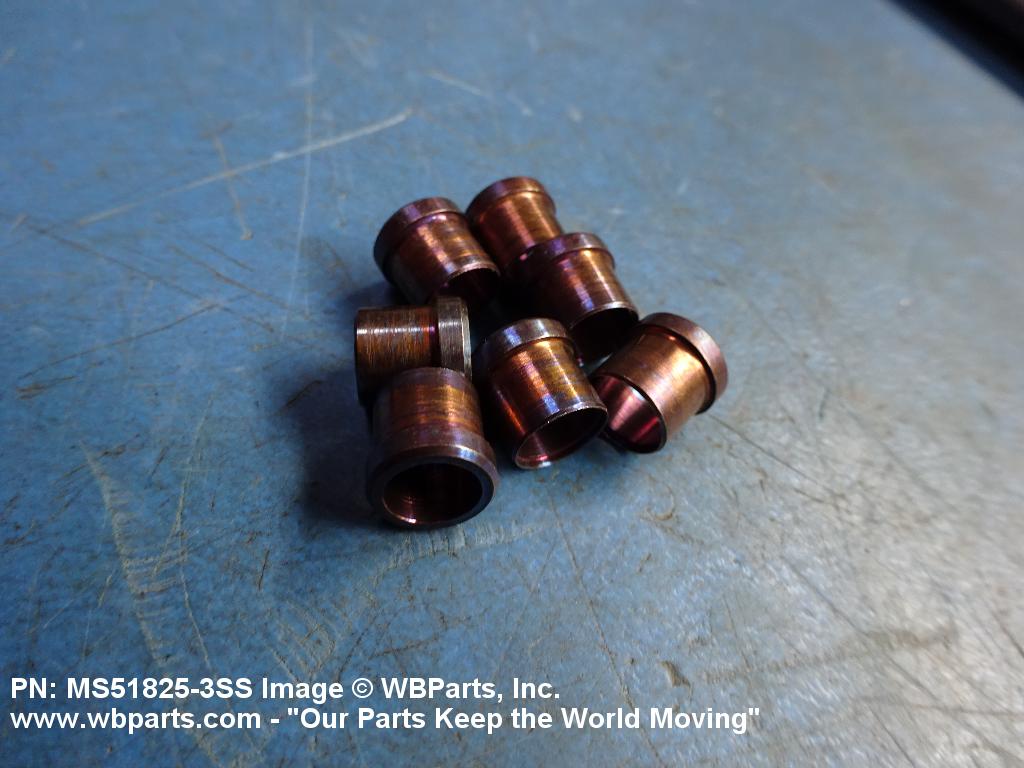

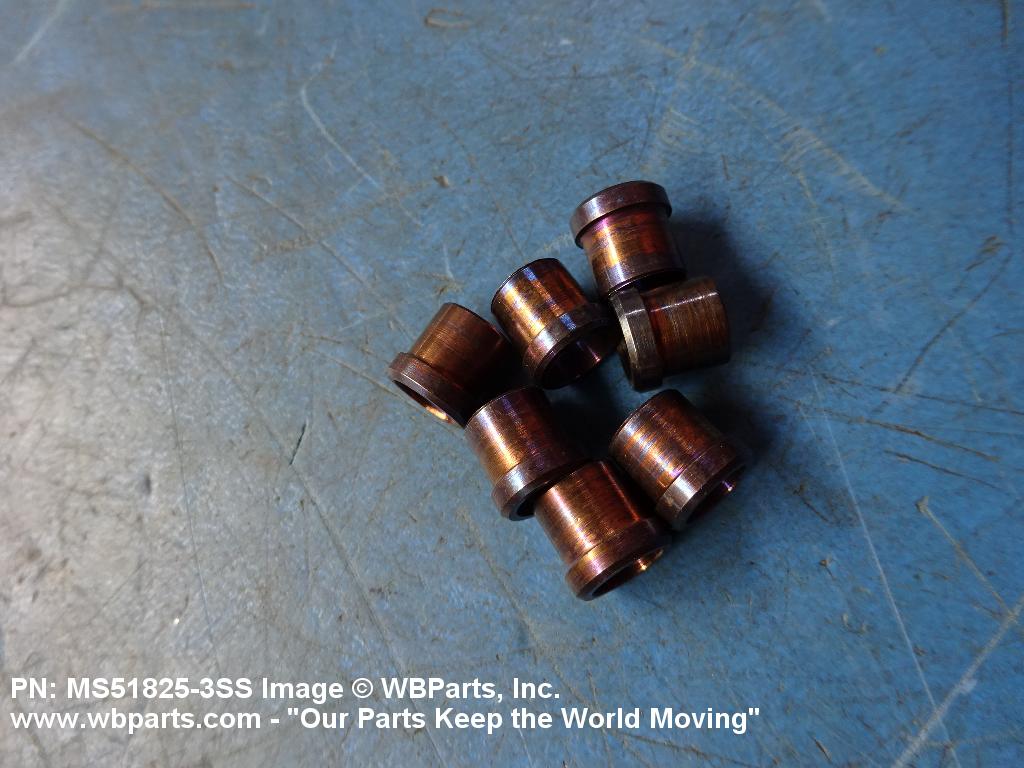

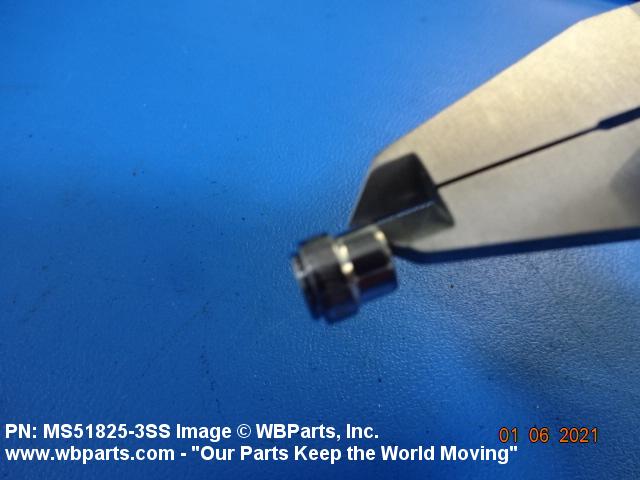

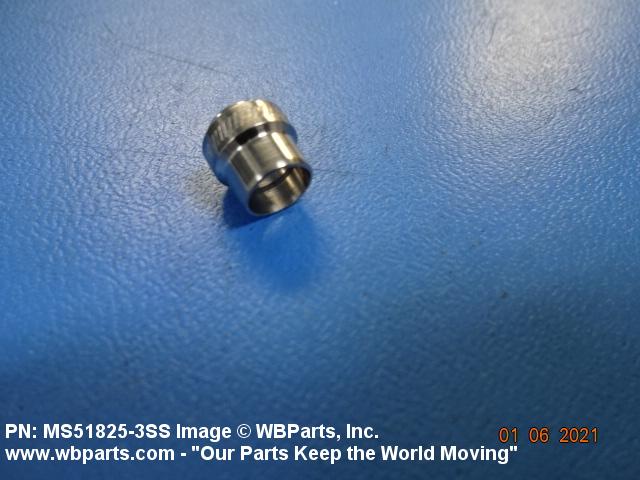

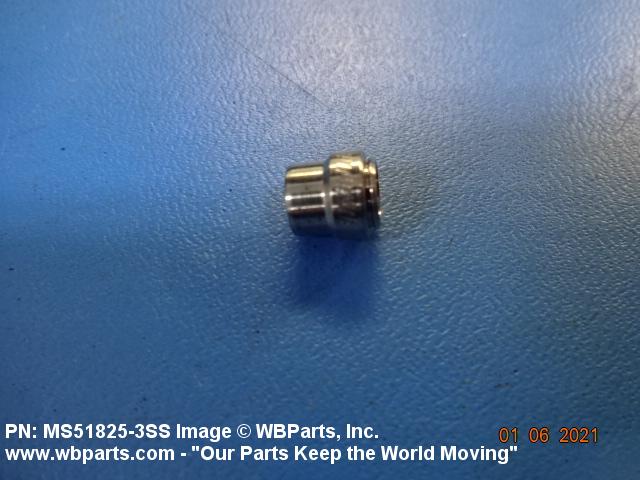

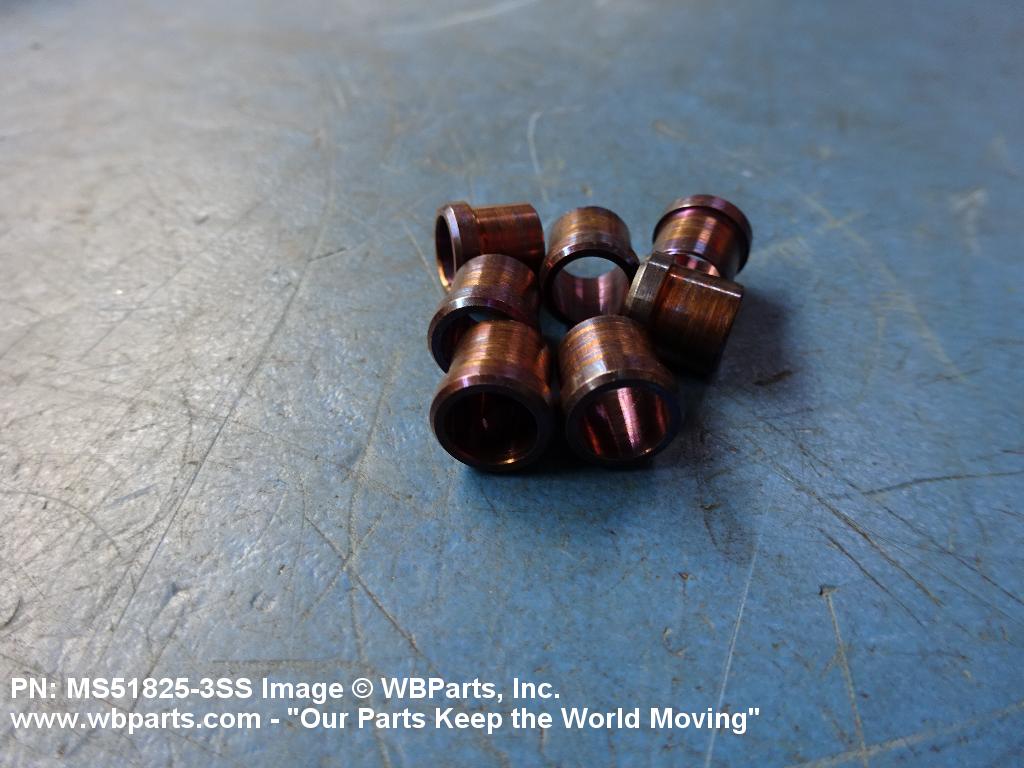

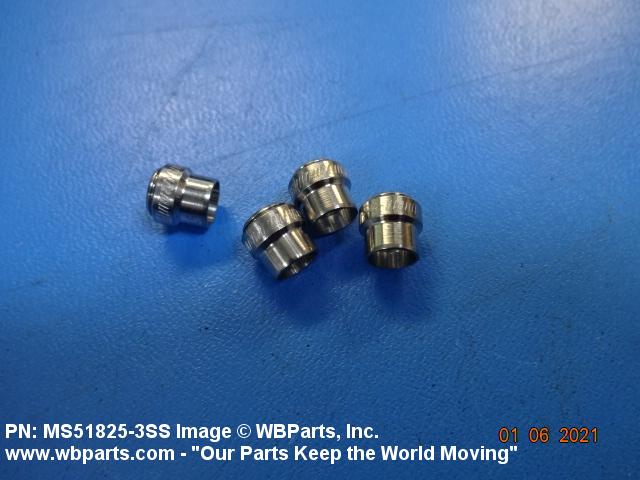

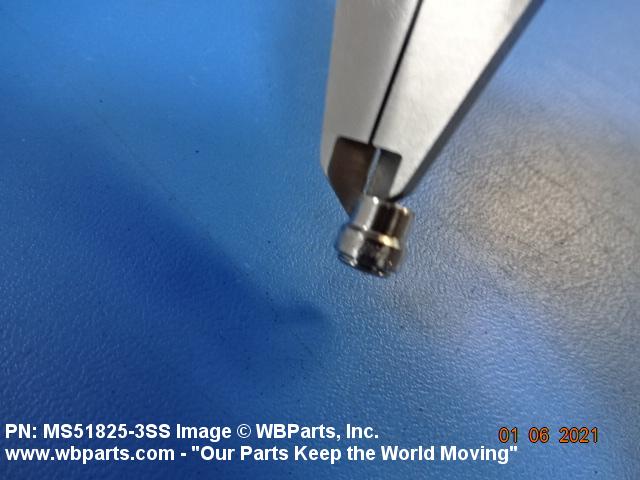

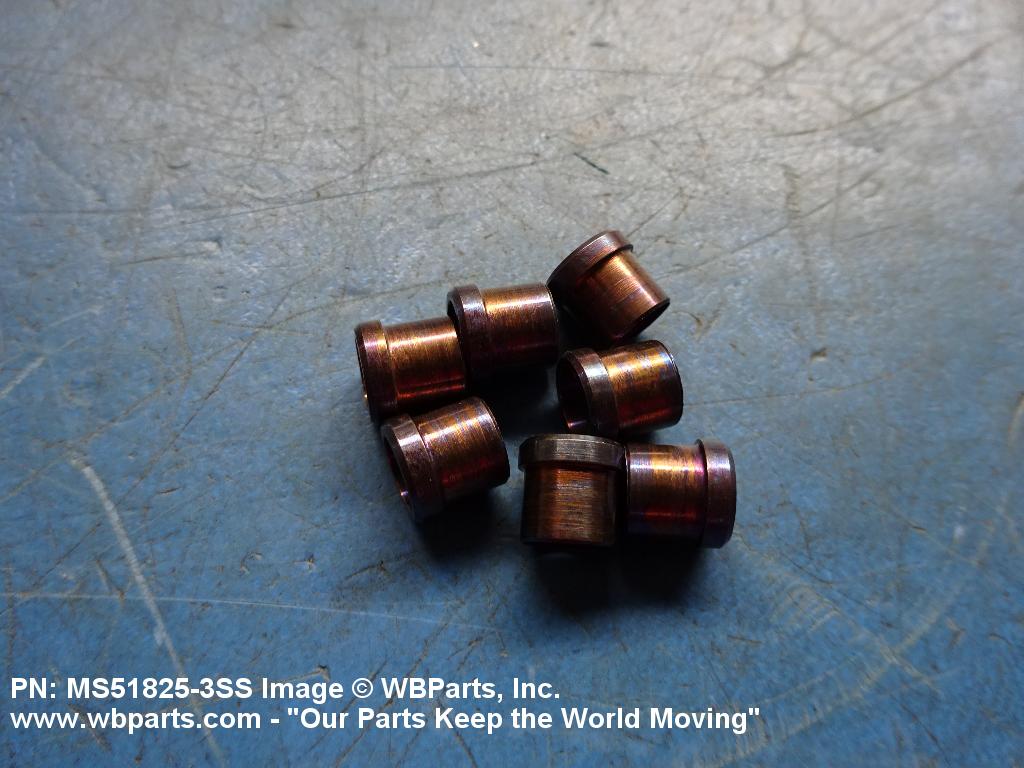

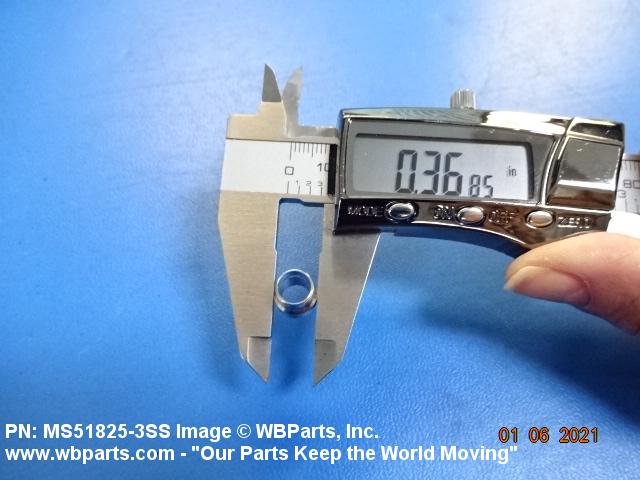

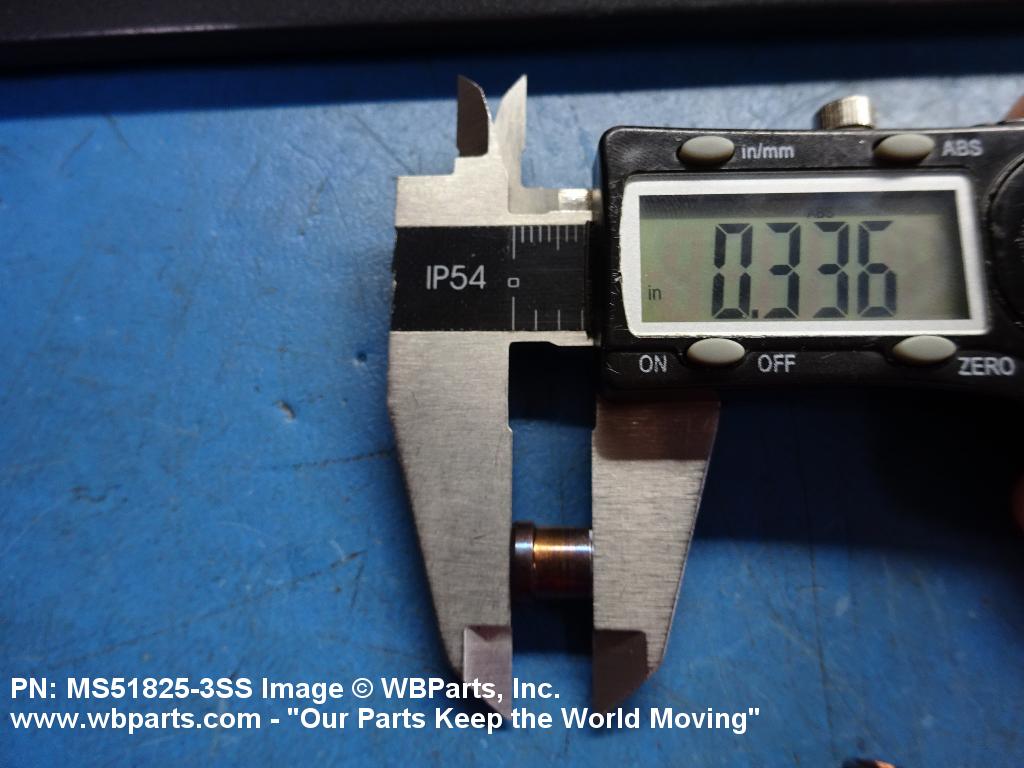

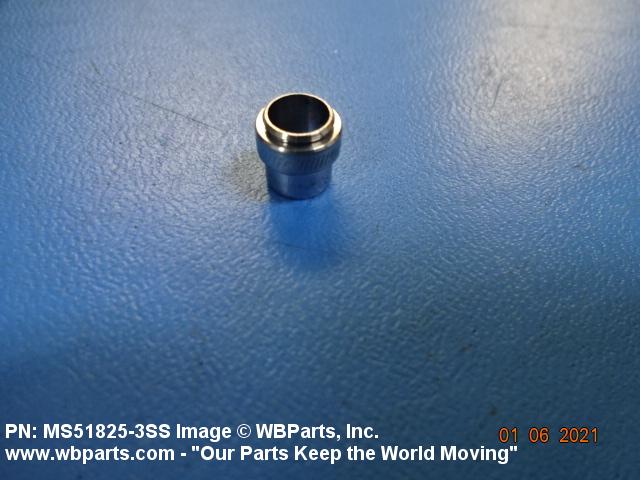

Drawings & Photos | NSN 4730-01-522-6365
Demand History | NSN 4730-01-522-6365
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS518253SS | 2024-08-214 | 100 | Canada |
| MS518253SS | 2024-04-107 | 5 | United States |
| MS518253SS | 2024-01-24 | 4 | United States |
| MS518253SS | 2023-04-100 | 3 | United States |
| MS518253SS | 2022-11-314 | 64 | United States |
| MS518253SS | 2022-10-286 | 32 | United States |
| MS518253SS | 2022-08-241 | 1 | United States |
| MS518253SS | 2022-02-45 | 10 | United States |
| MS518253SS | 2022-01-27 | 10 | United States |
| MS518253SS | 2021-12-344 | 13 | United States |
| MS518253SS | 2021-08-232 | 33 | US |
| MS518253SS | 2021-03-67 | 4 | United States |
| MS518253SS | 2021-02-53 | 40 | TR |
| MS518253SS | 2012-10-304 | 100 | US |
Cross Reference | NSN 4730-01-522-6365
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51825-3SS | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-522-6365
Technical Data | NSN 4730-01-522-6365
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.250 INCHES NOMINAL |
| STYLE DESIGNATOR | L2 FLARELESS |

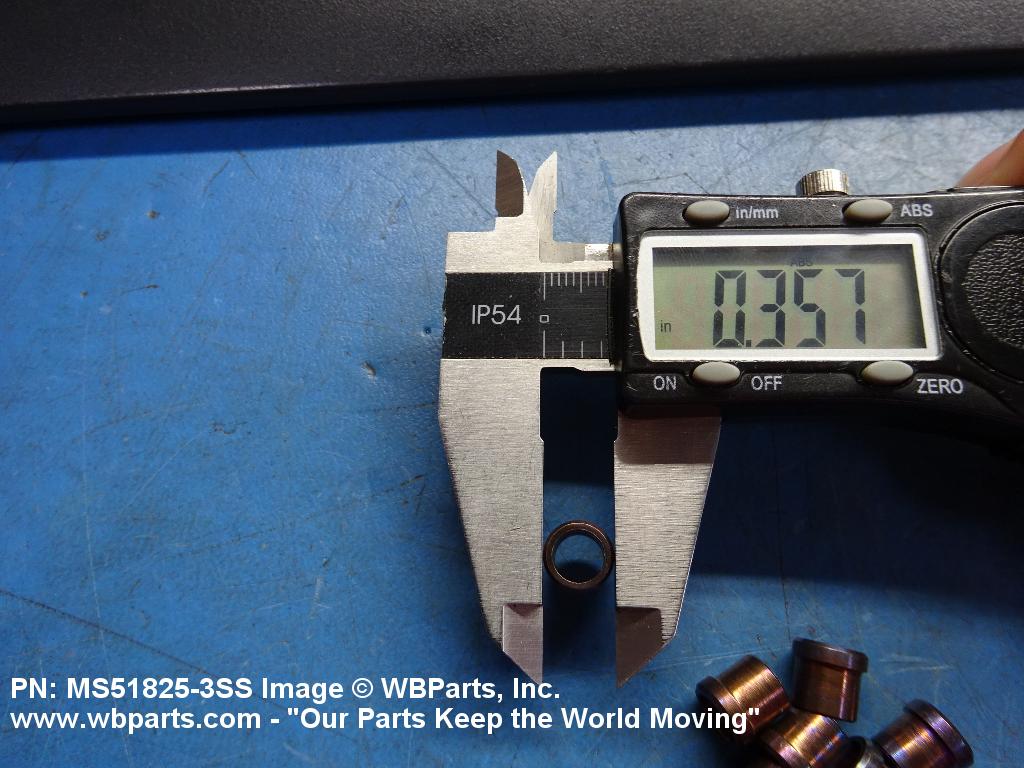

| OVERALL LENGTH | 0.360 INCHES MINIMUM AND 0.366 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 0.367 INCHES MINIMUM AND 0.372 INCHES MAXIMUM |
| SEAT ANGLE IN DEG | 40.0 |

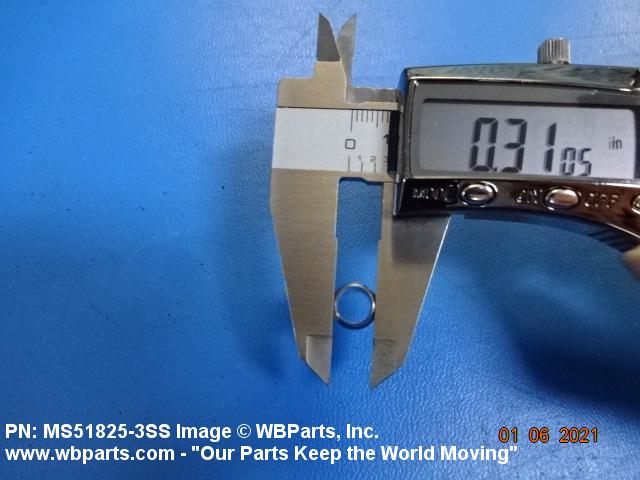

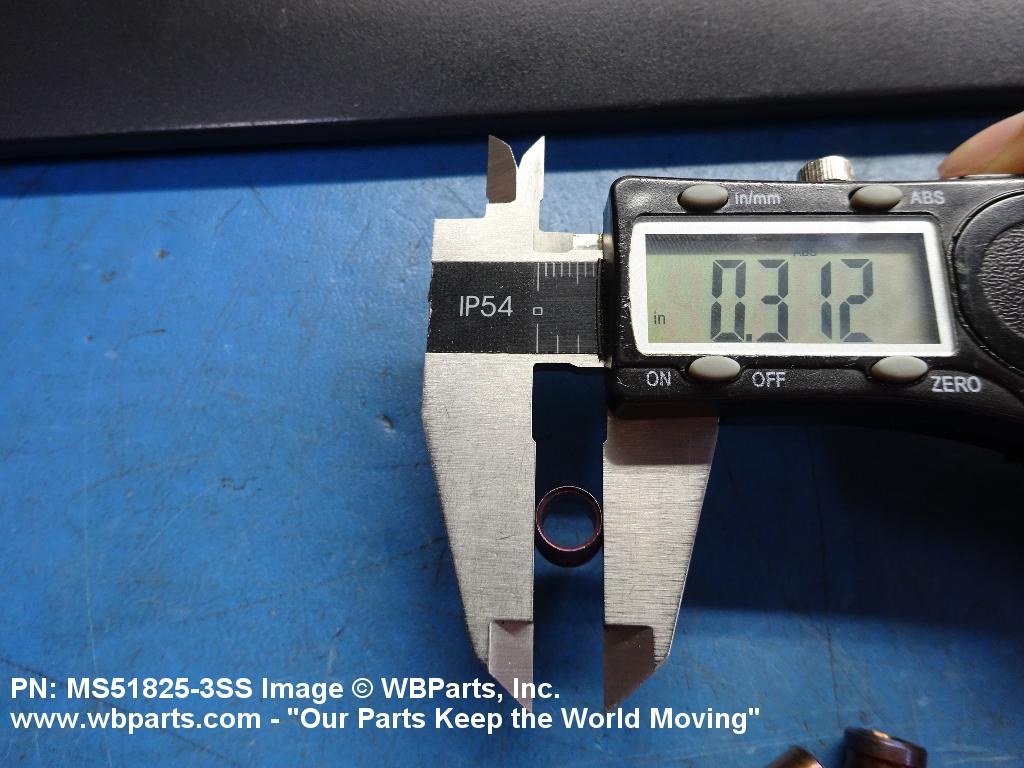

| SLEEVE OUTSIDE DIAMETER | 0.309 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51825-3SS |
Restrictions/Controls & Freight Information | NSN 4730-01-522-6365
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
