NSN 4730-01-518-1260 5D10007ITEM4, 6542K64, 6542K84
Product Details | HOSE CLAMP
4730-01-518-1260 A clamp in which the body (band or wire) completely encircles an item and distributes a relatively even amount of pressure throughout the entire 360 degrees (6.282 radians) of the periphery of the item to be compressed. Its compression quality is dependent upon an integral screw mechanism, (screw, bolt spring compression and the like mechanical fasteners), or it may be applied by a device not integral with the clamp itself. It is specifically designed to prevent leakage between a hose and its attaching connection(s) when the body of the clamp is round or circular. For square, rectangular, or irregularly shaped items, see CLAMP, HOSE, SPECIAL-SHAPED. Excludes CLAMP, ELECTRICAL; CLAMP, LOOP; CLAMP, FIRE HOSE, SHUTOFF; FERRULE (as modified); and HAND SCREW.
Part Alternates: 5D10007ITEM4, 6542K64, 6542K84, 4730-01-518-1260, 01-518-1260, 4730015181260, 015181260
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 03 MAR 2004 | 01-518-1260 | 13566 ( CLAMP, HOSE ) |
Drawings & Photos | NSN 4730-01-518-1260
Demand History | NSN 4730-01-518-1260
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6542K84 | 2018-01-03 | 20 | US |
| 4730-01-518-1260 | 2017-03-64 | 46 | DIBBS |
| 4730-01-518-1260 | 2016-09-245 | 61 | DIBBS |
| 4730-01-518-1260 | 2015-10-292 | 16 | DIBBS |
| 4730-01-518-1260 | 2015-04-96 | 9 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-518-1260
Technical Data | NSN 4730-01-518-1260
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 430 BAND |

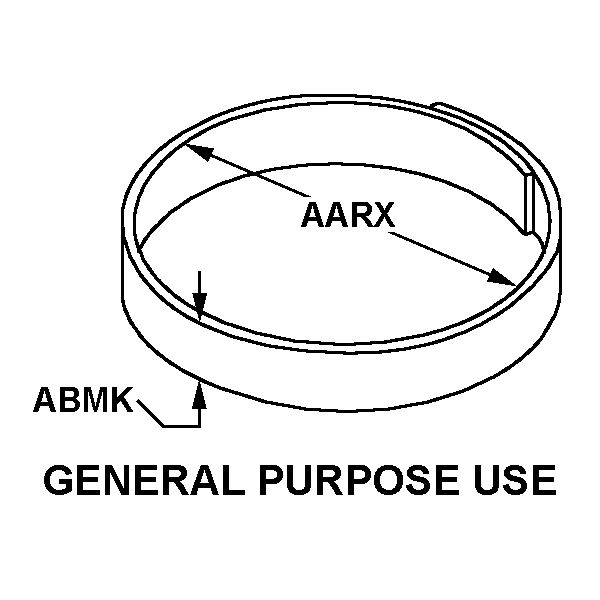

| STYLE DESIGNATOR | C28 GENERAL PURPOSE USE |
| INSIDE DIAMETER | 3.9375 INCHES MINIMUM |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| FASTENING DEVICE TYPE | PLAIN SLOTTED HEAD SCREW |
| SPECIAL FEATURES | WORM-DRIVE BANDING; 430 STAINLESS STEEL; FASTENER NOT INCLUDED; USE NSN 4730-01-518-1261 |
| III END ITEM IDENTIFICATION | VALVES |
Restrictions/Controls & Freight Information | NSN 4730-01-518-1260
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-518-1260
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 RO : Roll |
