NSN 4730-01-391-3232 12387373, 12387373-6, 01-391-3232
Product Details | HOSE CLAMP
4730-01-391-3232 A clamp in which the body (band or wire) completely encircles an item and distributes a relatively even amount of pressure throughout the entire 360 degrees (6.282 radians) of the periphery of the item to be compressed. Its compression quality is dependent upon an integral screw mechanism, (screw, bolt spring compression and the like mechanical fasteners), or it may be applied by a device not integral with the clamp itself. It is specifically designed to prevent leakage between a hose and its attaching connection(s) when the body of the clamp is round or circular. For square, rectangular, or irregularly shaped items, see CLAMP, HOSE, SPECIAL-SHAPED. Excludes CLAMP, ELECTRICAL; CLAMP, LOOP; CLAMP, FIRE HOSE, SHUTOFF; FERRULE (as modified); and HAND SCREW.
Part Alternates: 12387373, 12387373-6, 4730-01-391-3232, 01-391-3232, 4730013913232, 013913232, 123873736
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 08 JUN 1994 | 01-391-3232 | 13566 ( CLAMP, HOSE ) |

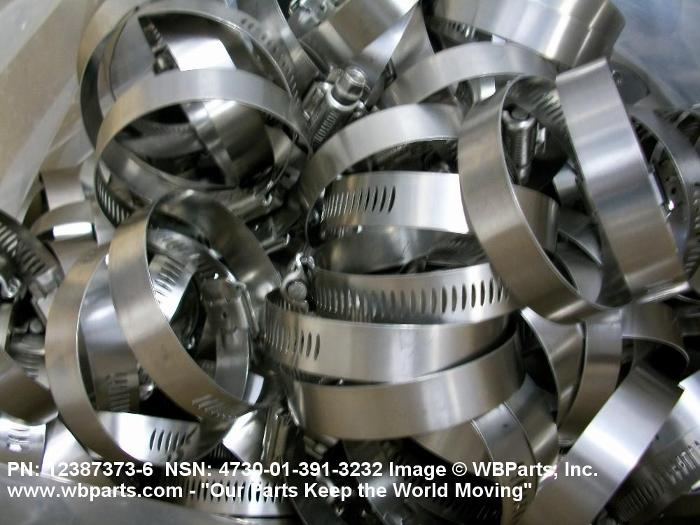

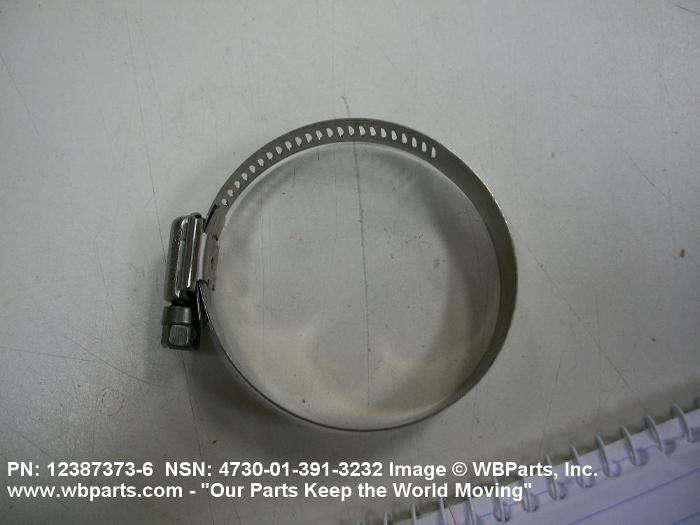

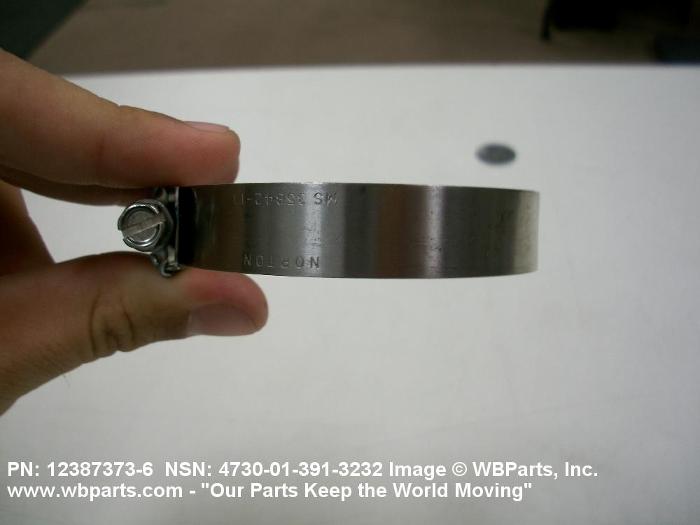

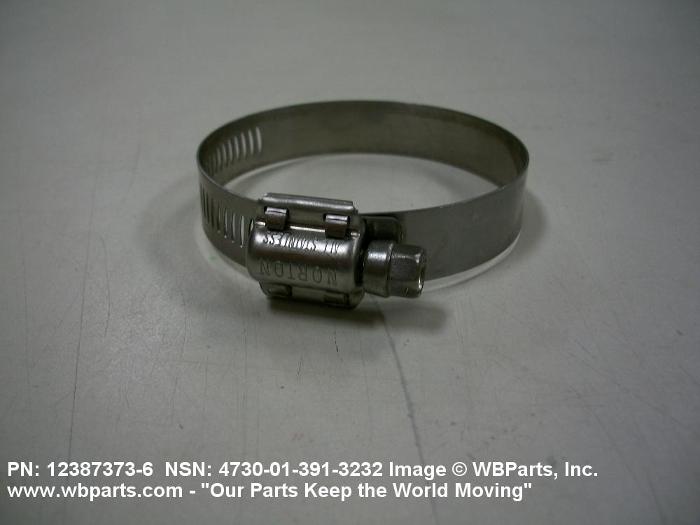

Drawings & Photos | NSN 4730-01-391-3232
Demand History | NSN 4730-01-391-3232
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-391-3232 | 2024-05-123 | 863 | DIBBS |
| 123873736 | 2023-12-349 | 350 | United States |
| 4730-01-391-3232 | 2023-05-138 | 728 | DIBBS |
| 4730-01-391-3232 | 2020-08-223 | 160 | US |
| 4730-01-391-3232 | 2020-02-51 | 1709 | DIBBS |
| 4730-01-391-3232 | 2017-09-262 | 1089 | DIBBS |
| 4730-01-391-3232 | 2016-01-27 | 1020 | DIBBS |
| 4730-01-391-3232 | 2013-06-174 | 980 | DIBBS |
| 4730-01-391-3232 | 2013-06-170 | 888 | United States |
| 4730-01-391-3232 | 2013-05-134 | 888 | DIBBS |
| 4730-01-391-3232 | 2012-04-96 | 1030 | DIBBS |
| 4730-01-391-3232 | 2012-02-60 | 0 | United States |
| 4730-01-391-3232 | 2012-02-60 | 0 | United States |
| 4730-01-391-3232 | 2012-02-60 | 0 | United States |
| 4730-01-391-3232 | 2012-02-60 | 0 | United States |
| 4730-01-391-3232 | 2012-02-60 | 0 | United States |
| 4730-01-391-3232 | 2012-01-17 | 324 | DIBBS |
| 4730-01-391-3232 | 2011-12-341 | 577 | DIBBS |
| 4730-01-391-3232 | 2011-06-164 | 233 | DIBBS |
| 4730-01-391-3232 | 2010-07-197 | 201 | DIBBS |
| 4730-01-391-3232 | 2010-04-113 | 363 | DIBBS |
| 4730-01-391-3232 | 2010-03-63 | 342 | DIBBS |
| 4730-01-391-3232 | 2009-09-245 | 771 | DIBBS |
| 4730-01-391-3232 | 2009-07-212 | 169 | DIBBS |
| 4730-01-391-3232 | 2009-06-180 | 96 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-391-3232
Related Products | NSN 4730-01-391-3232
Technical Data | NSN 4730-01-391-3232
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 301 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-A666,COND 1/2 HARD ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | C21 BAND |
| INSIDE DIAMETER | 1.812 INCHES MINIMUM AND 2.750 INCHES MAXIMUM |
| OVERALL WIDTH | 0.495 INCHES MINIMUM AND 0.569 INCHES MAXIMUM |
| FASTENING DEVICE TYPE | COLLARED SLOTTED HEAD SCREW |
| SPECIAL FEATURES | SHIELD INCLUDED,PART NUMBER 12387373-16 |
| III END ITEM IDENTIFICATION | M-1 ABRAMS TANK. |
Restrictions/Controls & Freight Information | NSN 4730-01-391-3232
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-391-3232
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
