Product Details | SWIVEL FLANGE TO TUBE ELBOW

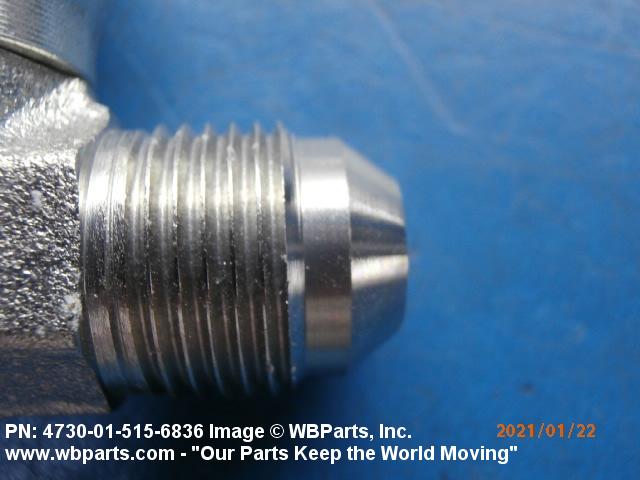

4730-01-515-6836 A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. One connecting end has a swivel flange designed to permit axial rotation of the fitting, usually for the ease of installation, prior to securing it to a flange or mounting pad. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a swivel flange. It may have side and/or heel inlets.
Part Alternates: J514 8-8 070221C, J51488070221C, 4730-01-515-6836, 01-515-6836, 4730015156836, 015156836
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 04 DEC 2003 | 01-515-6836 | 29669 ( ELBOW, SWIVEL FLANGE TO TUBE ) |
Drawings & Photos | NSN 4730-01-515-6836
Demand History | NSN 4730-01-515-6836
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| J51488070221C | 2022-04-96 | 1 | United States |
| J51488070221C | 2020-09-253 | 2 | United States |
| 4730-01-515-6836 | 2018-05-151 | 234 | DIBBS |
| 4730-01-515-6836 | 2014-07-212 | 118 | DIBBS |
Cross Reference | NSN 4730-01-515-6836
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J514 8-8 070221C | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-515-6836
Related Products | NSN 4730-01-515-6836
Technical Data | NSN 4730-01-515-6836
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 4000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END |
| CONNECTION STYLE | B4A SWIVEL NUT INVERTED FLARE 1ST END B64 FLARED 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END 37.0 DEGREES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES 1ST END 0.500 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | UNF 1ST END UNF 2ND END |

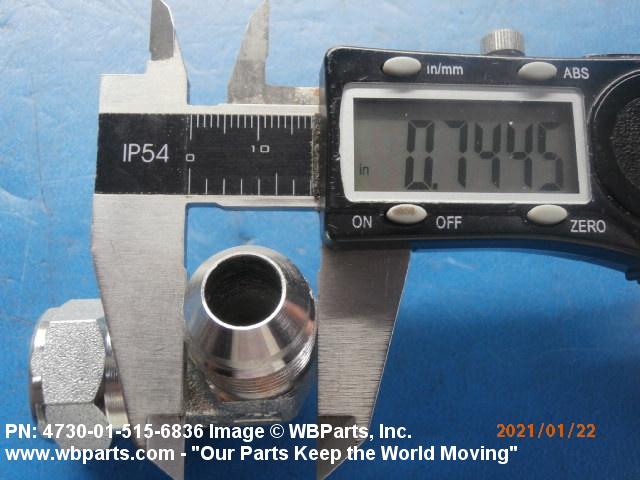

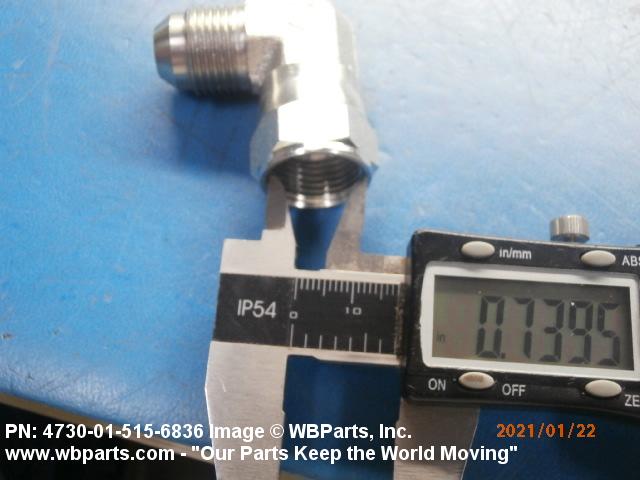

| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END 0.750 INCHES 2ND END |

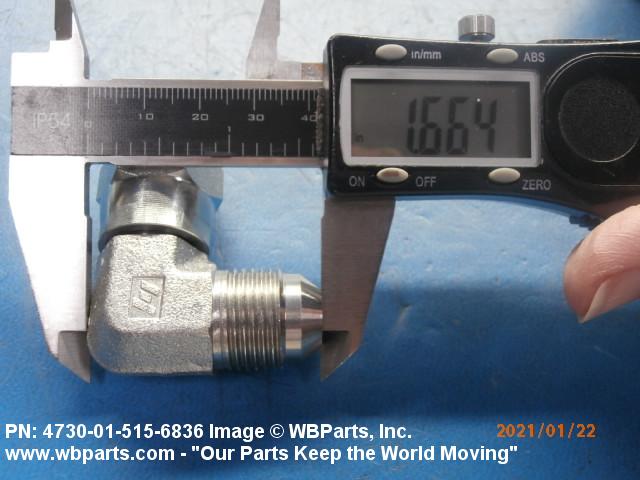

| LEG LENGTH | 1.750 INCHES NOMINAL 1ST END 1.660 INCHES NOMINAL 2ND END |
| SPECIFICATION/STANDARD DATA | 81343 - SAEJ514 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III END ITEM IDENTIFICATION | 2350-01-080-9088 |
Restrictions/Controls & Freight Information | NSN 4730-01-515-6836
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
