NSN 4730-00-720-0243 MS20762D16, AN762D16, 00-720-0243
Product Details | SWIVEL FLANGE TO TUBE ELBOW
4730-00-720-0243 A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. One connecting end has a swivel flange designed to permit axial rotation of the fitting, usually for the ease of installation, prior to securing it to a flange or mounting pad. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a swivel flange. It may have side and/or heel inlets.
Part Alternates: MS20762D16, AN762D16, 4730-00-720-0243, 00-720-0243, 4730007200243, 007200243
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-720-0243 | 29669 ( ELBOW, SWIVEL FLANGE TO TUBE ) |

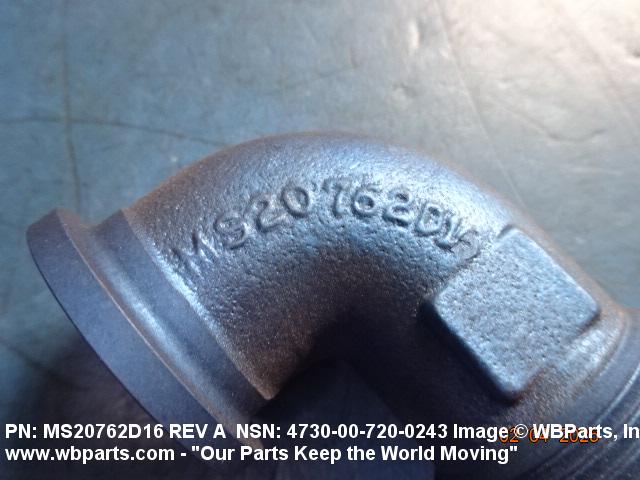

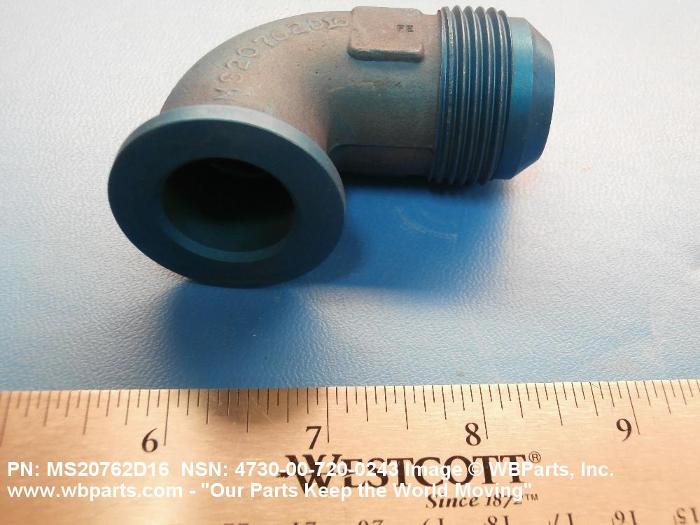

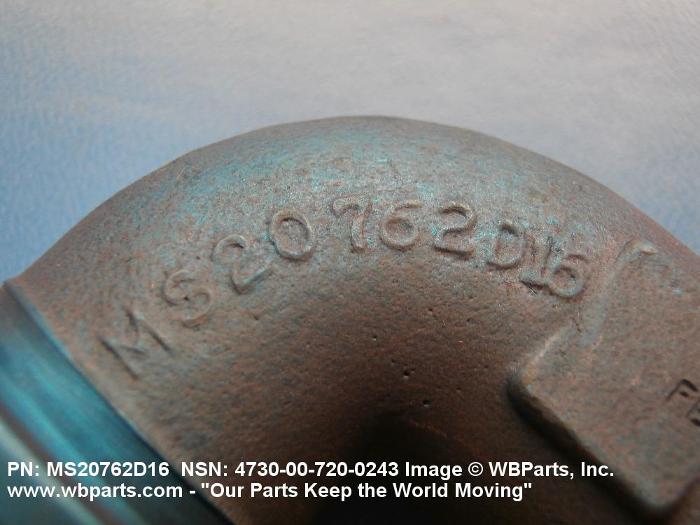

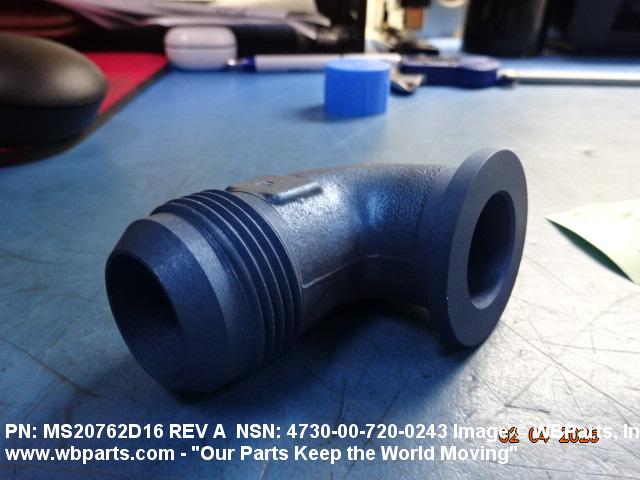

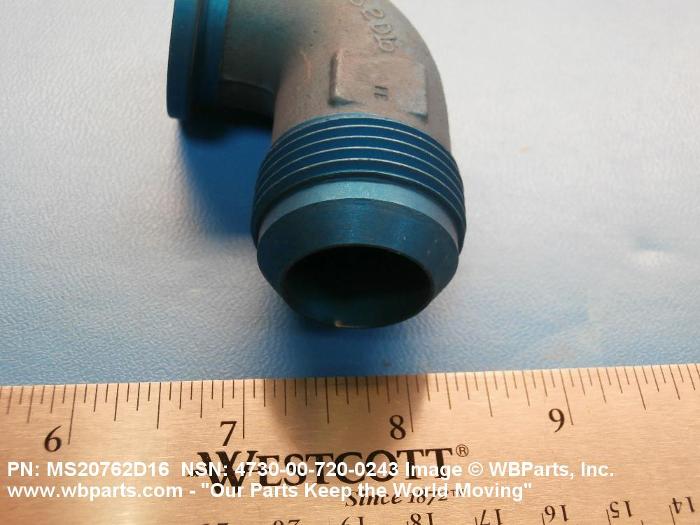

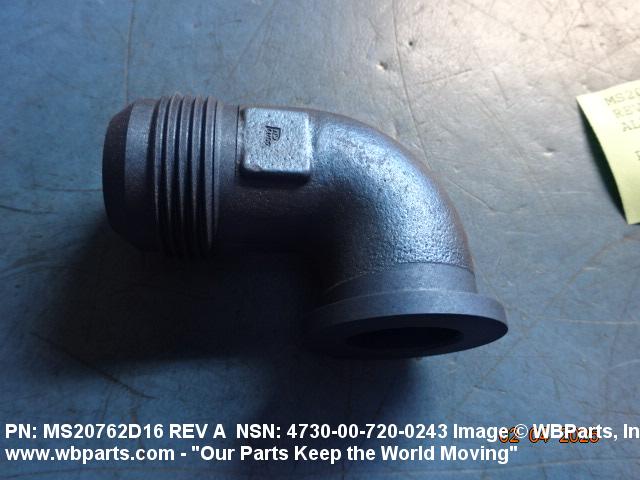

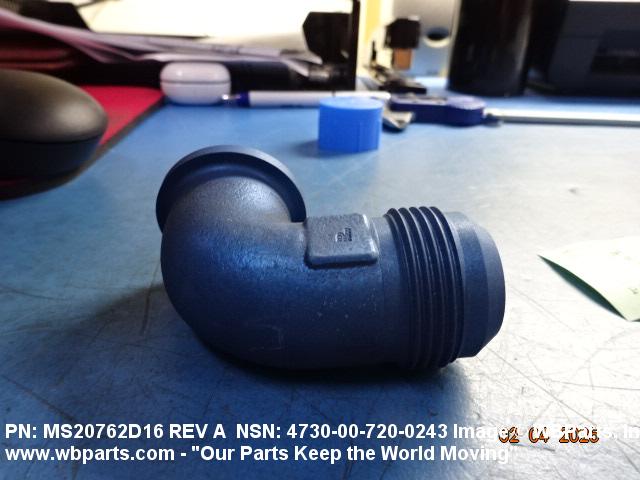

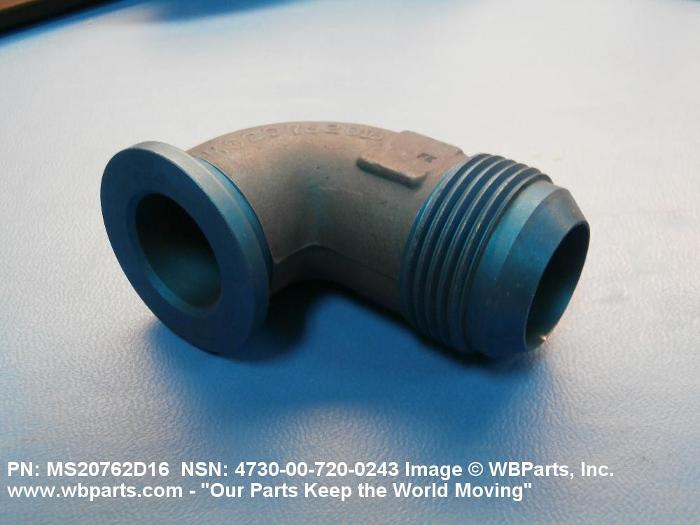

Drawings & Photos | NSN 4730-00-720-0243
Demand History | NSN 4730-00-720-0243
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20762D16 | 2024-12-339 | 2 | United States |
| 4730-00-720-0243 | 2023-03-73 | 1 | US |
| MS20762D16 | 2021-05-124 | 2 | United States |
| 4730-00-720-0243 | 2020-05-128 | 33 | DIBBS |
| 4730-00-720-0243 | 2019-04-101 | 17 | DIBBS |
| MS20762D16 | 2019-03-67 | 4 | United States |
| 4730-00-720-0243 | 2013-06-156 | 24 | DIBBS |
| MS20762D16 | 2012-08-234 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-720-0243
Technical Data | NSN 4730-00-720-0243

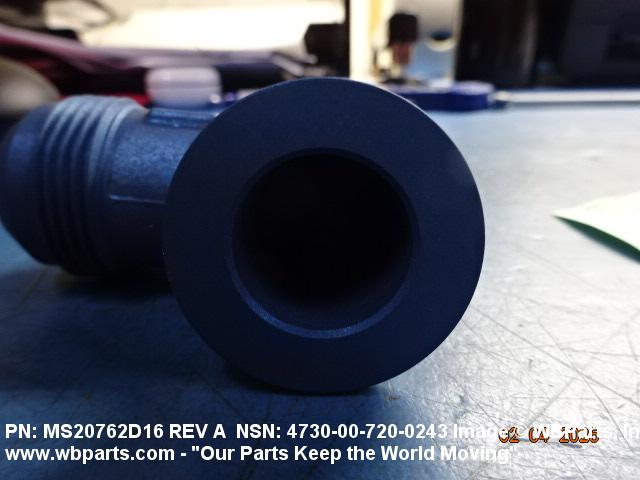

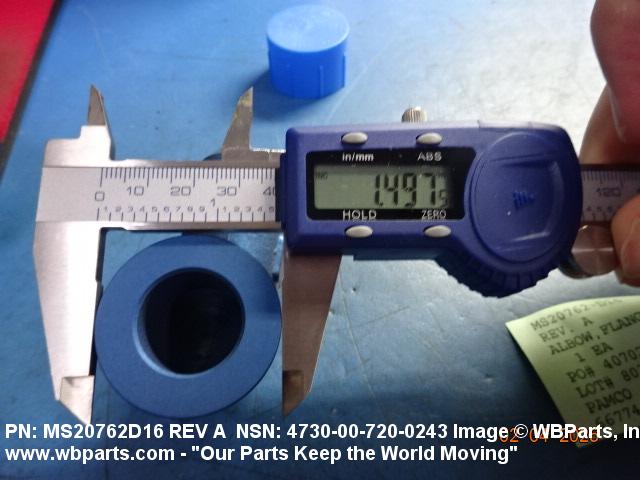

| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE INSIDE ANODIZE OUTSIDE |
| MEDIA FOR WHICH DESIGNED | OIL SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 135.0 DEG CELSIUS SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END FLANGE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| FLANGE SHAPE | ROUND 2ND END |
| NOMINAL OUTSIDE DIAMETER | 1.500 INCHES 2ND END |

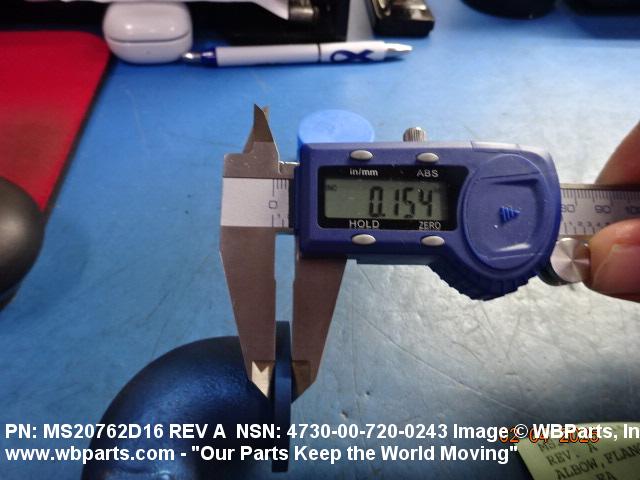

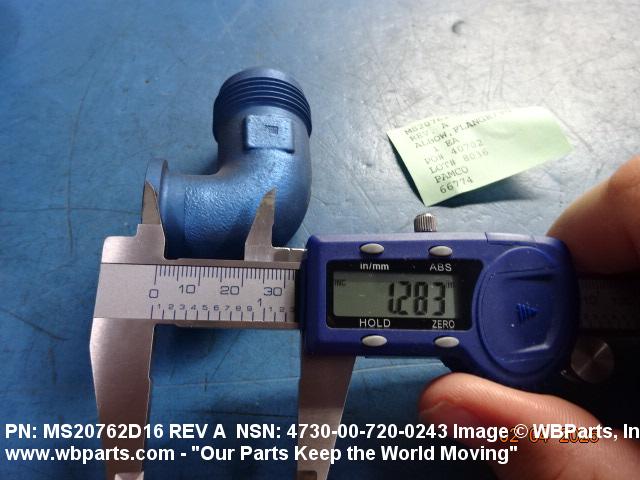

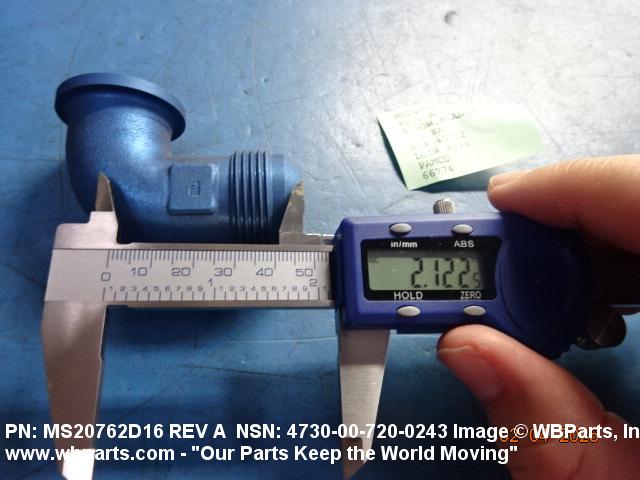

| NOMINAL THICKNESS | 0.156 INCHES 2ND END |
| FLANGE FACE DESIGN | PLAIN 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 1.000 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UN 1ST END |
| NOMINAL THREAD SIZE | 1.312 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 12 1ST END |
| THREAD CLASS | 3A 1ST END |
| LEG LENGTH | 2.125 INCHES MINIMUM AND 2.172 INCHES MAXIMUM 1ST END 1.281 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20762D16 |
Restrictions/Controls & Freight Information | NSN 4730-00-720-0243
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
