NSN 4730-01-494-2470 AS1581T08, 01-494-2470, 014942470
Product Details | TUBE-HOSE FITTING COMPRESSION SLEEVE
4730-01-494-2470 A ring-shaped item whose outer surface is so shaped as to form a seat for the coupling nut and the fitting between which it is assembled. It is designed to be slipped over tubing or hose so that tightening of the coupling nut to the fitting compresses the sleeve against the circumference of the tubing or hose thereby effecting a tight seal between the tubing, or hose fitting and coupling nut.
Part Alternates: AS1581T08, 4730-01-494-2470, 01-494-2470, 4730014942470, 014942470
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 05 FEB 2002 | 01-494-2470 | 18026 ( SLEEVE, COMPRESSION, TUBE-HOSE FITTING ) |
Drawings & Photos | NSN 4730-01-494-2470
Demand History | NSN 4730-01-494-2470
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS1581T08 | 2023-08-216 | 3 | us |
| AS1581T08 | 2023-02-39 | 25 | US |
| AS1581T08 | 2015-01-09 | 6 | United States |
| AS1581T08 | 2006-09-257 | 20 | US |
Cross Reference | NSN 4730-01-494-2470
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS1581T08 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-494-2470
Technical Data | NSN 4730-01-494-2470
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.500 INCHES NOMINAL |

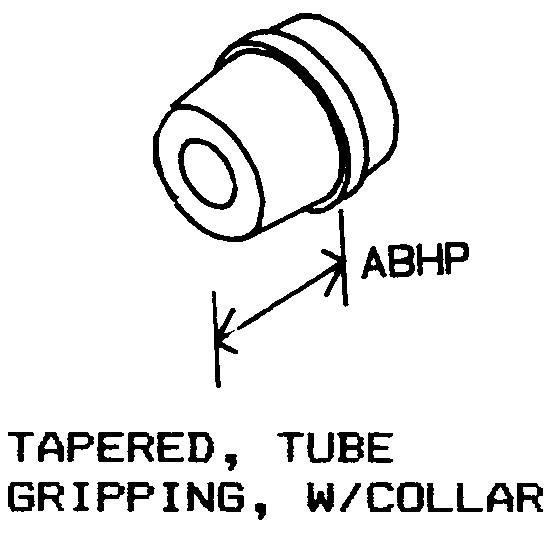

| STYLE DESIGNATOR | K12 TAPERED, TUBE GRIPPING W/COLLAR |
| OVERALL LENGTH | 0.875 INCHES NOMINAL |
| SPECIAL TEST FEATURES | 3000PSI |
| III END ITEM IDENTIFICATION | F-22 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | FITTING,SLEEVE,FLARELESS,ACORN TO INTEGRAL WELD RING |
Restrictions/Controls & Freight Information | NSN 4730-01-494-2470
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-01-494-2470
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | FR | TL:F-22 AIRCRAFT |
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F01 | Lockheed Martin Aeronautical Systems Marietta, GA 30063-0659 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
