NSN 4730-01-491-9058 AN9123C, AN912-3C, 01-491-9058
Product Details | PIPE BUSHING
4730-01-491-9058 A fitting with pipe threads having a female connection inside of a male connection, used in conjunction with another fitting, to connect in the same line, two pipes of different sizes.
Part Alternates: AN9123C, AN912-3C, 4730-01-491-9058, 01-491-9058, 4730014919058, 014919058
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 05 NOV 2001 | 01-491-9058 | 03779 ( BUSHING, PIPE ) |

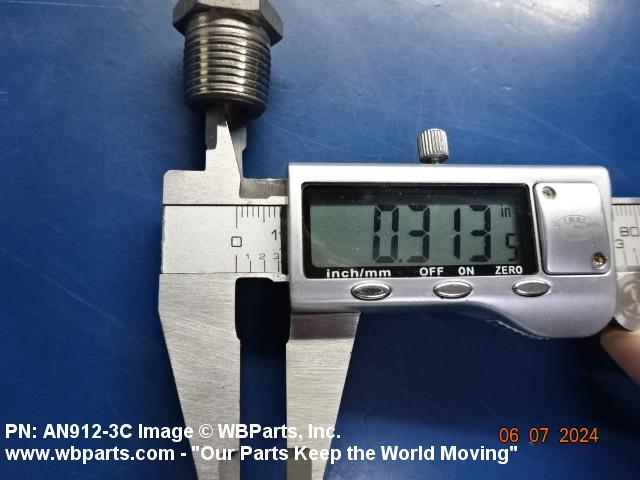

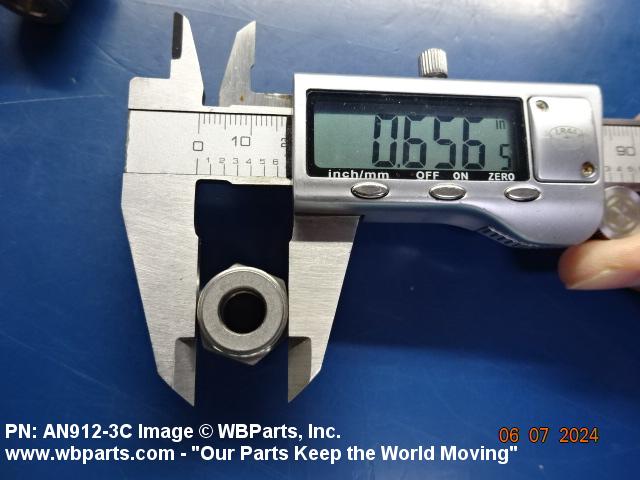

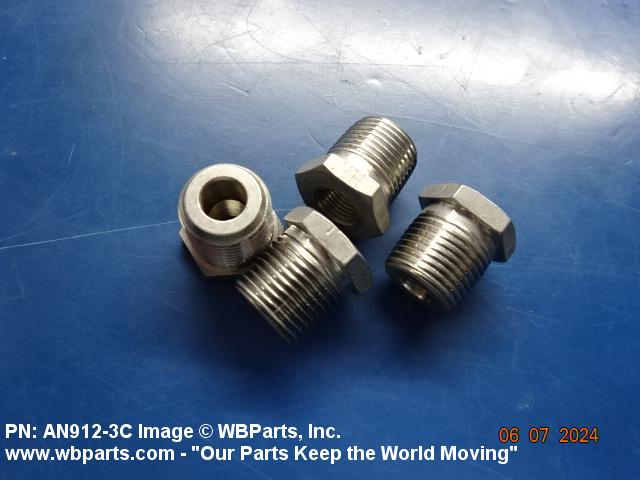

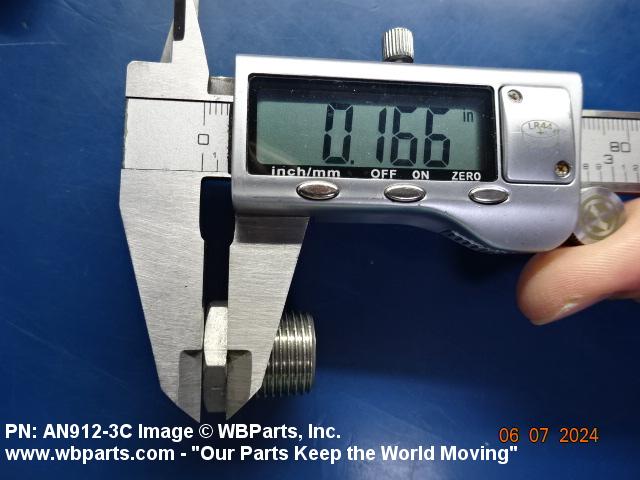

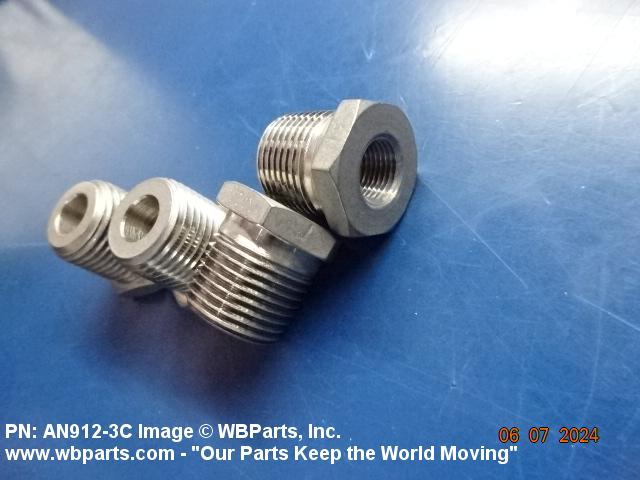

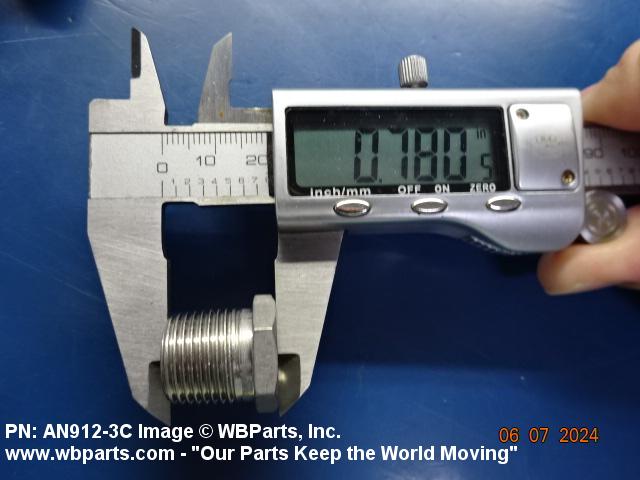

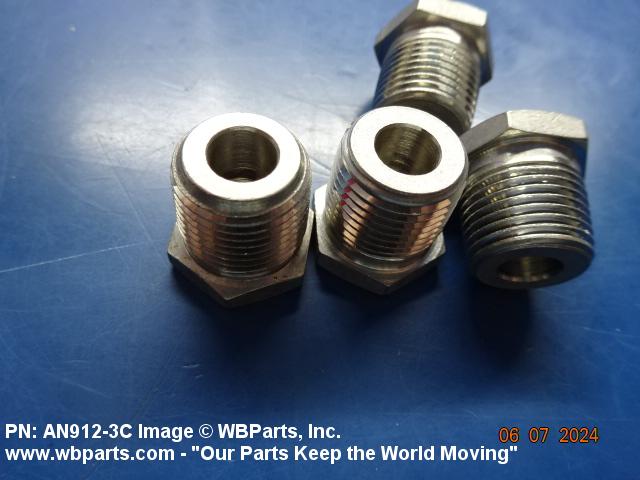

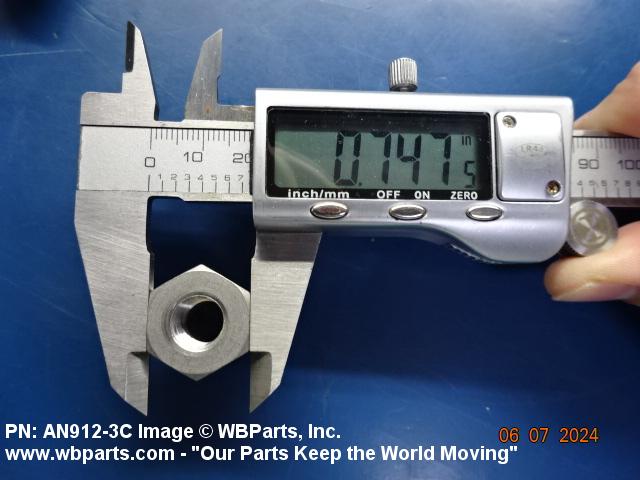

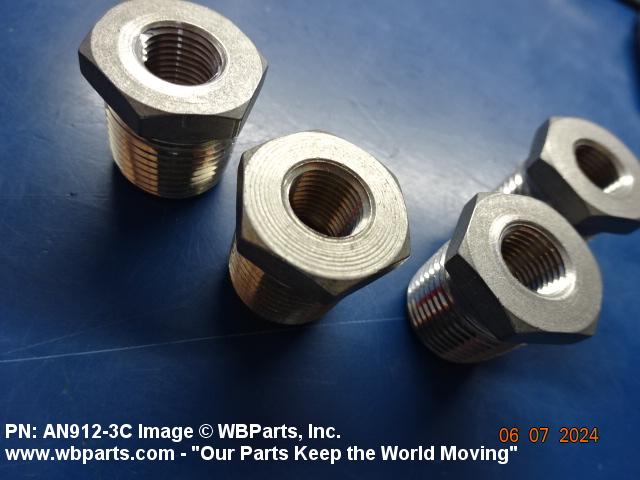

Drawings & Photos | NSN 4730-01-491-9058
Demand History | NSN 4730-01-491-9058
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN9123C | 2024-05-134 | 4 | United States |
| 4730-01-491-9058 | 2022-08-241 | 2 | United States |
| AN9123C | 2021-03-61 | 2 | US |
Cross Reference | NSN 4730-01-491-9058
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN912-3C | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-491-9058
Technical Data | NSN 4730-01-491-9058
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, FED STD 66, COMP 304 |
| SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | N1 OUTSIDE HEXAGON OR OCTAGON |
| EXTERNAL THREAD SIZE | 3/8-18 |
| EXTERNAL SCREW THREAD SERIES DESIGNATOR | ANPT |
| EXTERNAL THREAD DIRECTION | RIGHT-HAND |
| INTERNAL THREAD SIZE | 1/8-27 |
| INTERNAL SCREW THREAD SERIES DESIGNATOR | ANPT |
| INTERNAL THREAD DIRECTION | RIGHT-HAND |
| WORKING PRESSURE AND SERVICE TYPE | 3000.0 POUNDS PER SQUARE INCH NOMINAL ANY ACCEPTABLE |
| WORKING TEMP AND SERVICE TYPE | 225.0 DEG FAHRENHEIT NOMINAL ANY ACCEPTABLE |
| III END ITEM IDENTIFICATION | M109L HOWITZER, SELF-PROPELLED |
Restrictions/Controls & Freight Information | NSN 4730-01-491-9058
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
