NSN 4730-01-465-8288 WS-9273 PC46, WS927346, WS-9273-46
Product Details | PIPE PLUG
4730-01-465-8288 A pipe fitting primarily designed for permanent installation during piping systems operations to fit into another pipe or pipe fitting for sealing. It usually is threaded.
Part Alternates: WS-9273 PC46, WS927346, WS-9273-46, WS9273PC46, 4730-01-465-8288, 01-465-8288, 4730014658288, 014658288
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 23 JUN 1999 | 01-465-8288 | 06077 ( PLUG, PIPE ) |
Drawings & Photos | NSN 4730-01-465-8288
Demand History | NSN 4730-01-465-8288
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-465-8288 | 2018-02-38 | 39 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-465-8288
Related Products | NSN 4730-01-465-8288
Technical Data | NSN 4730-01-465-8288
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| DRIVE END STYLE | 1 RAISED SQUARE |

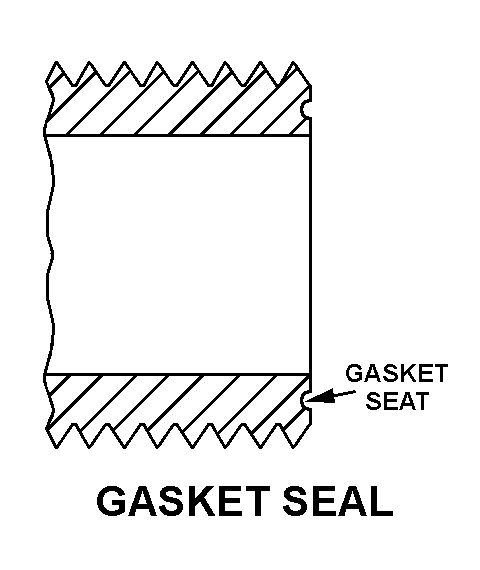

| CONNECTION STYLE | J7 GASKET SEAL |
| THREAD SERIES DESIGNATOR | NPT EXTERNAL |
| NOMINAL THREAD SIZE | 0.500 INCHES EXTERNAL |
| THREAD CLASS | 2B EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 0.500 INCHES |
| BODY TYPE | ANY ACCEPTABLE |
| III END ITEM IDENTIFICATION | NIMITZ CLASS CVN |
Restrictions/Controls & Freight Information | NSN 4730-01-465-8288
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-465-8288
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
