Product Details | COUPLING RETAINER

4730-01-465-8553 A rigid or flexible item of various shapes designed to fasten two tubes together and also allow for expansion and contraction of the tubes.

Part Alternates: AS1895/4-250, AS18954250, 4730-01-465-8553, 01-465-8553, 4730014658553, 014658553

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 23 JUN 1999 01-465-8553

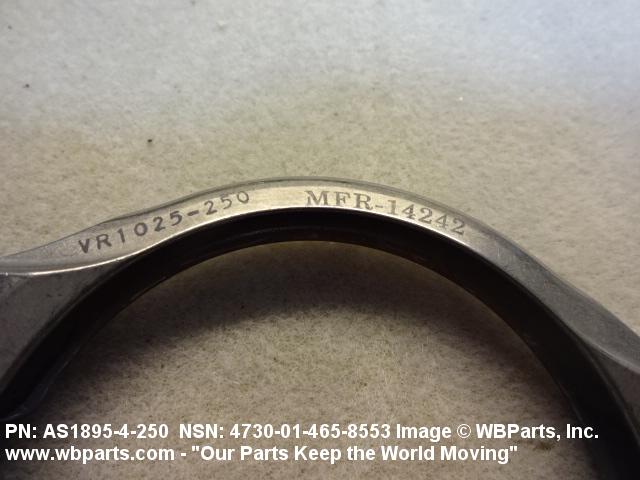

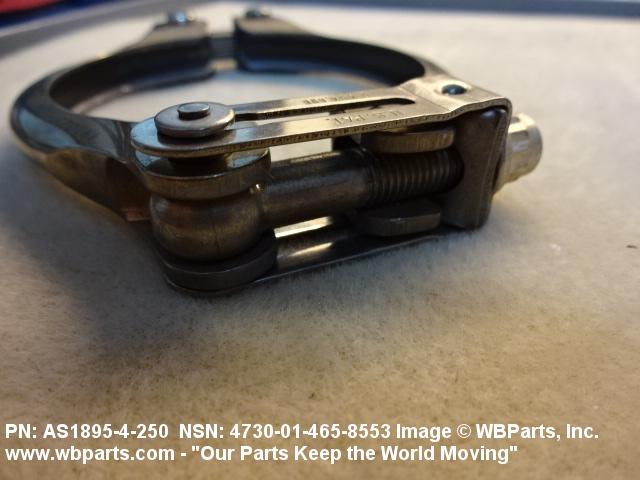

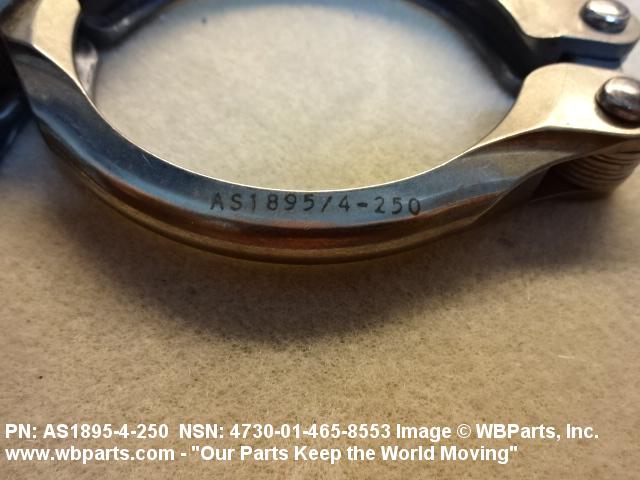

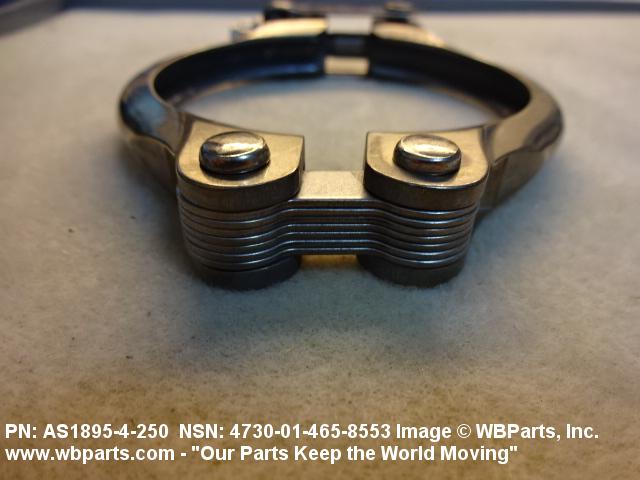

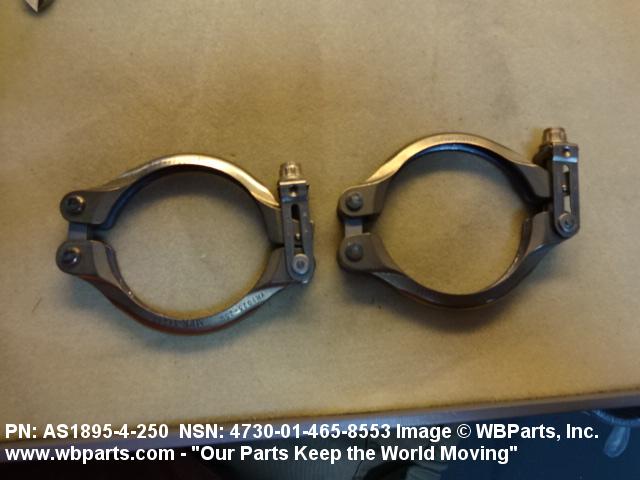

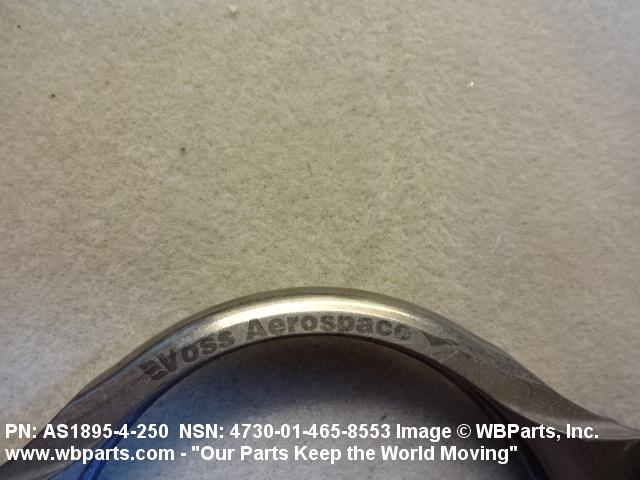

Drawings & Photos | NSN 4730-01-465-8553


Demand History | NSN 4730-01-465-8553

Part Number Request Date QTY Origin
AS1895/4-250 2023-04-103 3 DIBBS
AS1895/4-250 2023-03-87 14 DIBBS
AS1895/4-250 2023-02-43 14 DIBBS
AS1895/4-250 2022-10-276 10 DIBBS
AS18954250 2022-06-159 1 US
AS18954250 2022-05-147 1 US
AS18954250 2021-07-195 10 US
AS18954250 2020-11-335 1 United States
AS18954250 2019-02-46 5 United States
AS18954250 2018-12-352 4 US
AS18954250 2018-10-292 1 United States
AS18954250 2018-05-124 1 US
AS18954250 2018-02-59 1 CA
AS18954250 2018-01-23 26 us
AS18954250 2017-10-299 10 us
AS18954250 2017-09-268 2 United States
AS18954250 2017-08-215 2 United States
AS18954250 2014-11-308 8 US
AS18954250 2014-08-217 4 US
AS18954250 2012-09-270 6 US
AS18954250 2008-02-46 5 us

Cross Reference | NSN 4730-01-465-8553

Part Number Cage Code Manufacturer
AS1895/4-250 99193 HONEYWELL INTERNATIONAL INC. DBA HONEYWELL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-465-8553

Technical Data | NSN 4730-01-465-8553

Characteristic Specifications
MATERIAL NICKEL ALLOY AND STEEL CORROSION RESISTING
OUTSIDE DIAMETER 4.290 INCHES MAXIMUM
INSIDE DIAMETER 3.100 INCHES MAXIMUM
III PART NAME ASSIGNED BY CONTROLLING AGENCY COUPLING, V-RETAINER, SINGLE LATCH, TYPE II LOW PROFILE

Restrictions/Controls & Freight Information | NSN 4730-01-465-8553

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 095190 HARDWARE, NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 736 unknown
Originating Activity Code QE
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
