NSN 4730-01-430-4998 C5389, 1113/4, 11134
Product Details | HOSE CLAMP
4730-01-430-4998 A clamp in which the body (band or wire) completely encircles an item and distributes a relatively even amount of pressure throughout the entire 360 degrees (6.282 radians) of the periphery of the item to be compressed. Its compression quality is dependent upon an integral screw mechanism, (screw, bolt spring compression and the like mechanical fasteners), or it may be applied by a device not integral with the clamp itself. It is specifically designed to prevent leakage between a hose and its attaching connection(s) when the body of the clamp is round or circular. For square, rectangular, or irregularly shaped items, see CLAMP, HOSE, SPECIAL-SHAPED. Excludes CLAMP, ELECTRICAL; CLAMP, LOOP; CLAMP, FIRE HOSE, SHUTOFF; FERRULE (as modified); and HAND SCREW.
Part Alternates: C5389, 1113/4, 11134, 4730-01-430-4998, 01-430-4998, 4730014304998, 014304998
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 30 APR 1996 | 01-430-4998 | 13566 ( CLAMP, HOSE ) |

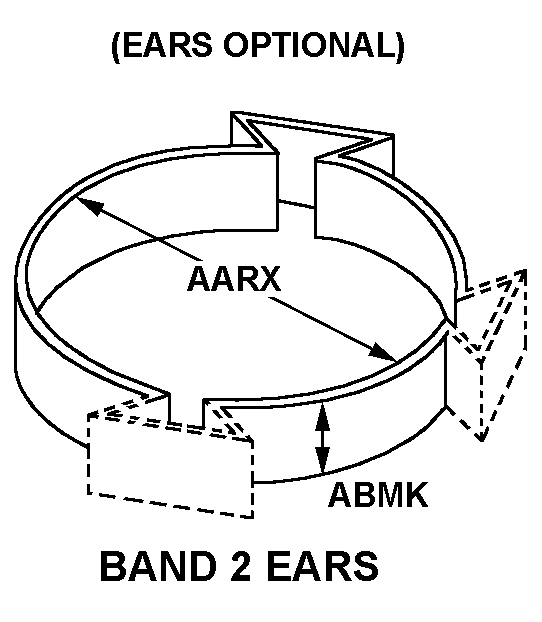

Drawings & Photos | NSN 4730-01-430-4998
Demand History | NSN 4730-01-430-4998
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 11134 | 2012-06-14 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-430-4998
Technical Data | NSN 4730-01-430-4998
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1008 BAND |
| STYLE DESIGNATOR | C26B BAND, 2 EARS |
| INSIDE DIAMETER | 11.0 MILLIMETERS MINIMUM AND 13.0 MILLIMETERS MAXIMUM |
| OVERALL WIDTH | 7.0 MILLIMETERS NOMINAL |
| FASTENING DEVICE TYPE | SPRING TENSION |
Restrictions/Controls & Freight Information | NSN 4730-01-430-4998
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
