NSN 4730-01-398-1391 MS987924, MS9879-24, 01-398-1391
Product Details | TUBE FITTING CLINCH SLEEVE

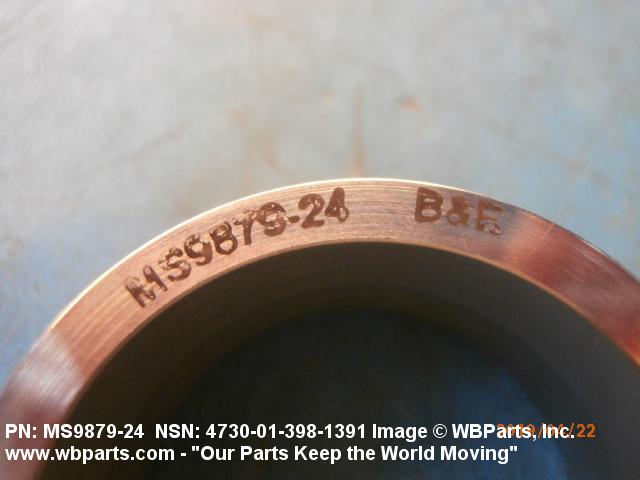

4730-01-398-1391 A flanged cylindrical item having a sharp cutting surface on the inside diameter at the end opposite the flange. The cutting edge, in use, is designed to imbed in the tubing due to pressure exerted when the outside diameter of the sleeve is forced into and against an angular seat. This firmly attaches the sleeve to the tubing and the flanged end then serves as a bearing surface for the coupling nut to bring the tubing into the mating fitting.
Part Alternates: MS987924, MS9879-24, 4730-01-398-1391, 01-398-1391, 4730013981391, 013981391
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 OCT 1994 | 01-398-1391 | 18025 ( SLEEVE, CLINCH, TUBE FITTING ) |

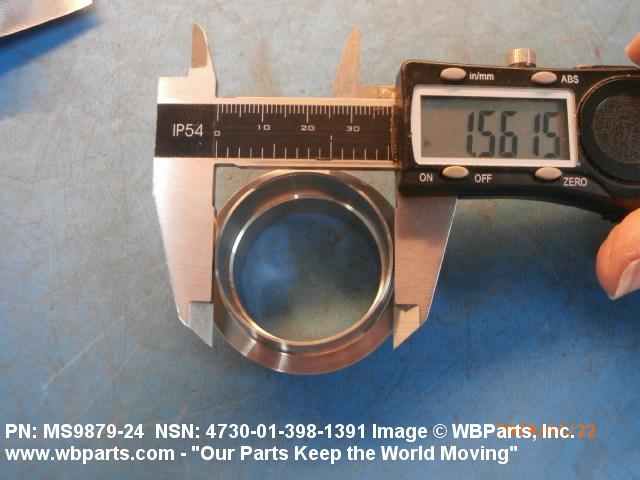

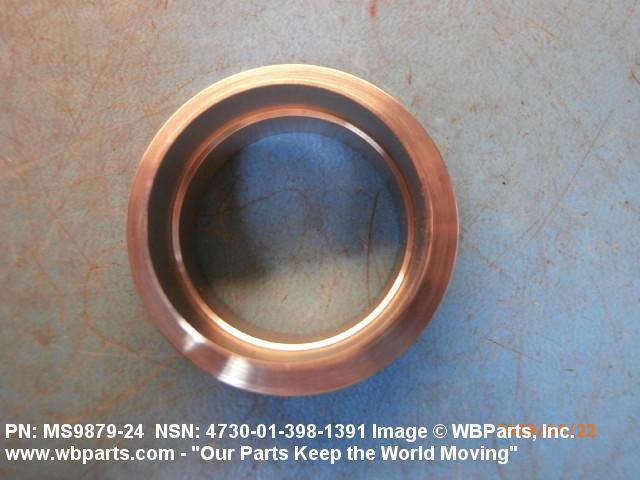

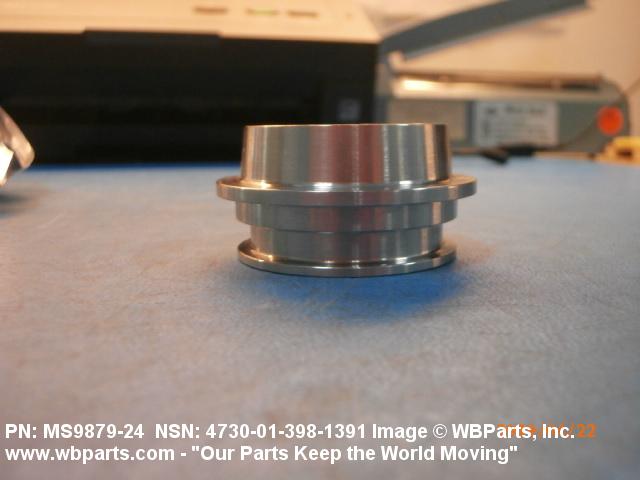

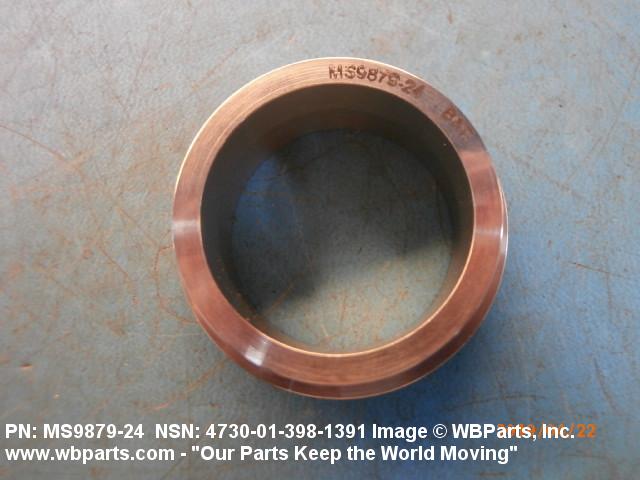

Drawings & Photos | NSN 4730-01-398-1391
Demand History | NSN 4730-01-398-1391
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS987924 | 2020-10-05 | 1 | United States |
| MS987924 | 2020-09-10 | 1 | US |
| MS987924 | 2019-04-10 | 3 | United States |
| MS987924 | 2019-04-09 | 4 | US |
Cross Reference | NSN 4730-01-398-1391
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS9879-24 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-398-1391
Technical Data | NSN 4730-01-398-1391
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AMS 5646 |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.500 INCHES NOMINAL |
| STYLE DESIGNATOR | L5 FLARELESS |

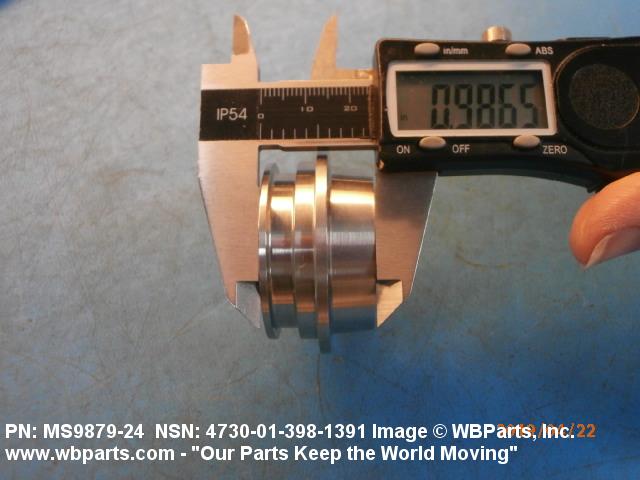

| OVERALL LENGTH | 0.988 INCHES NOMINAL |

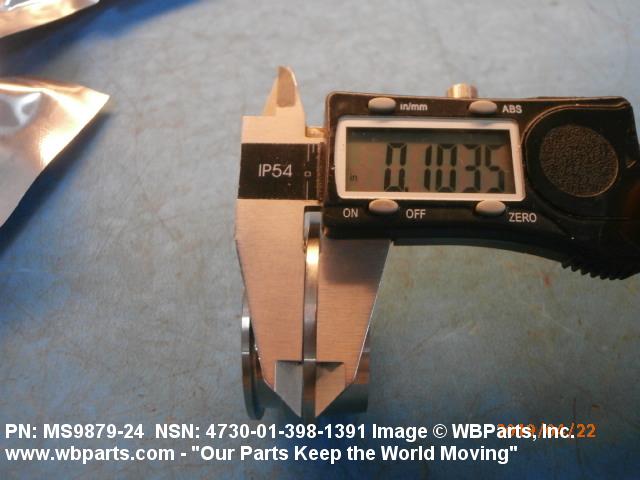

| FLANGE WIDTH | 0.103 INCHES NOMINAL |

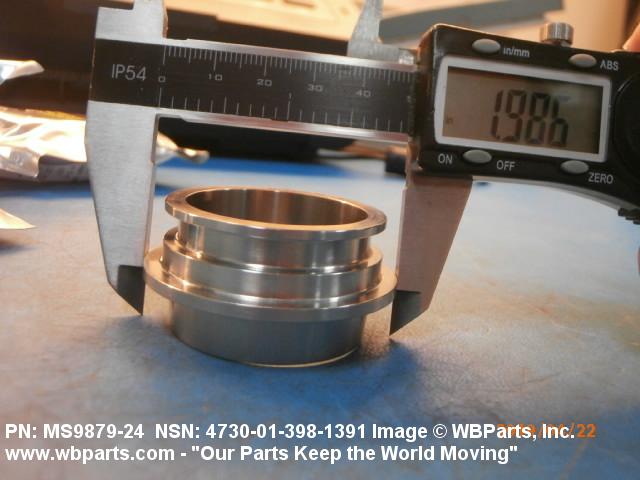

| FLANGE OUTSIDE DIAMETER | 1.984 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 32.0 |

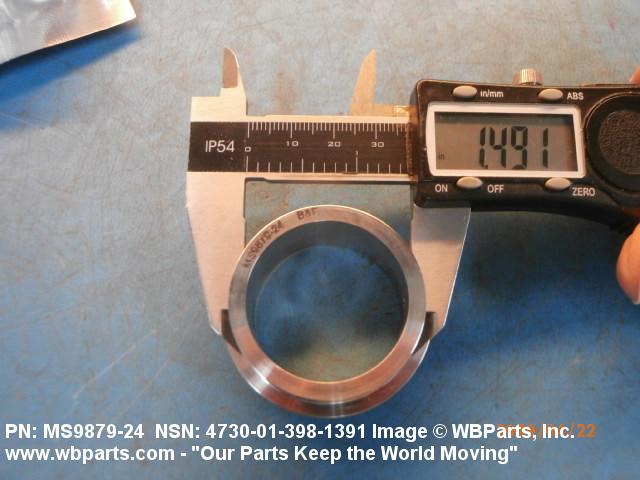

| SLEEVE OUTSIDE DIAMETER | 1.490 INCHES NOMINAL |
