NSN 4730-01-396-5075 3180118, 31801182, 3180118-2
Product Details | TUBE FITTING CLINCH SLEEVE
4730-01-396-5075 A flanged cylindrical item having a sharp cutting surface on the inside diameter at the end opposite the flange. The cutting edge, in use, is designed to imbed in the tubing due to pressure exerted when the outside diameter of the sleeve is forced into and against an angular seat. This firmly attaches the sleeve to the tubing and the flanged end then serves as a bearing surface for the coupling nut to bring the tubing into the mating fitting.
Part Alternates: 3180118, 31801182, 3180118-2, 4730-01-396-5075, 01-396-5075, 4730013965075, 013965075
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 21 SEP 1994 | 01-396-5075 | 18025 ( SLEEVE, CLINCH, TUBE FITTING ) |

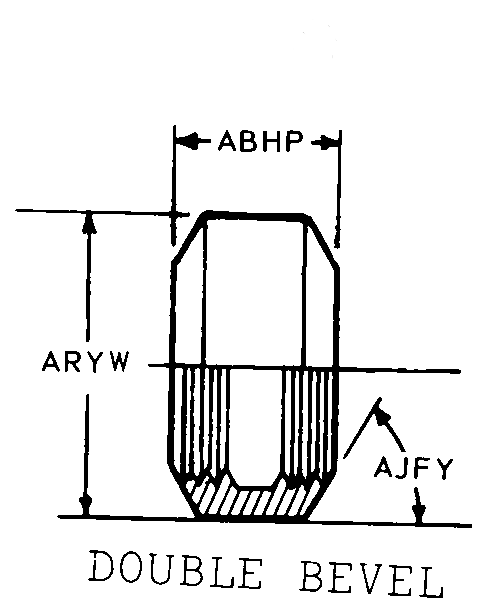

Drawings & Photos | NSN 4730-01-396-5075
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-396-5075
Technical Data | NSN 4730-01-396-5075
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | ANODIZED |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| STYLE DESIGNATOR | L4 DOUBLE BEVEL |
| OVERALL LENGTH | 0.175 INCHES MINIMUM AND 0.185 INCHES MAXIMUM |
| SEAT ANGLE IN DEG | 32.0 |
| SLEEVE OUTSIDE DIAMETER | 0.355 INCHES MINIMUM AND 0.356 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | C-17A AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 4730-01-396-5075
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
