NSN 4730-01-376-3139 AE86053H, 151000-301, 7D0185
Product Details | SELF-SEALING COUPLING HALF
4730-01-376-3139 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an external or internal thread for connecting a mating part to form a self-sealing coupling assembly. The fitting has either a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half, or, if it has no self-sealing feature, is specifically designed to mate with a fitting with a self-sealing feature. For self-sealing fittings with a quick disconnect end, see COUPLING HALF, QUICK DISCONNECT. For fluid line fittings without a self-sealing feature, see COUPLING (as modified).
Part Alternates: AE86053H, 151000-301, 7D0185, 7D0185A08, 4730-01-376-3139, 01-376-3139, 4730013763139, 151000301, 013763139
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 MAY 1993 | 01-376-3139 | 18281 ( COUPLING HALF, SELF-SEALING ) |

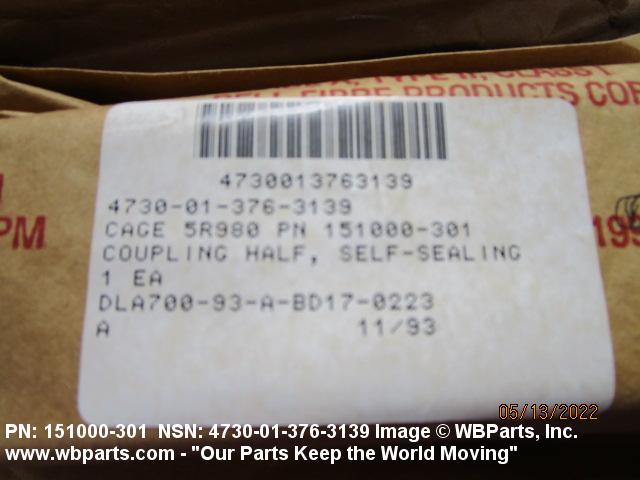

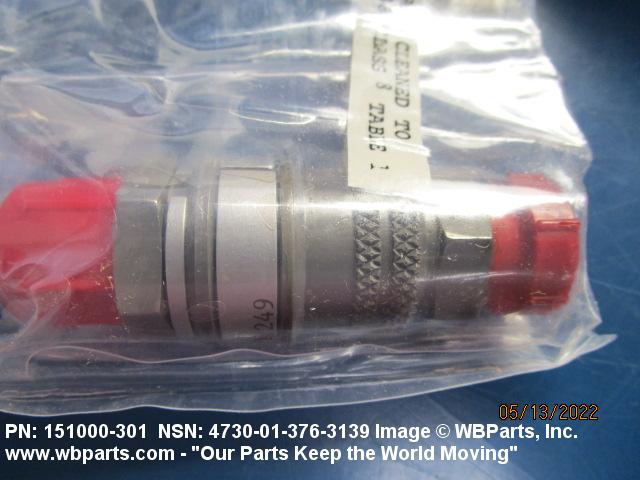

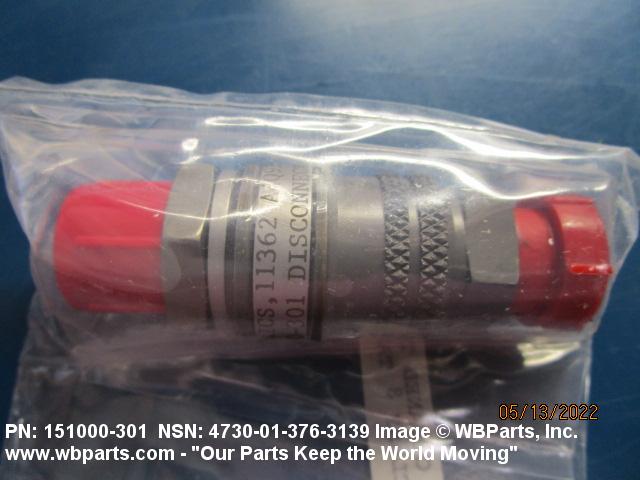

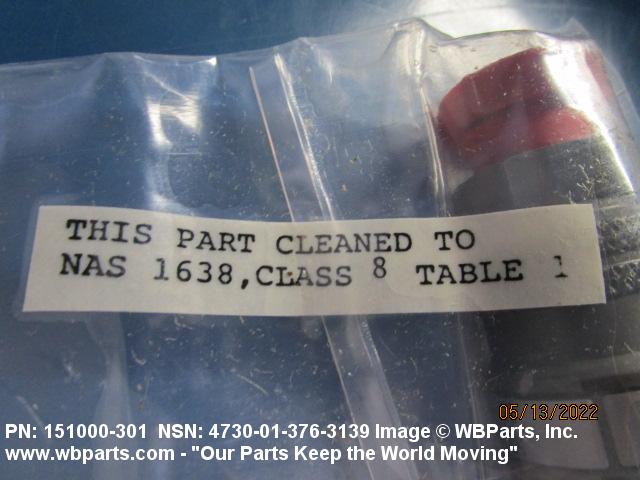

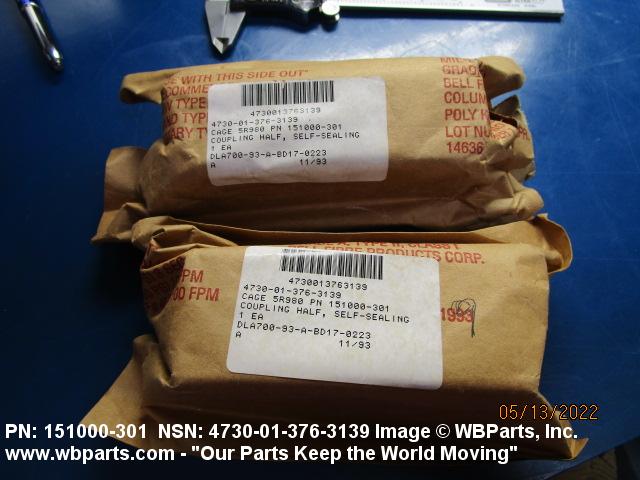

Drawings & Photos | NSN 4730-01-376-3139
Demand History | NSN 4730-01-376-3139
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7D0185A08 | 2022-04-118 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-376-3139
Technical Data | NSN 4730-01-376-3139
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | TITANIUM ALLOY |
| BODY MATERIAL DOCUMENT AND CLASSIFICATION | MIL-T-9047 MIL SPEC SINGLE MATERIAL RESPONSE OR AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 4965 ASSN STD SINGLE MATERIAL RESPONSE |
| BODY SURFACE TREATMENT | PHOSPHATE |
| BODY SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2486 ASSN STD SINGLE TREATMENT RESPONSE |
| BODY STYLE | 1 COUPLING HALF |
| FIRST LEG LENGTH | ANY ACCEPTABLE |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 4000.0 POUNDS PER SQUARE INCH HYDRAULIC FLUID, PETROLEUM BASE |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 275.0 DEG FAHRENHEIT HYDRAULIC FLUID, PETROLEUM BASE |
| OVERALL LENGTH | 2.030 INCHES NOMINAL |
| FIRST FLUID END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | D8 FLARELESS |
| FIRST END SEAT ANGLE | 12.0 DEGREES NOMINAL |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES NOMINAL |
| FIRST END THREAD SERIES DESIGNATOR | UNJF |
| FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
| FIRST END THREAD CLASS | 3A |
| FEATURES PROVIDED | SELF-SEALING |
| SPECIAL FEATURES | LOCKWIRE HOLES |
Restrictions/Controls & Freight Information | NSN 4730-01-376-3139
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-376-3139
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BE | TB:C-17 ENGINE |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
