NSN 4730-01-326-2591 S3052B182S32, 01-326-2591, 013262591
Product Details | TUBE COUPLING SWAGE FERRULE
4730-01-326-2591 A flanged cylindrical metallic item used with a plain end tube and swaged in place. It is designed to be used as a component part of a flexible or rigid tube coupling.
Part Alternates: S3052B182S32, 4730-01-326-2591, 01-326-2591, 4730013262591, 013262591
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 21 SEP 1990 | 01-326-2591 | 32679 ( FERRULE, SWAGE, TUBE COUPLING ) |

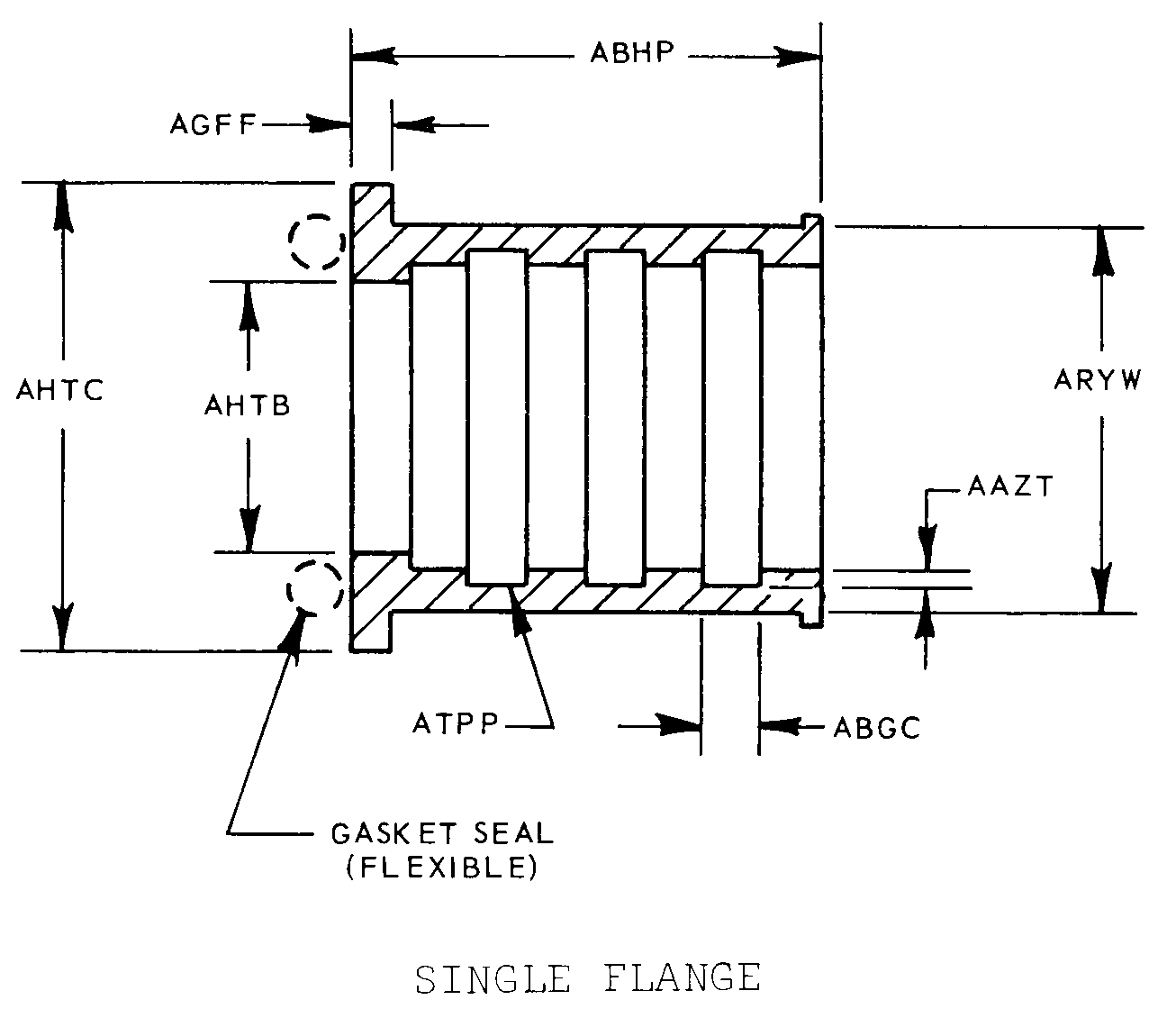

Drawings & Photos | NSN 4730-01-326-2591
Cross Reference | NSN 4730-01-326-2591
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S3052B182S32 | 79326 | TRANSDIGM INC DBA ADEL WIGGINS GROUP- MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-326-2591
Technical Data | NSN 4730-01-326-2591
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-225/6, ALLOY 2024 |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 2.145 INCHES NOMINAL |
| STYLE DESIGNATOR | T3 SINGLE FLANGE |
| OVERALL LENGTH | 0.695 INCHES NOMINAL |
| FLANGE WIDTH | 0.060 INCHES NOMINAL |
| FLANGE INSIDE DIAMETER | 1.985 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 2.313 INCHES NOMINAL |
| SLEEVE OUTSIDE DIAMETER | 2.145 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4730-01-326-2591
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
