Product Details | TUBE COUPLING SWAGE FERRULE

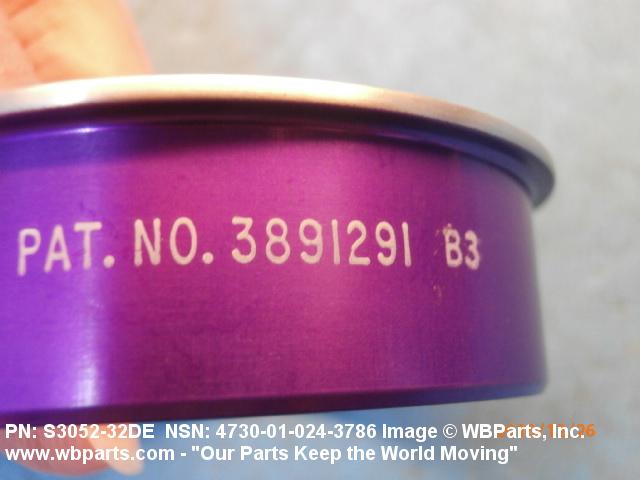

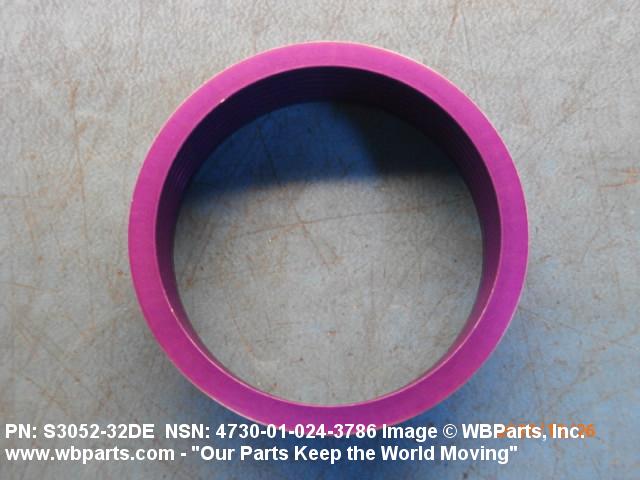

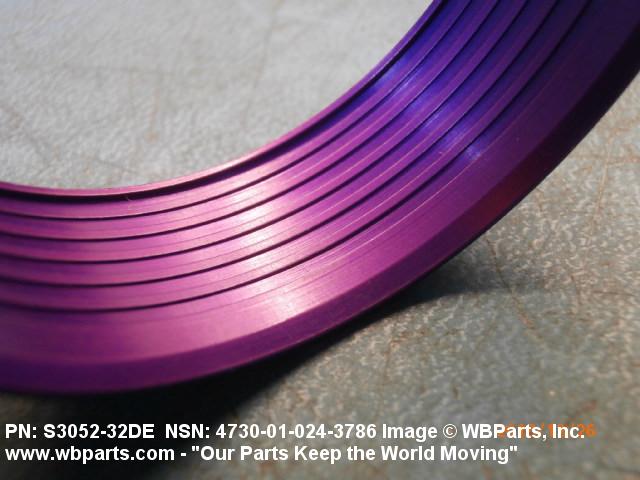

4730-01-024-3786 A flanged cylindrical metallic item used with a plain end tube and swaged in place. It is designed to be used as a component part of a flexible or rigid tube coupling.
Part Alternates: CNY0121406, CN-Y0121-406, S305232DE, S3052-32DE, S305232DG, S3052-32DG, S3052SIZEDE, GC550KJ32F, LE27700020132, LE277-0002-0132, 12F7032AE, 12F70-32AE, 4730-01-024-3786, 01-024-3786, 4730010243786, 010243786
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 JUL 1976 | 01-024-3786 | 32679 ( FERRULE, SWAGE, TUBE COUPLING ) |

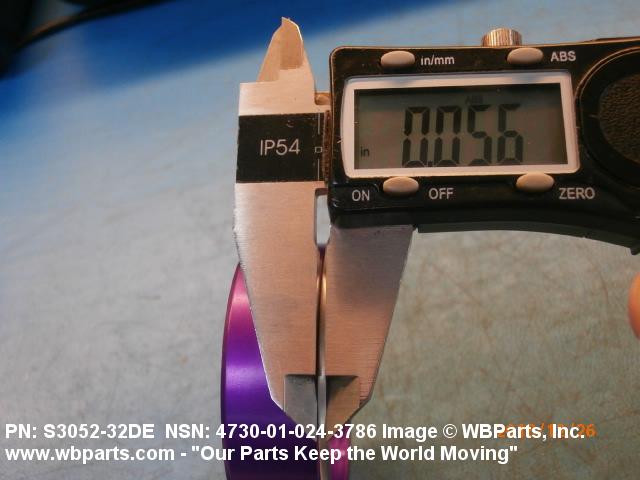

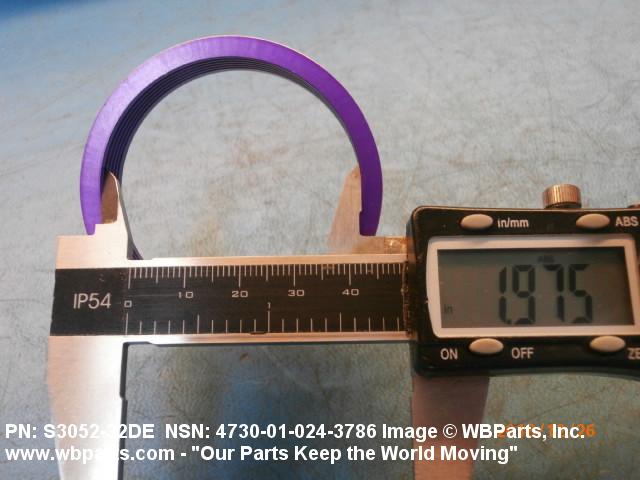

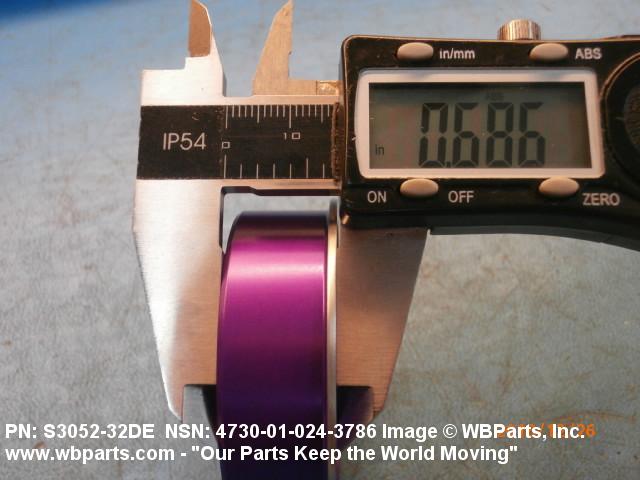

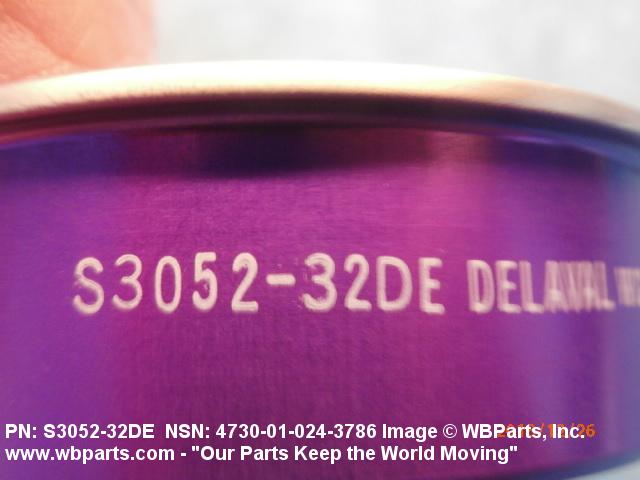

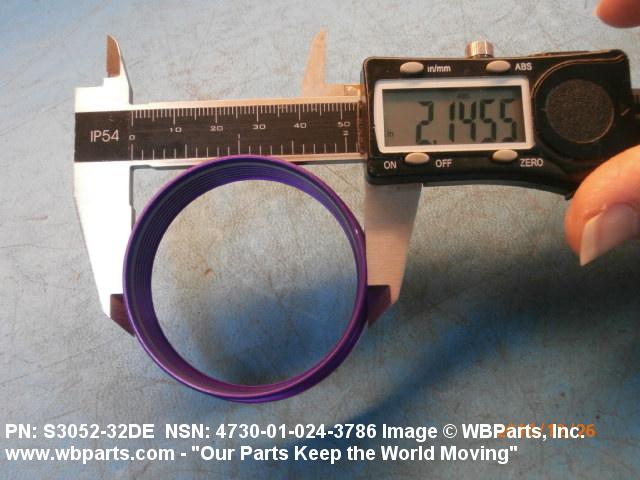

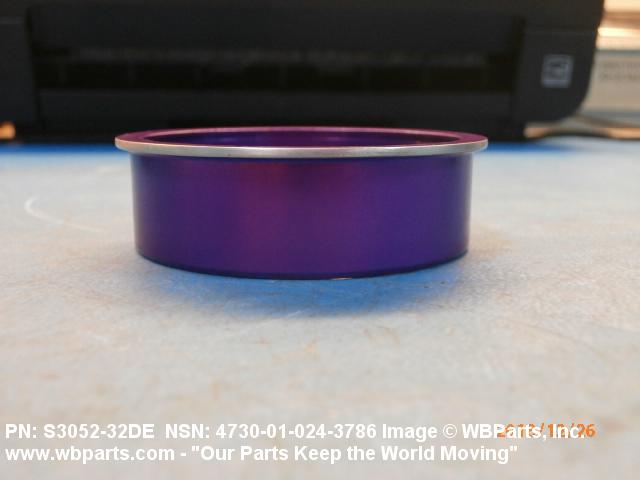

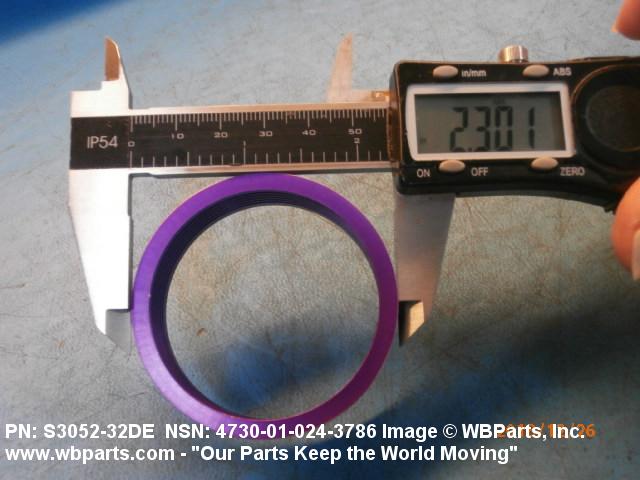

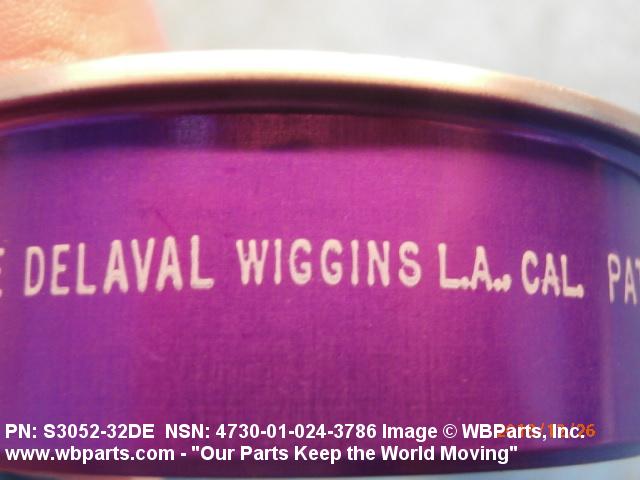

Drawings & Photos | NSN 4730-01-024-3786
Demand History | NSN 4730-01-024-3786
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| S305232DE | 2024-06-179 | 10 | Japan |
| 4730-01-024-3786 | 2022-01-10 | 6 | US |
| S305232DE | 2020-06-160 | 300 | United States |
| S305232DE | 2019-09-254 | 56 | US |
| S305232DE | 2019-08-241 | 282 | US |
| S305232DE | 2018-11-316 | 128 | US |
| S305232DE | 2018-06-170 | 14 | US |
| S305232DE | 2018-04-116 | 10 | US |
| S305232DE | 2018-04-116 | 20 | US |
| S305232DE | 2018-02-46 | 140 | US |
| S305232DE | 2018-02-46 | 280 | US |
| 4730-01-024-3786 | 2014-05-121 | 156 | DIBBS |
| 4730-01-024-3786 | 2013-12-344 | 45 | DIBBS |
| S305232DE | 2013-04-107 | 62 | US |
| 4730-01-024-3786 | 2012-11-313 | 60 | United States |
Cross Reference | NSN 4730-01-024-3786
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12F70-32AE | 24984 | HYDRAFLOW |
| CN-Y0121-406 | 33875 | RAYTHEON E-SYSTEMS INC |
| GC550KJ32F | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| LE277-0002-0132 | 43999 | BOEING COMPANY, THE DBA BOEING |
| S3052-(SIZE)DE | 79326 | TRANSDIGM INC DBA ADEL WIGGINS GROUP- MILITARY |
| S3052-32DE | 79326 | TRANSDIGM INC DBA ADEL WIGGINS GROUP- MILITARY |
| S3052-32DG | 79326 | TRANSDIGM INC DBA ADEL WIGGINS GROUP- MILITARY |
