NSN 4730-00-277-1536 S305212, S3052-12, ST7M16912D
Product Details | TUBE COUPLING SWAGE FERRULE

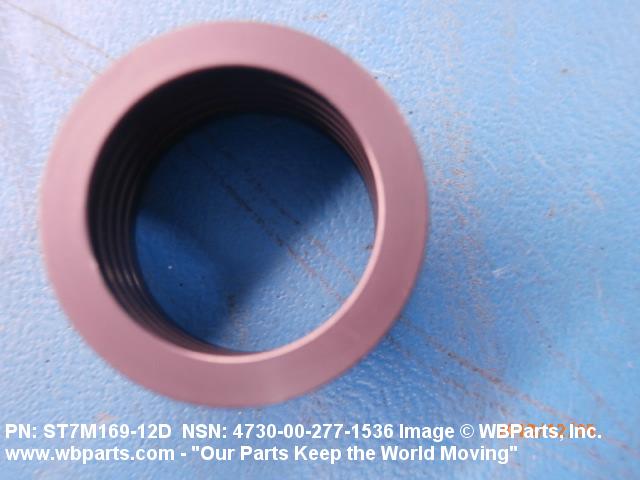

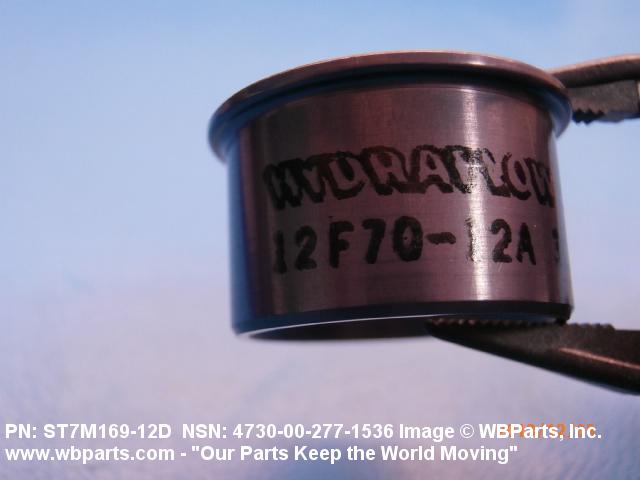

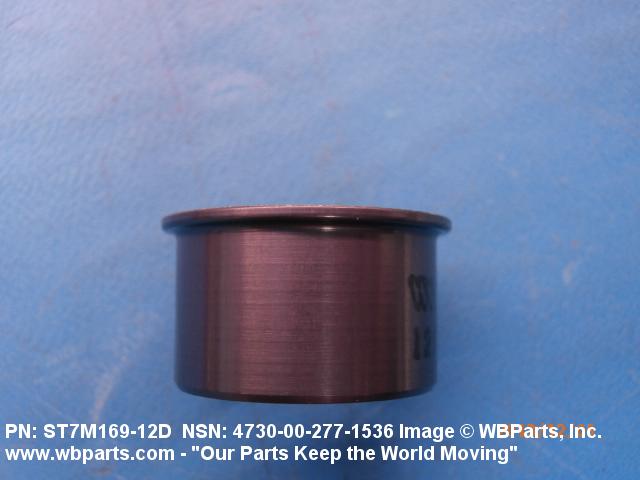

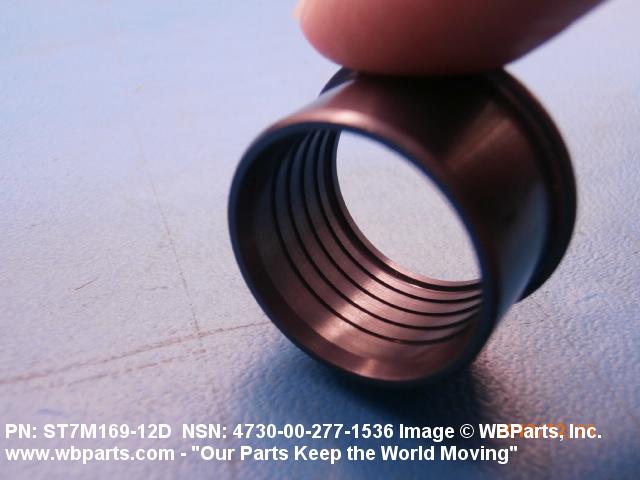

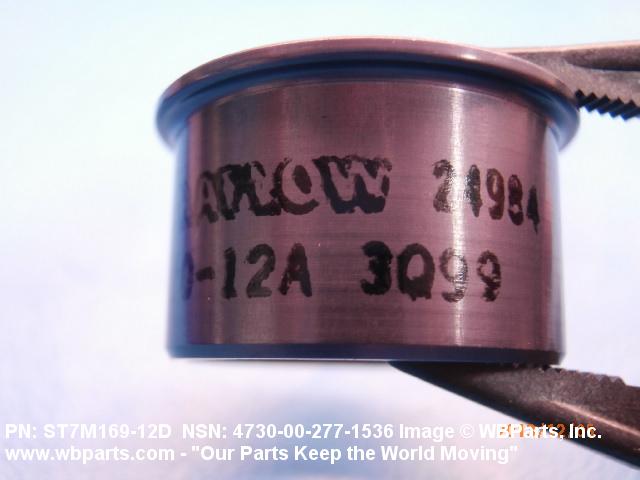

4730-00-277-1536 A flanged cylindrical metallic item used with a plain end tube and swaged in place. It is designed to be used as a component part of a flexible or rigid tube coupling.
Part Alternates: S305212, S3052-12, ST7M16912D, ST7M169-12D, LUW630312, LUW6303-12, 4730-00-277-1536, 00-277-1536, 4730002771536, 002771536
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 08 AUG 1973 | 00-277-1536 | 32679 ( FERRULE, SWAGE, TUBE COUPLING ) |

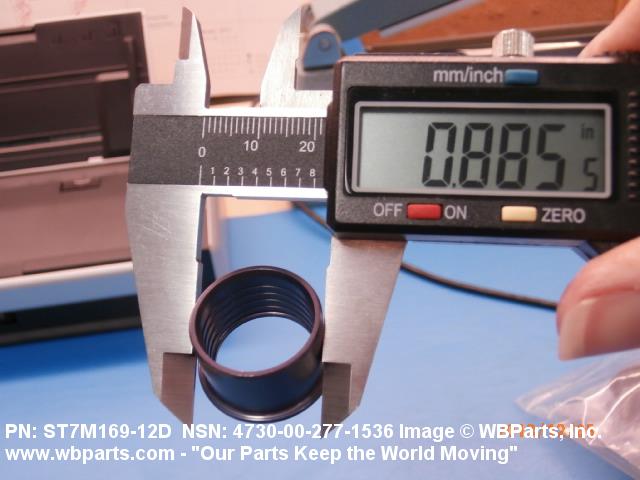

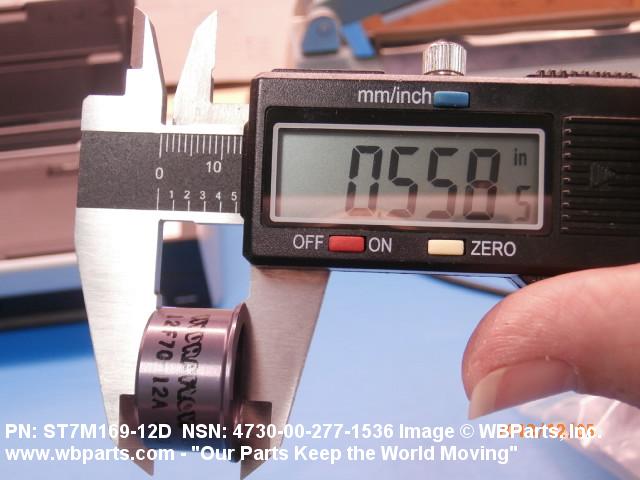

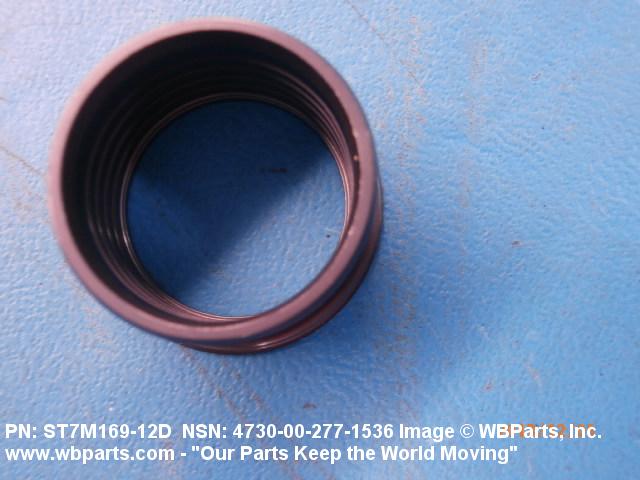

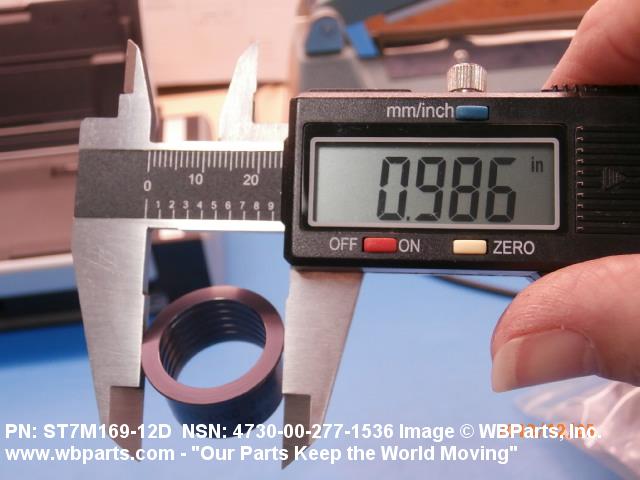

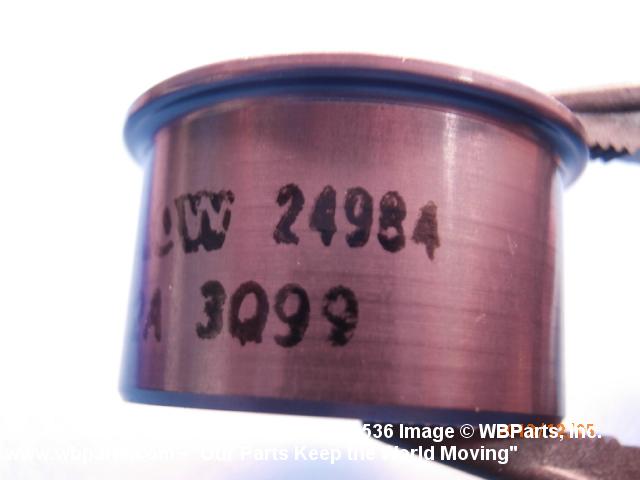

Drawings & Photos | NSN 4730-00-277-1536
Demand History | NSN 4730-00-277-1536
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12F70-D(A) | 2024-03-85 | 67 | DIBBS |
| S3052-12 | 2024-03-85 | 67 | DIBBS |
| 12F70-D(A) | 2024-03-71 | 67 | DIBBS |
| S3052-12 | 2024-03-71 | 67 | DIBBS |
| 4730-00-277-1536 | 2013-11-326 | 32 | United States |
