NSN 4730-01-269-0135 AS4327K32, KC143C32, KC143K32
Product Details | TUBE FITTING FLARED SLEEVE
4730-01-269-0135 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: AS4327K32, KC143C32, KC143K32, 4730-01-269-0135, 01-269-0135, 4730012690135, 012690135
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 11 DEC 1987 | 01-269-0135 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |

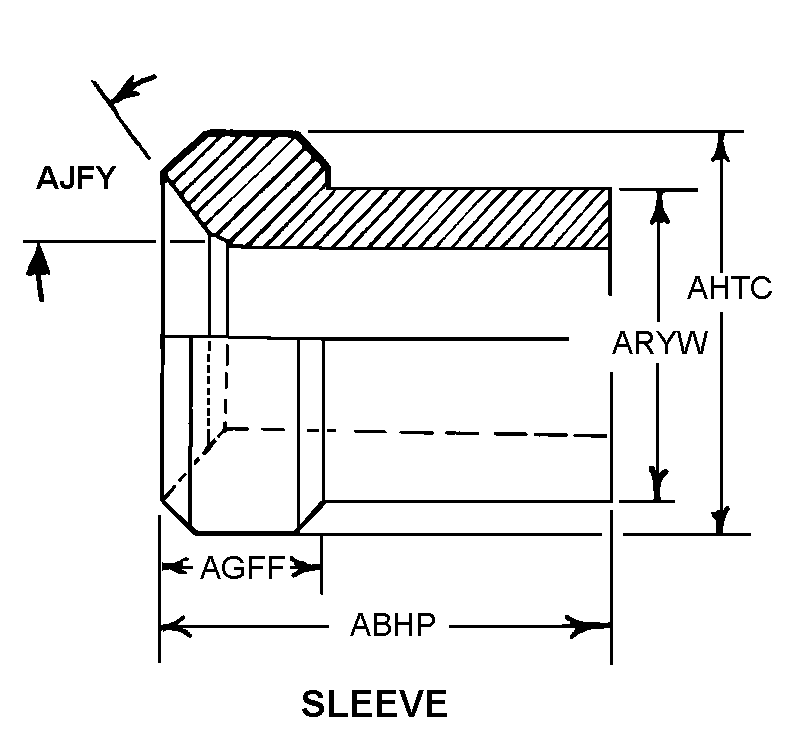

Drawings & Photos | NSN 4730-01-269-0135
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-269-0135
Technical Data | NSN 4730-01-269-0135
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-763, CLASS 316, COND A |
| SURFACE TREATMENT | PASSIVATED |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 2.000 INCHES MINIMUM |
| STYLE DESIGNATOR | M4 SLEEVE |
| OVERALL LENGTH | 1.188 INCHES MINIMUM |
| FLANGE WIDTH | 0.406 INCHES MINIMUM |
| FLANGE OUTSIDE DIAMETER | 2.409 INCHES MINIMUM |
| SEAT ANGLE IN DEG | 33.0 |
| SLEEVE OUTSIDE DIAMETER | 2.159 INCHES MINIMUM |
| SPECIAL FEATURES | KC143C-32; SINGLE CONSUMABLE ELECTRODE; VACUUM REMELT PROCESS; COLD FINISH |
| CRITICALITY CODE JUSTIFICATION | FEAT |
Restrictions/Controls & Freight Information | NSN 4730-01-269-0135
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
