NSN 4730-01-163-6996 MS208193D, MS20819-3D, AS3220
Product Details | TUBE FITTING FLARED SLEEVE

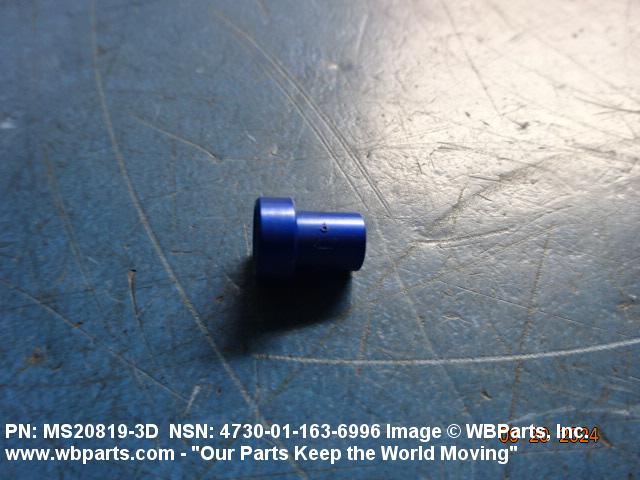

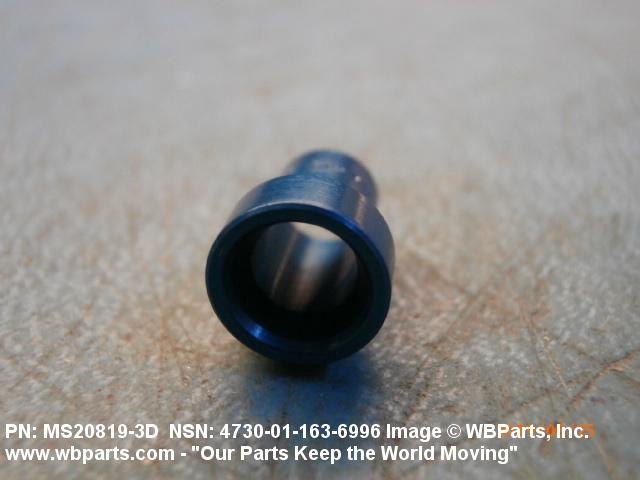

4730-01-163-6996 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: MS208193D, MS20819-3D, AS3220 , AS3220W03, AS4841 , AS5176, AS51763, AS5176-3, AS51763J, AS5176-3J, AS51763K, AS5176-3K, 4730-01-163-6996, 01-163-6996, 4730011636996, 011636996
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 06 OCT 1983 | 01-163-6996 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |

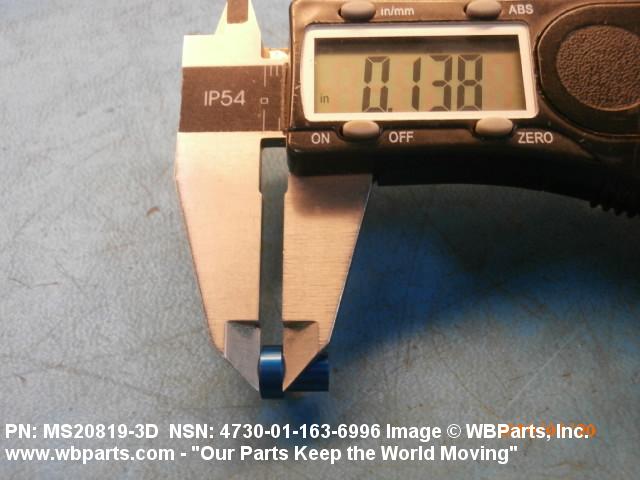

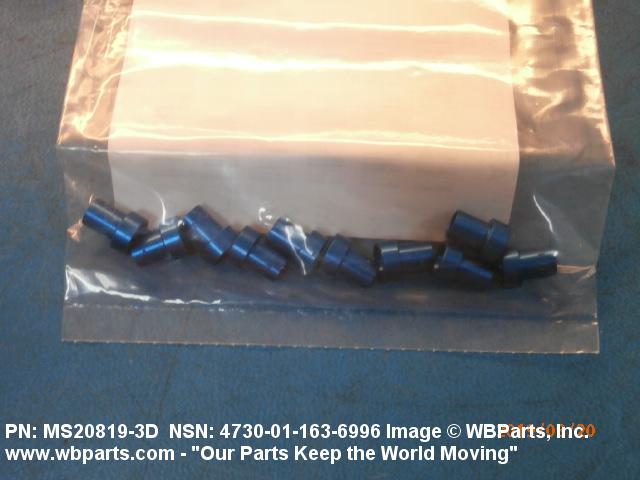

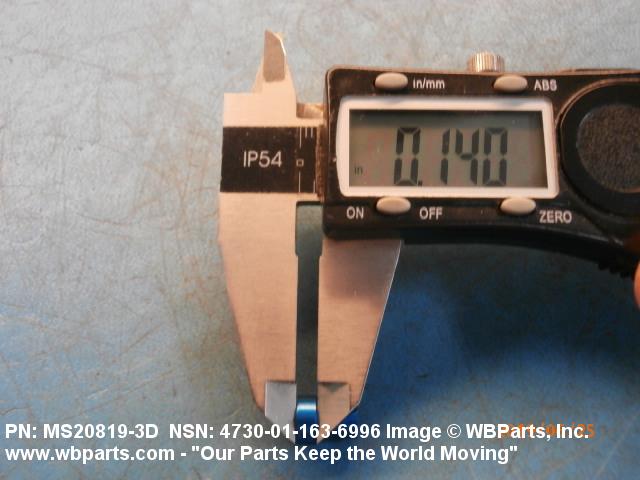

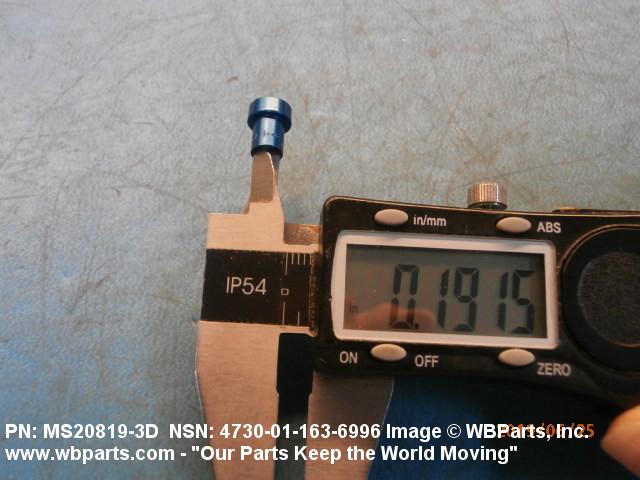

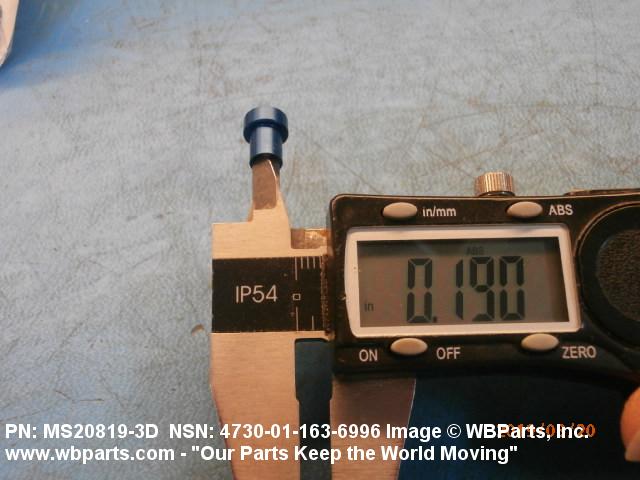

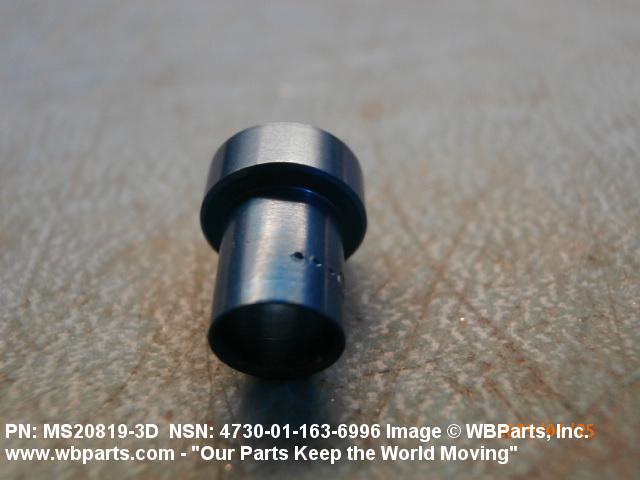

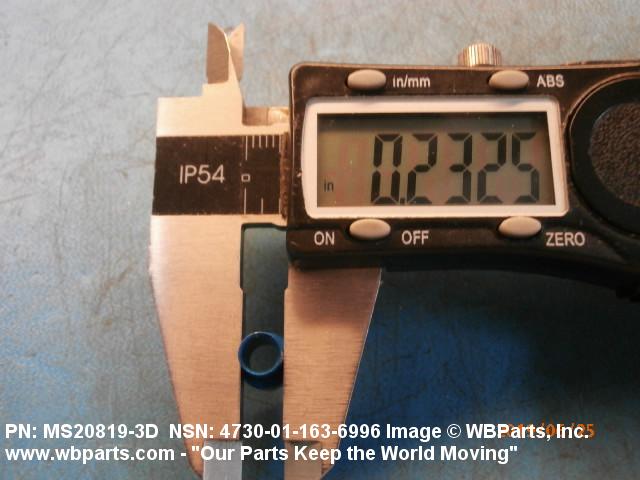

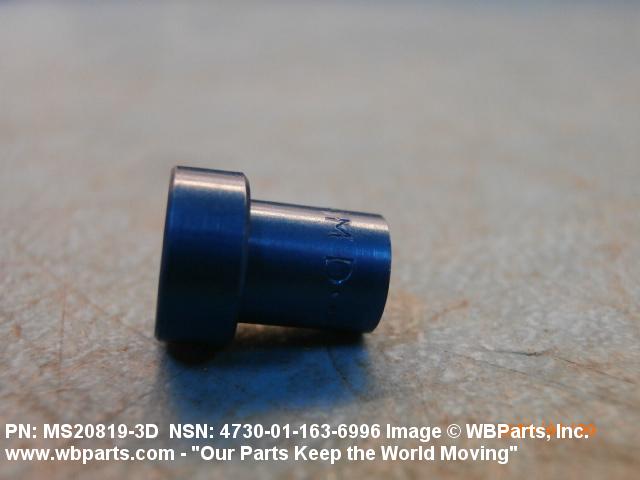

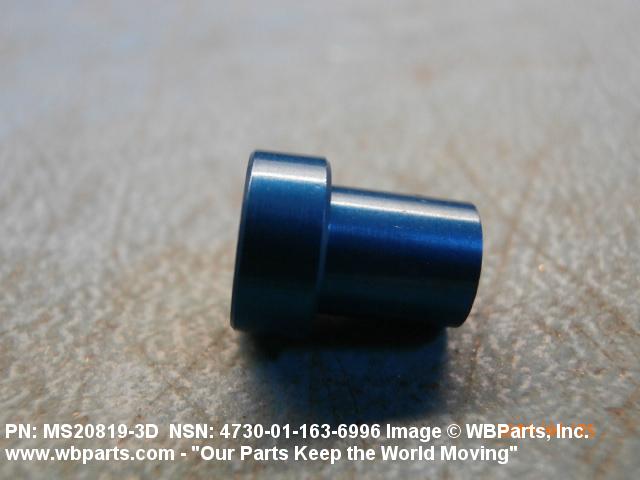

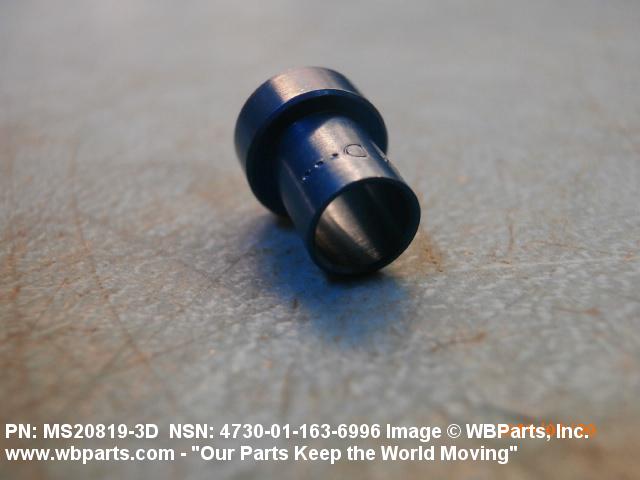

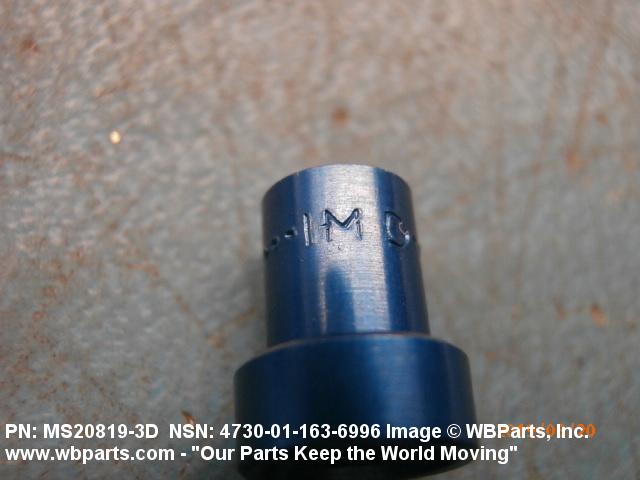

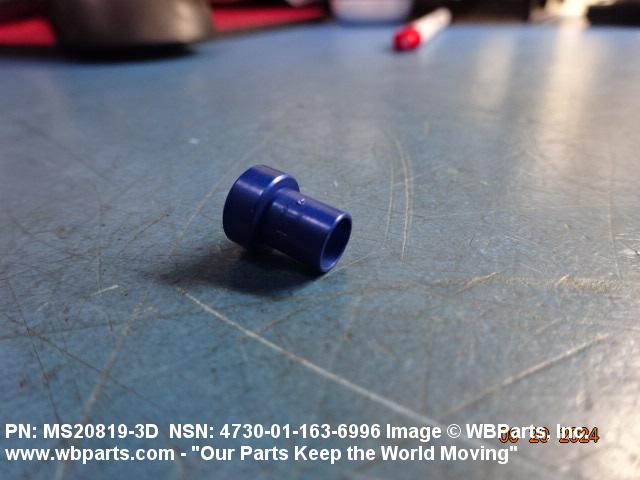

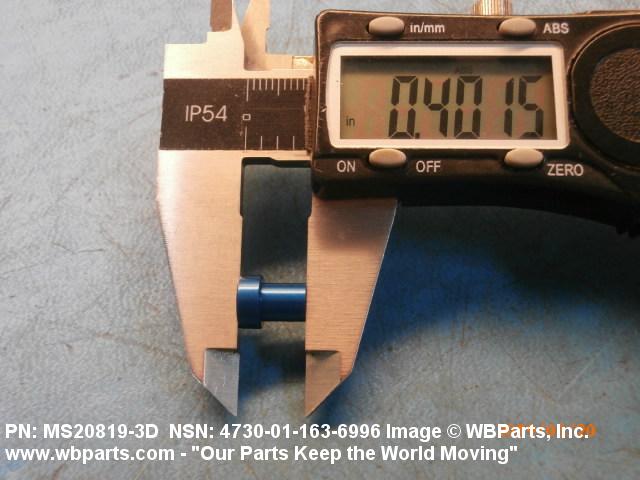

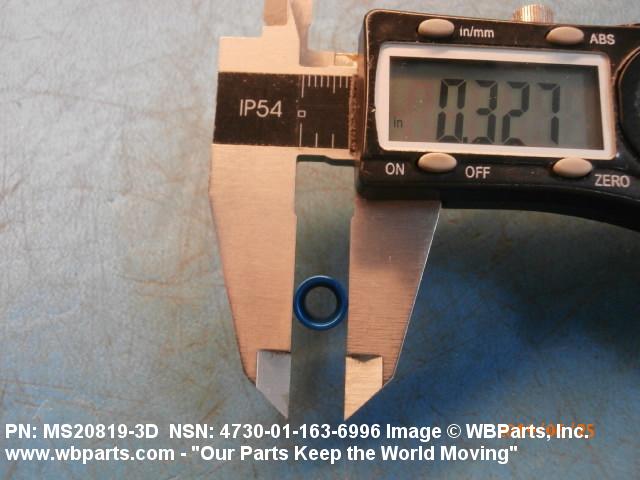

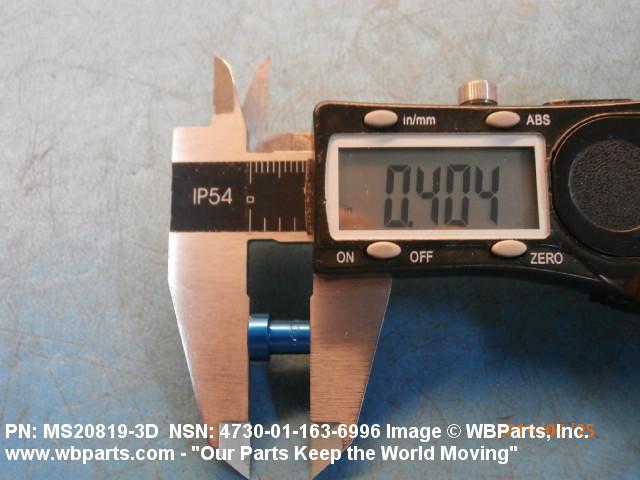

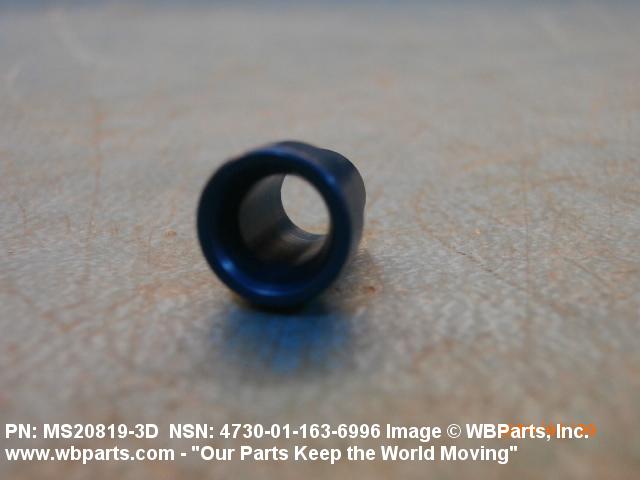

Drawings & Photos | NSN 4730-01-163-6996
Demand History | NSN 4730-01-163-6996
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS208193D | 2024-09-260 | 280 | United States |
| 4730-01-163-6996 | 2024-07-204 | 168 | DIBBS |
| 4730-01-163-6996 | 2024-07-192 | 168 | DIBBS |
| 4730-01-163-6996 | 2019-07-185 | 110 | DIBBS |
| MS208193D | 2019-06-170 | 300 | United States |
| MS208193D | 2019-03-63 | 40 | China |
| 4730-01-163-6996 | 2018-11-324 | 65 | DIBBS |
| 4730-01-163-6996 | 2018-11-305 | 65 | DIBBS |
| 4730-01-163-6996 | 2018-08-217 | 22 | DIBBS |
| 4730-01-163-6996 | 2018-02-32 | 52 | DIBBS |
| 4730-01-163-6996 | 2017-08-234 | 569 | DIBBS |
| 4730-01-163-6996 | 2017-08-219 | 569 | DIBBS |
| AS3220W03 | 2014-03-65 | 20 | US |
| 4730-01-163-6996 | 2013-10-298 | 846 | DIBBS |
| AS4841 | 2011-03-69 | 8 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-163-6996
Related Products | NSN 4730-01-163-6996
Technical Data | NSN 4730-01-163-6996
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-225/4, ALLOY 2014, T6 |
| SURFACE TREATMENT | ANODIZED, MIL-A-8625, TYPE 2 |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.188 INCHES NOMINAL |
| STYLE DESIGNATOR | M1 SLEEVE |
| OVERALL LENGTH | 0.390 INCHES MINIMUM AND 0.422 INCHES MAXIMUM |
| FLANGE WIDTH | 0.125 INCHES MINIMUM AND 0.157 INCHES MAXIMUM |

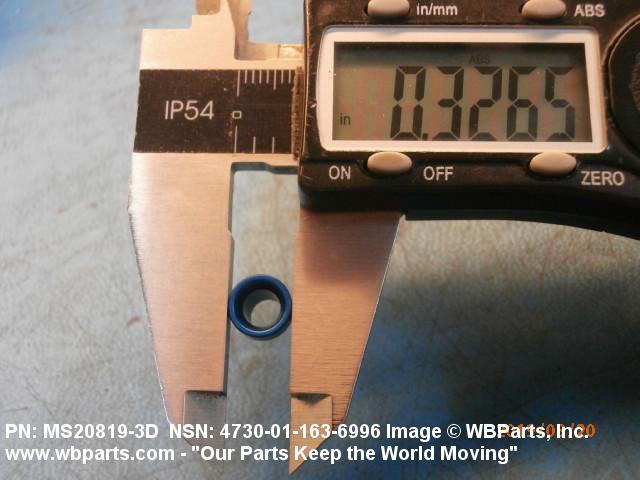

| FLANGE OUTSIDE DIAMETER | 0.329 INCHES MINIMUM AND 0.332 INCHES MAXIMUM |
| SEAT ANGLE IN DEG | 32.0 |

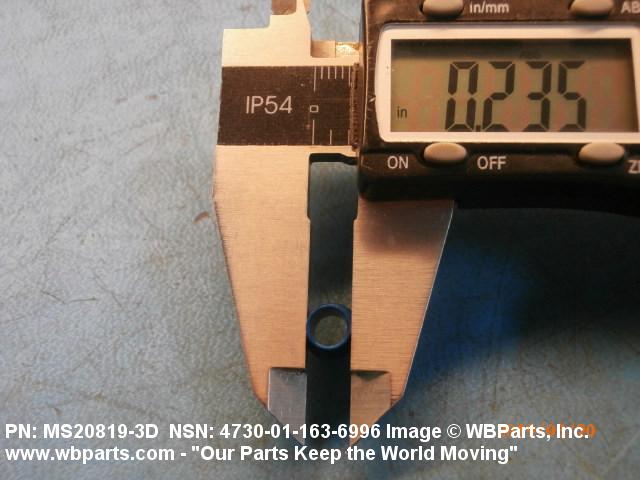

| SLEEVE OUTSIDE DIAMETER | 0.234 INCHES MINIMUM AND 0.237 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 96906-MS20819-3D GOVERNMENT STANDARD |
Restrictions/Controls & Freight Information | NSN 4730-01-163-6996
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-163-6996
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
