NSN 4730-01-121-2848 MS51528A4S, MS51528B4S, MS51528-B4S
Product Details | TUBE TO BOSS ELBOW
4730-01-121-2848 A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like.
Part Alternates: MS51528A4S, MS51528B4S, MS51528-B4S, MILF18866, MIL-F-18866, 4V50XSS, 4V5BXSS, 4V5BX-SS, 4730-01-121-2848, 01-121-2848, 4730011212848, 011212848
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 04 NOV 1981 | 01-121-2848 | 22679 ( ELBOW, TUBE TO BOSS ) |

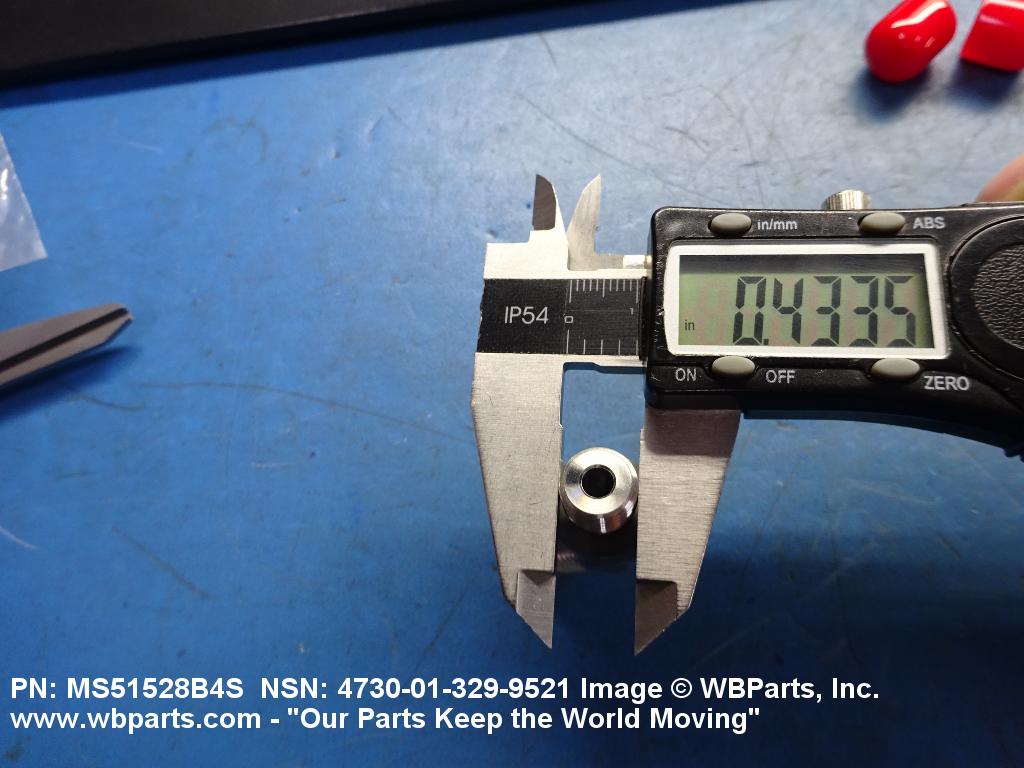

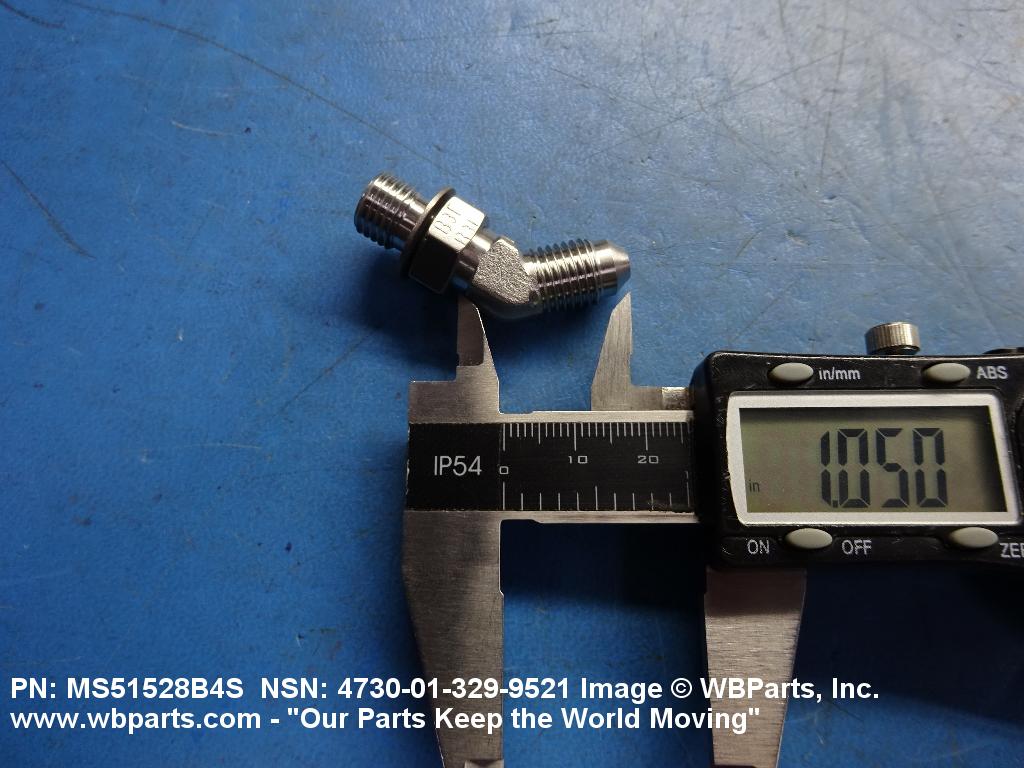

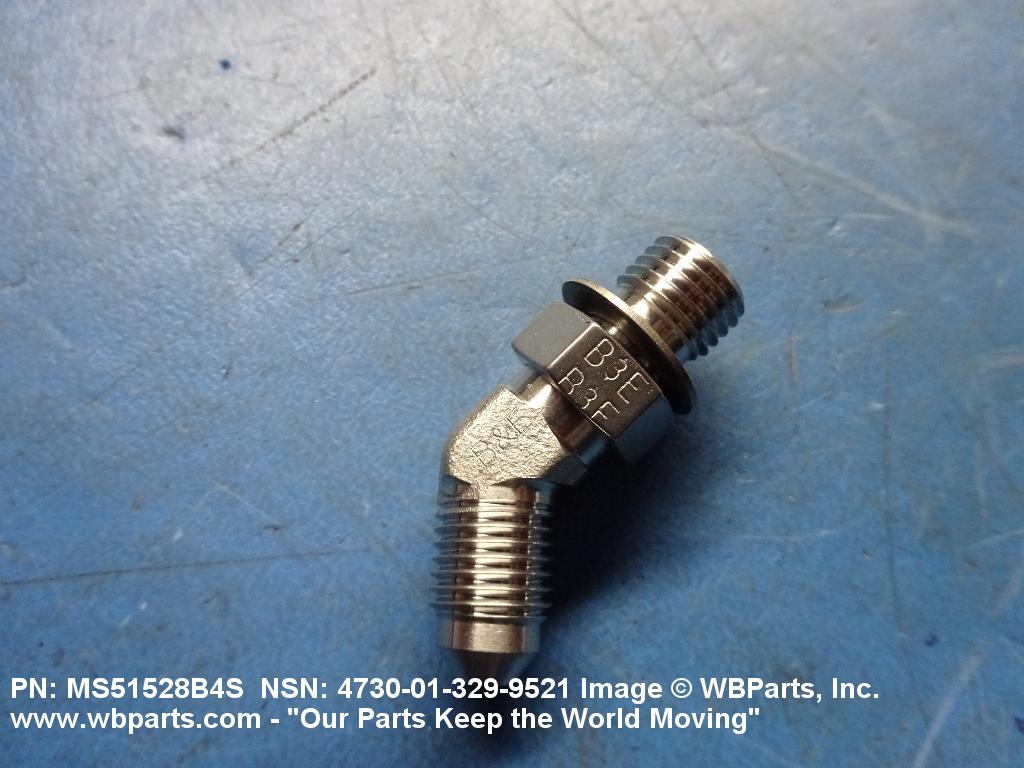

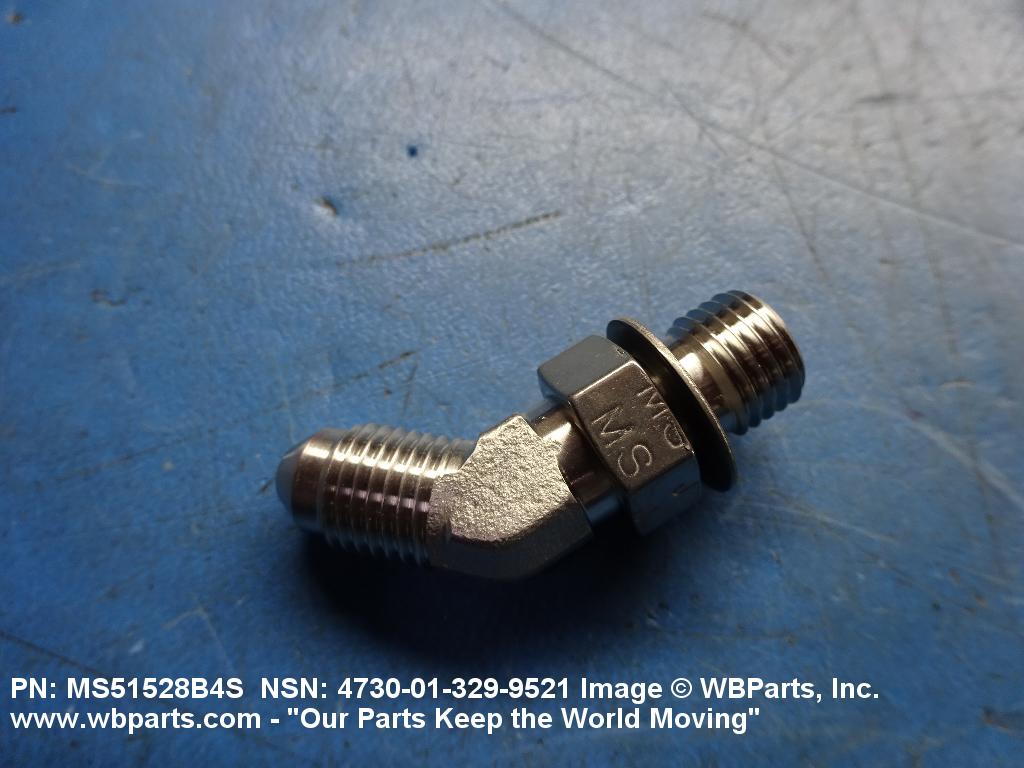

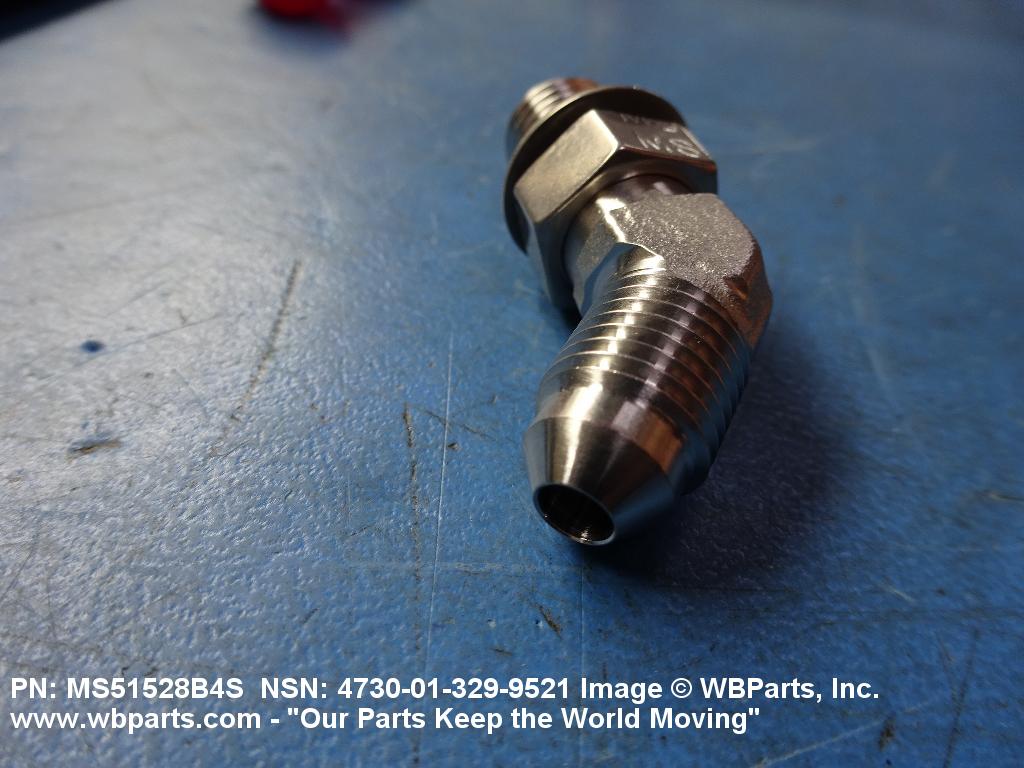

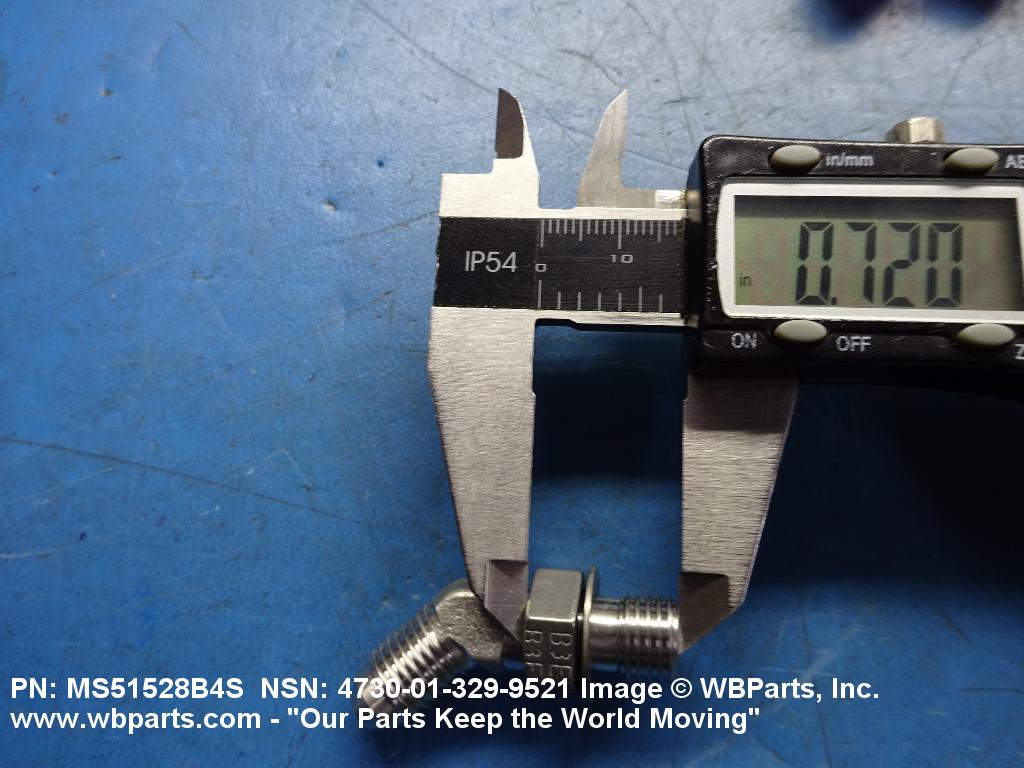

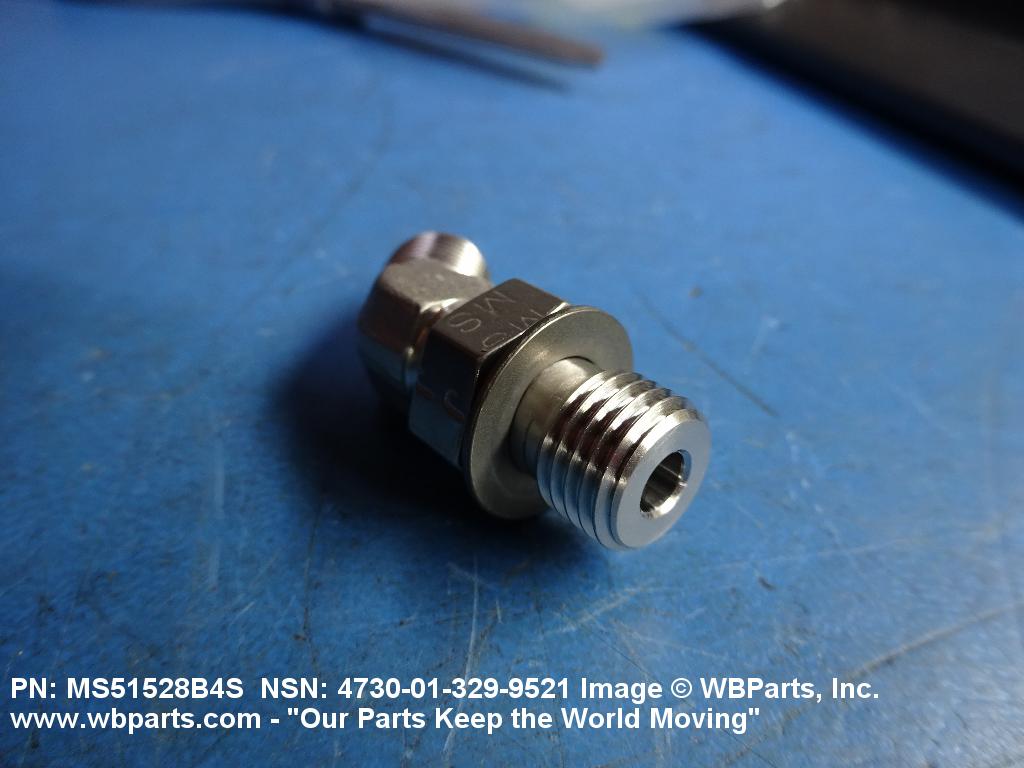

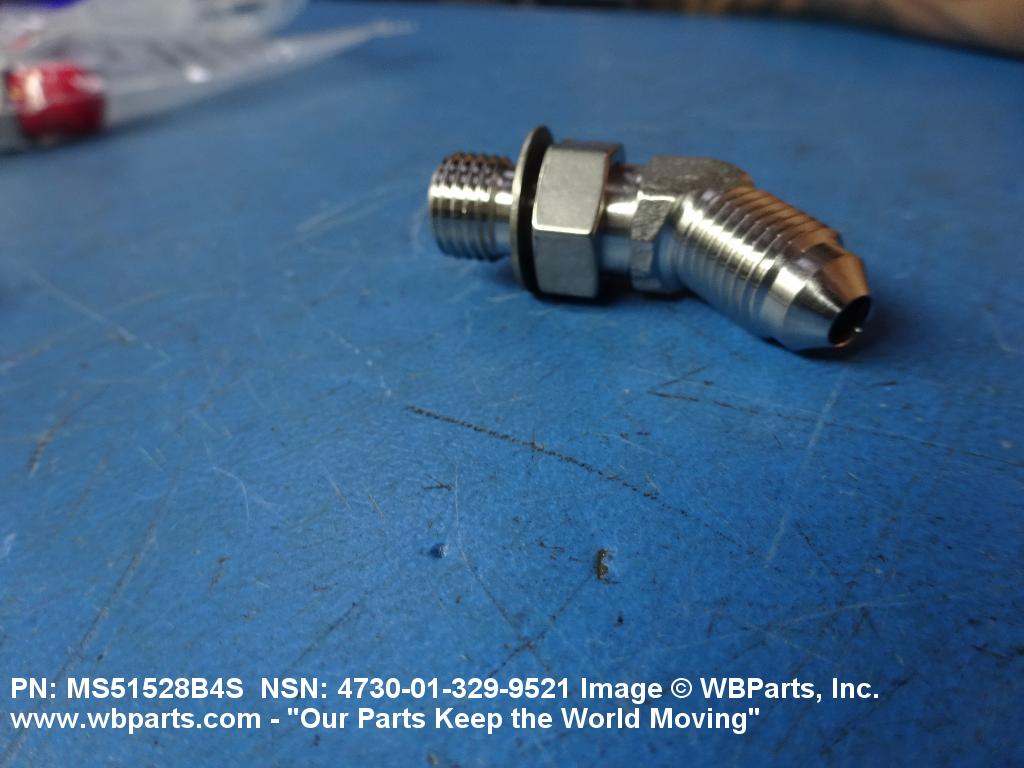

Drawings & Photos | NSN 4730-01-121-2848
Demand History | NSN 4730-01-121-2848
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-121-2848 | 2024-02-47 | 460 | US |
| MS51528B4S | 2023-12-339 | 37 | US |
| MS51528B4S | 2023-12-339 | 37 | US |
| MS51528A4S | 2023-05-149 | 687 | DIBBS |
| MS51528A4S | 2022-06-158 | 1915 | DIBBS |
| MS51528A4S | 2022-03-87 | 391 | DIBBS |
| MS51528A4S | 2021-10-291 | 160 | DIBBS |
| MS51528A4S | 2021-06-158 | 171 | DIBBS |
| MS51528A4S | 2021-02-33 | 61 | DIBBS |
| MS51528A4S | 2020-10-281 | 43 | DIBBS |
| 4730-01-121-2848 | 2015-11-323 | 141 | DIBBS |
| 4730-01-121-2848 | 2013-04-108 | 1 | MANUAL |
| 4730-01-121-2848 | 2010-01-13 | 28 | DIBBS |
| 4730-01-121-2848 | 2010-01-13 | 93 | DIBBS |
Cross Reference | NSN 4730-01-121-2848
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4V50XSS | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 4V50XSS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 4V5BX-SS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 4V5BX-SS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| MIL-F-18866 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51528-B4S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51528A4S | 3GW22 | UNDERGROUND PIPELINE, INC. DBA UPI MANUFACTURING |
| MS51528A4S | 59680 | B. & E. MANUFACTURING CO., INC. |
| MS51528A4S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-121-2848
Technical Data | NSN 4730-01-121-2848
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END |
| CONNECTION STYLE | B81 FLARED W/GASKET SEAL 1ST END B71A EXTERNAL SEAT FOR GASKET SEAL 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS |
| THREAD CLASS | 2A ALL ENDS |
| LEG LENGTH | 0.719 INCHES NOMINAL 1ST END 1.047 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 45.0 DEGREES |
| FURNISHED ITEMS AND QUANTITY | 1 TUBE COUPLING NUT W/SLEEVE AND 1 PREFORMED PACKING |
| SPECIFICATION/STANDARD DATA | 96906-MS51528 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | 23N SHIP, OHIO CLASS SSN (TRIDENT) |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51528A4S |
Restrictions/Controls & Freight Information | NSN 4730-01-121-2848
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052440 | STRAINERS PIPE LINE I/S BODY |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
