NSN 4730-01-255-5316 MS51527A3S, 33070220SA, 3-3-070220SA
Product Details | TUBE TO BOSS ELBOW
4730-01-255-5316 A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like.
Part Alternates: MS51527A3S, 33070220SA, 3-3-070220SA, 3C5BXSS, J514, 4730-01-255-5316, 01-255-5316, 4730012555316, 012555316
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 22 MAY 1987 | 01-255-5316 | 22679 ( ELBOW, TUBE TO BOSS ) |

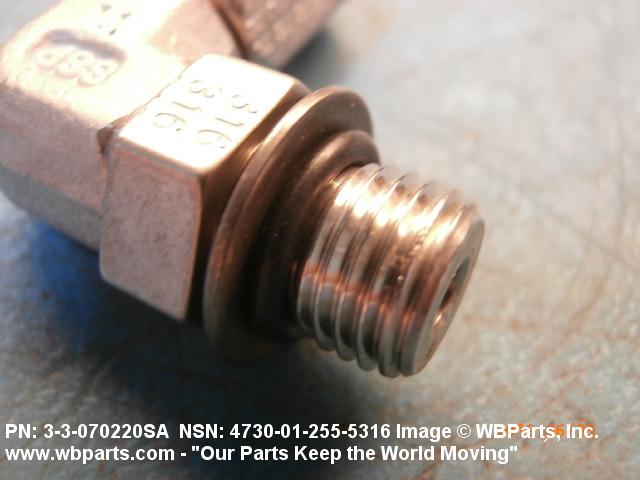

Drawings & Photos | NSN 4730-01-255-5316
Demand History | NSN 4730-01-255-5316
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-255-5316 | 2024-08-214 | 377 | DIBBS |
| 4730-01-255-5316 | 2021-09-273 | 3 | US |
| 4730-01-255-5316 | 2020-03-72 | 351 | DIBBS |
| 4730-01-255-5316 | 2019-12-353 | 328 | DIBBS |
| 4730-01-255-5316 | 2019-06-168 | 1 | United States |
| 4730-01-255-5316 | 2018-04-102 | 301 | DIBBS |
| 4730-01-255-5316 | 2017-09-250 | 207 | DIBBS |
| 4730-01-255-5316 | 2015-09-257 | 413 | DIBBS |
| 4730-01-255-5316 | 2015-04-92 | 252 | DIBBS |
| J514 | 2015-02-48 | 1 | us |
| 4730-01-255-5316 | 2014-07-202 | 70 | DIBBS |
| 4730-01-255-5316 | 2014-01-08 | 72 | DIBBS |
| 4730-01-255-5316 | 2013-08-230 | 61 | DIBBS |
| 4730-01-255-5316 | 2013-06-161 | 68 | DIBBS |
| 4730-01-255-5316 | 2012-01-25 | 36 | DIBBS |
| 4730-01-255-5316 | 2011-05-131 | 10 | DIBBS |
| 4730-01-255-5316 | 2011-02-55 | 29 | DIBBS |
| J514 | 2010-02-47 | 20 | us |
Cross Reference | NSN 4730-01-255-5316
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3-3-070220SA | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 3C5BXSS | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 3C5BXSS | 45681 | PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS |
| 3C5BXSS | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| J514 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS51527A3S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-255-5316
Related Products | NSN 4730-01-255-5316
Technical Data | NSN 4730-01-255-5316
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B71A EXTERNAL SEAT FOR GASKET SEAL 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.188 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.375 INCHES ALL ENDS |
| THREAD CLASS | 2A ALL ENDS |
| LEG LENGTH | 0.828 INCHES NOMINAL 1ST END 0.938 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| FURNISHED ITEMS AND QUANTITY | 1 PREFORMED PACKING AND 1 TUBE COUPLING NUT W/SLEEVE |
| SPECIFICATION/STANDARD DATA | 96906-MS51527 GOVERNMENT STANDARD |
| III END ITEM IDENTIFICATION | 55N AIRCRAFT, HARRIER AV-8B |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51527A3S |
Restrictions/Controls & Freight Information | NSN 4730-01-255-5316
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-255-5316
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
