NSN 4730-01-119-6791 AN818L6J, AN818-L6J , AS4841
Product Details | TUBE COUPLING NUT
4730-01-119-6791 An internally threaded nut which has either an internal seat or shoulder and/or is designed to be used with a ferrule, to mate with the seat of an externally threaded tube fitting to form a leakproof connection. Excludes NUT (1), TUBE COUPLING, REDUCING; and NUT (1), UNION.
Part Alternates: AN818L6J, AN818-L6J , AS4841, 52562990205, 525-629-90205, 10108564 , 4730-01-119-6791, 01-119-6791, 4730011196791, 011196791
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 30 SEP 1981 | 01-119-6791 | 03859 ( NUT, TUBE COUPLING ) |

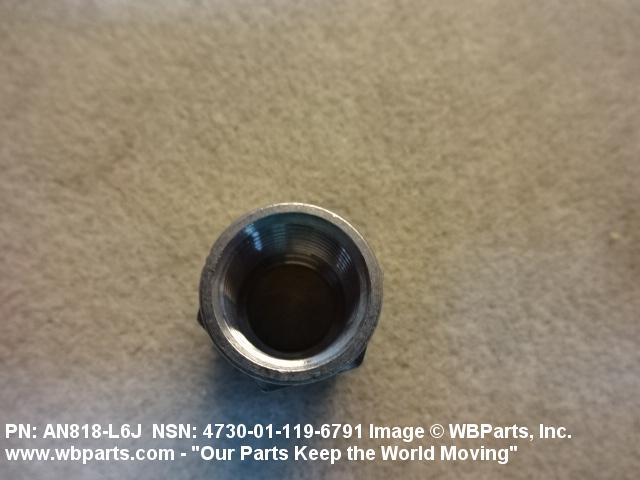

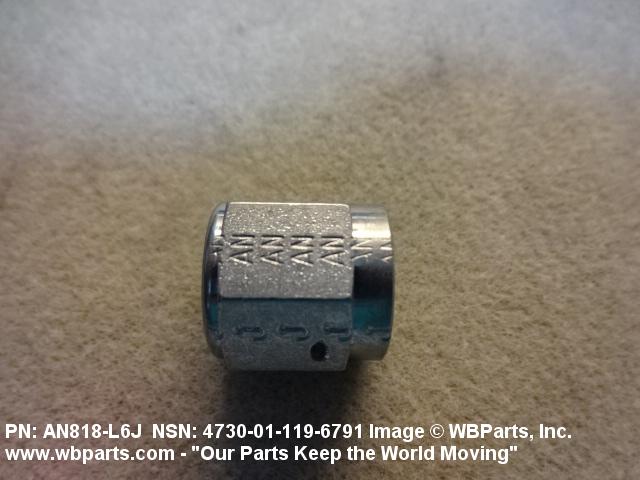

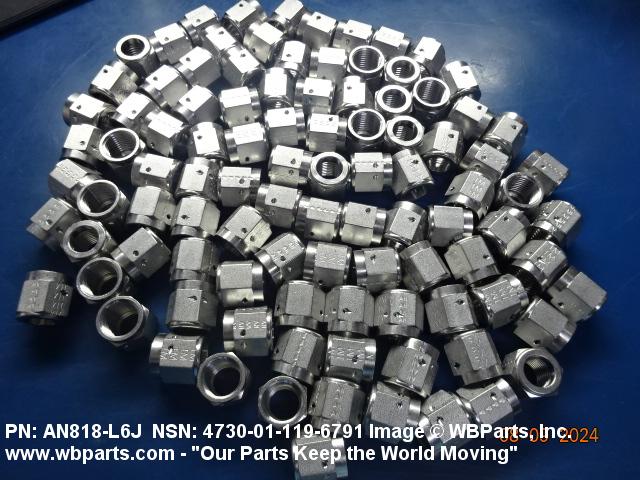

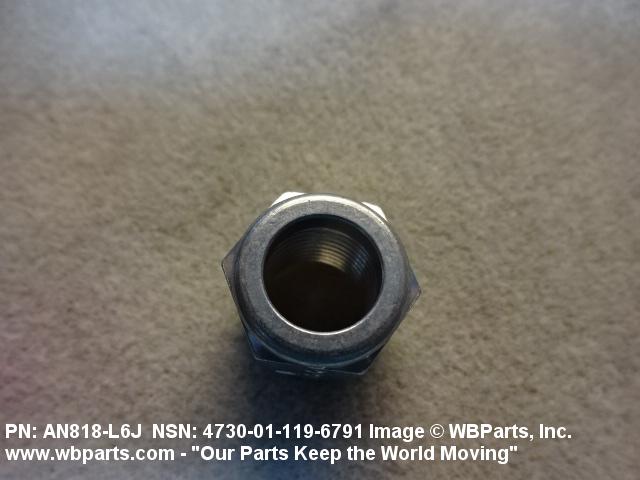

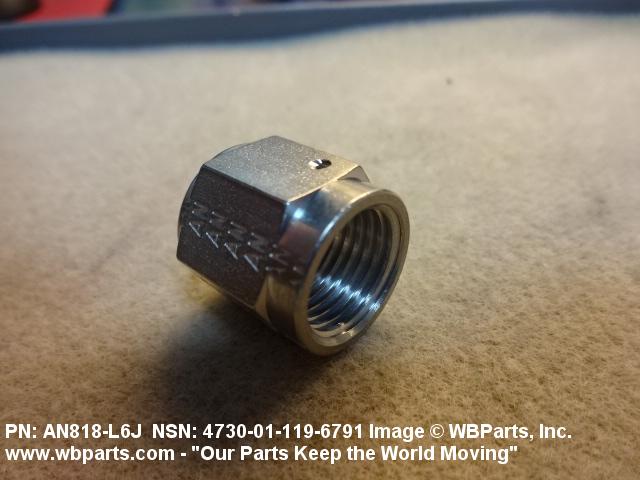

Drawings & Photos | NSN 4730-01-119-6791
Demand History | NSN 4730-01-119-6791
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-119-6791 | 2024-07-210 | 100 | Japan |
| AN818L6J | 2022-10-277 | 20 | South Africa |
| 4730-01-119-6791 | 2020-01-08 | 25 | US |
| 4730-01-119-6791 | 2019-06-153 | 1716 | DIBBS |
| 4730-01-119-6791 | 2018-04-103 | 50 | United States |
| AN818L6J | 2017-08-229 | 25 | United States |
| 4730-01-119-6791 | 2017-07-198 | 1802 | DIBBS |
| 4730-01-119-6791 | 2017-03-61 | 1802 | DIBBS |
| AN818L6J | 2016-09-259 | 8 | us |
| 4730-01-119-6791 | 2016-01-03 | 861 | DIBBS |
| 4730-01-119-6791 | 2015-01-28 | 652 | DIBBS |
| 4730-01-119-6791 | 2014-09-253 | 886 | DIBBS |
| 4730-01-119-6791 | 2012-08-226 | 826 | DIBBS |
| 4730-01-119-6791 | 2012-07-202 | 193 | DIBBS |
| AN818L6J | 2012-06-160 | 105 | IN |
| 4730-01-119-6791 | 2012-04-103 | 106 | DIBBS |
| 4730-01-119-6791 | 2011-11-318 | 252 | DIBBS |
| 4730-01-119-6791 | 2011-04-110 | 143 | DIBBS |
| AS4841 | 2011-03-69 | 8 | |
| AN818L6J | 2009-03-86 | 50 | United States |
| AN818L6J | 2009-03-86 | 100 | United States |
| AN818L6J | 2009-03-86 | 200 | United States |
| AN818L6J | 2009-03-86 | 400 | United States |
| AN818L6J | 2008-05-144 | 500 | US |
| AN818L6J | 2008-05-144 | 1000 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-119-6791
Related Products | NSN 4730-01-119-6791
Technical Data | NSN 4730-01-119-6791
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.562 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED-STD-66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| NUT STYLE | A351 TUBE COUPLING |

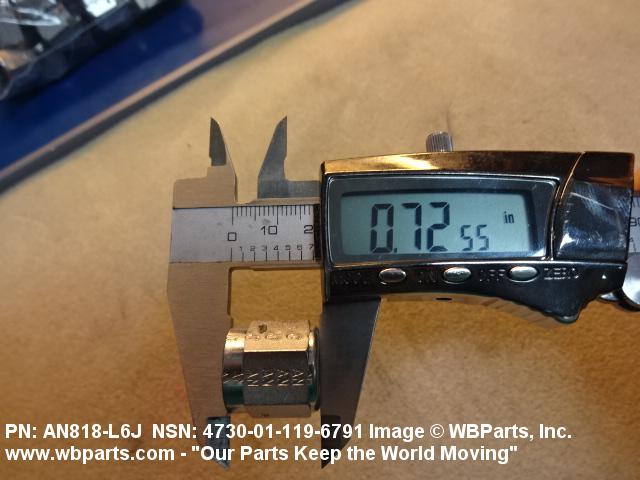

| NUT HEIGHT | 0.724 INCHES NOMINAL |

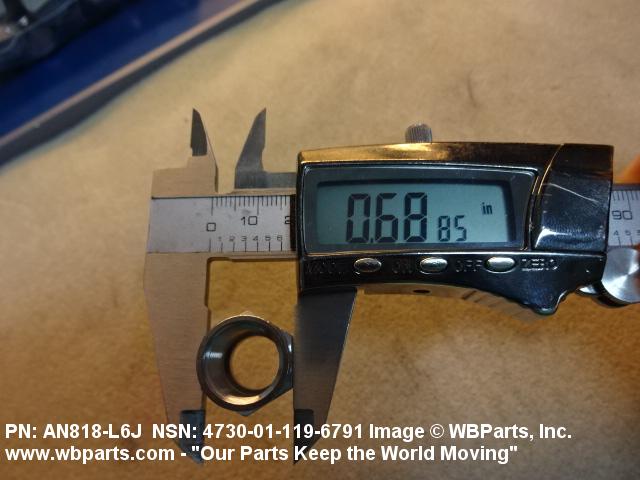

| WIDTH ACROSS FLATS | 0.688 INCHES NOMINAL |

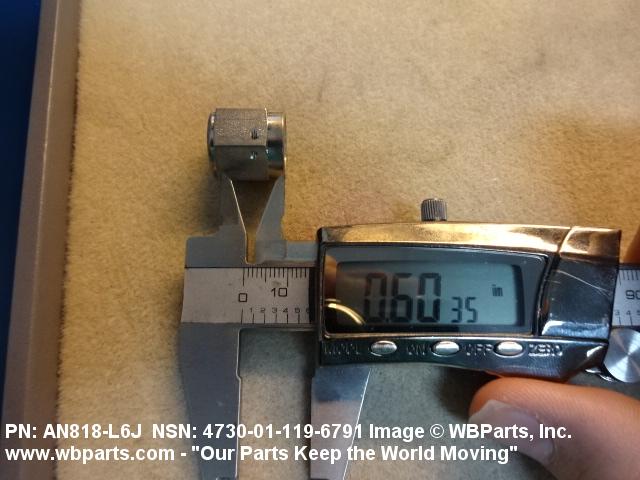

| LENGTH TO SHOULDER | 0.603 INCHES NOMINAL |

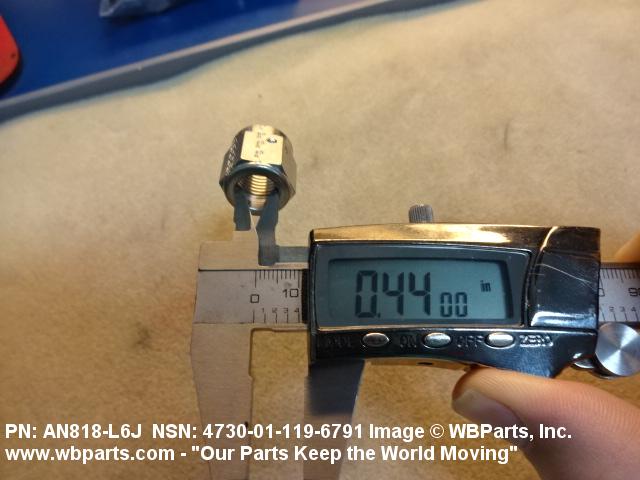

| SMALLEST INSIDE DIAMETER | 0.440 INCHES NOMINAL |
| FABRICATION METHOD | MACHINED |
| NOMINAL TUBE OUTSIDE DIAMETER | 0.375 INCHES |

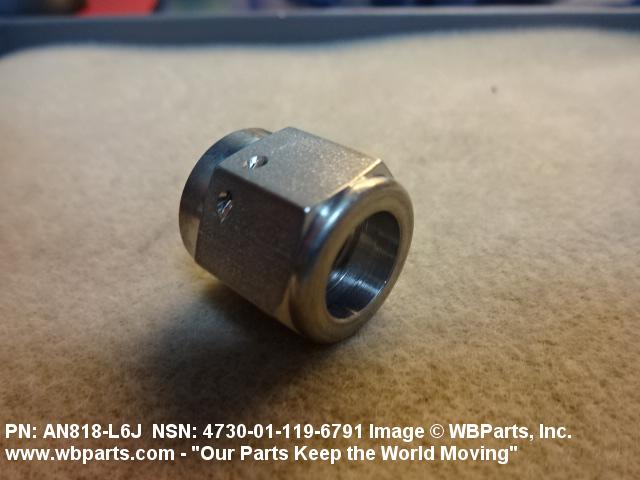

| SPECIAL FEATURES | WITH LOCKWIRE HOLES |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN818L6J |
Restrictions/Controls & Freight Information | NSN 4730-01-119-6791
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-119-6791
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
