NSN 4730-01-106-7797 12298622, 01-106-7797, 011067797
Product Details | BOSS COUPLING
4730-01-106-7797 A straight one-piece fitting 12 inches (304 mm) long or under having the same size fitting on each end (straight machine threads other than pipe or hose series). It may have internal threads on both ends or internal threads on one end and external threads on the other designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It is designed to join two bosses or boss fittings. Excludes items having external threaded connections on both ends.
Part Alternates: 12298622, 4730-01-106-7797, 01-106-7797, 4730011067797, 011067797
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 JAN 1981 | 01-106-7797 | 26953 ( COUPLING, BOSS ) |
Drawings & Photos | NSN 4730-01-106-7797
Cross Reference | NSN 4730-01-106-7797
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12298622 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-106-7797
Technical Data | NSN 4730-01-106-7797
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |

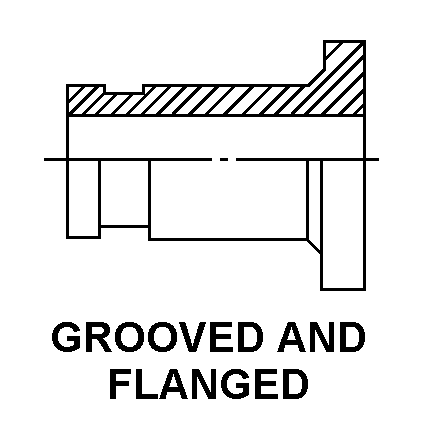

| STYLE DESIGNATOR | A10 GROOVED AND FLANGED |
| CONNECTION TYPE | FLANGE 1ST END FLANGE 2ND END |
| FLANGE SHAPE | ROUND WITH HOLES 1ST END ROUND WITH HOLES 2ND END |
| NOMINAL OUTSIDE DIAMETER | 12.000 INCHES 1ST END 12.000 INCHES 2ND END |
| NOMINAL THICKNESS | 3.406 INCHES 1ST END 3.406 INCHES 2ND END |
| BOLT HOLE QUANTITY | 13 1ST END 13 2ND END |
| BOLT HOLE NOMINAL DIAMETER | 0.390 INCHES 1ST END 0.390 INCHES 2ND END |
| BOLT CIRCLE NOMINAL DIAMETER | 10.975 INCHES 1ST END 10.975 INCHES 2ND END |
| FLANGE FACE DESIGN | PLAIN 1ST END RAISED STRAIGHT 2ND END |
| NOMINAL OVERALL LENGTH | 4.250 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-01-106-7797
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 132330 | TRANSMISSIONS/CLUTCHES/PARTS,NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-106-7797
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | M | Armored Carriers |
| Weapons Systems/End Item or Homogeneous Group | MM | Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavelry Fighting Vehicle (M3, M3A1, M3A2) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
