NSN 4730-00-925-4727 81839, 00-925-4727, 009254727
Product Details | BOSS COUPLING
4730-00-925-4727 A straight one-piece fitting 12 inches (304 mm) long or under having the same size fitting on each end (straight machine threads other than pipe or hose series). It may have internal threads on both ends or internal threads on one end and external threads on the other designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It is designed to join two bosses or boss fittings. Excludes items having external threaded connections on both ends.
Part Alternates: 81839, 4730-00-925-4727, 00-925-4727, 4730009254727, 009254727
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 20 JAN 1966 | 00-925-4727 | 26953 ( COUPLING, BOSS ) |

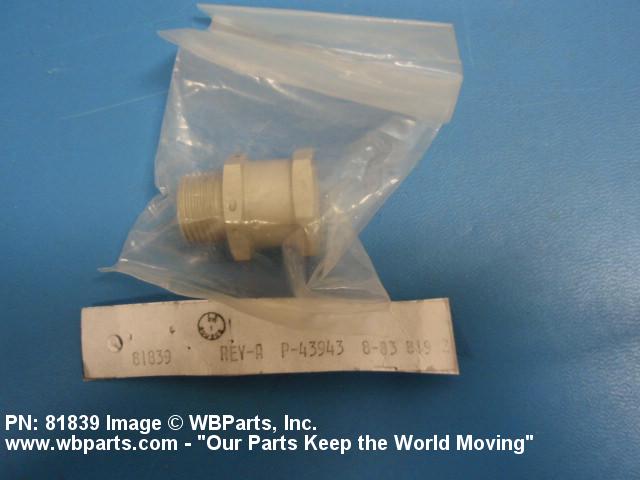

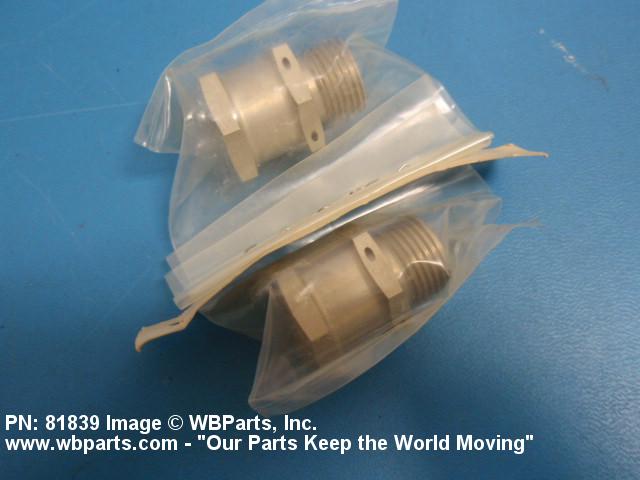

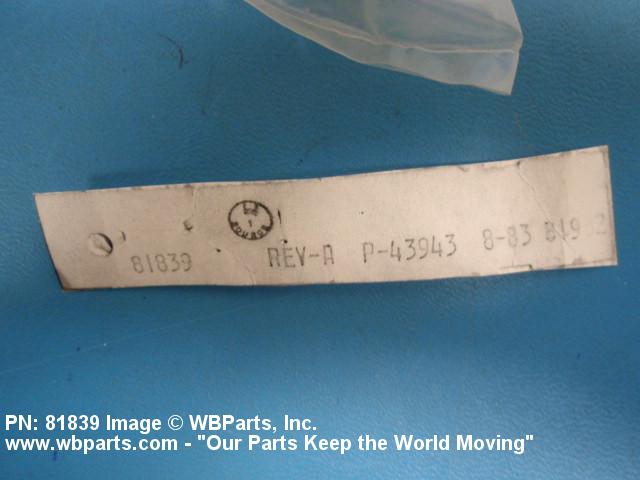

Drawings & Photos | NSN 4730-00-925-4727
Demand History | NSN 4730-00-925-4727
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-925-4727 | 2013-02-32 | 15 | DIBBS |
| 4730-00-925-4727 | 2012-11-309 | 4 | DIBBS |
| 4730-00-925-4727 | 2012-08-244 | 3 | DIBBS |
| 4730-00-925-4727 | 2009-06-175 | 2 | United States |
| 4730-00-925-4727 | 2009-06-175 | 1 | United States |
| 4730-00-925-4727 | 2009-05-146 | 3 | DIBBS |
Cross Reference | NSN 4730-00-925-4727
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 81839 | 81982 | HYDRO-AIRE, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-925-4727
Related Products | NSN 4730-00-925-4727
Technical Data | NSN 4730-00-925-4727
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-268,COND T FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | FLUID SINGLE RESPONSE |
| STYLE DESIGNATOR | A15 RIGID, THREADED INTERNAL AND EXTERNAL |
| CONNECTION TYPE | THREADED INTERNAL BOSS 1ST END THREADED EXTERNAL BOSS 2ND END |
| CONNECTION STYLE | B9 GASKET SEAL 1ST END B71 EXTERNAL SEAT FOR GASKET SEAL 2ND END |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.750 INCHES ALL ENDS |
| THREAD CLASS | 3B 1ST END 3A 2ND END |
| NOMINAL OVERALL LENGTH | 1.380 INCHES |
| SPECIAL FEATURES | FEMALE END 1.000 IN. OD HEX |
Restrictions/Controls & Freight Information | NSN 4730-00-925-4727
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-925-4727
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
