NSN 4730-01-092-6169 ST7M40432D1, ST7M404-32D-1, W904B32DE
Product Details | FLEXIBLE TUBE COUPLING ASSEMBLY
4730-01-092-6169 A multipiece gasket sealed item specifically designed for joining plain end ferruled tubing or beaded end tubing that will accommodate angular misalignment, axial motion and permits expansion and contraction of the tubing. It may be disconnected for seal replacement without disturbing the rest of the line. The seals are not normally furnished with the item. For rigid type items see COUPLING, TUBE; and UNION, TUBE.
Part Alternates: ST7M40432D1, ST7M404-32D-1, W904B32DE, W904C32DE, W904K32DE, W994BK32DE, MILC22263B, MIL-C-22263B, 10108520 , 14C1232A, 14C12-32A, 7M76532D1, 7M765-32D-1, 4730-01-092-6169, 01-092-6169, 4730010926169, 010926169
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 MAR 1980 | 01-092-6169 | 32834 ( COUPLING ASSEMBLY, TUBE, FLEXIBLE ) |

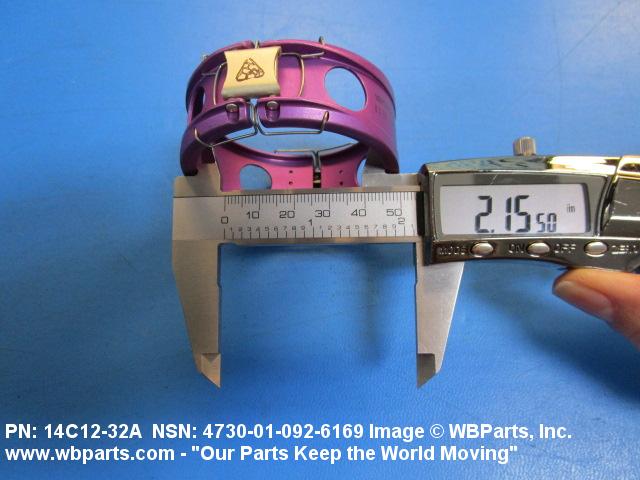

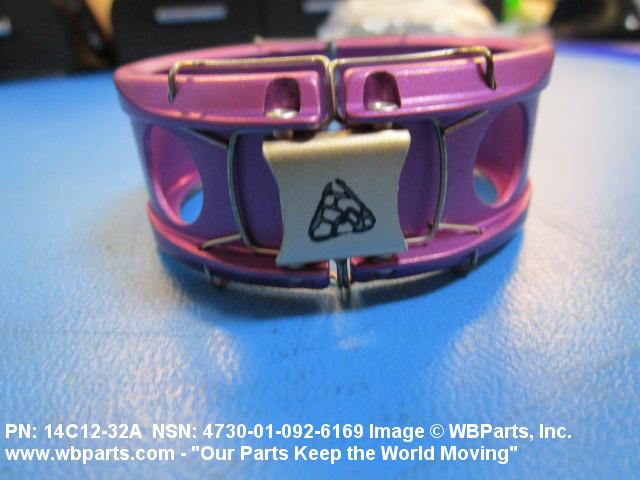

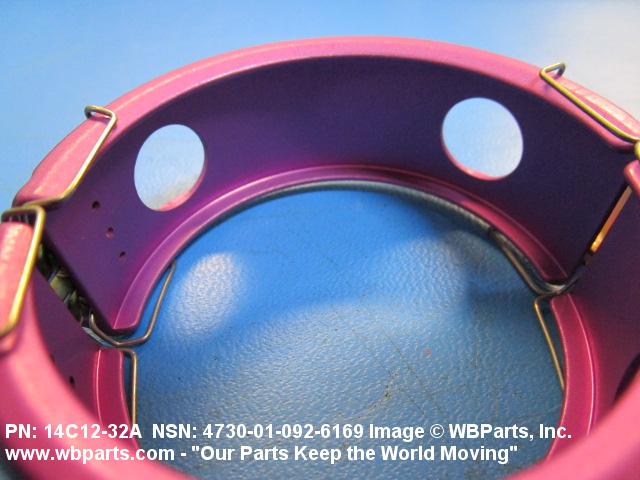

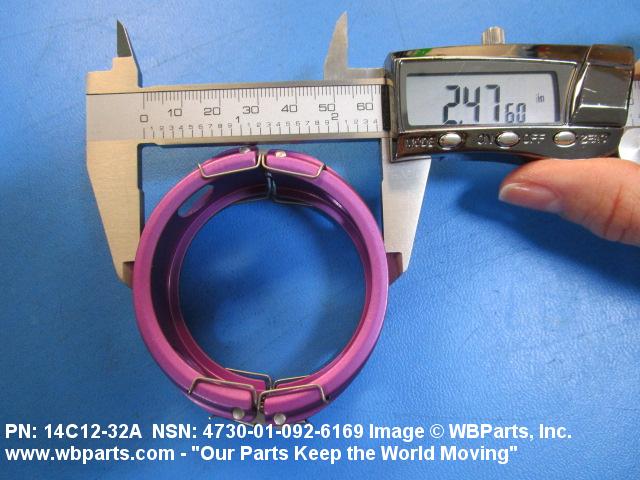

Drawings & Photos | NSN 4730-01-092-6169
Demand History | NSN 4730-01-092-6169
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 14C12-32A | 2024-08-242 | 65 | DIBBS |
| 7M765-32D-1 | 2024-08-242 | 65 | DIBBS |
| W904K32DE | 2024-08-242 | 65 | DIBBS |
| 4730-01-092-6169 | 2021-10-284 | 1 | United States |
| 14C12-32A | 2021-09-245 | 12 | DIBBS |
| 7M765-32D-1 | 2021-09-245 | 12 | DIBBS |
| W904K32DE | 2021-09-245 | 12 | DIBBS |
| 14C12-32A | 2021-01-03 | 12 | DIBBS |
| 7M765-32D-1 | 2021-01-03 | 12 | DIBBS |
| W904K32DE | 2021-01-03 | 12 | DIBBS |
| 4730-01-092-6169 | 2019-03-60 | 30 | US |
| 14C12-32A | 2019-02-52 | 30 | DIBBS |
| 7M765-32D-1 | 2019-02-52 | 30 | DIBBS |
| W904K32DE | 2019-02-52 | 30 | DIBBS |
| 4730-01-092-6169 | 2018-10-297 | 1 | United States |
| 4730-01-092-6169 | 2018-10-296 | 1 | United States |
| 4730-01-092-6169 | 2016-12-351 | 31 | DIBBS |
| 4730-01-092-6169 | 2016-12-340 | 31 | DIBBS |
| 4730-01-092-6169 | 2012-09-263 | 20 | DIBBS |
| 4730-01-092-6169 | 2010-03-68 | 8 | DIBBS |
| 4730-01-092-6169 | 2009-09-266 | 22 | DIBBS |
Cross Reference | NSN 4730-01-092-6169
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14C12-32A | 24984 | HYDRAFLOW |
| 7M765-32D-1 | 76301 | BOEING COMPANY, THE DBA BOEING |
| MIL-C-22263B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| ST7M404-32D-1 | 76301 | BOEING COMPANY, THE DBA BOEING |
| W904B32DE | 79326 | TRANSDIGM INC DBA ADEL WIGGINS GROUP- MILITARY |
| W904C32DE | 79326 | TRANSDIGM INC DBA ADEL WIGGINS GROUP- MILITARY |
| W904K32DE | 79326 | TRANSDIGM INC DBA ADEL WIGGINS GROUP- MILITARY |
| W994BK32DE | 79326 | TRANSDIGM INC DBA ADEL WIGGINS GROUP- MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-092-6169
Related Products | NSN 4730-01-092-6169
Technical Data | NSN 4730-01-092-6169
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| STYLE DESIGNATOR | U1 FLEXIBLE COUPLING ASSEMBLY |
| OVERALL LENGTH | 1.001 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.476 INCHES NOMINAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 2.000 INCHES NOMINAL |
| WORKING PRESSURE AND SERVICE TYPE | 600.0 POUNDS PER SQUARE INCH NOMINAL AIR 600.0 POUNDS PER SQUARE INCH NOMINAL JET FUEL |
| WORKING TEMP AND SERVICE TYPE | 450.0 DEG FAHRENHEIT NOMINAL AIR 450.0 DEG FAHRENHEIT NOMINAL JET FUEL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-22263B |
Restrictions/Controls & Freight Information | NSN 4730-01-092-6169
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-092-6169
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
