NSN 4730-01-092-6587 2222HX, 503P80, 503Y28E
Product Details | MAGNETIC PIPE PLUG
4730-01-092-6587 A pipe fitting primarily designed for installation in a lubrication or hydraulic system. It has an integral magnet in the body and external pipe threads.
Part Alternates: 2222HX, 503P80, 503Y28E, 5054051, 4730-01-092-6587, 01-092-6587, 4730010926587, 010926587
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 30 MAR 1980 | 01-092-6587 | 22340 ( PLUG, PIPE, MAGNETIC ) |

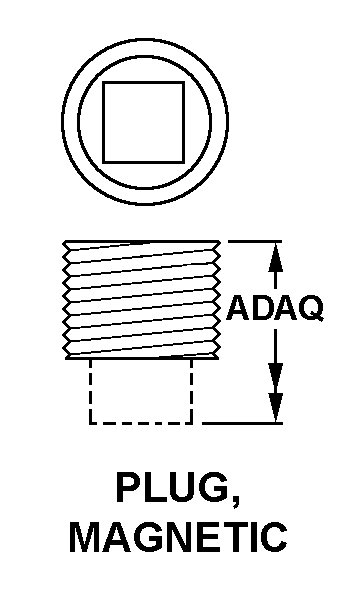

Drawings & Photos | NSN 4730-01-092-6587
Demand History | NSN 4730-01-092-6587
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 02580 | 2023-09-271 | 1257 | DIBBS |
| 5054051 | 2023-09-271 | 1257 | DIBBS |
| 02580 | 2020-10-303 | 2035 | DIBBS |
| 5054051 | 2020-10-303 | 2035 | DIBBS |
| 4730-01-092-6587 | 2016-10-292 | 1014 | DIBBS |
| 4730-01-092-6587 | 2015-07-182 | 4254 | DIBBS |
| 4730-01-092-6587 | 2013-12-342 | 3055 | DIBBS |
| 4730-01-092-6587 | 2010-02-53 | 3131 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-092-6587
Related Products | NSN 4730-01-092-6587
Technical Data | NSN 4730-01-092-6587
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY |
| STYLE DESIGNATOR | E14 PLUG, MAGNETIC |
| BODY LENGTH | 0.590 INCHES MINIMUM AND 0.630 INCHES MAXIMUM |
| MAGNET PROJECTION LENGTH | 0.310 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | NPTF EXTERNAL |
| NOMINAL THREAD SIZE | 0.750 INCHES EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| SPECIAL FEATURES | WITH FERRITE MAGNET DISC; WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | NSN 2320-01-097-0260 HEMTT (HEAVY EXPANDED MOBILITY TACTICAL TRUCK) |
Restrictions/Controls & Freight Information | NSN 4730-01-092-6587
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 040500 | CAP/PLUG (PROTECTOR) |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
