Product Details | TUBE FITTING FLARED SLEEVE

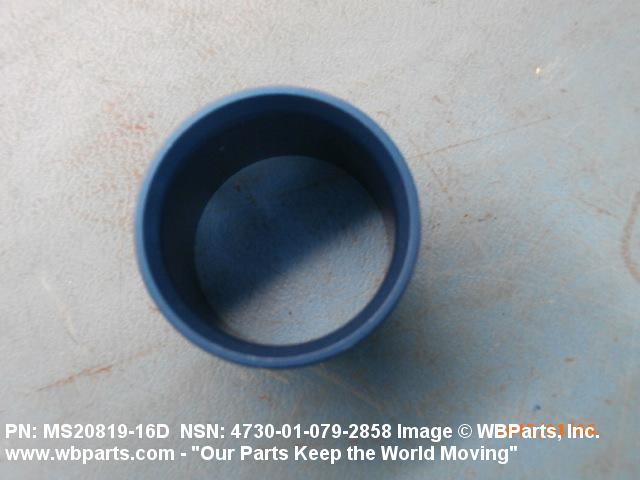

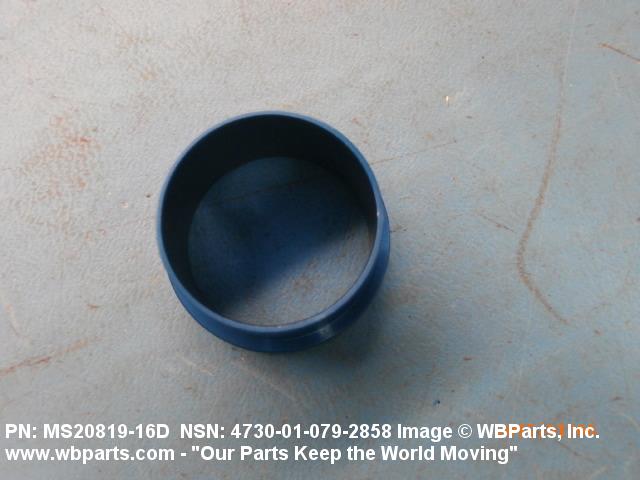

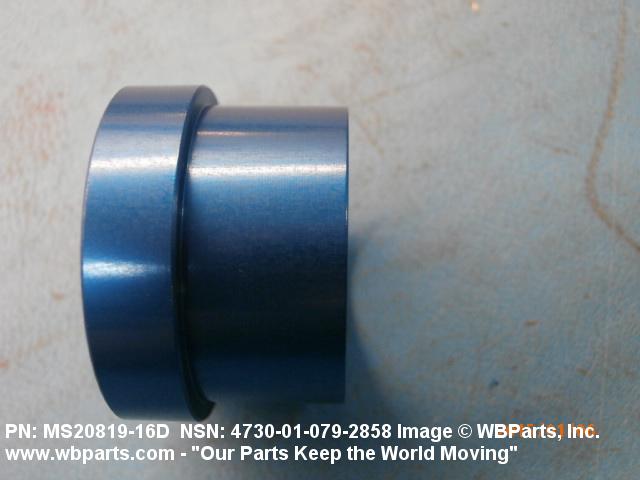

4730-01-079-2858 A flanged cylindrical metallic item designed to be used on tubing to back up the flared end and to provide a bearing surface for the coupling nut, thereby reducing wear on the tubing flare. The inside diameter of the flanged end is countersunk to form a seat for the flare when assembled to a mating fitting.
Part Alternates: MS2081916D, MS20819-16D, ST7M411, ST7M41116M, ST7M411-16M, ST7M41116W, ST7M411-16W, 10108514 , 4730-01-079-2858, 01-079-2858, 4730010792858, 010792858
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 30 JUN 1979 | 01-079-2858 | 18027 ( SLEEVE, FLARED, TUBE FITTING ) |
Drawings & Photos | NSN 4730-01-079-2858
Demand History | NSN 4730-01-079-2858
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-079-2858 | 2019-12-350 | 538 | DIBBS |
| 4730-01-079-2858 | 2019-12-338 | 538 | DIBBS |
| 4730-01-079-2858 | 2019-10-274 | 248 | DIBBS |
| 4730-01-079-2858 | 2017-08-226 | 161 | DIBBS |
| 4730-01-079-2858 | 2017-01-06 | 162 | DIBBS |
| 4730-01-079-2858 | 2016-12-361 | 162 | DIBBS |
| 4730-01-079-2858 | 2016-05-123 | 105 | DIBBS |
| 4730-01-079-2858 | 2016-04-112 | 105 | DIBBS |
| MS2081916D | 2014-12-357 | 8 | United States |
| 4730-01-079-2858 | 2014-06-152 | 260 | DIBBS |
| 4730-01-079-2858 | 2014-02-37 | 197 | DIBBS |
| 4730-01-079-2858 | 2014-01-22 | 197 | DIBBS |
| MS2081916D | 2012-03-81 | 6 | United Kingdom |
Cross Reference | NSN 4730-01-079-2858
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20819-16D | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| ST7M411 | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST7M411-16M | 01673 | SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS |
| ST7M411-16W | 14397 | FABER ENTERPRISES, INC. |
| ST7M411-16W | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| ST7M411-16W | 52930 | NELSON AERO SPACE, INC. |
| ST7M411-16W | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-079-2858
Related Products | NSN 4730-01-079-2858
Technical Data | NSN 4730-01-079-2858
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY, QQ-A-225/4 |
| SURFACE TREATMENT | ANODIZED, MIL-A-8625, TYPE 2 |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

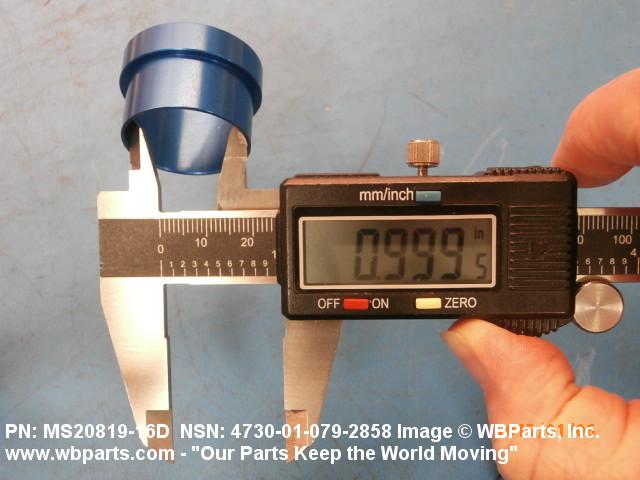

| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.000 INCHES NOMINAL |
| STYLE DESIGNATOR | M1 SLEEVE |

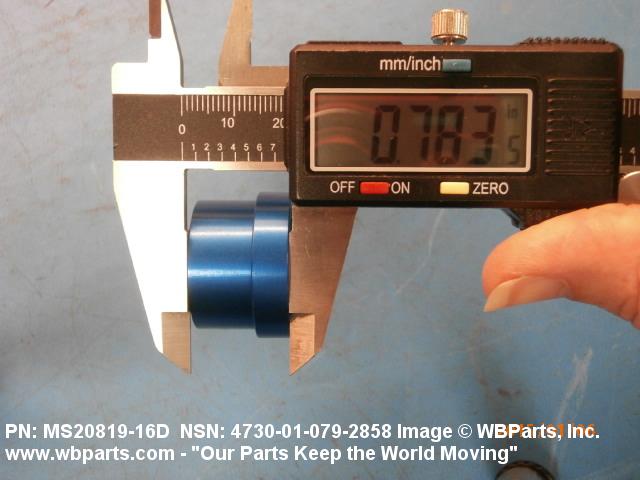

| OVERALL LENGTH | 0.765 INCHES MINIMUM AND 0.797 INCHES MAXIMUM |

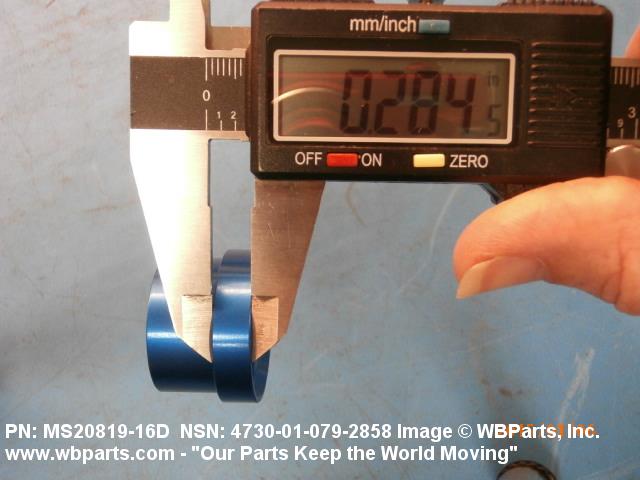

| FLANGE WIDTH | 0.265 INCHES MINIMUM AND 0.297 INCHES MAXIMUM |

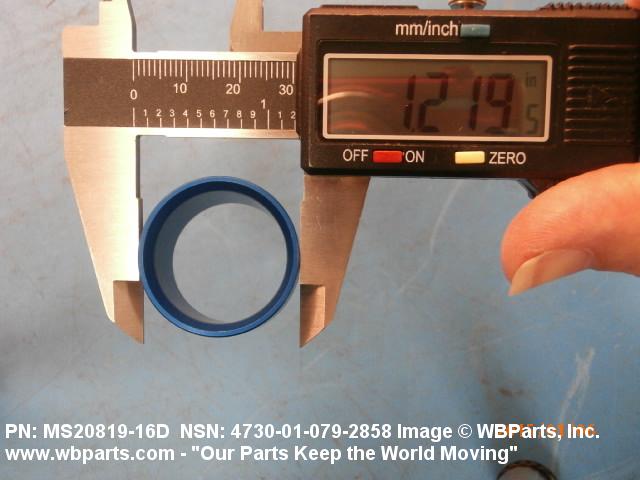

| FLANGE OUTSIDE DIAMETER | 1.219 INCHES MINIMUM AND 1.222 INCHES MAXIMUM |
| SEAT ANGLE IN DEG | 33.0 |

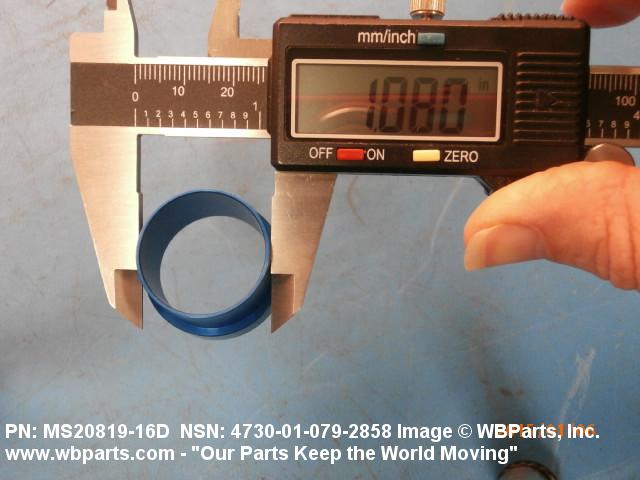

| SLEEVE OUTSIDE DIAMETER | 1.078 INCHES MINIMUM AND 1.081 INCHES MAXIMUM |
