Product Details | FLANGE ELBOW

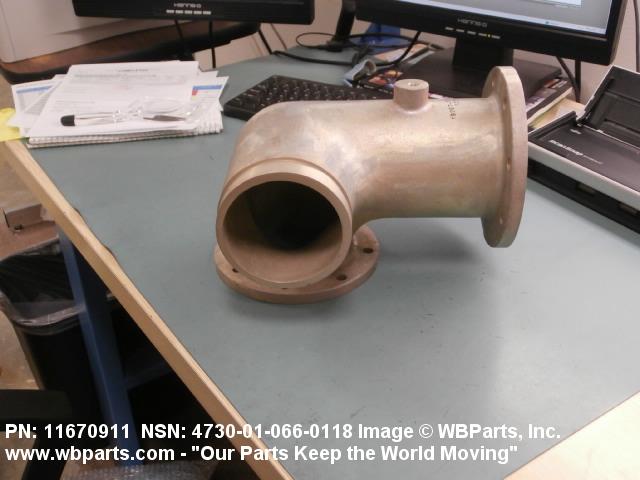

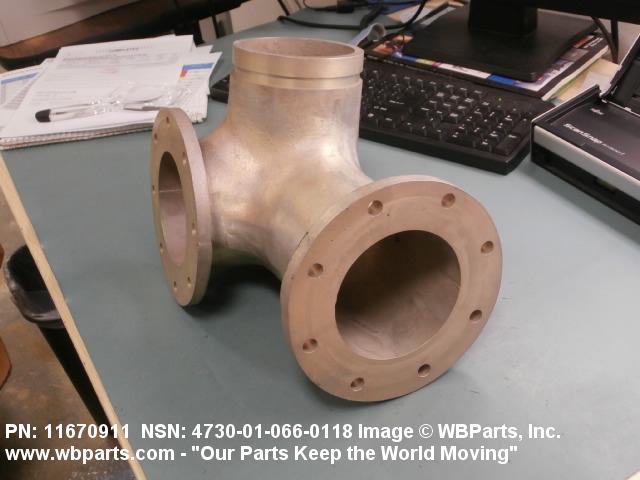

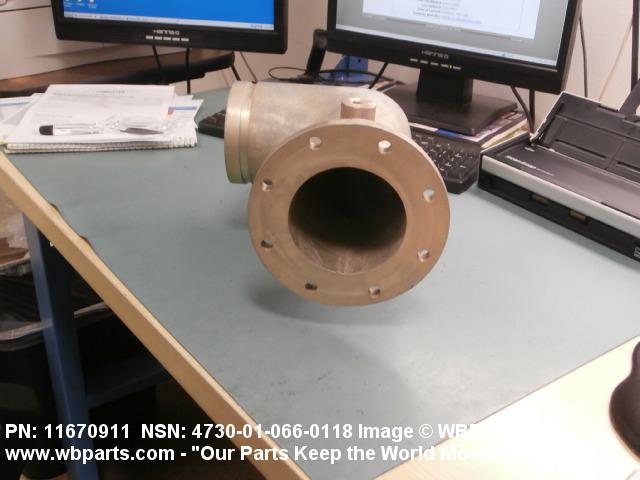

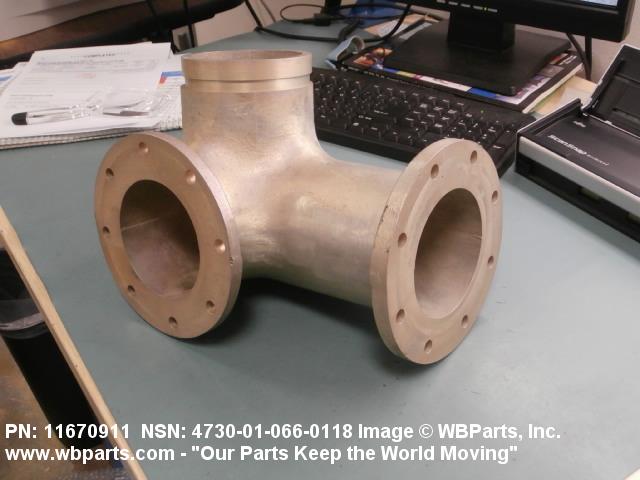

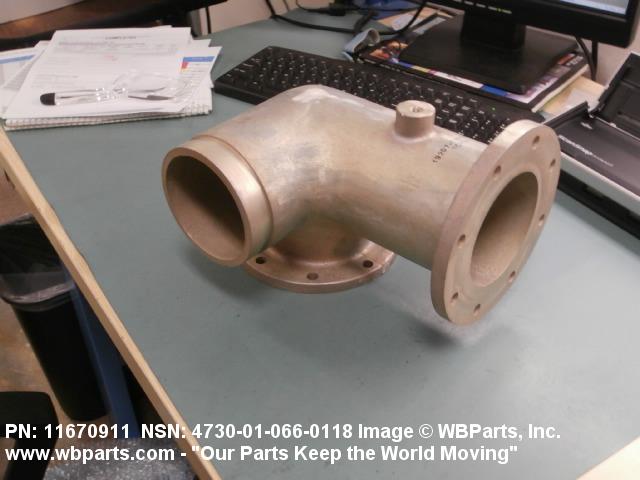

4730-01-066-0118 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. It has flange connections on both ends designed to connect with another flange connection, or a compression type mounting pad. It may have side and/or heel inlet(s).
Part Alternates: 11670911, 4730-01-066-0118, 01-066-0118, 4730010660118, 010660118
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 SEP 1978 | 01-066-0118 | 29664 ( ELBOW, FLANGE ) |

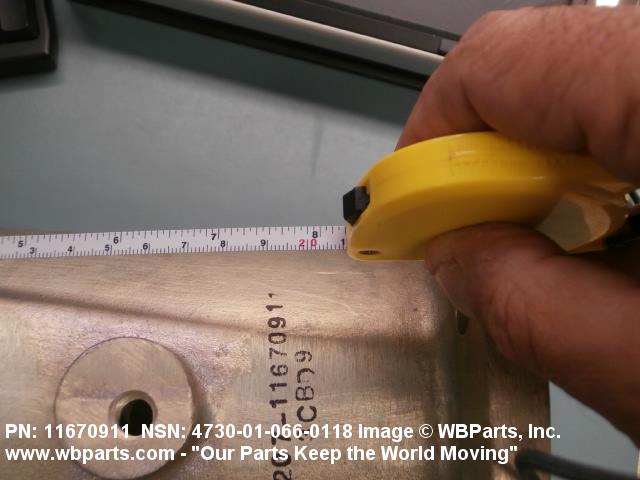

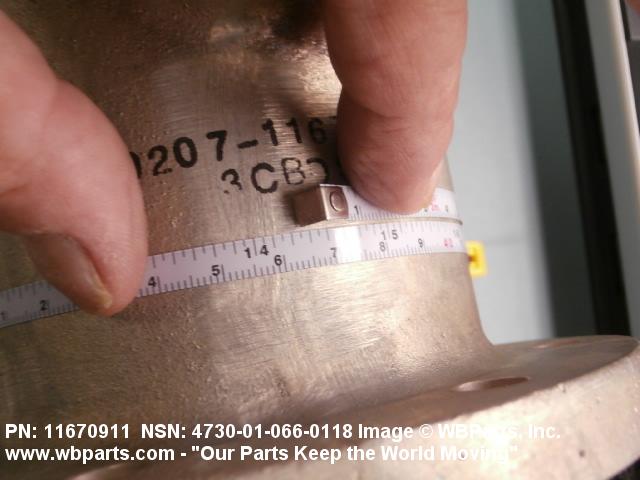

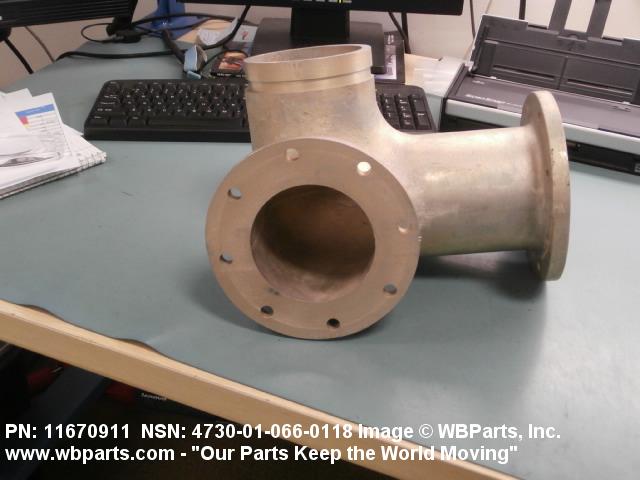

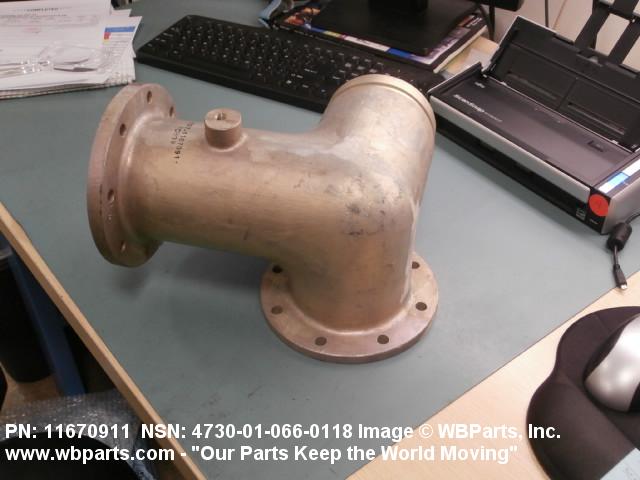

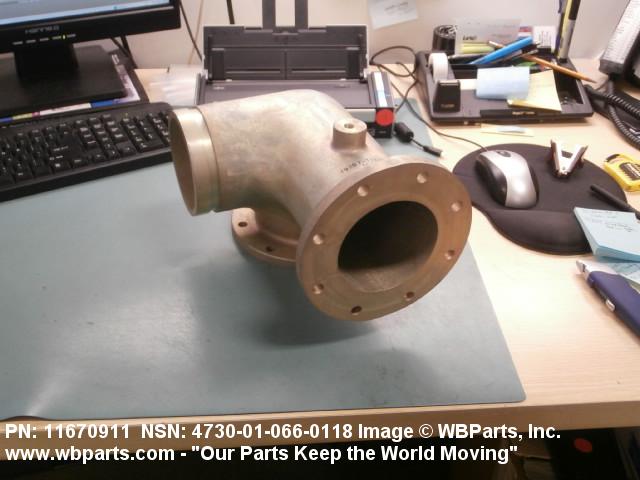

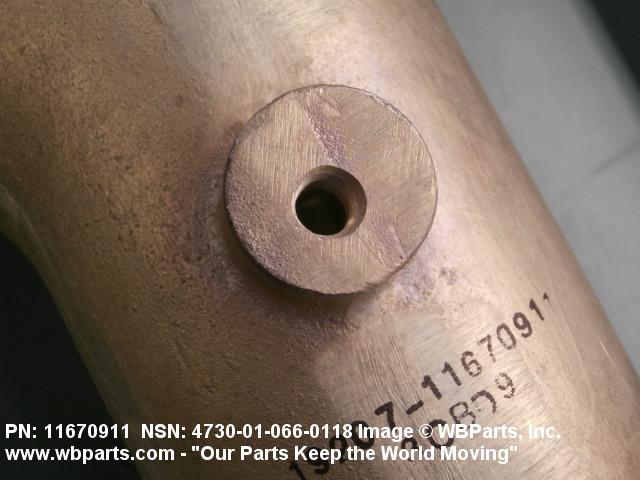

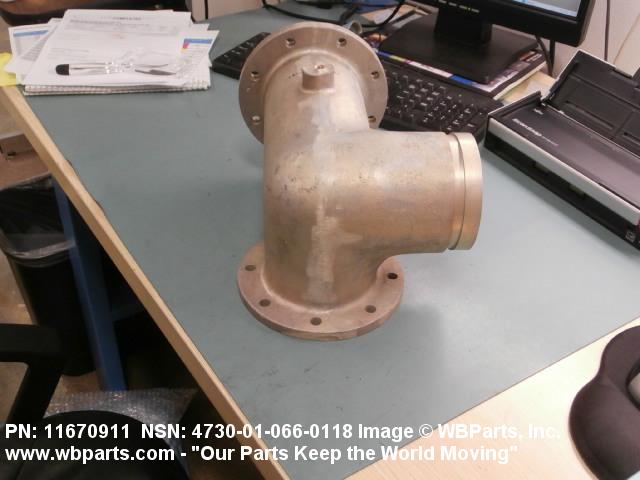

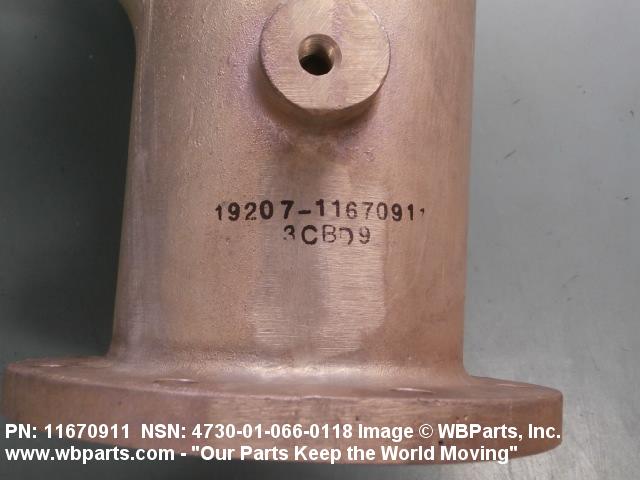

Drawings & Photos | NSN 4730-01-066-0118
Demand History | NSN 4730-01-066-0118
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-066-0118 | 2015-07-210 | 14 | DIBBS |
| 4730-01-066-0118 | 2015-05-148 | 22 | DIBBS |
| 4730-01-066-0118 | 2015-05-137 | 22 | DIBBS |
| 4730-01-066-0118 | 2014-11-313 | 64 | DIBBS |
| 4730-01-066-0118 | 2014-10-279 | 17 | DIBBS |
| 4730-01-066-0118 | 2014-09-267 | 17 | DIBBS |
| 4730-01-066-0118 | 2013-10-288 | 1 | us |
| 4730-01-066-0118 | 2011-06-165 | 76 | DIBBS |
| 4730-01-066-0118 | 2011-05-146 | 13 | DIBBS |
| 4730-01-066-0118 | 2011-03-73 | 21 | US |
| 4730-01-066-0118 | 2011-03-73 | 25 | DIBBS |
| 4730-01-066-0118 | 2011-01-31 | 7 | United States |
| 4730-01-066-0118 | 2010-04-116 | 1 | DIBBS |
| 4730-01-066-0118 | 2008-12-343 | 11 | DIBBS |
Cross Reference | NSN 4730-01-066-0118
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11670911 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-066-0118
Related Products | NSN 4730-01-066-0118
Technical Data | NSN 4730-01-066-0118
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 328.0 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-601,TEMPER F FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| INLET LOCATION | RIGHT-HAND SIDE |
| CONNECTION TYPE | FLANGE ALL ENDS UNTHREADED EXTERNAL TUBE INLET |
| CONNECTION STYLE | B101A GROOVED INLET |
| SEAT ANGLE | 90.0 DEGREES INLET |
| FLANGE SHAPE | ROUND WITH HOLES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER | 6.880 INCHES ALL ENDS |
| NOMINAL THICKNESS | 0.500 INCHES 1ST END |
| BOLT HOLE QUANTITY | 8 ALL ENDS |
| BOLT HOLE NOMINAL DIAMETER | 0.439 INCHES ALL ENDS |

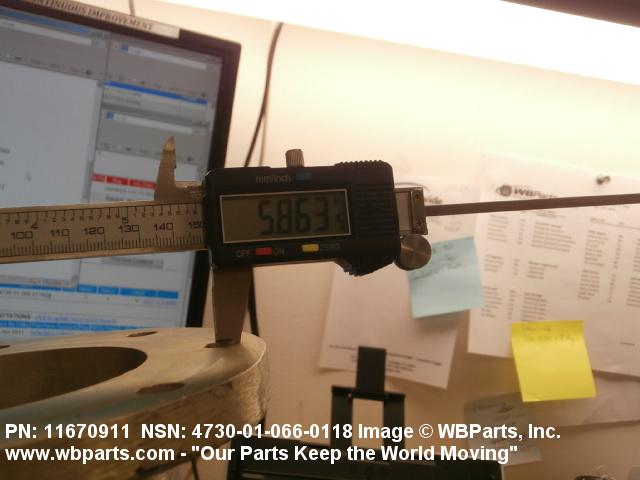

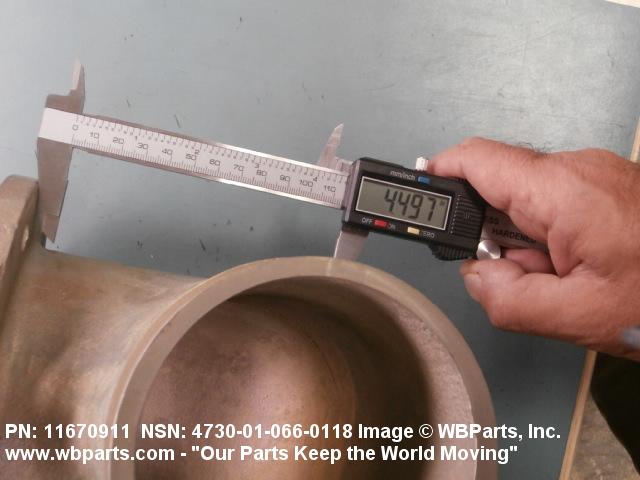

| BOLT CIRCLE NOMINAL DIAMETER | 5.880 INCHES ALL ENDS |
| FLANGE FACE DESIGN | PLAIN ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 4.500 INCHES INLET |
| TUBING WALL NOMINAL THICKNESS FOR WHICH DESIGNED | 0.250 INCHES INLET |

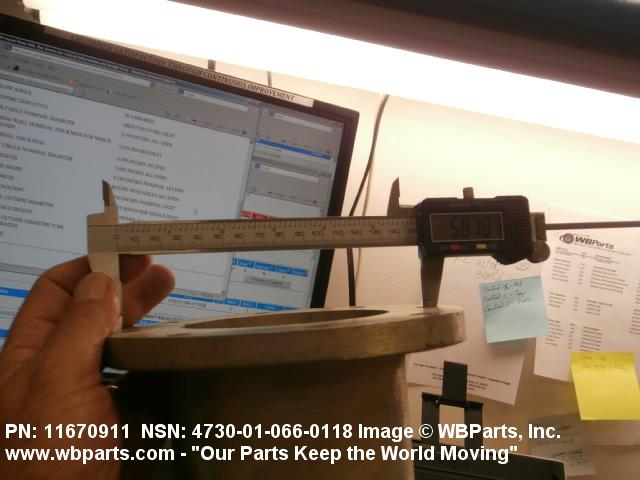

| LEG LENGTH | 8.250 INCHES NOMINAL 1ST END 5.500 INCHES NOMINAL 2ND END 4.500 INCHES NOMINAL INLET |
| FLOW ANGLE | 90.0 DEGREES |
