NSN 4730-00-306-3797 347231, 00-306-3797, 003063797
Product Details | FLANGE ELBOW

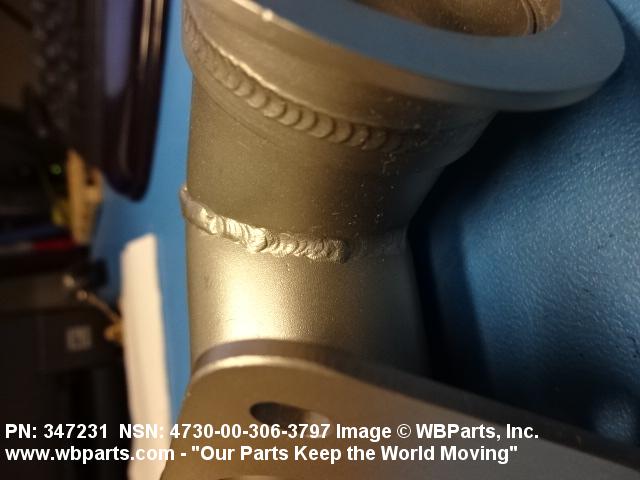

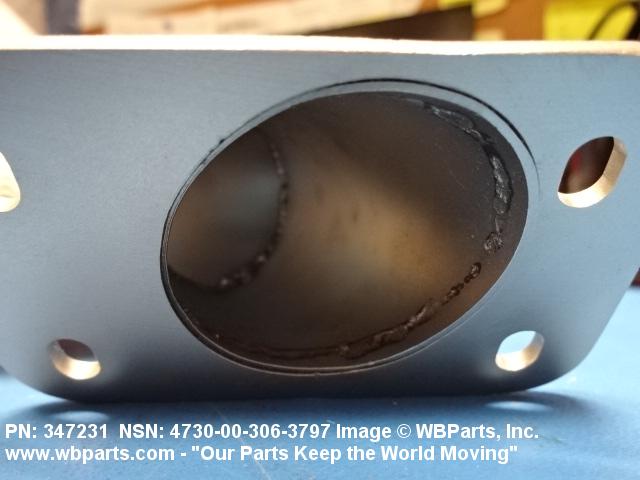

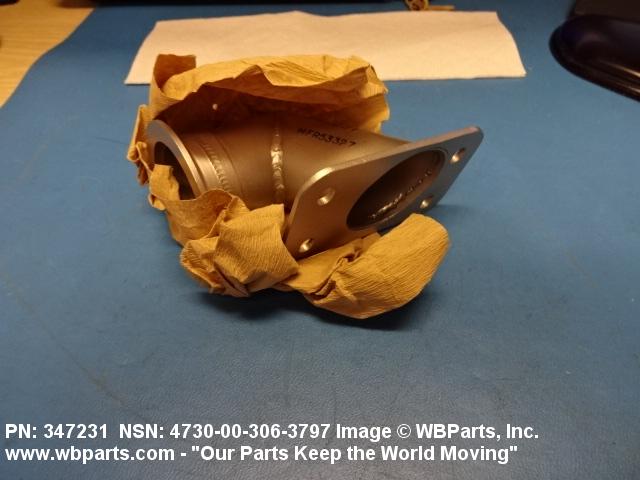

4730-00-306-3797 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. It has flange connections on both ends designed to connect with another flange connection, or a compression type mounting pad. It may have side and/or heel inlet(s).
Part Alternates: 347231, 4730-00-306-3797, 00-306-3797, 4730003063797, 003063797
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-306-3797 | 29664 ( ELBOW, FLANGE ) |

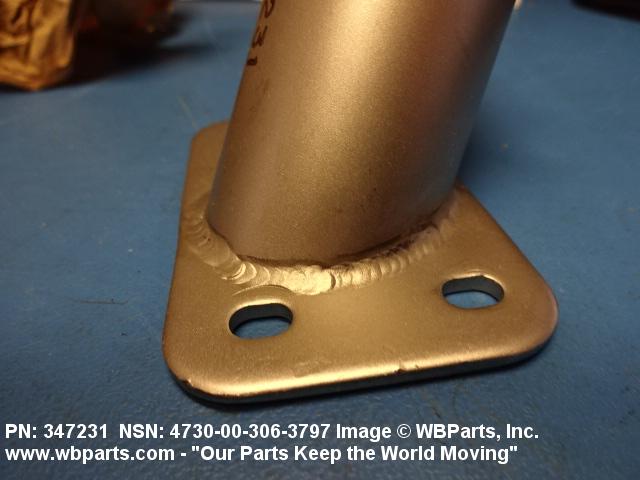

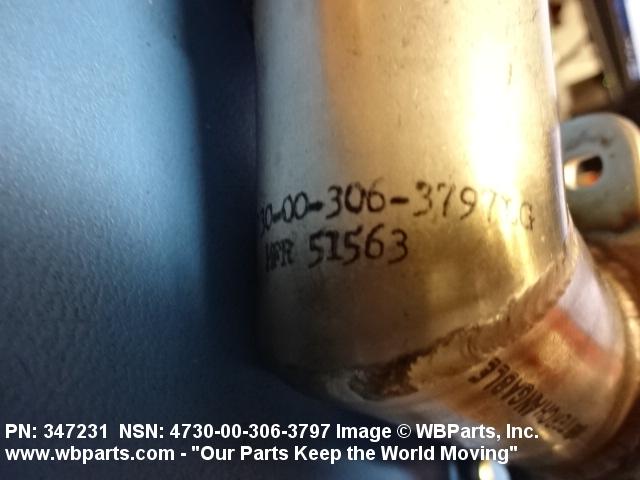

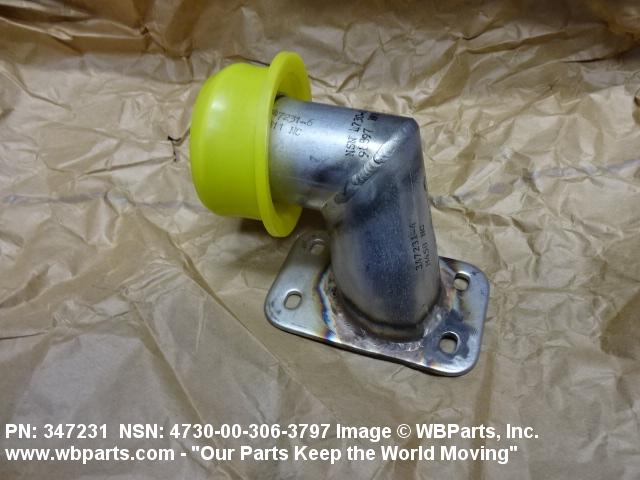

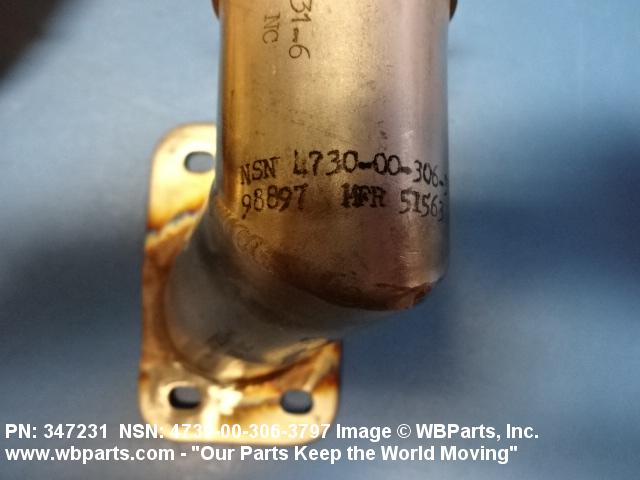

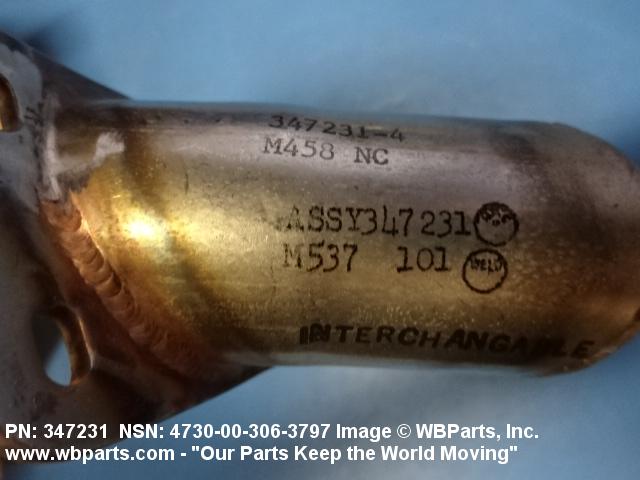

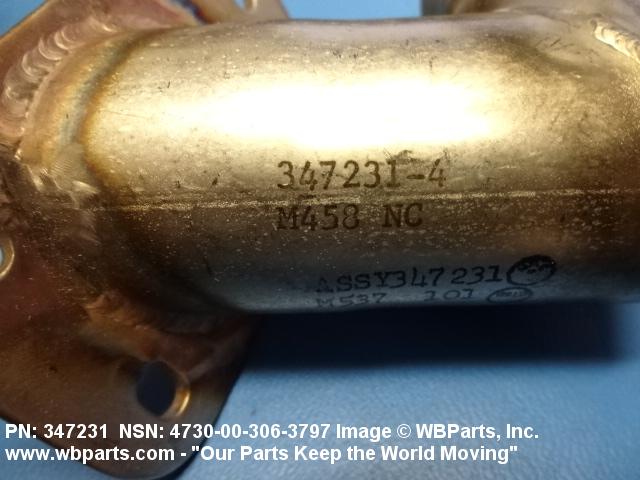

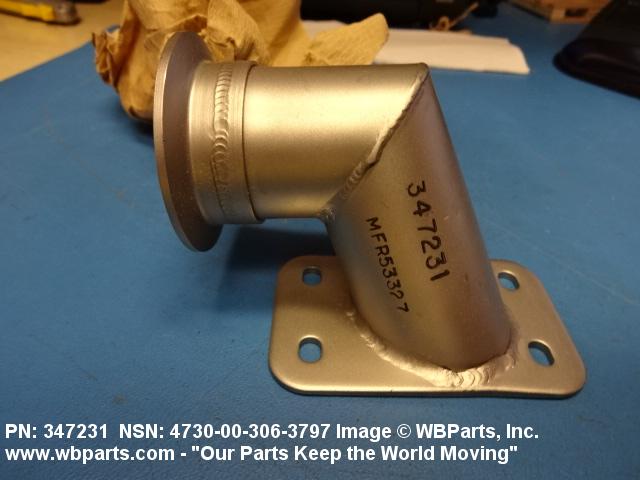

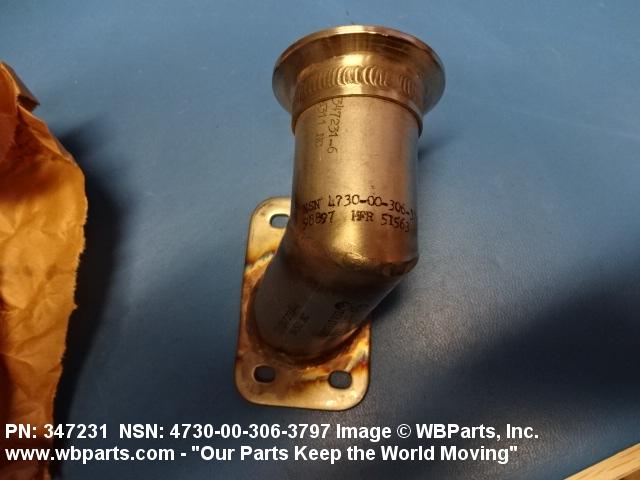

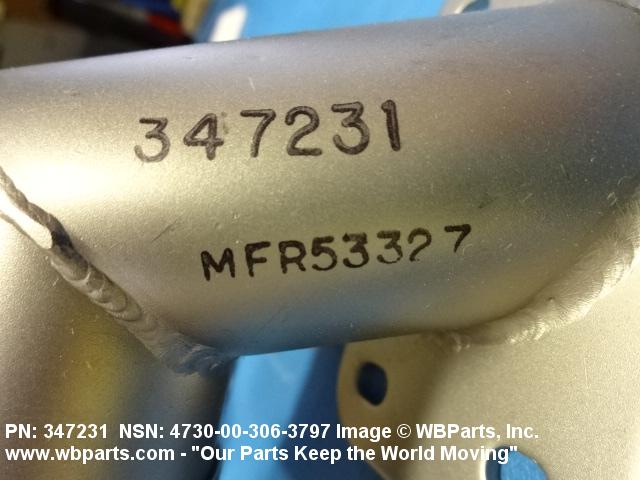

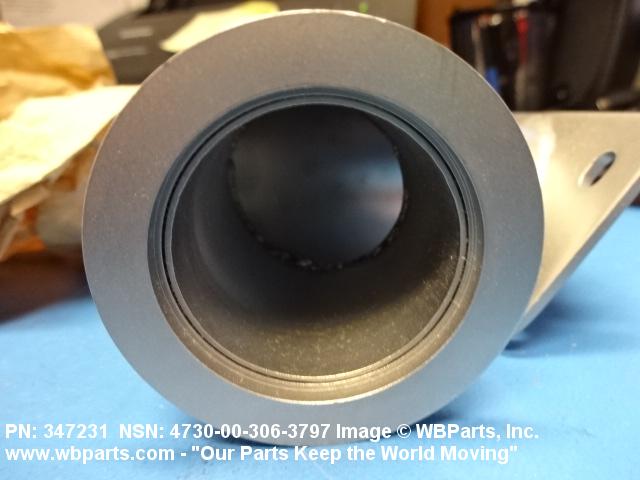

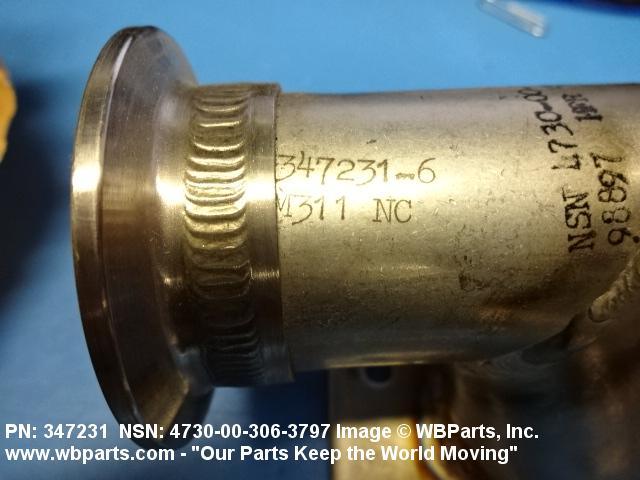

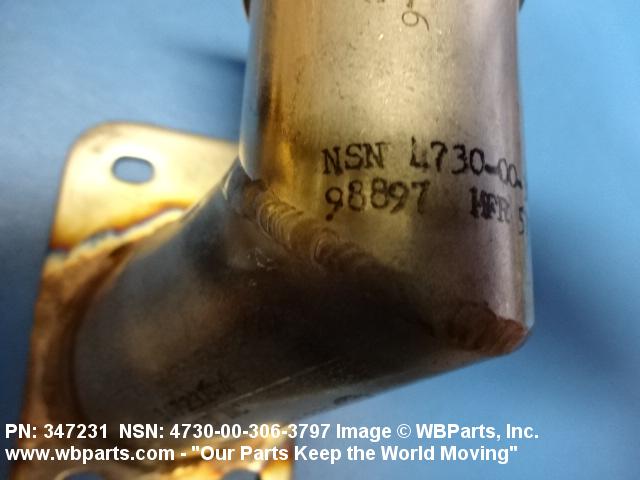

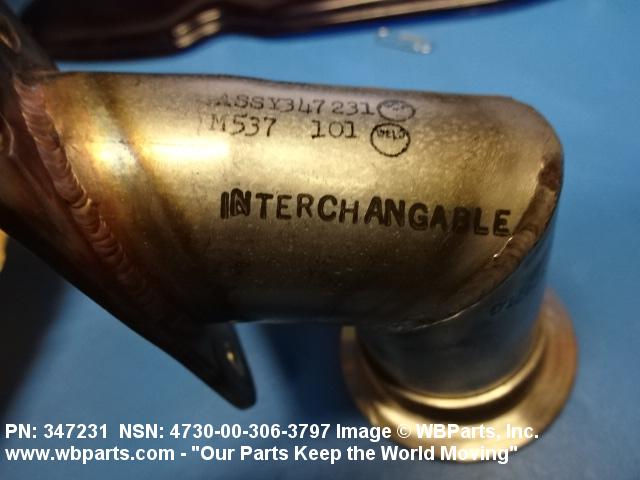

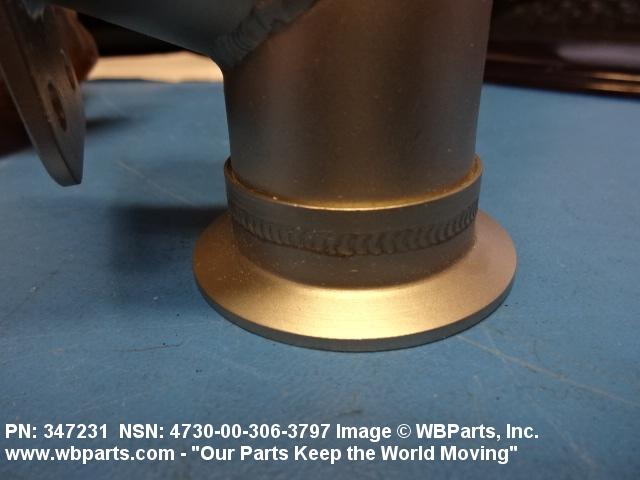

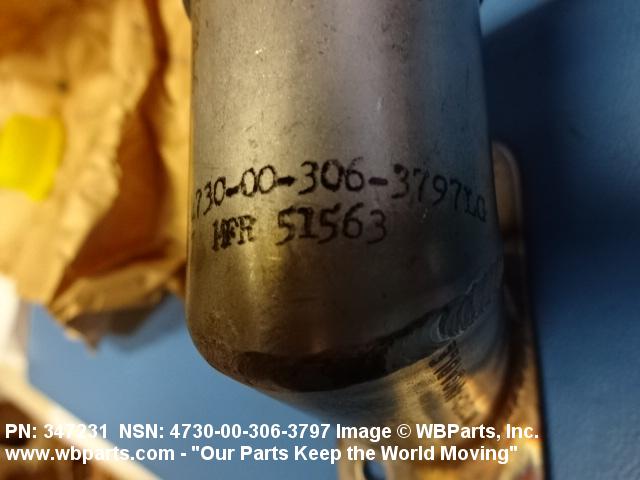

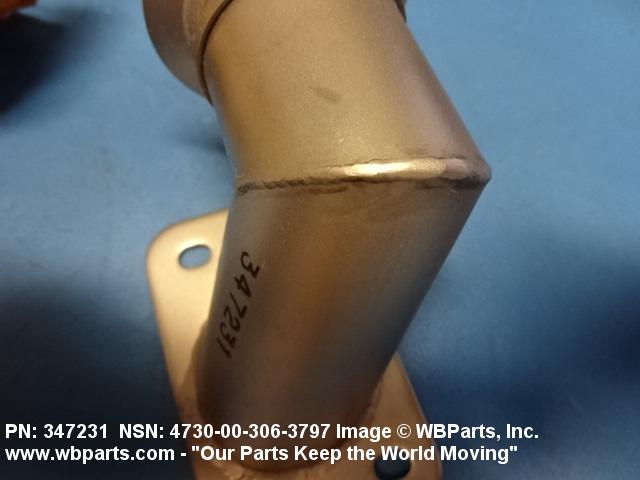

Drawings & Photos | NSN 4730-00-306-3797
Demand History | NSN 4730-00-306-3797
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-306-3797 | 2020-10-299 | 11 | DIBBS |
| 4730-00-306-3797 | 2019-11-328 | 27 | DIBBS |
| 4730-00-306-3797 | 2018-11-319 | 31 | DIBBS |
| 4730-00-306-3797 | 2018-11-316 | 13 | DIBBS |
| 4730-00-306-3797 | 2018-10-284 | 13 | DIBBS |
| 4730-00-306-3797 | 2018-05-122 | 13 | DIBBS |
| 4730-00-306-3797 | 2018-01-31 | 9 | DIBBS |
| 4730-00-306-3797 | 2017-08-213 | 11 | United States |
| 4730-00-306-3797 | 2016-11-308 | 18 | DIBBS |
| 4730-00-306-3797 | 2016-04-111 | 9 | DIBBS |
| 4730-00-306-3797 | 2014-03-79 | 8 | DIBBS |
Cross Reference | NSN 4730-00-306-3797
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 347231 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-306-3797
Related Products | NSN 4730-00-306-3797
Technical Data | NSN 4730-00-306-3797
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-T-8606 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| CONNECTION TYPE | FLANGE 1ST END |
| FLANGE SHAPE | RECTANGULAR WITH HOLES 1ST END ROUND WITH HOLES 2ND END |
| NOMINAL OUTSIDE DIAMETER | 2.192 INCHES 2ND END |
| NOMINAL THICKNESS | 0.125 INCHES 1ST END |
| NOMINAL LENGTH | 3.220 INCHES 1ST END |
| NOMINAL WIDTH | 2.000 INCHES 1ST END |
| BOLT HOLE QUANTITY | 4 1ST END |
| CENTER TO CENTER NOMINAL DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 2.380 INCHES 1ST END |
| CENTER TO CENTER NOMINAL DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 1.100 INCHES 1ST END |
| FLANGE FACE DESIGN | PLAIN 1ST END |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 347231 |
Restrictions/Controls & Freight Information | NSN 4730-00-306-3797
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
