NSN 4730-01-054-6040 F0M1088576, 1088576 , 01-054-6040
Product Details | FLUID PASSAGE BOLT
4730-01-054-6040 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: F0M1088576, 1088576 , 4730-01-054-6040, 01-054-6040, 4730010546040, 010546040
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 22 JAN 1978 | 01-054-6040 | 18683 ( BOLT, FLUID PASSAGE ) |
Drawings & Photos | NSN 4730-01-054-6040
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-054-6040
Technical Data | NSN 4730-01-054-6040
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE GR 5 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |

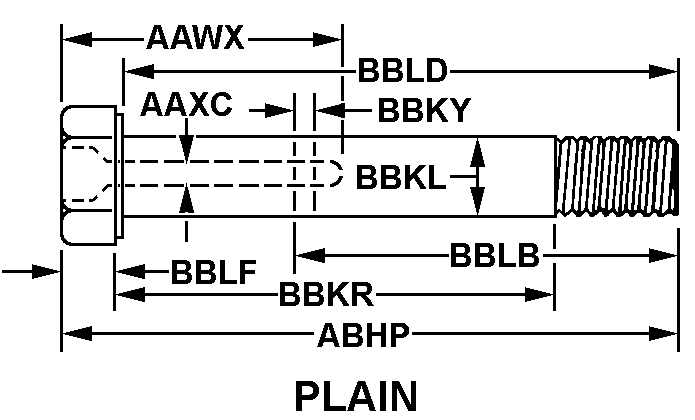

| BODY STYLE | 4 PLAIN |
| CONCENTRIC HOLE DEPTH | 2.328 INCHES MINIMUM AND 2.359 INCHES MAXIMUM |
| CONCENTRIC HOLE DIAMETER | 0.125 INCHES NOMINAL |
| OVERALL LENGTH | 4.889 INCHES MINIMUM AND 4.955 INCHES MAXIMUM |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.741 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 2.562 INCHES MINIMUM AND 2.656 INCHES MAXIMUM |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.125 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 2.656 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 4.406 INCHES MINIMUM AND 4.500 INCHES MAXIMUM |
| WRENCHING FEATURE HEIGHT | 0.455 INCHES MINIMUM AND 0.483 INCHES MAXIMUM |
| SECOND END CONNECTION TYPE | THREADED INTERNAL PIPE |

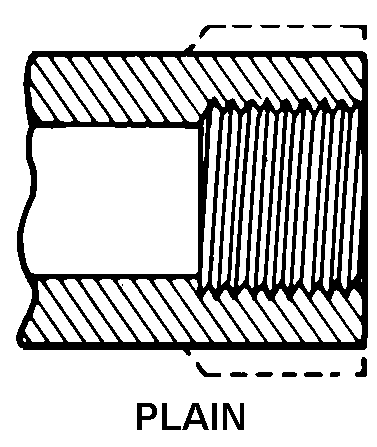

| SECOND END STYLE DESIGNATOR | C10 PLAIN |
| SECOND END THREAD SERIES DESIGNATOR | NPT |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| WRENCHING FEATURE STYLE | 1 HEXAGON |
| WIDTH ACROSS FLATS | 1.100 INCHES MINIMUM AND 1.125 INCHES MAXIMUM |
| COTTER PIN HOLE DIAMETER | 0.203 INCHES NOMINAL |
| DISTANCE FROM BOLT END TO HOLE CENTER | 0.219 INCHES NOMINAL |
| SPECIAL FEATURES | 1ST END CONNECTION UNTHREADED |
Restrictions/Controls & Freight Information | NSN 4730-01-054-6040
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
